Home > Products > 1.2 M3 Mini concrete mixer machine HW-C120 for best prices

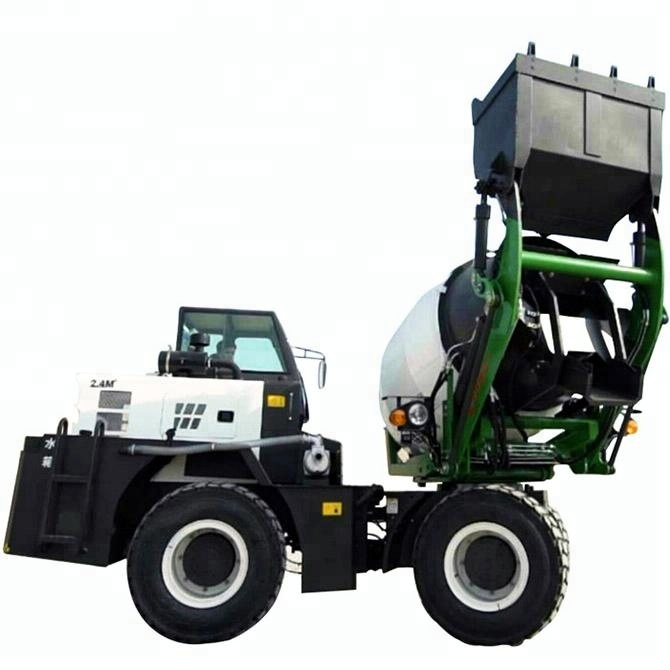

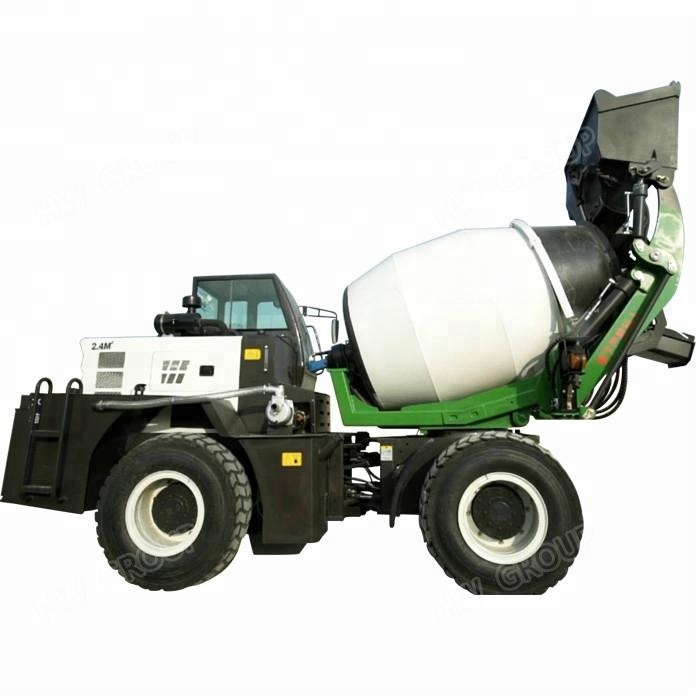

1.2 M3 Mini concrete mixer machine HW-C120 for best prices
Click on the image to view the original image
Product： views：41.2 M3 Mini concrete mixer machine HW-C120 for best prices
Branch： HengWang
Size： 610X185X300 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:38
  Negotiated
Product Details
Overview
Quick Details
Charging Capacity:
1.4m³
Reclaiming capacity:
1.2m³
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HengWang
Motor Power:
18.5kw
Speed of Mixing Drum:
14r/min
Water Supply Mode:
Water Pump
Working Cycle Period:
30-40s
Discharge Way:
4*4
Outline Dimension:
6100*1850*3000mm
Engine type/displacement:
CF4B68G-Z-13B2/CF4C100T-Z-13B2
Rated power:
55kw/2400 78KW/2400
Max torque:
255/1500-1800 380/1500-1800
Climbing capacity:
26 degree
Weight:
4600kg

Packaging & Delivery

Selling Units:
Single item
Single package size:
610X185X300 cm
Single gross weight:
4600.0 kg
Package Type:
Single item
Lead Time:
Quantity(Set)1 - 1>1
Est. Time(days)5To be negotiated
Product Description

HW brand concrete mixer machine mobile self loading concrete mixer truck

Combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.
Advantage:
1. Italy leading design, automatic feeding mixing system
2. Simple and convenient operation
3. High efficiency output, save time and labor, save cost
4. The perfect combination of mixing truck and loading car.

Main Technical Parameters for  concrete mixer truck
Specification

Unit
Parameter
Actual stirring capacity
m³
1.2m³
Rotary drum capacity
m³
1.4m³
degree of bias

°
16
Rotation speed
r/min
0-14
Direction of rotation
Feed: Clockwise Outfeed: Counterclockwise
Mixer blade

Two spiral blades and four auxiliary blades
Concrete slump
mm
70-260
Hydraulic power Transimission System
pump model
CBGV-4025
Hydraulic Motor model
BMSS-250
Reducer speed ratio
1:10
Water supply System
Water tank capacity
L
540/Self-contained automatic water supply system
Chassis main performance parameters Engine main performance parameters
Engine model/displacement
L
CF4B68G-Z-13B2/CF4C100T-Z-13B2
Model
Direct injection four-stroke water-cooled supercharged diesel engine
Rated power
kw/r/min
55KW/2400 78KW/2400
Maximum torque
N.m/r/min
255/1500-1800 380/1500-1800
Maximum travel speed
km/h
24
Minimum turning radius
mm
5000
Grade ability
%
26
Tires
23.5/70-16
Drive form
4x4
Vehicle equipment quality
kg
4580
Maximum loading quality
kg
2800
The maximum total vehicle mass
kg
7380
Overall vehicle dimensions (L*W*H)
mm
6100*1850*3000

We have many different types like 5.5m³/4m³ /3.2m³ /2.6Cm³ /2.4m³/2.0Cm³ /1.8m³

Please contact Bryant Zheng about the details-Your mechanical professional consultant

Email:hw020AThengwanggk.com         Whatsapp/Wechat: +8617686192378

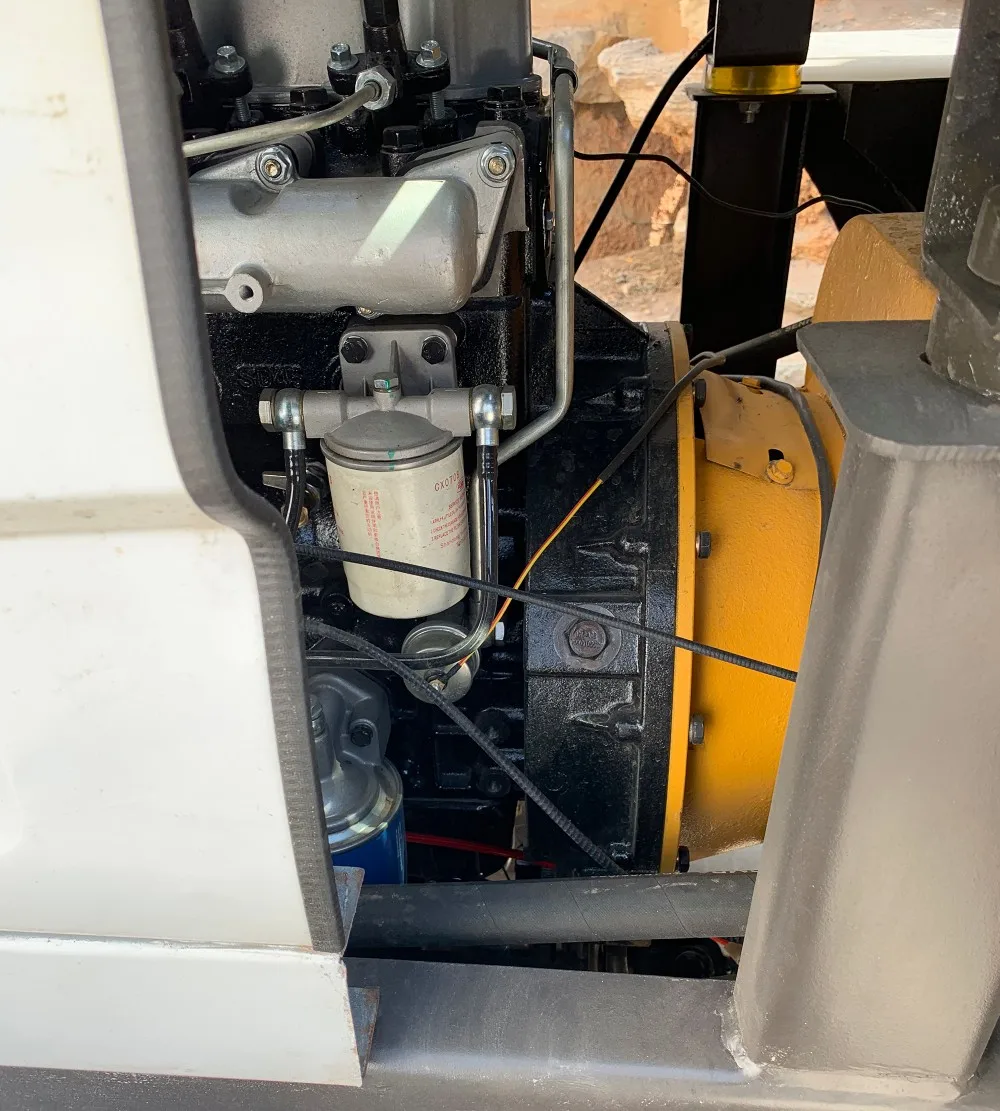

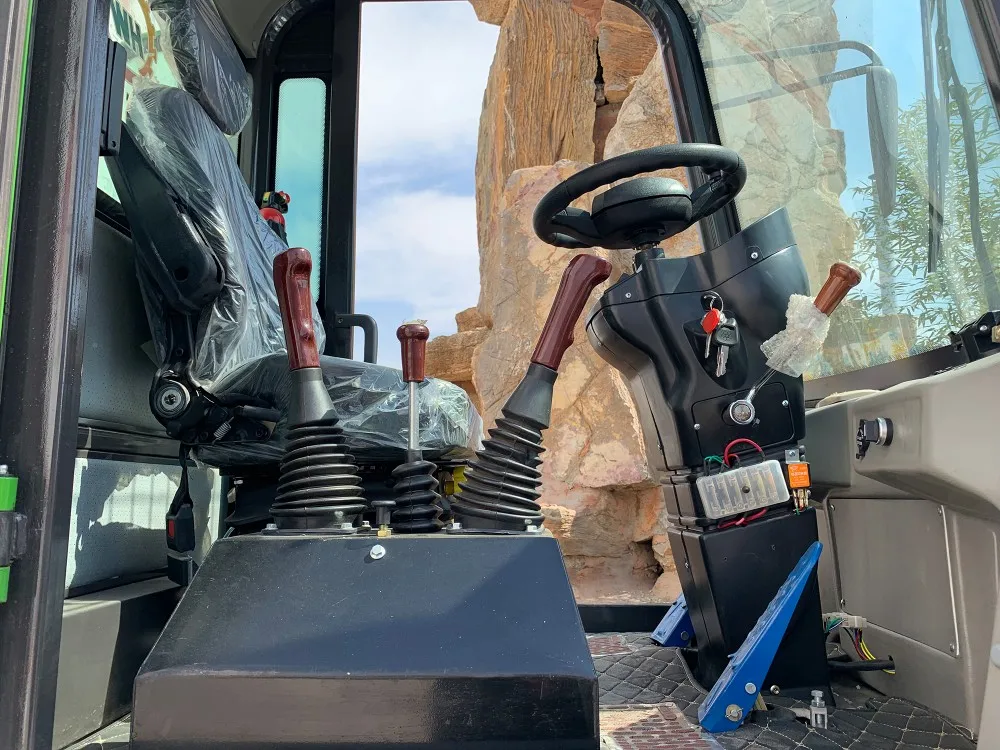

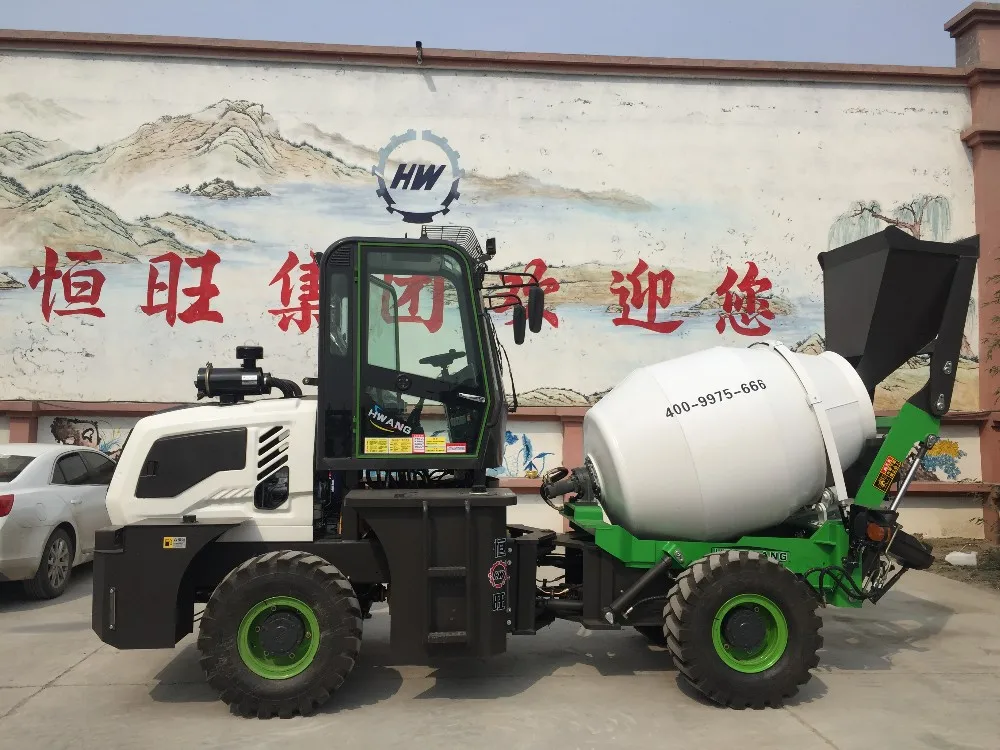

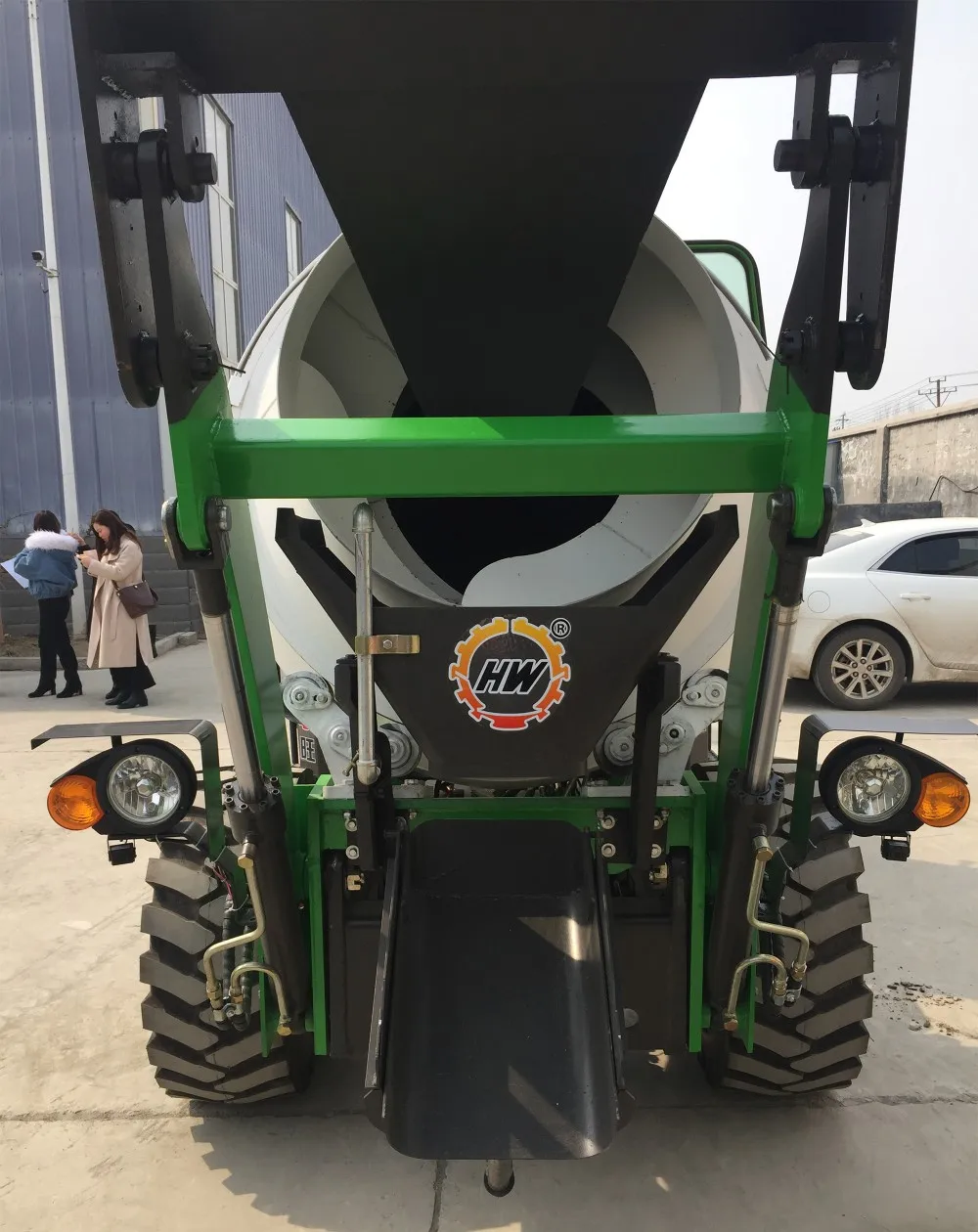

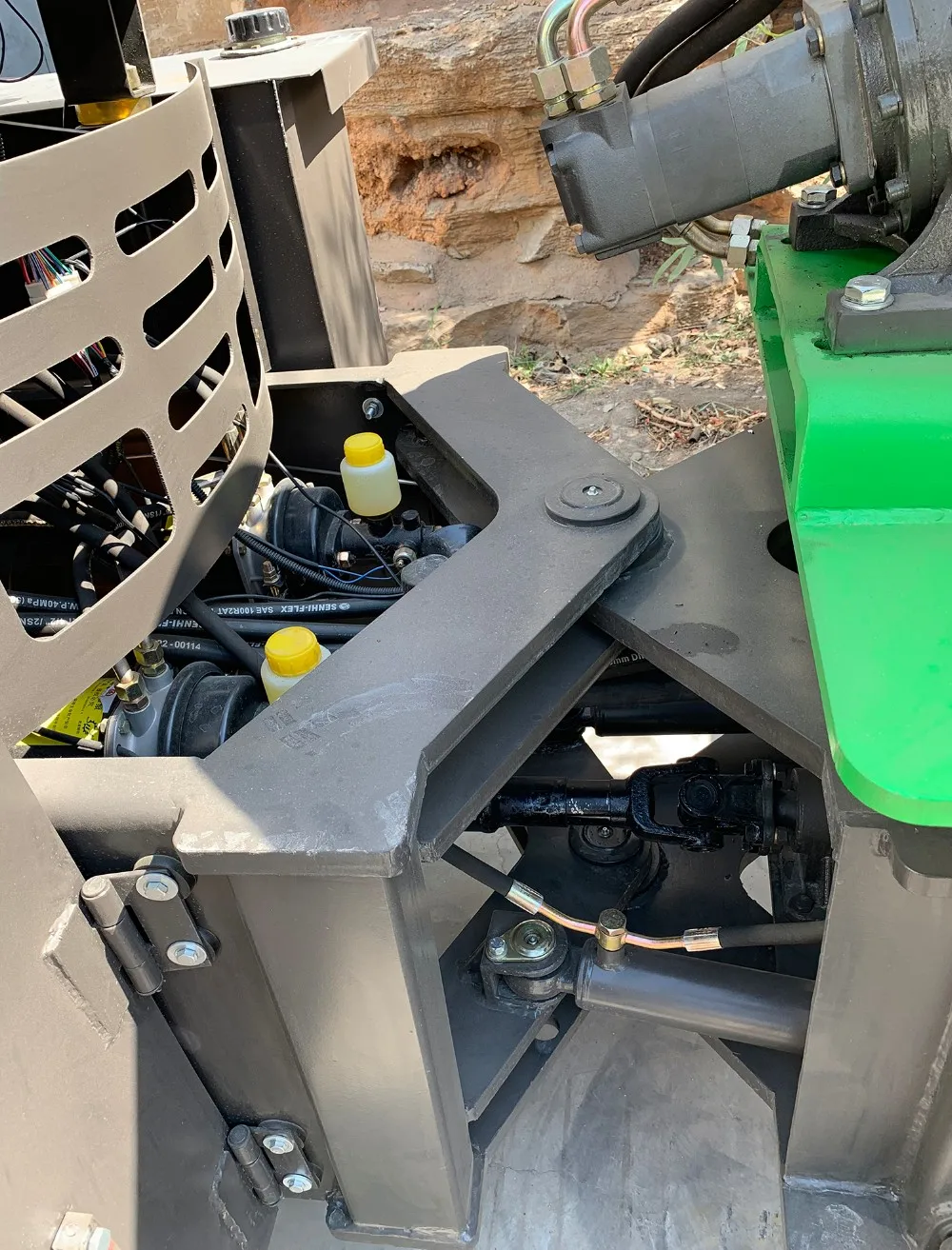

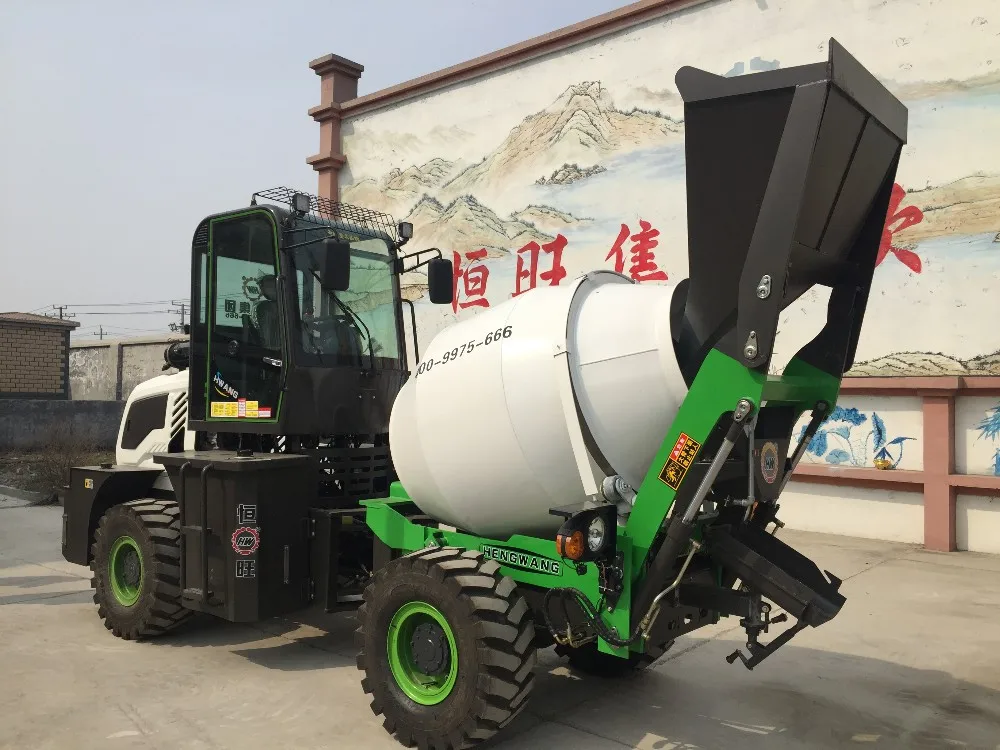

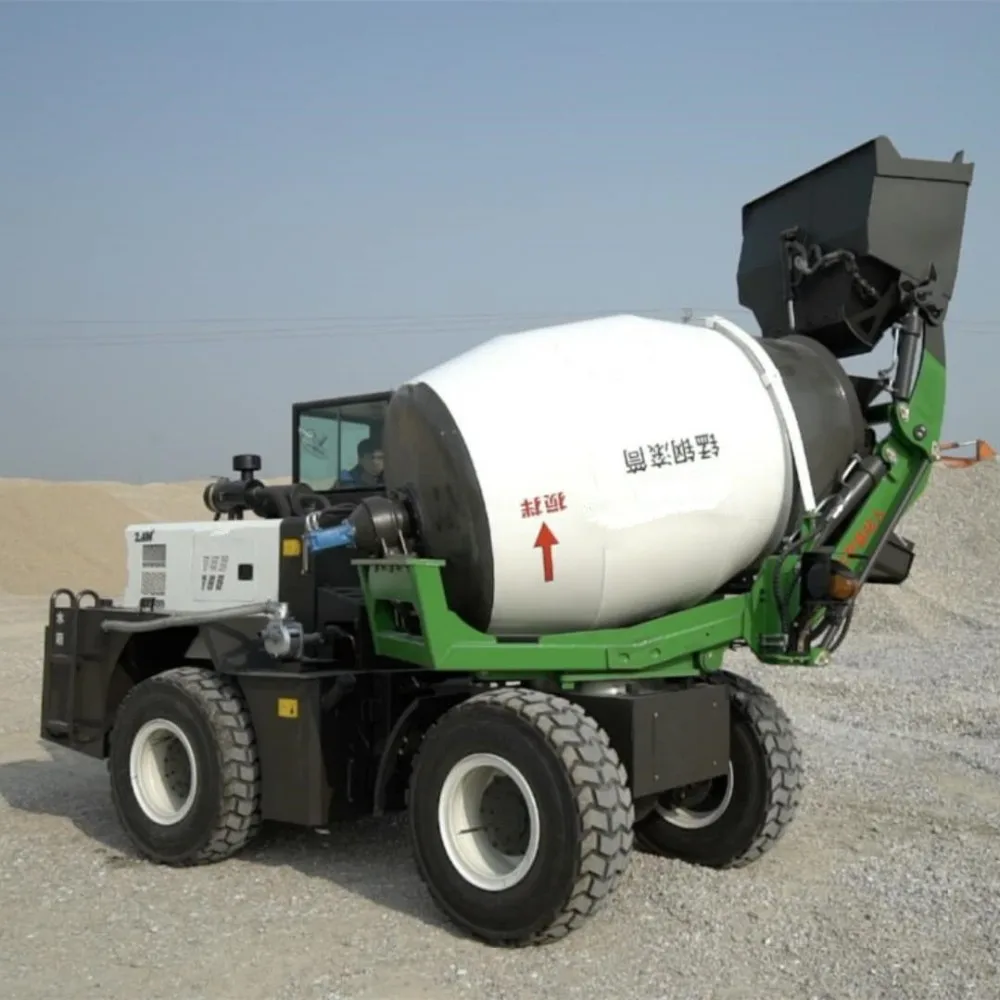

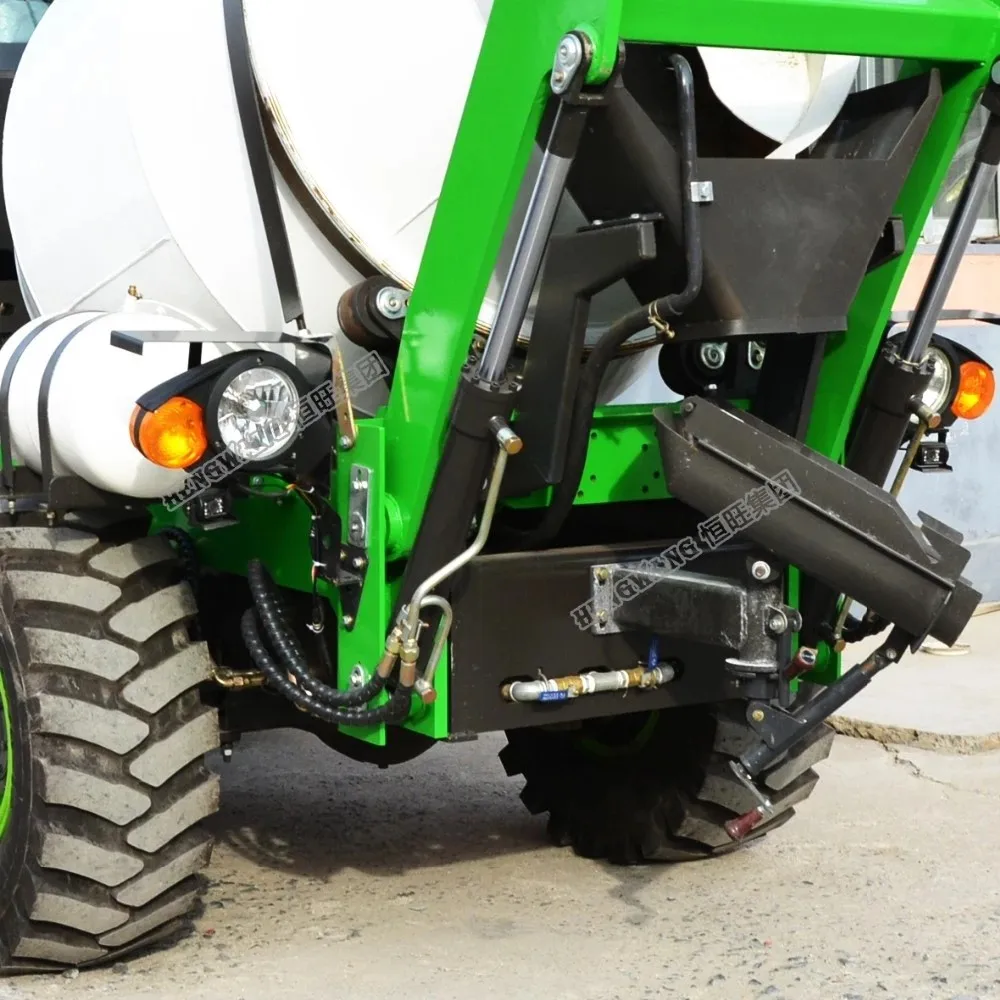

Detailed Images
Certifications
Our Company
Payment & Credit

To protect your benefit!

1. Unconditionally refunding your money, in 7 days after paying.
2. Unconditionally refunding your money, if you are not satisfied with quality after receiving goods.
3. Alibaba Trade Assurance Order online is supported and welcomed, your money will be in safety.

1 YEAR WARRANTY , If any parts break down within warranty we will send you free part !!!

Although out of the WARRANTY, we can offer you the part in cost price !!!

Packing & Delivery
