- Machine Weight:
- 1700kg
- Dimension(Long * Breadth * High):
- 4540*1650*2580mm
- Warranty:
- 1 Year
- After-sales Service Provided:
- Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
- Condition:
- New
- Brand Name:
- HengWang
- Place of Origin:
- Shandong, China
- Type:
- Front Loader
- Moving Type:
- Wheel Loader
- Certification:
- CE ISO
- Engine powder:
- 20kw
- Dump distance:
- 750mm
- Wheel base:
- 2600mm
- Dump height:
- 2900mm
- Max.turning angle:
- 35+_1
- Capacity of load bucket:
- 0.55M3
- Minimum turning radius:
- 4400
- Engine model:
- L28M
- Rated speed (r/min):
- 2300
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 454X165X258 cm
- Single gross weight:
- 1700.0 kg
- Package Type:
- 1 set in a 20GP container, 3 sets in a 40HQ container.
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 10 To be negotiated

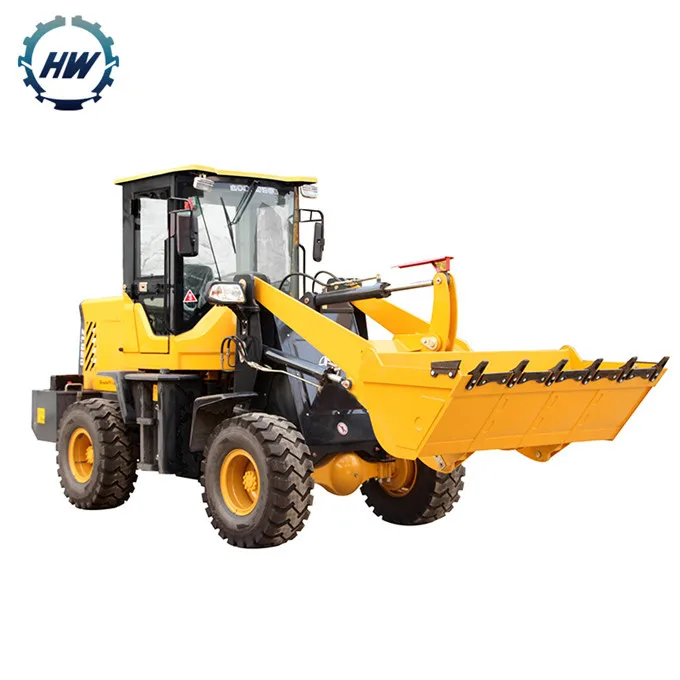

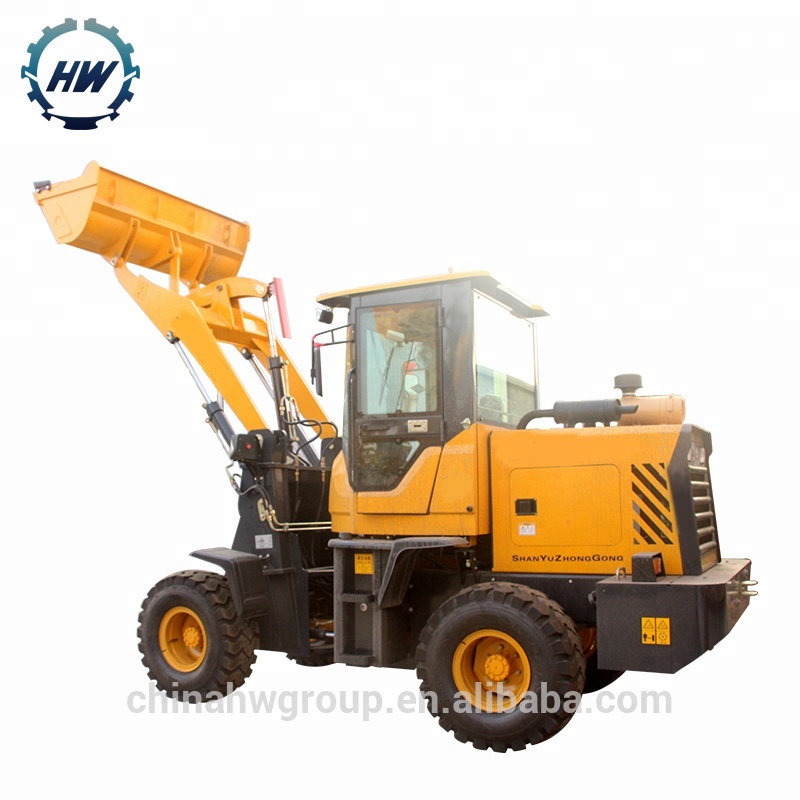

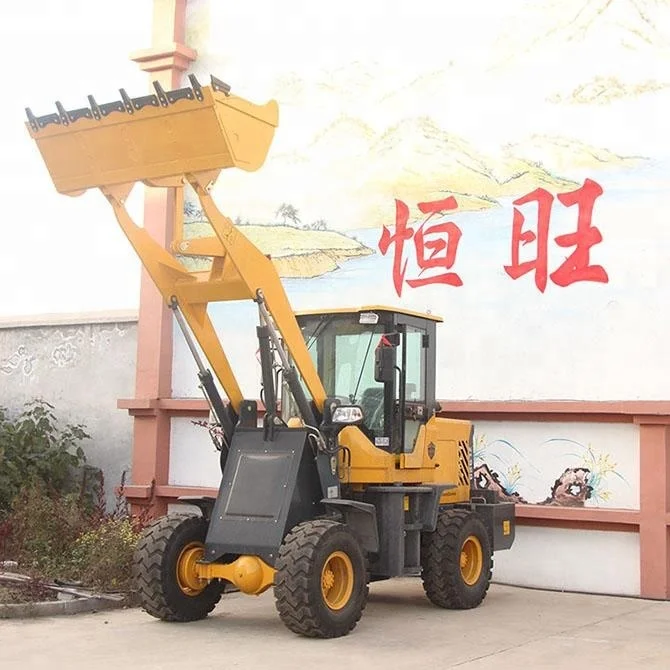

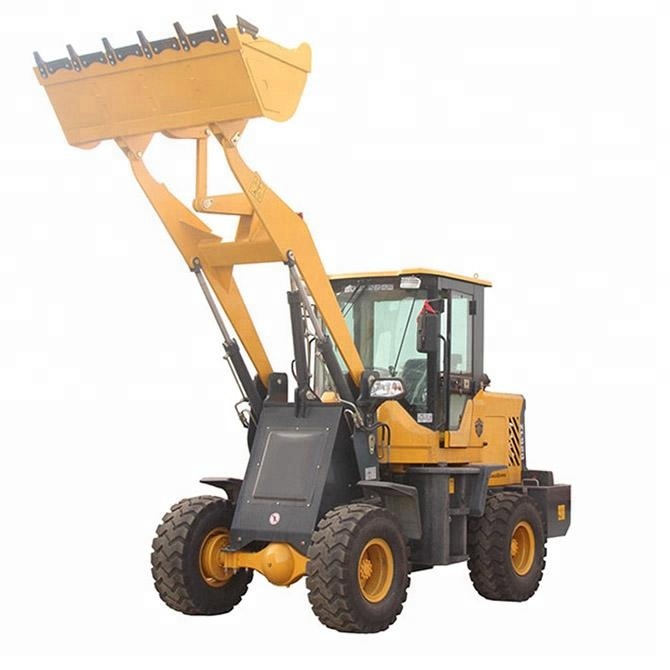

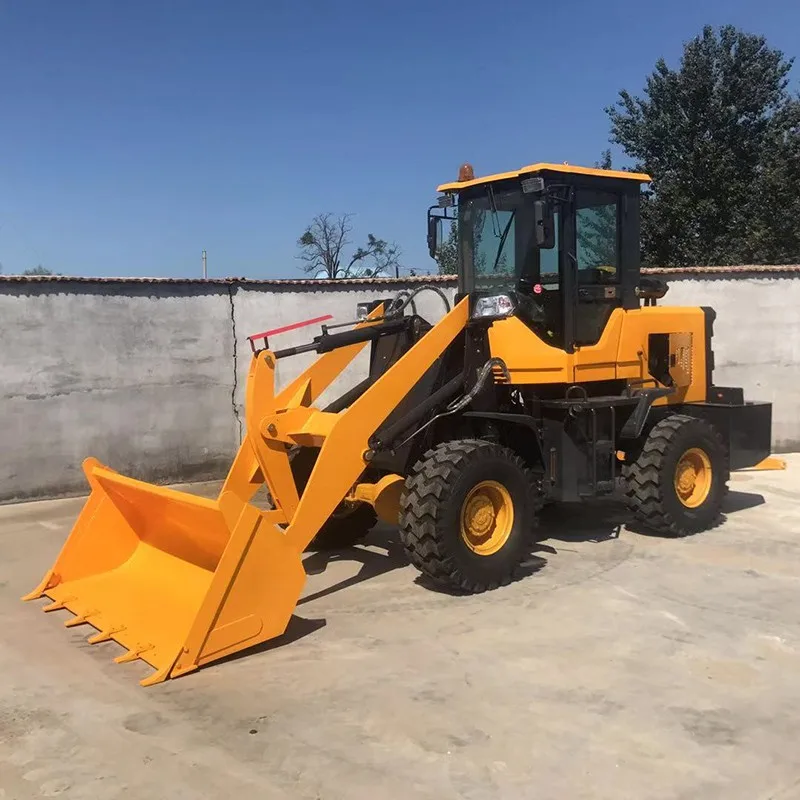

HW 910 Wheel Loader
1:The loader machine adopts the complete machine is rationally distributed and compact; it is comfortable and convenient to handle,the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy,the forest farm, the military project, and so on.
2:It also can be used in carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise.
3:Match with high quality engine, low, low blow off of noise, driving force forceful, twist from when reserve is big. The driving force loader special use fixing an axis changes the gear speed change box, structure is compact, drive is efficient, structure stiffness is big, life-span is long.
4:The dyadic center equidistance hinge joint fleet of carriage, makes turn the radius is small, the expedient function is good.The drive"s cab, wide vision, air-conditioning, operation environment sealing off subtraction vibrating, allocating are comfortable, safe. Various machines and tools such as may select and use for –in-one bucket, breaking a hammer to pieces, the function are especially all in readiness.

SPECIFICATIONS FOR HW-910 WHEEL LOADER | |||
Model | HW-910 | Total time | 12s |
Rated capacity | 0.55m3 | Engine model | CF28 |
Rated load | 1000kg | Tyre size | 1000-16 |
Transporation | 4750*1650*2390mm | Engine power | 20.5 kw/rpm |
Dump height | 2800mm | Max. climbing angle | 28° |
Dump distance | 800mm | Turning angle | 35° |
Wheel base | 1350mm | Min. clearance ground | 2500mm |
Tread | 2020mm | Max. walking speed | 28km/h |
Max.breakout force | 36KN | Total machine weight | 2220kg |



Machine Parts
Name: Front frame of wheel loader
Brand: HW
Original: China
New thickened tiger head front frame, more sturdy.
Main Features
Name: Big arm for wheel loader
Brand: HW
Original: China
The new big arm is widened for smoother lines.


Machine Parts
Name: Articulated slab of wheel loader
Brand: HW
Original: China
The hinged plate is thickened and the hinged shaft is designed with joint shaft.
Main Features
Name: Tire of wheel loader
Brand: HW
Original: China
Exclusive custom widened tires, larger, wider and more wear resistant than the same level.
