Home > Products > 2.4 CBM Automatic Self Feeding Concrete mixer Truck Conrete mixer Truck
2.4 CBM Automatic Self Feeding Concrete mixer Truck Conrete mixer Truck
Click on the image to view the original image
Product: views:42.4 CBM Automatic Self Feeding Concrete mixer Truck Conrete mixer Truck
Size: 635X251X2285 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 05:38
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shandong, China
After-sales Service Provided:
Engineers available to service machinery overseas
Mixer Volume:
2.4 cub
Hydraulic Motor Model:
BM5-400
Hydraulic Pump Model:
CBGV-4025
Tank Rotaring speed:
10-20 r/min
Water tank capacity:
540L
Truck Max.travelling speed:
24km/h
Engine Rated power:
70KW
Warranty:
1Year
Slump of concrete:
70-260mm
Drove type:
4*4 Wheel

Packaging & Delivery

Selling Units:
Single item
Single package size:
635X251X2285 cm
Single gross weight:
5600.0 kg
Package Type:
Standard Package
Lead Time:
Quantity(Set)1 - 1>1
Est. Time(days)5To be negotiated
Product Description

2.4 CBM Automatic Self Feeding Concrete mixer Truck Conrete mixer Truck

Advantage:

   1). Using hydraulic transmission device, do not rely on external force, easy to

use, continuous rotation of the tank during transport, commercial concrete
does not precipitate, not segregation.
  2). Easy to operate, a handle to achieve centralized control of mixing tank,
the configuration mature and reliable, easy maintenance.
  3). Low noise, no smoke, safe and reliable.
  4). The use of high-intensity wear-resistant steel plate mixing tank, durable.
  5). Unique inlet setting, easy to spread material.
  6). Small size, transport flexibility, easy operation and maintenance, power
consumption, energy-saving effect is remarkable.
  7). Blade design is reasonable, the discharge residue rate is low
2.4 m³ Automatic Feeding Concrete mixer Truck
Model Type
HW24
Mixer Volume
2.4 m³
Tank Rotational  speed
10-20 r/min
Mini Steering Radius
4500 mm
Engine Rated Power
78KW
Slump of concrete
70-260mm
Max.travelling speed
24km/h
Water tank capacity
540L
Warranty
1 Year
Full Size
6350*25110*2850
Truck Weight
5550kg
Loading Weight
5600kg
Max Toatal Weight
11150kg
Loading Bucket  Capacity
0.5 m³

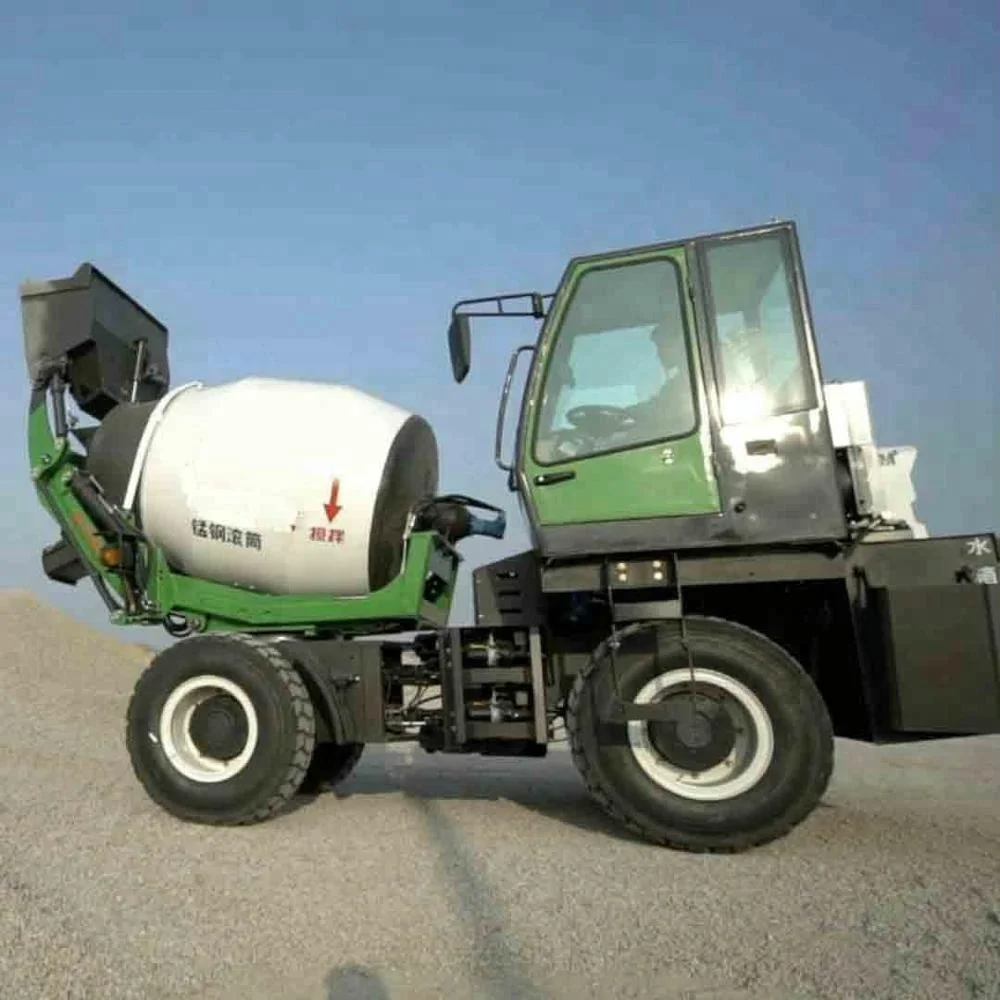

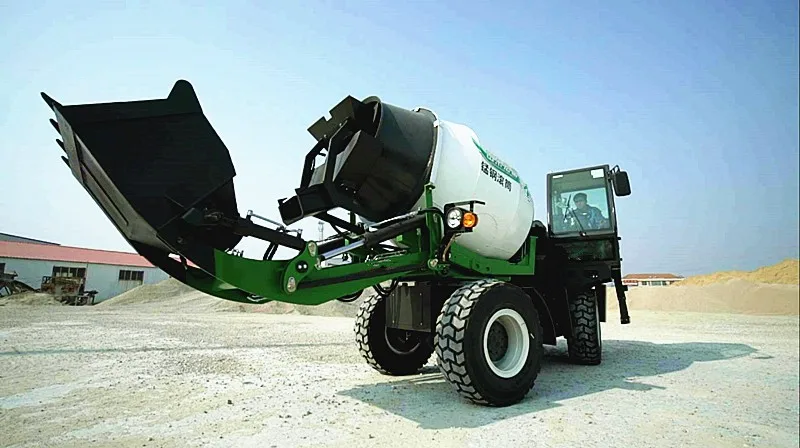

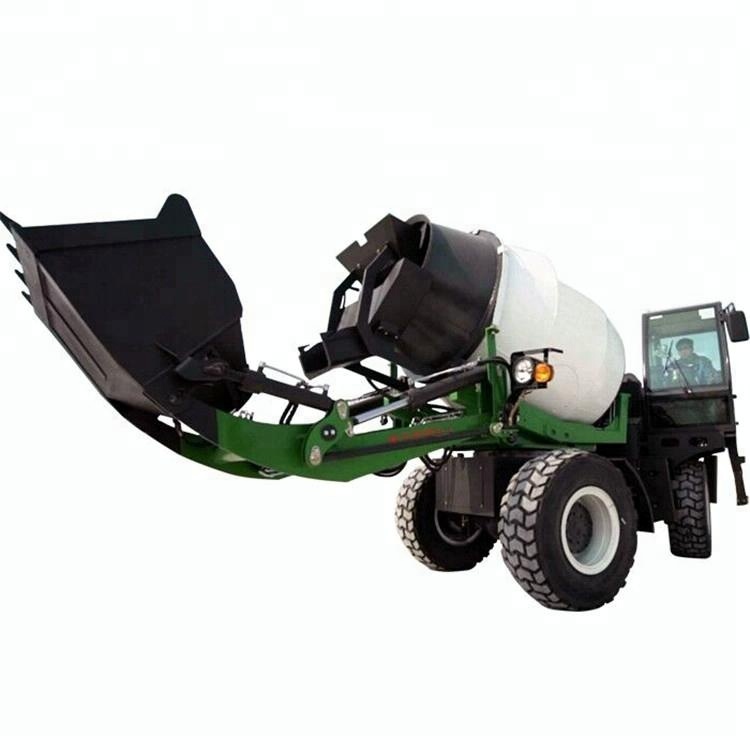

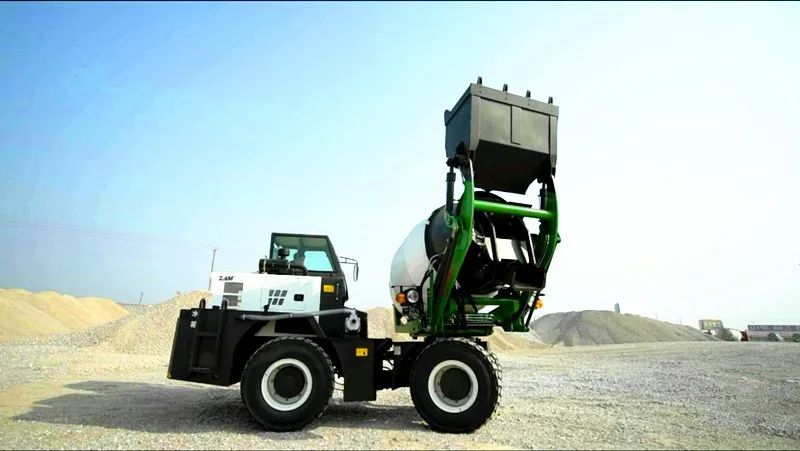

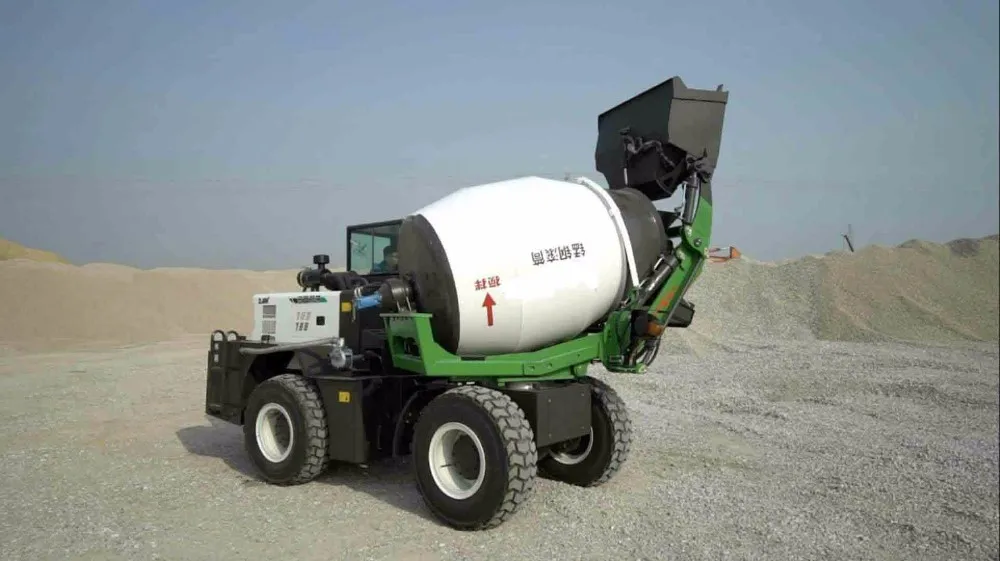

Detailed Images
