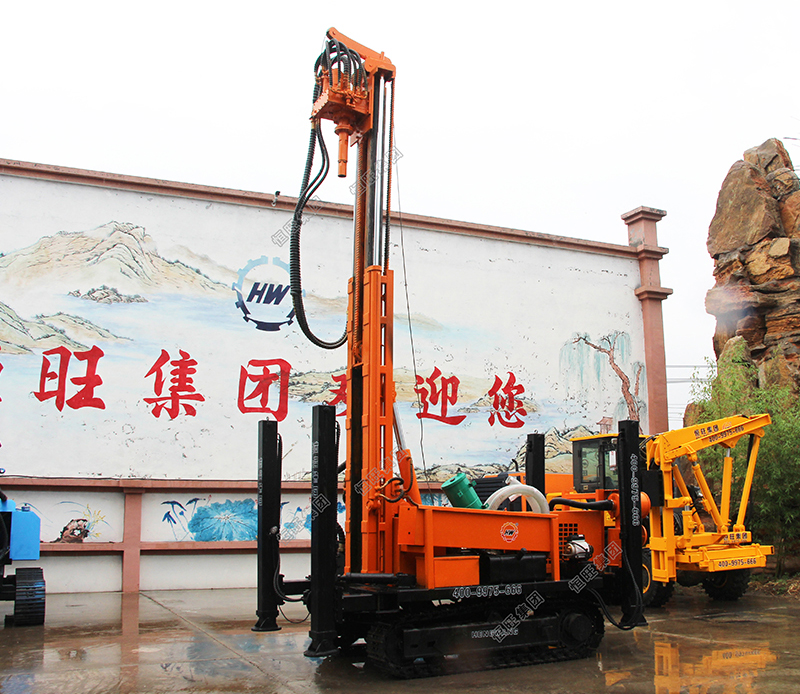

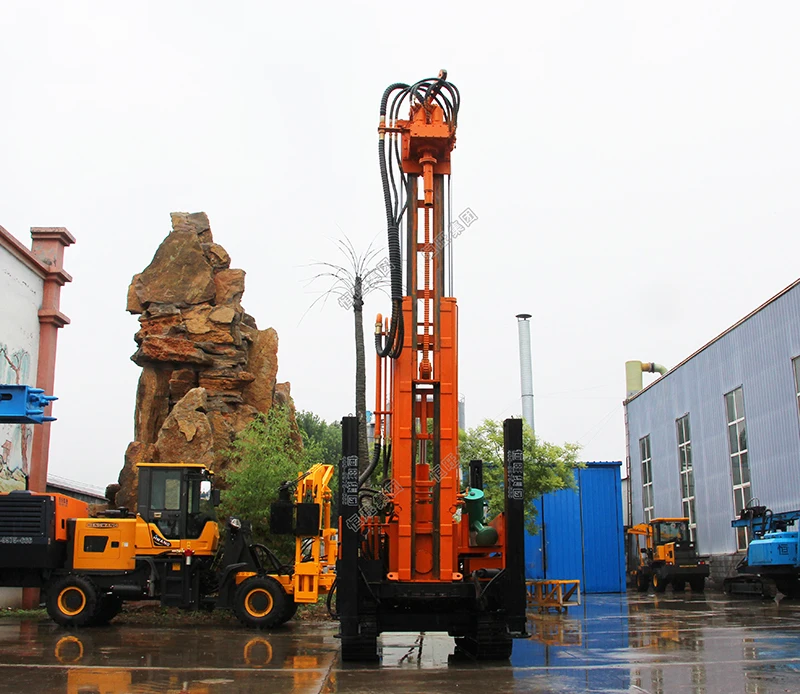

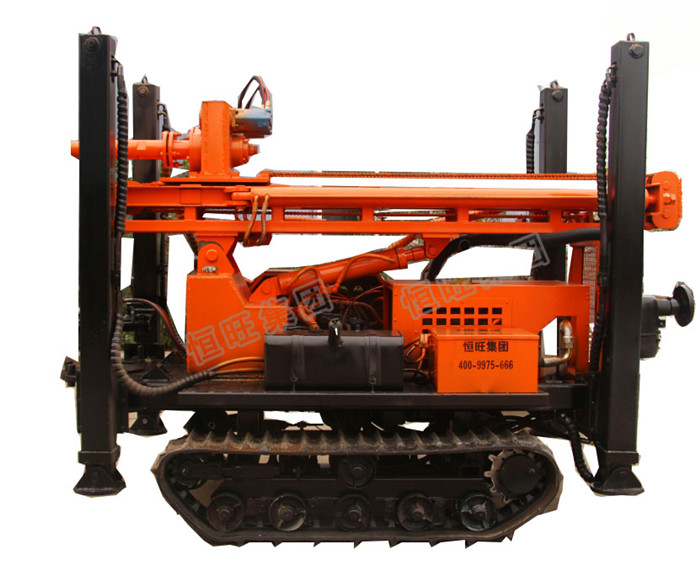

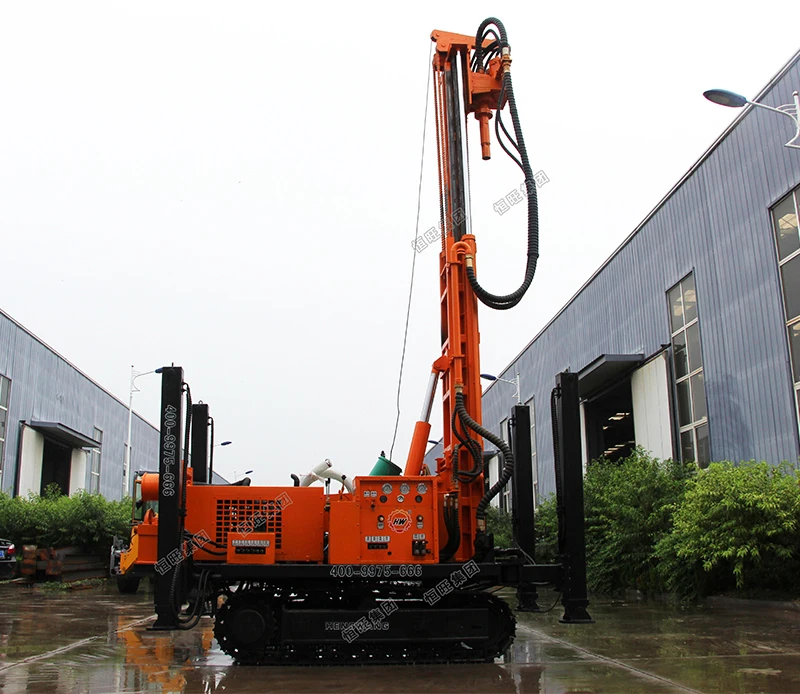

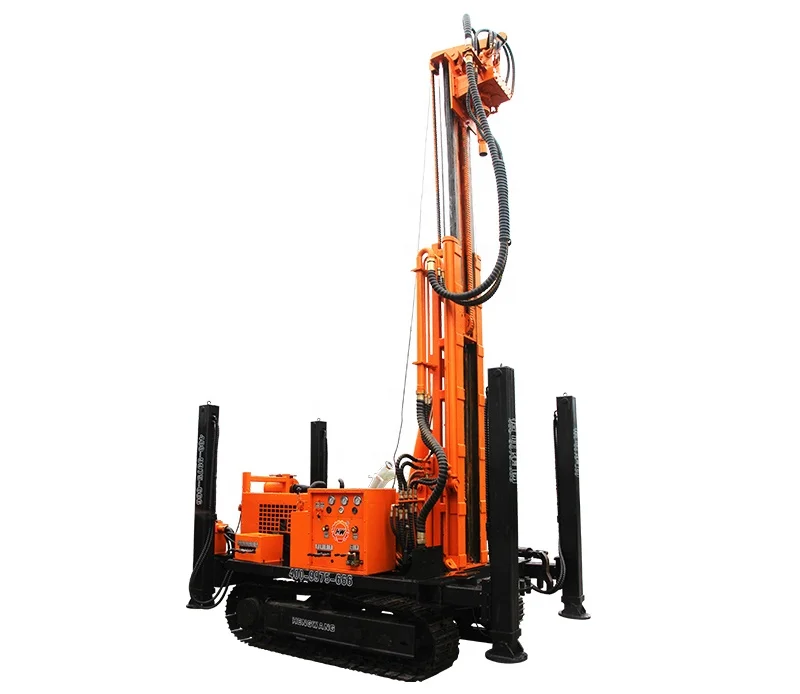

HQZ180L Pneumatic crawler drilling Rig mobile water well drill rig

Click on the image to view the original image

Product：	views：5HQZ180L Pneumatic crawler drilling Rig mobile water well drill rig
Branch：	HW
Size：	380X170X250 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:38

Product Details

Overview

Quick Details

Piling Speed(m/min):: 1m/min

Efficiency:: High effiencty

After-sales Service Provided:: Video technical support, Online support

Warranty:: 1 Year, 12 Months

Condition:: New

Place of Origin:: China

Brand Name:: HW

Weight:: 4.2T, 4.2T

Dimension(L*W*H):: 3.8*1.7*2.5m

Certification:: ISO

Model:: HQZ180L

Drilling depth:: 180m

Drilling Diameter:: 130-294mm

Drill forward speed:: 1m/min

Engine Power:: 60KW

Walking Speed:: 2.5km/h

Rotary Speed:: 48-70rpm

Rotary Torque:: 400-5600 N.m

Packaging & Delivery

Selling Units:: Single item

Single package size:: 380X170X250 cm

Single gross weight:: 4200.0 kg

Package Type:: Standard Package

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	5	To be negotiated

Product Description

Advantage
1. Very powerful at soil, sand, hard rock, etc. land condition.
2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available
for your choice, which can drill both soft and hard ground, especially diamond
drill bit effective in drilling hard rocks.
3. Hydraulic control system for greatly improving the working efficiency,
saving labor force.
4. Mounted wheel or trailer, can be hauled easily by car or tractor,
convenient to transport.
5. Power can be diesel engine or electric motor, as per your request.

HQZ180L Pneumatic crawler Water well drilling rig
Model	HQZ180L
Overall Weight	4.2T
Dimension	3.81.72.5m
Drilling Dimeter	130-294mm
Drilling Depth	180m
Walking Speed	2.5km/h
Climbing Ability	25 °
Working Air Pressure	250Mpa
Main Engine Power	60KW
Rotary Speed	48-70rpm
Roatry Torque	400-5600Nm
