- Piling Speed(m/min):
- 1
- Efficiency:
- High
- After-sales Service Provided:
- Video technical support, Online support
- Warranty:
- 1 Year
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- HengWang
- Weight:
- 4000KG
- Dimension(L*W*H):
- 5000*2000*2700mm
- Certification:
- ISO,CE
- Application:
- Road pile
- Drill diameter:
- 0-250mm
- Drill depth:
- 2800mm
- Material:
- Steel
- Engine Type:
- Diesel
- Multi functions:
- drill and pile
- Drilling depth:
- 2500mm
- Power:
- 40KW
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 480X200X270 cm
- Single gross weight:
- 4200.0 kg
- Package Type:
- Standard picking
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 5 To be negotiated

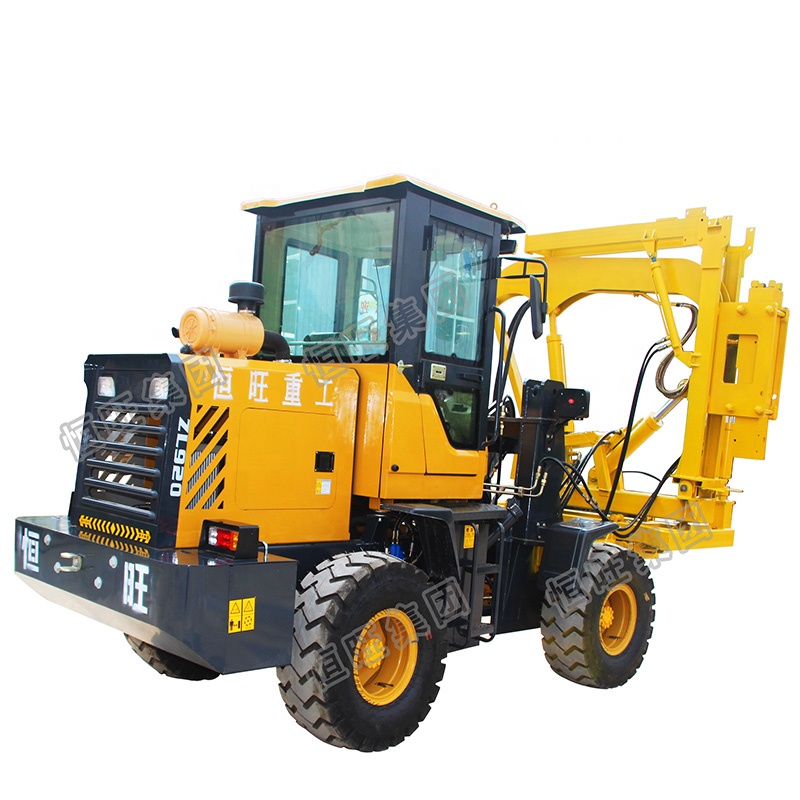

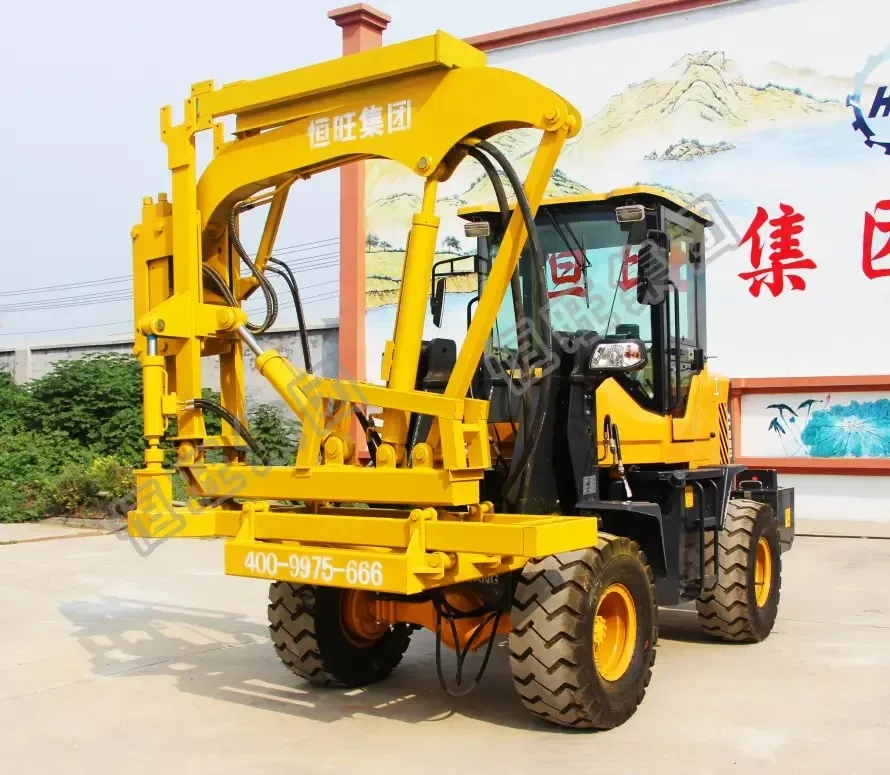

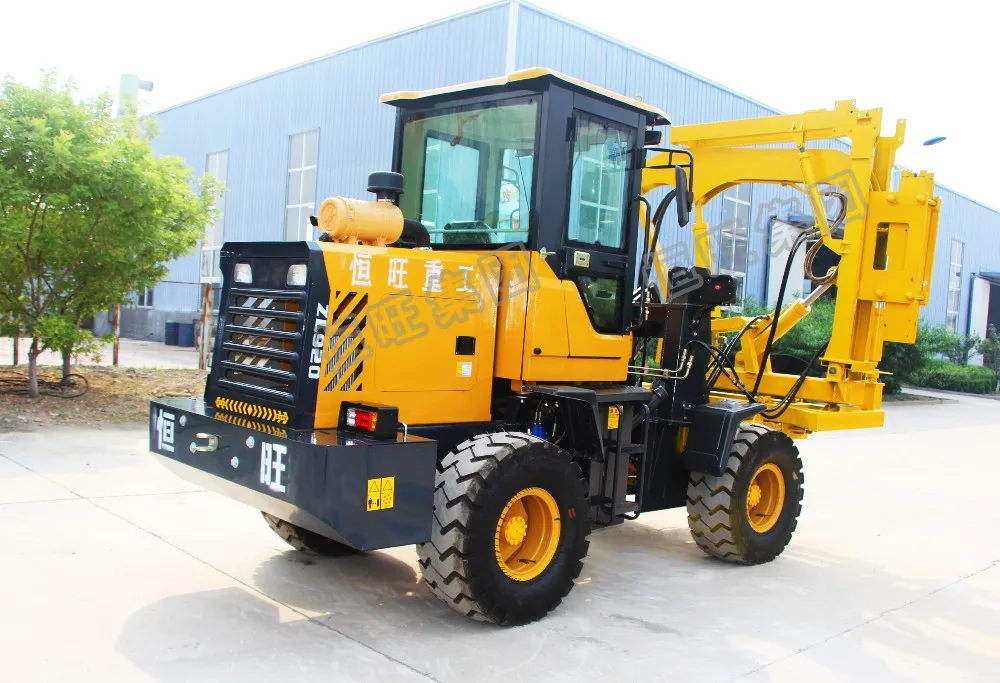

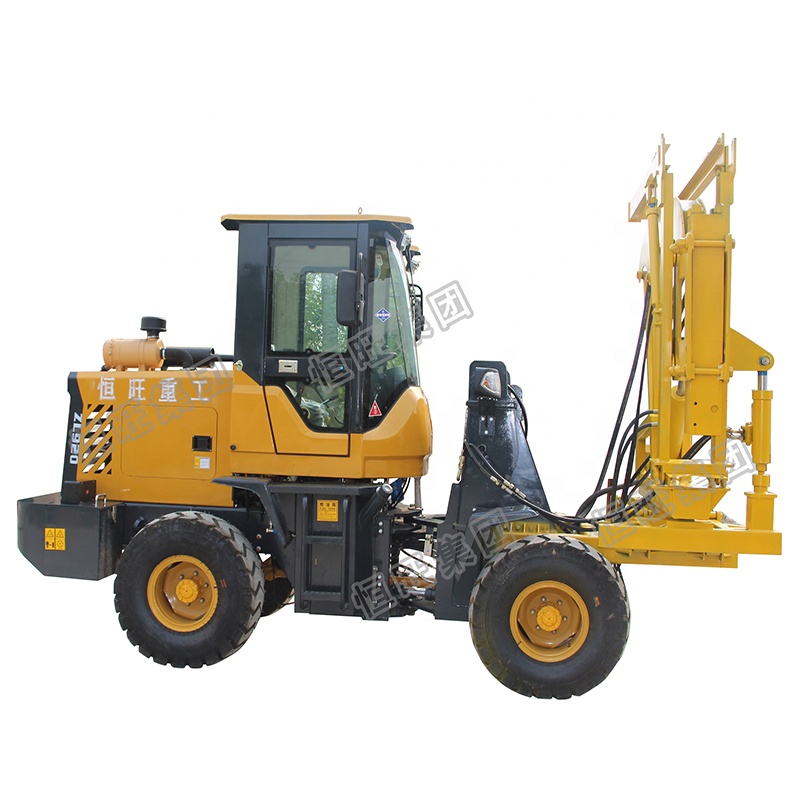

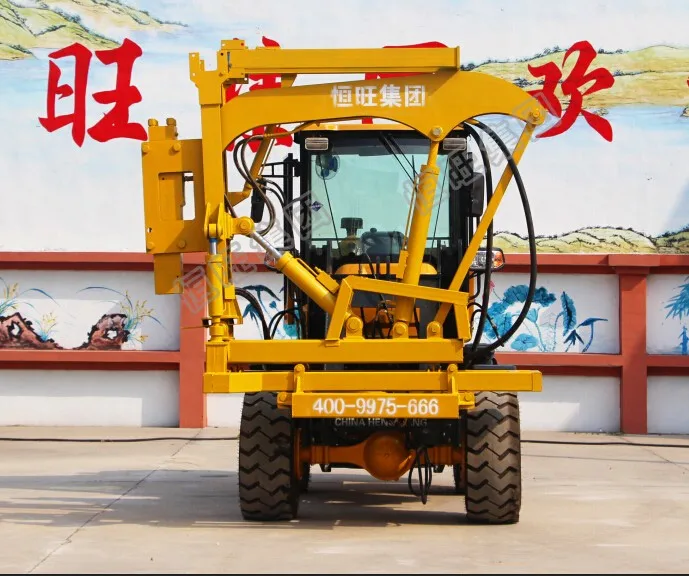

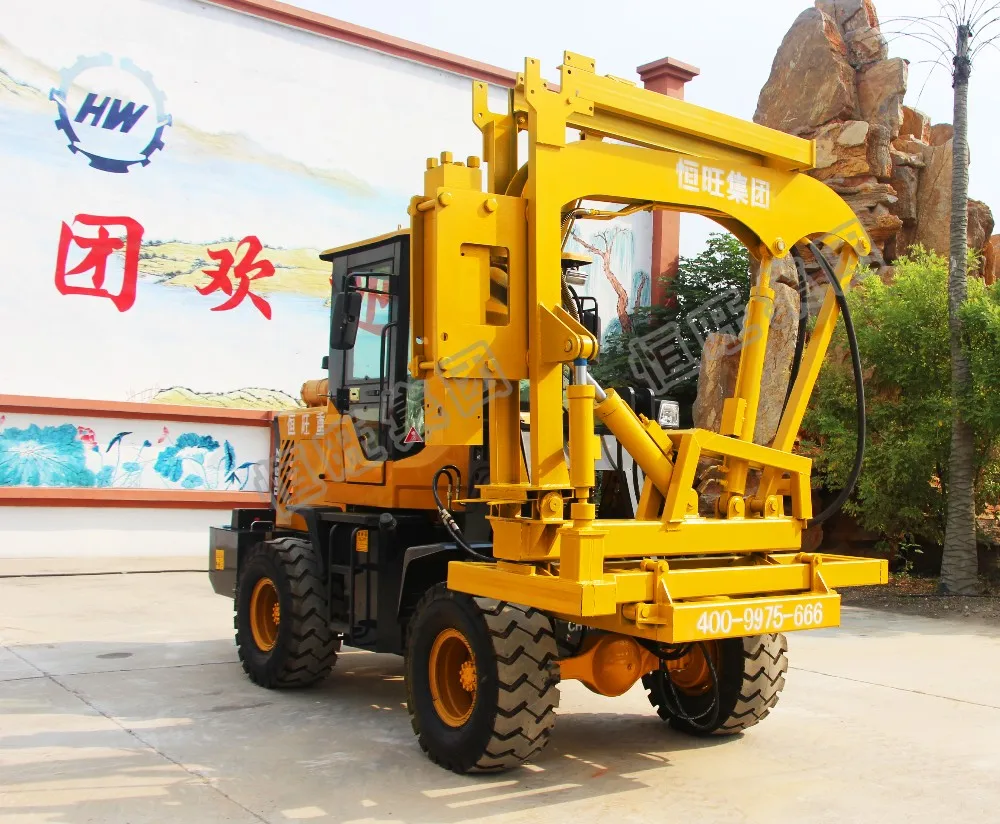

HW hydraulic pile driver feature
1). Pile Driving Functions:
HW Model Wheeled Pile Driver is designed to install and maintain highway anti-collision guard rails and solar posts,and is especially applicable for driving guardrail posts at newly constructed highways.It is also used for the installation of photovoltaics(PV),solar cells and panels.
2). Pile Extracting Functions:
With the same hydraulic system for extracting poorly driven or incorrectly positioned posts in road maintenance work,it is a professional machine for the extracting of posts from any surface condition.
3). Pile Drilling Functions:
This equipment can drill holes into concrete, rock,granite and other very hard road materials,and then easily install the posts.
SPECIFICATIONS FOR HW930 Pile Driver | |||
Model | HW930 | ||
Rated Power | 40KW | ||
Power Head | 68# | ||
Drilling Diameter | 0-250mm | ||
Pile Max Diatmeter | 50-260mm | ||
Pile Max Height | 2800mm | ||
Drilling depth | 2500mm | ||
Overall Dimension | 5.0*2.0*2.7m | ||
Machine Weight | 4T | ||
