Home > Products > Railway Sleepers Pneumatic Tamper Rail Tamping Machine
Railway Sleepers Pneumatic Tamper Rail Tamping Machine
Click on the image to view the original image
Product： views：6Railway Sleepers Pneumatic Tamper Rail Tamping Machine
Branch： Hengwang
Type： Sleepers
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:38
  Negotiated
Product Details
Overview
Quick Details
Type:
Sleepers
Material:
steel
Dimensions (L x W x H) (mm):
1300*750*1600mm
Place of Origin:
Shandong, China
Brand Name:
Hengwang
Product name:
Rail Tamping Machine
Usage:
Tamping
Structure:
Vertical Special Rail Clip
Hydraulic System Pressure:
5-6MPa
Vibrating Frequency:
60-67HZ
Vibrating Force:
22KN
Max.Insert Force:
16KN
Power:
5.5KW
Clamping Force:
6.5KNx2
Keyword:
Rail Tracks Ballast Tamper
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
standard package
Port
Qingdao
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)7To be negotiated

Railway Sleepers Pneumatic Tamper Rail Tamping Machine

Product instruction

YD-22 tamping machine is suitable for the tamping operation of different types of rail and concrete sleeper lines after large and medium-clear cleaning operations; it is also suitable for the tamping operation of new line road bed stone hoes. The machine has superior performance, reasonable structure, safety and reliability, and high operating efficiency, which fully meets the needs of railway road tamping operations.

Technology Parameter

ModelYD-22 Hydraulic Ballast Tamping Machine
Y132S-2 Electric Motor5.5KW
2880r/min
380V/50HZ
Hydraulic System Pressure5-6MPa
Vibrating Frequency60-67HZ
Vibrating Force22KN
Max.Insert Force16KN
Clamping Force6.5KNx2
Inserting Depth110mm±10mm
Efficiency≥260pcs/(set·hour)
Weight350KG
Dimension1300x750x1600mm

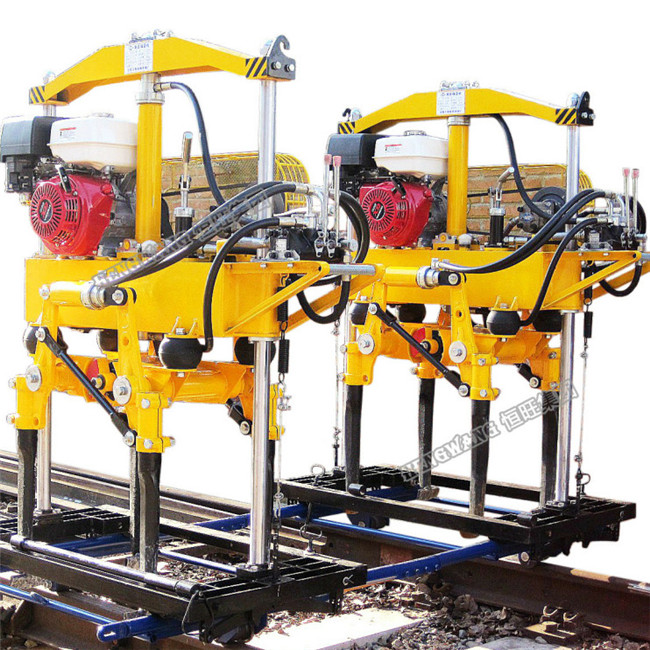

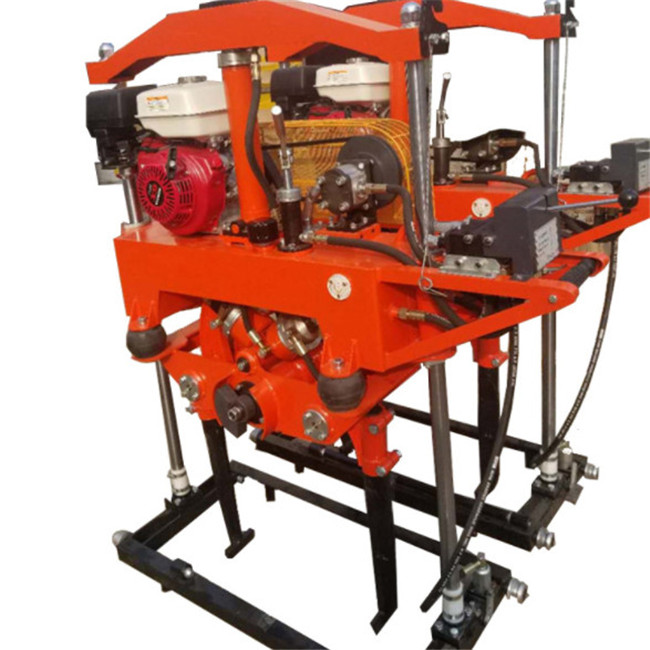

Product Real Photos
