600m Trailer Mounted Water well drill rig Mobile Portable Water Well drilling machine

Click on the image to view the original image

Product：	views：4600m Trailer Mounted Water well drill rig Mobile Portable Water Well drilling machine
Branch：	HW
Size：	450X200X270 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:38

Product Details

Overview

Quick Details

Piling Speed(m/min):: 1m/min

Efficiency:: High effiencty

After-sales Service Provided:: Video technical support, Online support

Warranty:: 1 Year, 12 Months

Condition:: New

Place of Origin:: China

Brand Name:: HW

Weight:: 6.2T, 6.2T

Dimension(L*W*H):: 4.5*2*2.7m

Certification:: ISO

Model:: HW XY-3

Drilling depth:: 600m

Drilling Diameter:: 325 mm

Drill forward speed:: 2m/min

Engine Power:: 65KW

Rotary Speed:: 32-1057 rpm

Rotary Torque:: 500-5000 N.m

Dimensions:: 4.5*2*2.7m

Packaging & Delivery

Selling Units:: Single item

Single package size:: 450X200X270 cm

Single gross weight:: 6200.0 kg

Package Type:: Standard Package

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	5	To be negotiated

Product Description

Advantage
1. Very powerful at soil, sand, hard rock, etc. land condition.
2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available
for your choice, which can drill both soft and hard ground, especially diamond
drill bit effective in drilling hard rocks.
3. Hydraulic control system for greatly improving the working efficiency,
saving labor force.

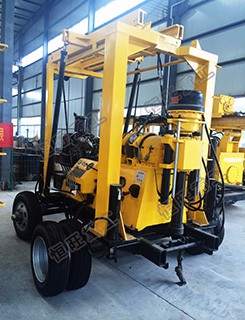

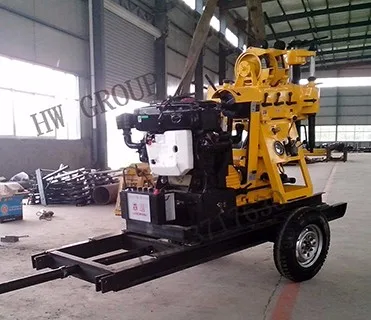

4. Mounted wheel or trailer, can be hauled easily by car or tractor,
convenient to transport.
5. Power can be diesel engine or electric motor, as per your request.

600m Trailer Mounted Water well drill rig
Model	HW XY-3	HWXY-3L	HW XY-3T
Overall Weight	1.8T	6.2T	3.6T
Dimension	2.60.91.75m	4.522.7m	2.92.563.3m
Drilling Dimeter	325mm	325mm	325mm
Drilling Depth	600m	600m	600m
Walking Speed	2.5km/h	2.5km/h	2.5km/h
Climbing Ability	20 °	20 °	20 °
Working Air Pressure	250Mpa	250Mpa	250Mpa
Main Engine Power	13.2KW	13.2KW	15KW
Rotary Speed	32-1057 rpm	32-1057 rpm	32-1057 rpm
Roatry Torque	1000-5000Nm	1000-5000Nm	1000-5000Nm
