Geological exploration BW250 grouting pump work with drilling rig
Product instruction
1.BW series mud pump is widely used for grouting and mud jacking in engineering construction.
2.BW series mud pump have four gear shifts.Output and drilling depth are adjustable,so it can be used to grout cement slurry or equipped with drilling machine.
3.BW series mud pump is widely used in railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration.
Technology Parameter
Model | BW160 | BW250 | BW320 |
Max. traffic | 160L/min | 250L/min | 320L/min |
Max. pressure | 10Mpa | 6Mpa | 8Mpa |
Power | 11kw | 15kw | 30kw |
Inlet pipe diameter | 51mm | 76mm | 76mm |
Outlet pipe diameter | 32mm | 51mm | 51mm |
Weight | 480kg | 760kg | 1000kg |

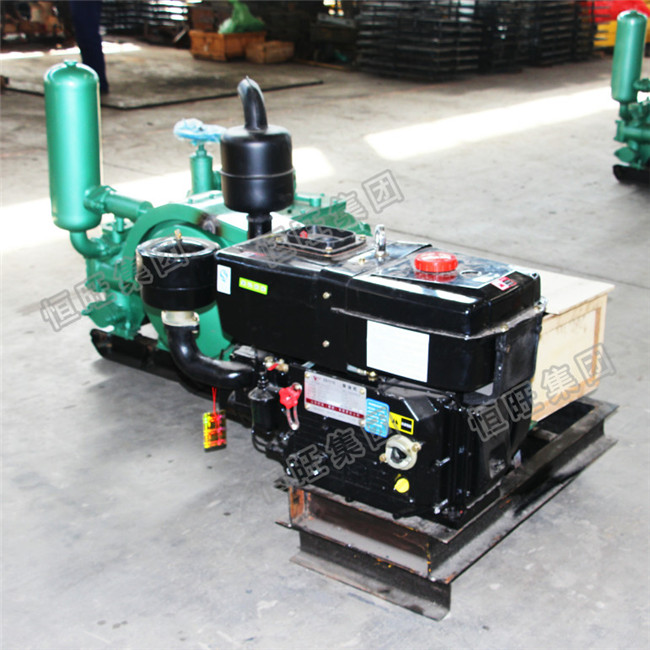

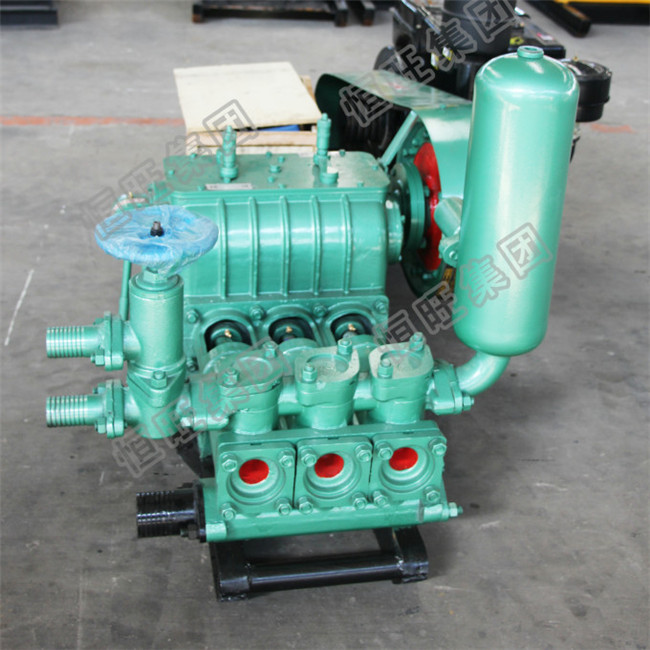

Product Real Photos
