YD-22 Railway Ballast Tamper/Rail Tamping Machine price
Product instruction
YD-22 tamping machine is suitable for the tamping operation of different types of rail and concrete sleeper lines after large and medium-clear cleaning operations; it is also suitable for the tamping operation of new line road bed stone hoes. The machine has superior performance, reasonable structure, safety and reliability, and high operating efficiency, which fully meets the needs of railway road tamping operations.
Technology Parameter
| Model | YD-22 Hydraulic Ballast Tamping Machine |
| Y132S-2 Electric Motor | 5.5KW |
| 2880r/min | |
| 380V/50HZ | |
| Hydraulic System Pressure | 5-6MPa |
| Vibrating Frequency | 60-67HZ |
| Vibrating Force | 22KN |
| Max.Insert Force | 16KN |
| Clamping Force | 6.5KNx2 |
| Inserting Depth | 110mm±10mm |
| Efficiency | ≥260pcs/(set·hour) |
| Weight | 350KG |
| Dimension | 1300x750x1600mm |

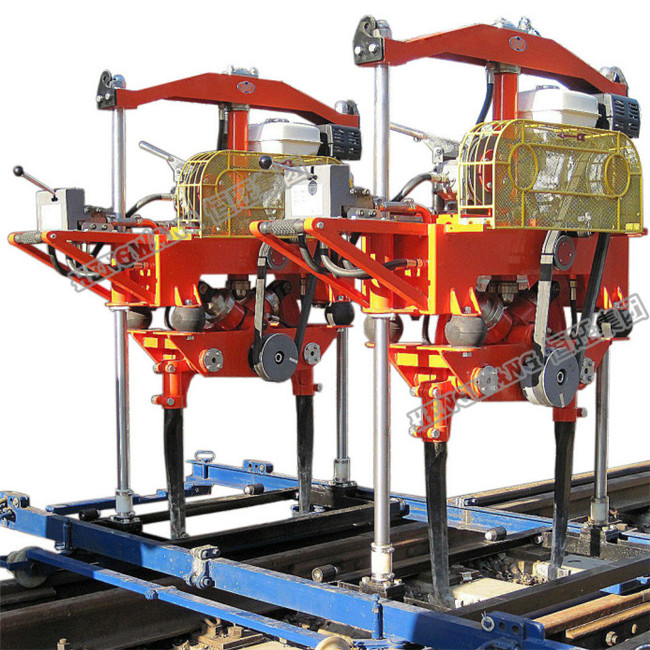

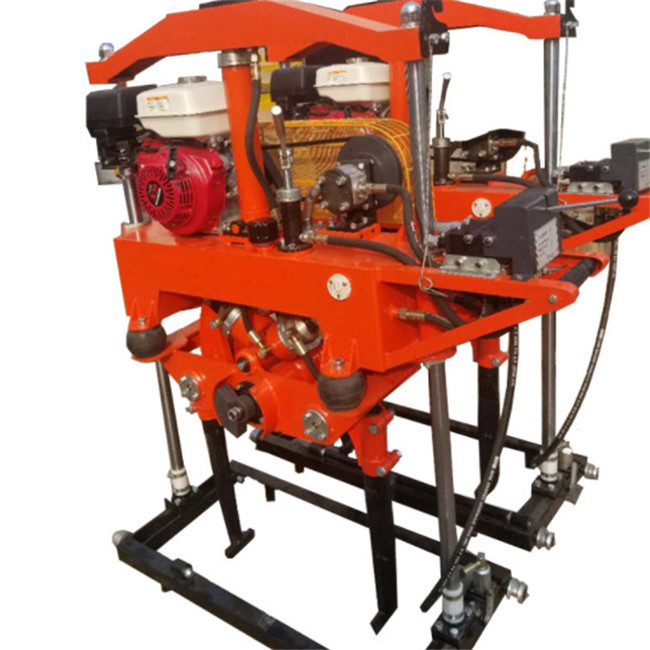

Product Real Photos
