Home > Products > HW-190 190m deep depth Drilling Equipment Water Well Drilling Rig For Groundwater

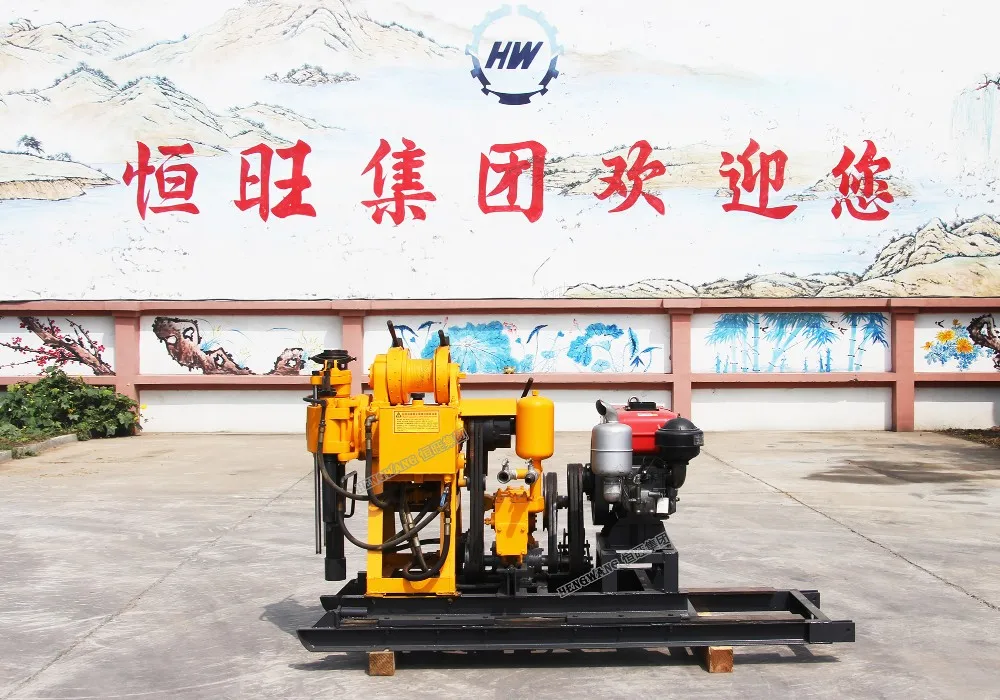

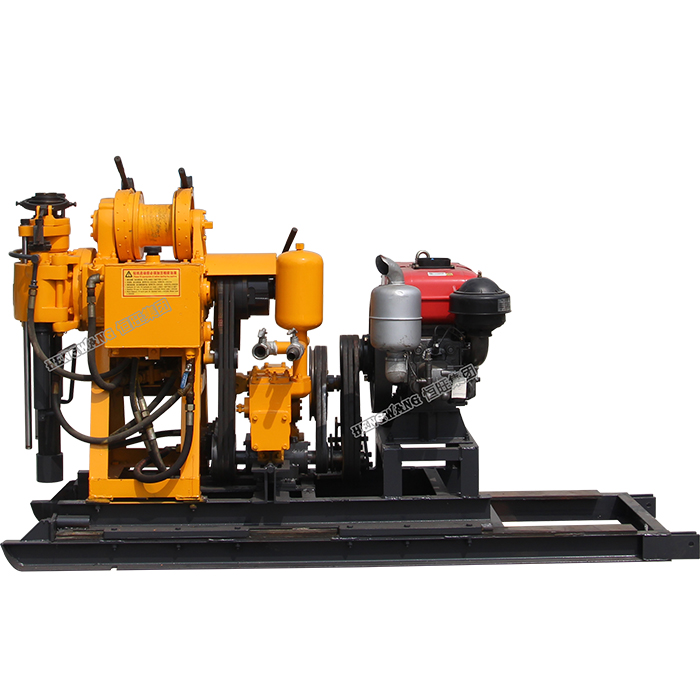

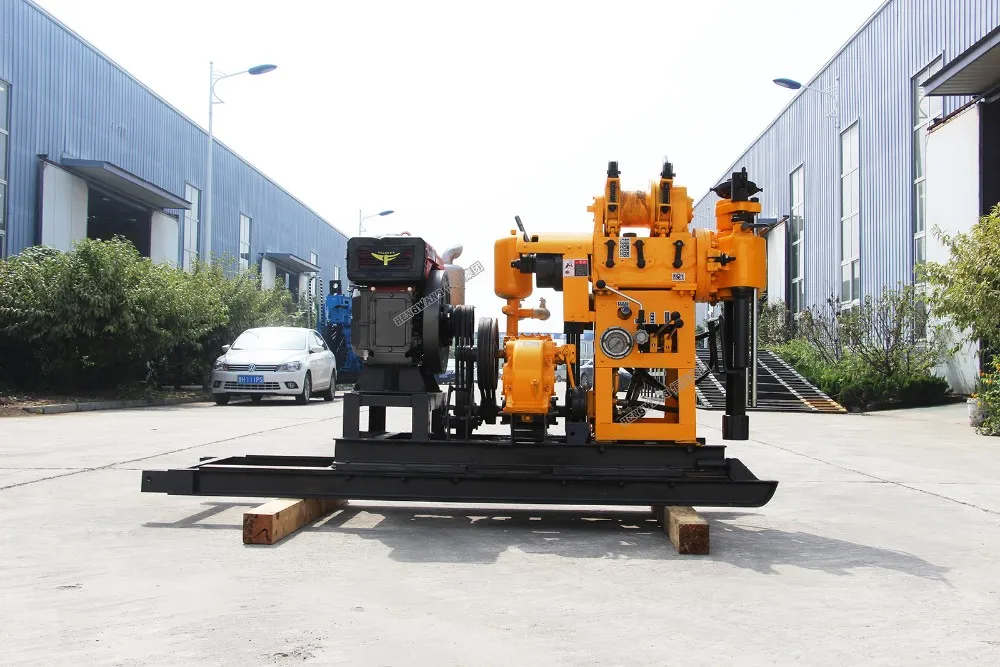

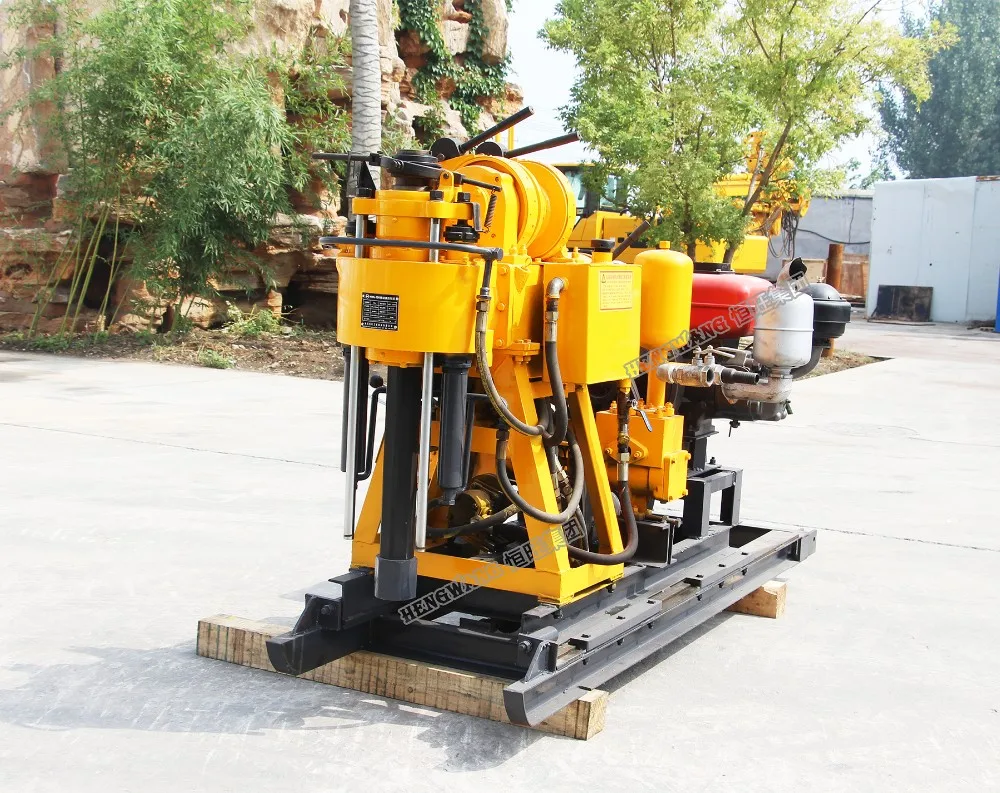

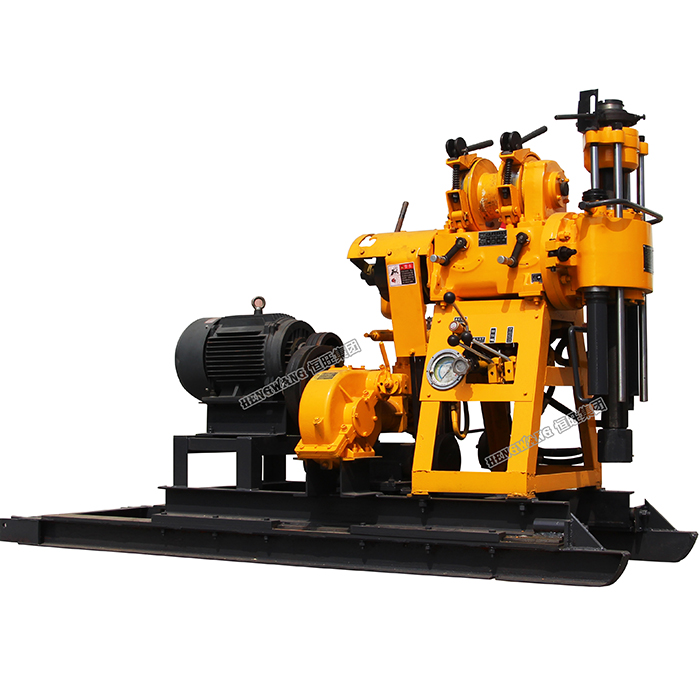

HW-190 190m deep depth Drilling Equipment Water Well Drilling Rig For Groundwater
Click on the image to view the original image
Product： views：7HW-190 190m deep depth Drilling Equipment Water Well Drilling Rig For Groundwater
Branch： HengWang
Type： Rotary Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:39
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Construction works
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HengWang
Usage:
Water Well
Voltage:
220V/380V
Dimension(L*W*H):
2400*800*1400mm
Weight:
620/750kg
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Drilling depth:
190m
Maximum open hole:
500mm
End hole caliber:
75mm
Drill rod diameter:
42/50/60mm
Motor power:
13.2kw
Mud pump flow:
95 L/min
Mud pump max.pressure:
1.2Mpa
Mud pump back and forth:
93 times/min
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Packing
Port
Qingdao
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)5To be negotiated
Product Description

Applications ofHW-190 well drilling machine
HW series hydraulic drilling rig is a kind of widely used portable drill. It is suitable for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings . According to different strata,it drills by choosing diamond, composite films and alloy.
HW-190 Shallow well drilling machine
a.It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding
mechanism.
b.It can be achieved without stopping to change rods, easy to operate, safe and reliable with
ball clip holding mechanism or hydraulic chuck.
c. It has hole bottom pressure gauge to be easy to master the situation in the hole.
d. It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountain areas.

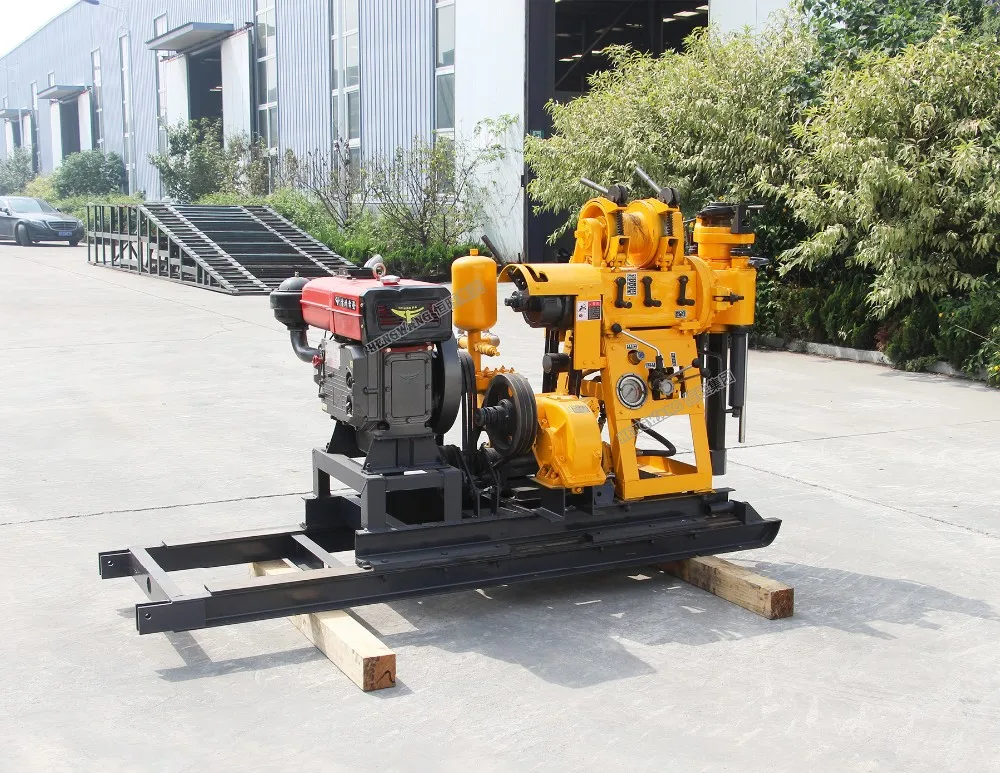

HW-190 2016-2019 HOT SALEYY type configuration moving slipway
If you have any questions,Pls contact me.
+Whatsapp/Wechat: +8617686192378
Your mechanical professional consultant -Bryant Zheng

.

SPECIFICATIONS FOR HW-190 Water Well Drilling Rig





Machine
Specification
Drilling depth
190m
End hole diameter(mm)
75
Drill rod diameter(mm)
42/50/60
Drill angle(°)
90-75
Matching engine power(kw)
13.2
Weight without engine(kg)
620/750
Dimension(L*W*H)(mm)
2400*800*1400

Spindle
Speed(r/min)
130/300/480/730/830/1045
Stroke(mm)
450


Winch
Single rope lift force(kg)
2100
Single rope lift speed(m/s)
0.35-2.23
Rope diameter(mm)
 Ø9.3
Rope capacity(m)
27

Drill Mast
Rated load(ton)
 18
Effective height(m)
6.5


Mud Pump
Flow(L/min)
95
Max.pressure(Mpa)
1.2
Back and forth (times/minute)
93
Inlet hose diameter(mm)
51
outlet hose diameter(mm)
32
Detailed Images

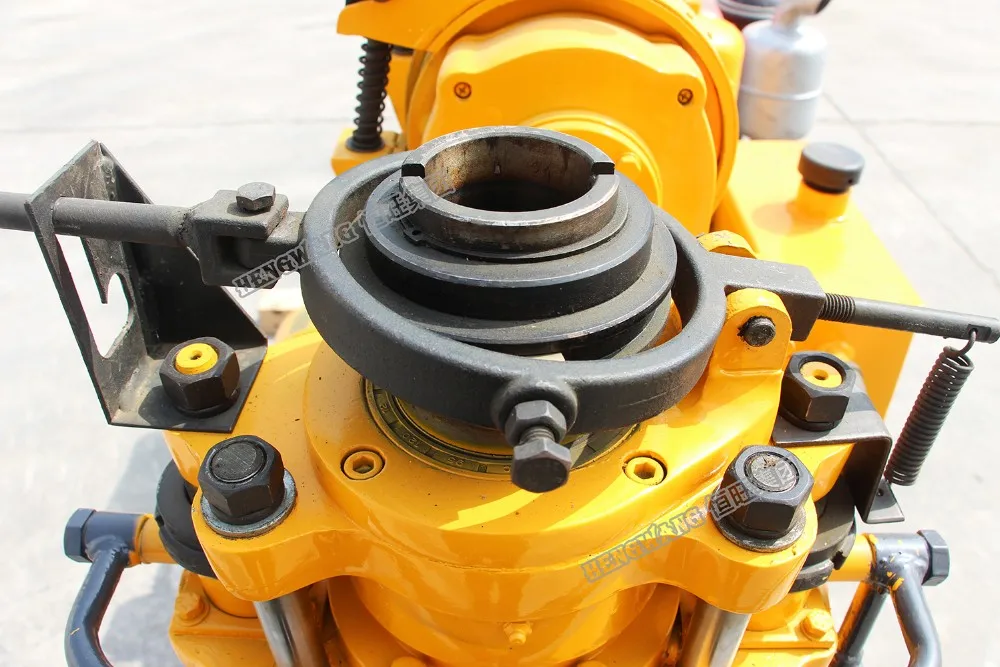

Hydraulic chuck

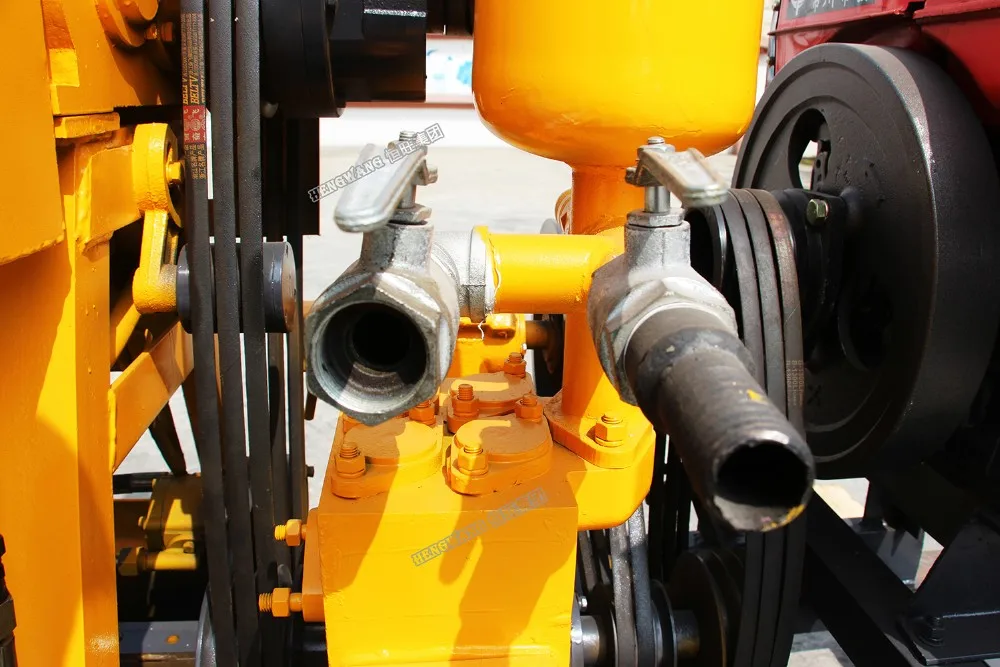

Mud Pump Inlet and Outlet

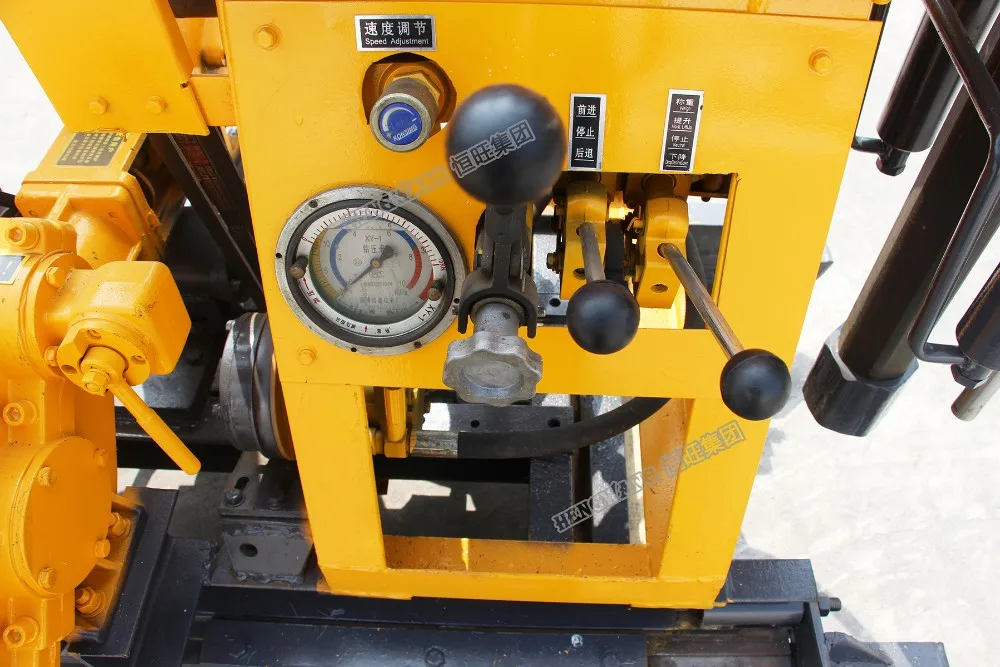

Control System

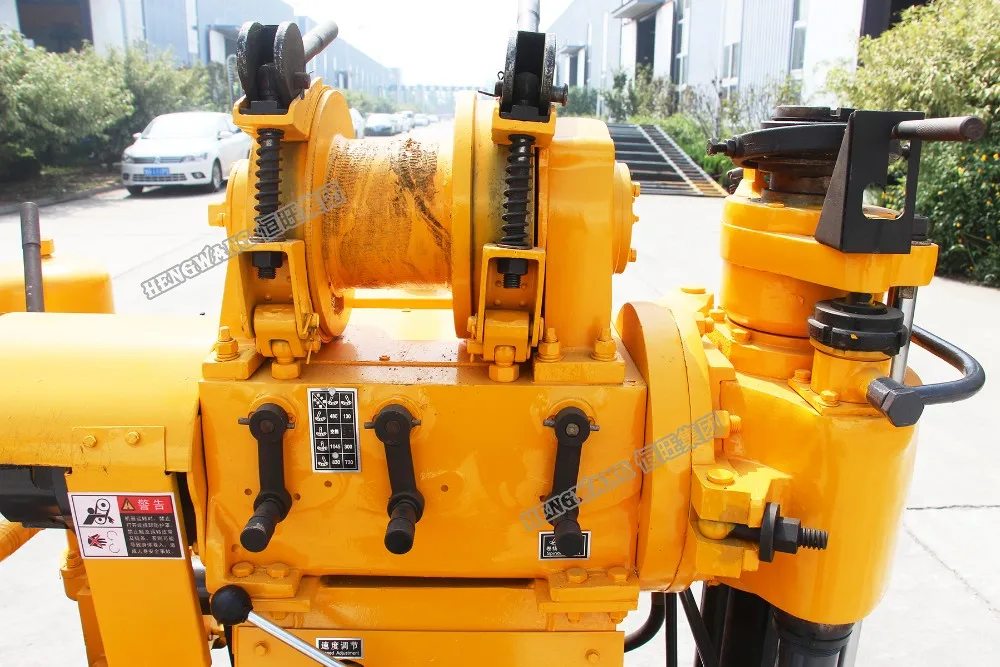

Winch


Certifications
Our Service

Welcome to visit our factory! For evey visitor we will offer :

- Airport pickup.

- Free hotel.
- Eating.
- Entertainment.
- Let your business trip like a comfortable sightseeing!

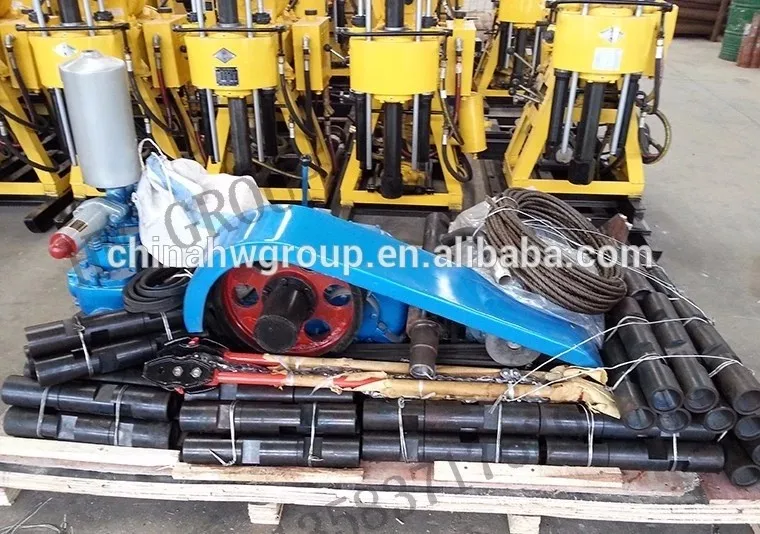

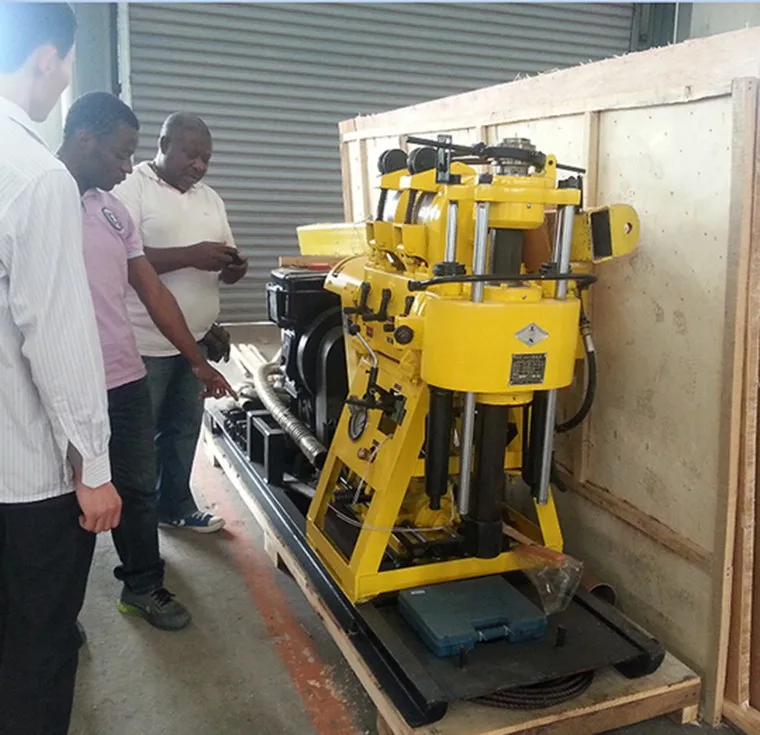

Packing & Delivery

This machine we have two types.One is crush into granule,one iscrush into powder
