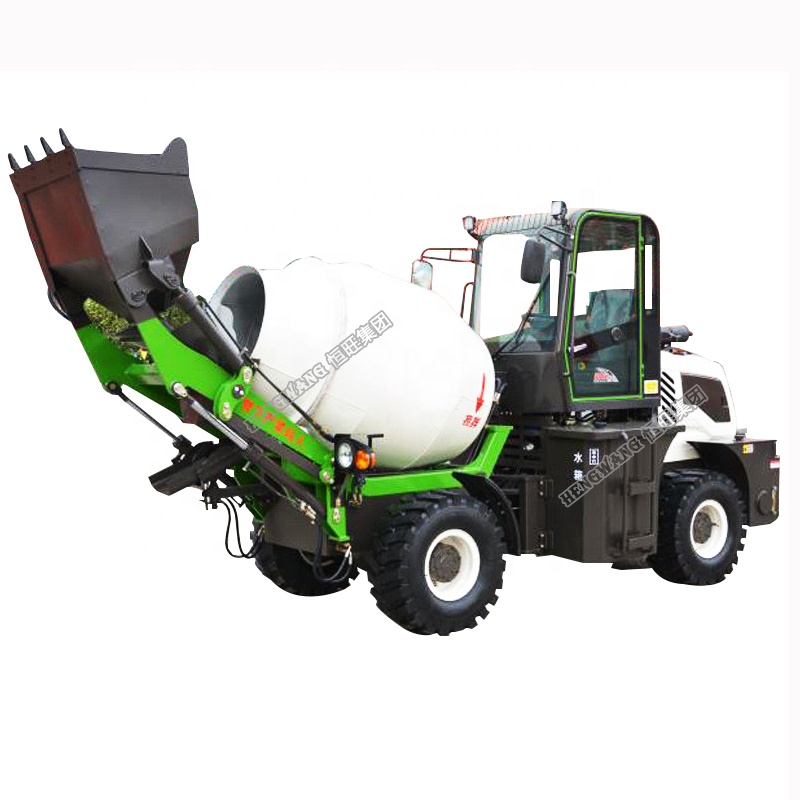

Mobile self- loading concrete mixer truck
Click on the image to view the original image
Product： views：4Mobile self- loading concrete mixer truck
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:39
  Negotiated
Product Details
Overview
Quick Details
Charging Capacity:
600L
Reclaiming capacity:
750L
Mixing Power:
78KW/2400r/min
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support, No after-sales service, No overseas service provided
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Motor Power:
2.2kw
Speed of Mixing Drum:
10-20r/min
Water Supply Mode:
Automatic
Working Cycle Period:
30s-40s
Discharge Way:
Auto Hydraulic
Outline Dimension:
6100*1850*3000
Charging capacity:
1.2m3
Discharge Way::
anticlockwise
Pump Model:
CBGV-4025
max.travelling speed:
24kw/h
max.torque:
380/1500-1800N.m/r/min
Slump of concrete:
70-260mm
water tank capacity:
540L
Motor Model:
BM5-400
Reduction gear ratio:
1:34
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export package or as your requirement for concrete mixer truck
Port
Qingdao Dalian Tianjin Shanghai
Lead Time:
Quantity(Sets)1 - 100 >100
Est. Time(days)7To be negotiated
Product Description

HW Self-feeding Mixer Truck    The latest Technology Mixer


Loader+Mixing truck+Transport truck= One Self-feeding mixer truck

1.2m3 cheap price of small mini mixer machine self loading concrete mixer is combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.Mobile self- loading concrete mixer truck

SPECIFICATIONS FOR CONCRETE MIXER TRUCK
Actual mixing volume
1.2m3
Drove type
4X4
Geometrical capacity
1.4m3
Operating weight
4580kg
Angle of inclination
16o
Max.loading weight
2800kg
Rotaring speed
0-14 r/min
Max.total weight
7380kg
Mixing drum blade
Two sets of spiral blades.and
Overall dimensions
6100*1850*3000mm
Slump of concrete
70-260mm
Gradeability
26%
Pump Model

CBGV-4025
Tire
23.5/70-16
Motor Model
BMSS-250
Minimum turning radius
5000mm
Reduction gear ratio
1:10
Rated power
55KW/2400 78KW/2400KW/min

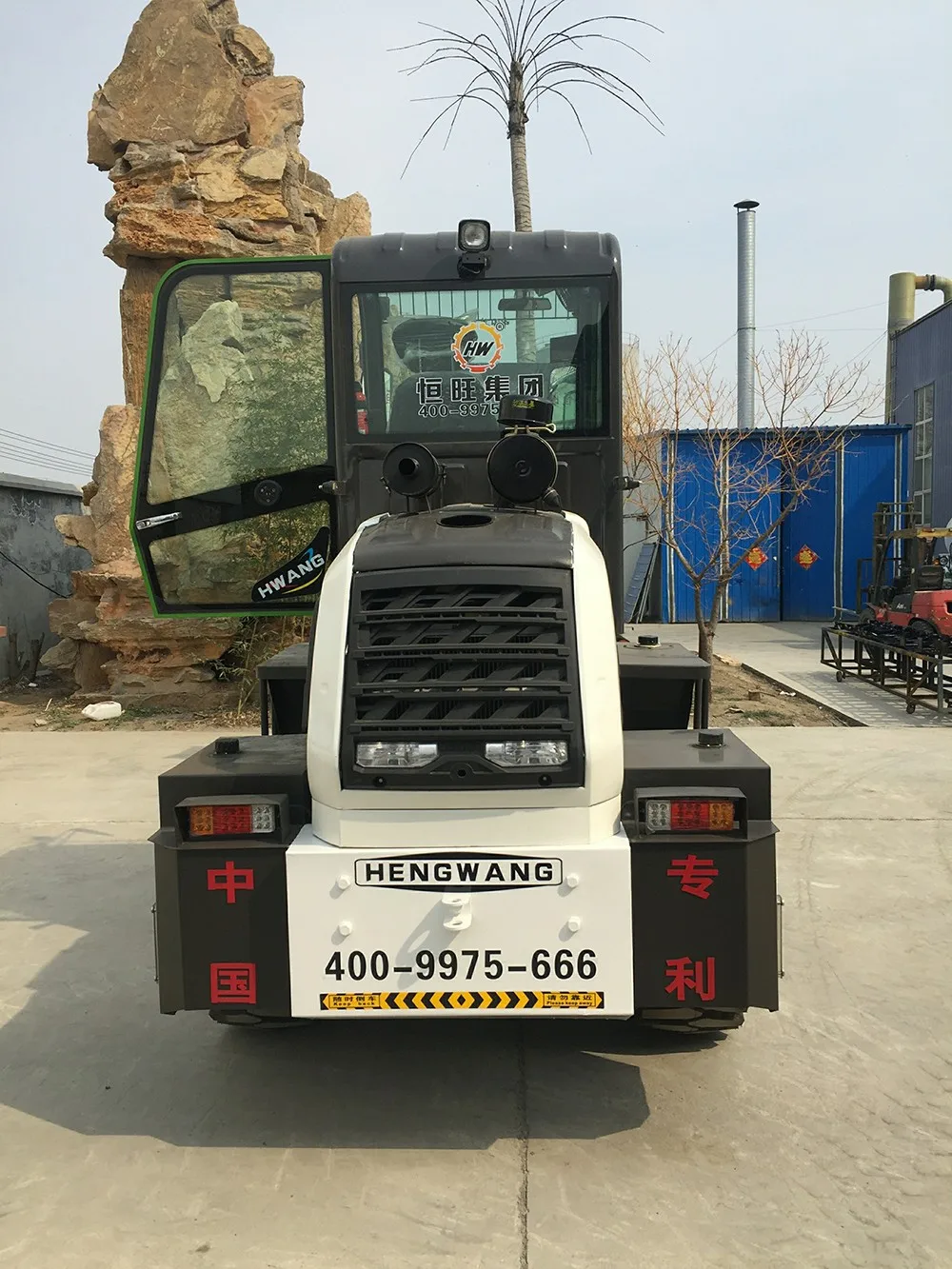

Detailed Pic

Comfortable Cab

Two-way cab. The seats can be rotated. Operation more convenient.

Installation of front and rear cameras. When the working, it"s easier to observe.

The cab have electronic touch screen.  One-button opertion. Save time and save energy.




Connection

Articulated connection, turning rauis is small.

Continuously variable speed. Speed is 30km/h.

The tank is rotated at a constant speed of 180 degrees.Rotation speed is 22 r/min. Material is 375 manganese steel.

OurCompany

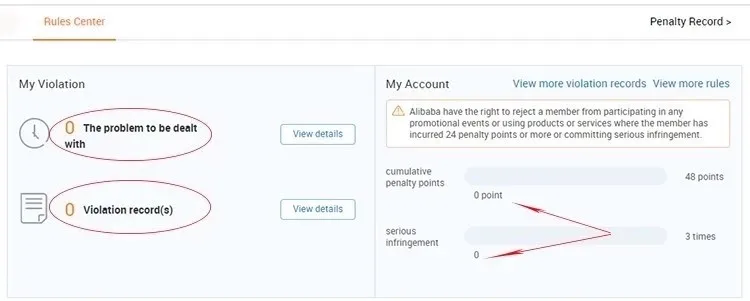

We are a supplier with good credit on Alibaba :
