HW-160 water well drilling rig /200m deep drilling machine for china factory price

Click on the image to view the original image

Product：	views：3HW-160 water well drilling rig /200m deep drilling machine for china factory price
Branch：	HengWang
Type：	Rotary Drilling Rig
Size：	240X80X160 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:39

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Electric

Place of Origin:: Shandong, China

Brand Name:: HengWang

Usage:: Water Well

Voltage:: 220V/380V,can be customized

Dimension(L*W*H):: 2400*800*1300mm

Weight:: 600/740KG, 600/740KG

Certification:: ISO9001, ISO CE

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Online support, Field maintenance and repair service

Drilling depth:: 10-160m

Maximum open hole caliber:: 500mm

End hole caliber:: 75mm

Drill rod caliber:: 42/50/60mm

Drilling angle:: 90~75

Flow:: 95 L/min

Max.pressure:: 1.2 Mpa

Back and forth:: 93 times/min

Packaging & Delivery

Selling Units:: Single item

Single package size:: 240X80X160 cm

Single gross weight:: 760.0 kg

Package Type:: Standard Packing

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	5	To be negotiated

Product Description

Product Application

Applications of HW-160 water well drilling rig /200m deep drilling machine
HW series hydraulic drilling rig is a kind of widely used portable drill. It is suitable for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings . According to different strata,it drills by choosing diamond, composite films and alloy.

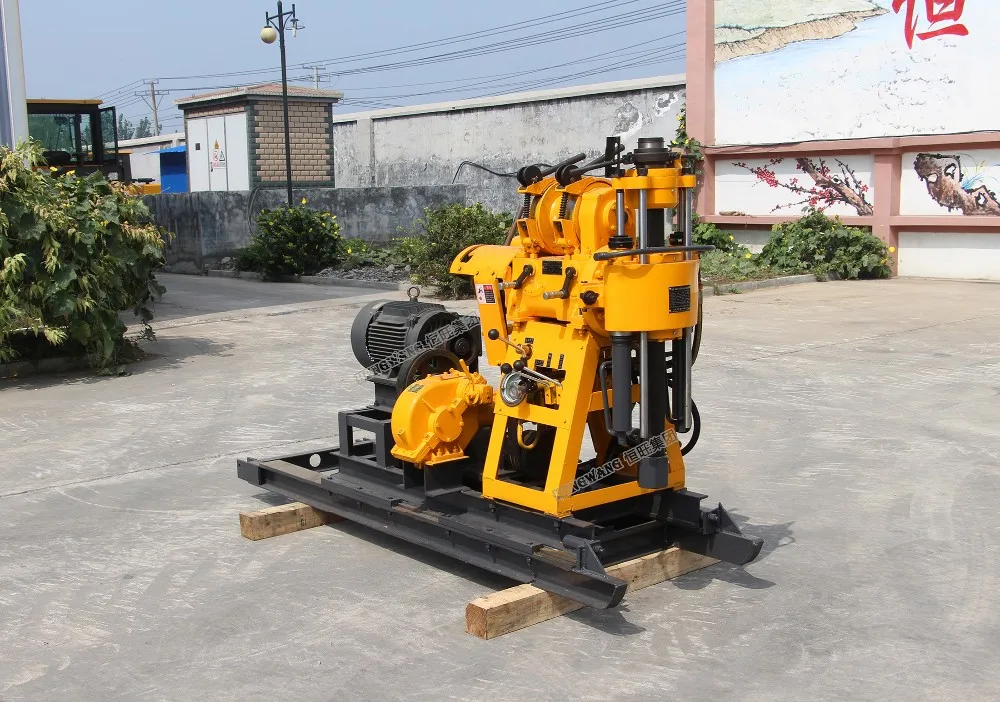

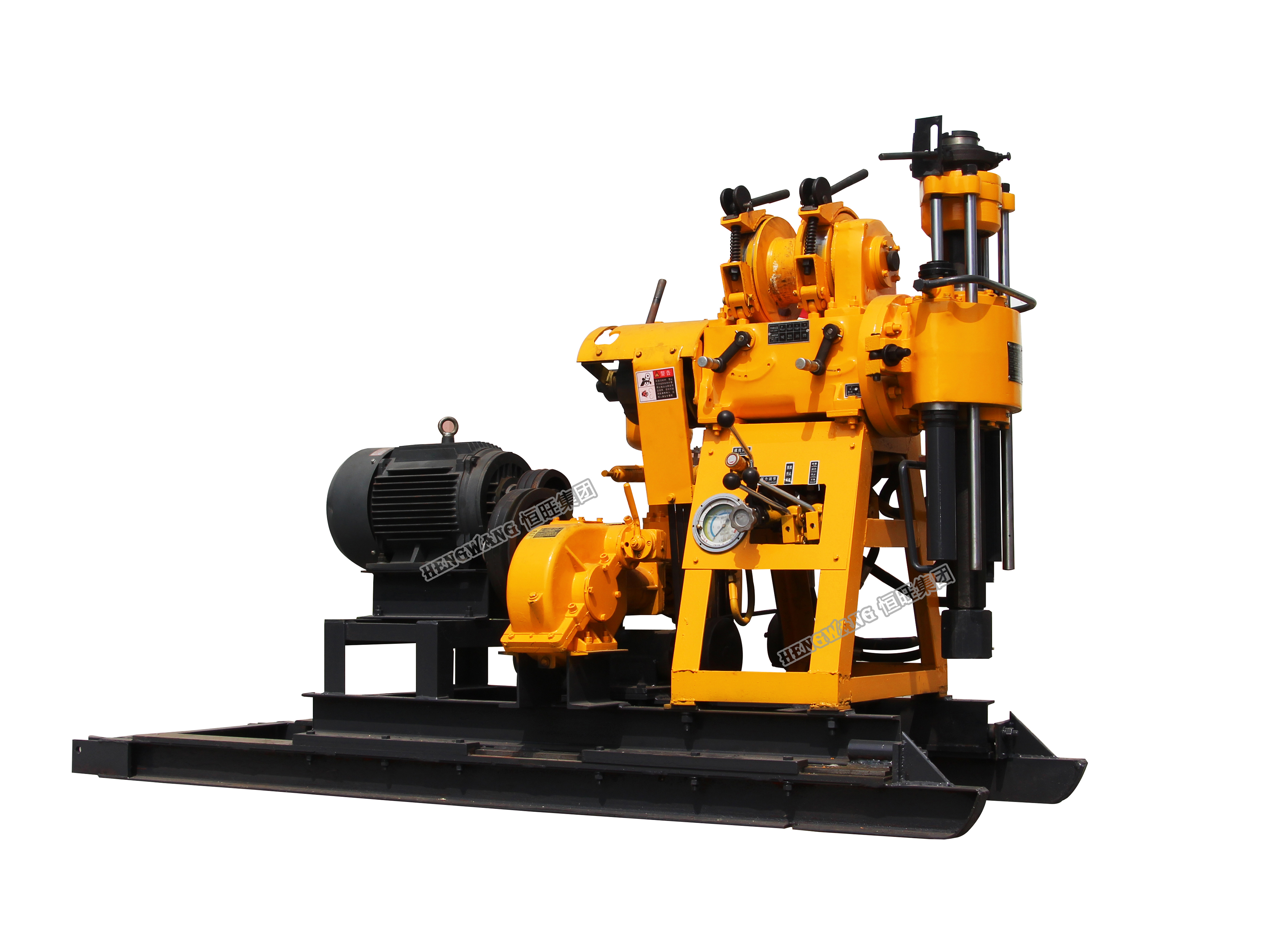

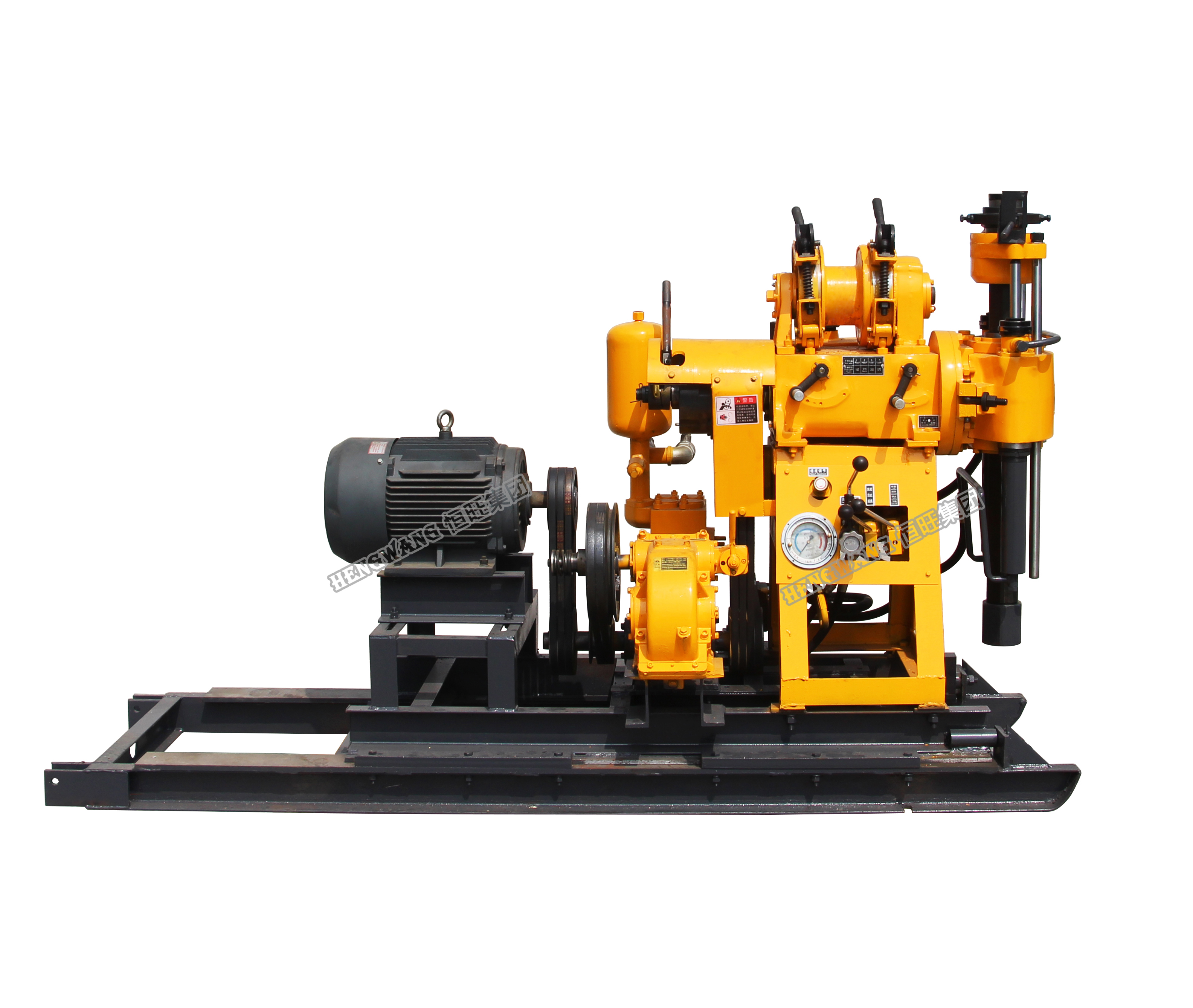

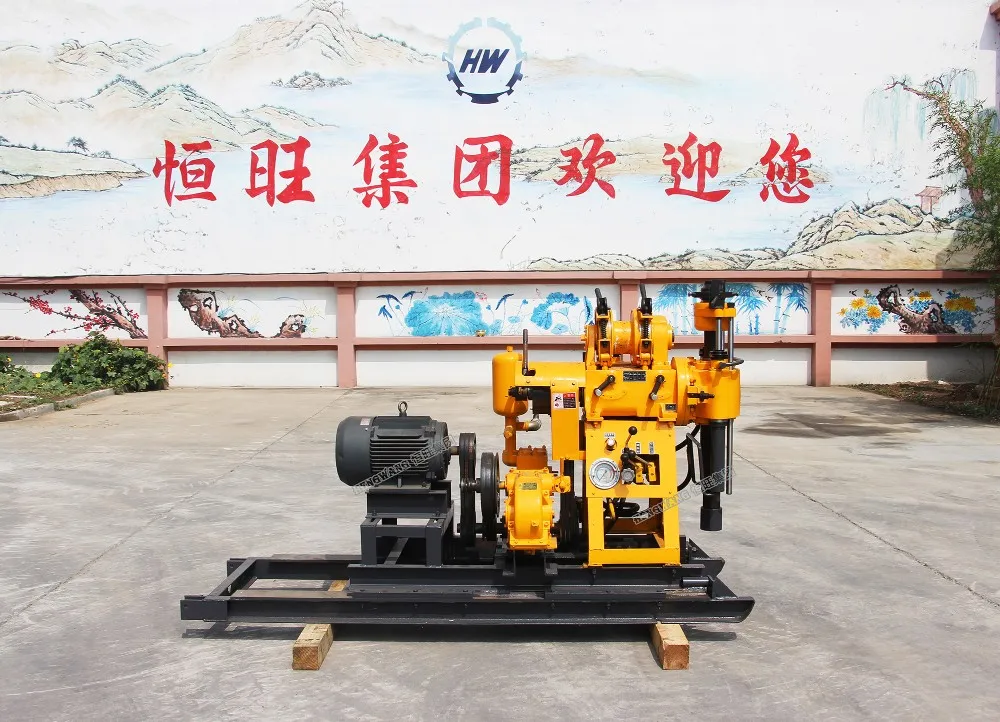

HW-160 water well drilling rig /200m deep drilling machine
Main feature
1.It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.

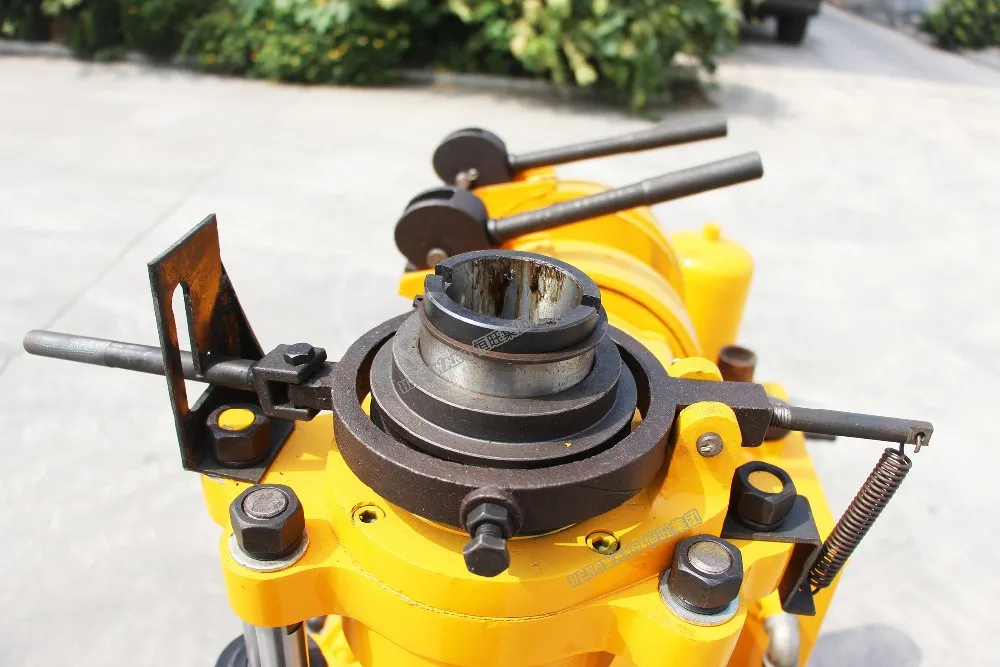

2.It can be achieved without stopping to change rods, easy to operate, safe and reliable with

ball clip holding mechanism or hydraulic chuck.

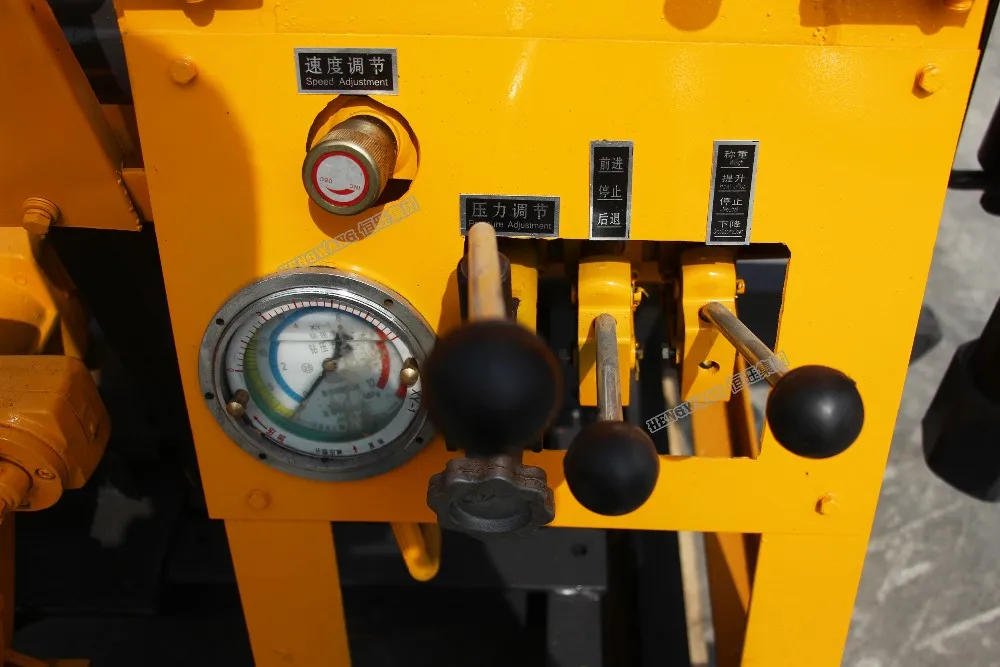

3. It has hole bottom pressure gauge to be easy to master the situation in the hole.

4. It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountain areas.

SPECIFICATIONS FOR HW-160 Water Well Drilling Rig
Drilling depth		10-160m
Maximum open hole caliber		500mm
End hole caliber		75mm
Drill rod caliber		42mm/50mm/60mm
Drilling angle		90~75
Drill weight (No include power)		600/740kg
Unity machine dimensions		24008001300mm

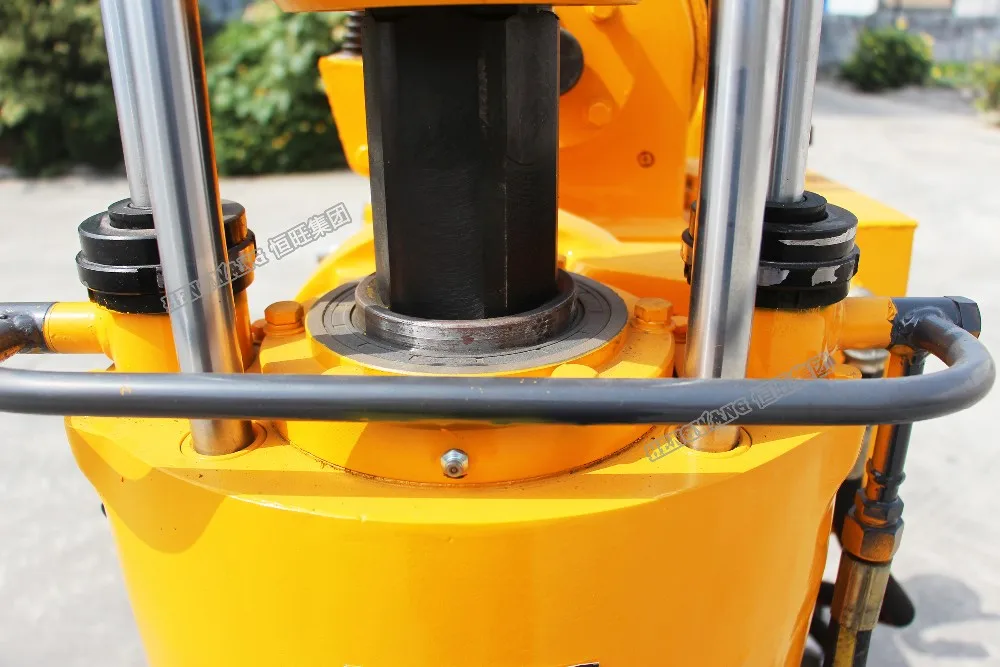

Spindle
spindle speed		142,285,570 r/min
Spindle stroke		450mm

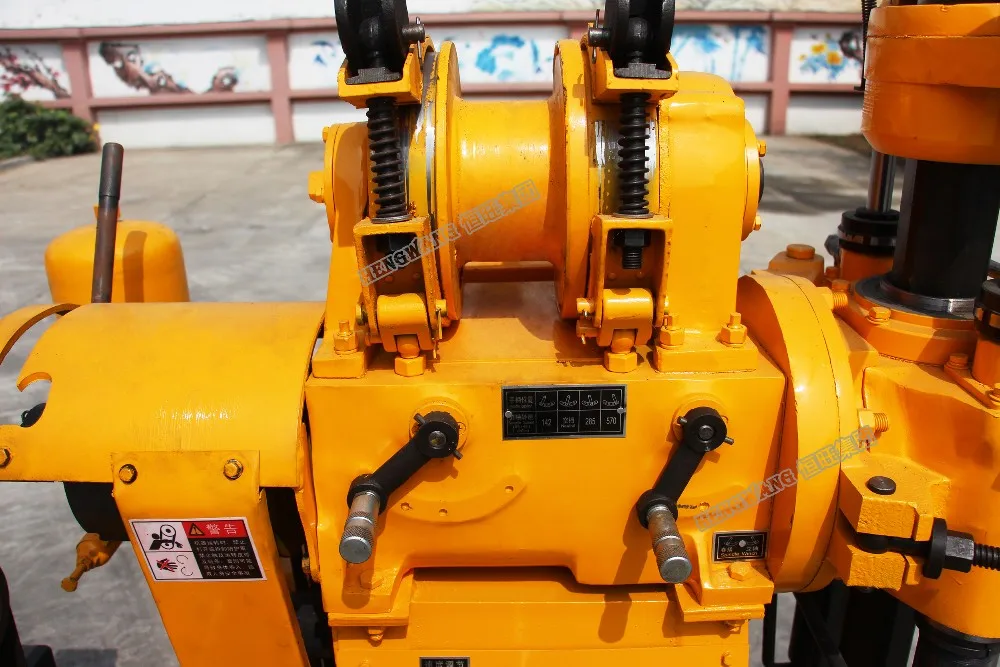

Hoist
Max.single line hoisting capacity		2000kg
Single line lifting speed		0.41-1.64m/s
Tightrope caliber		27m

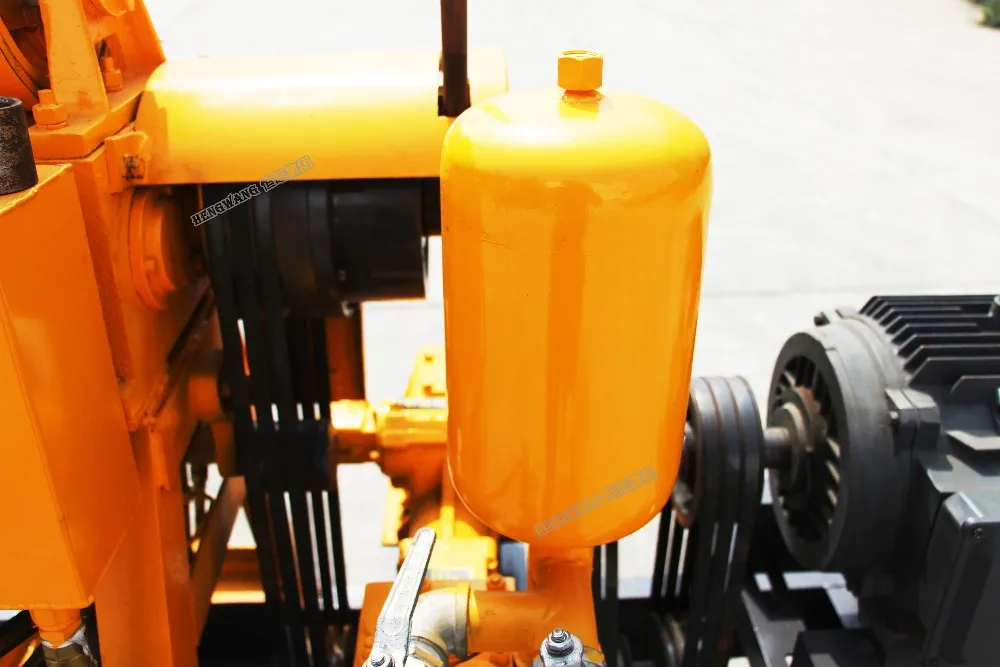

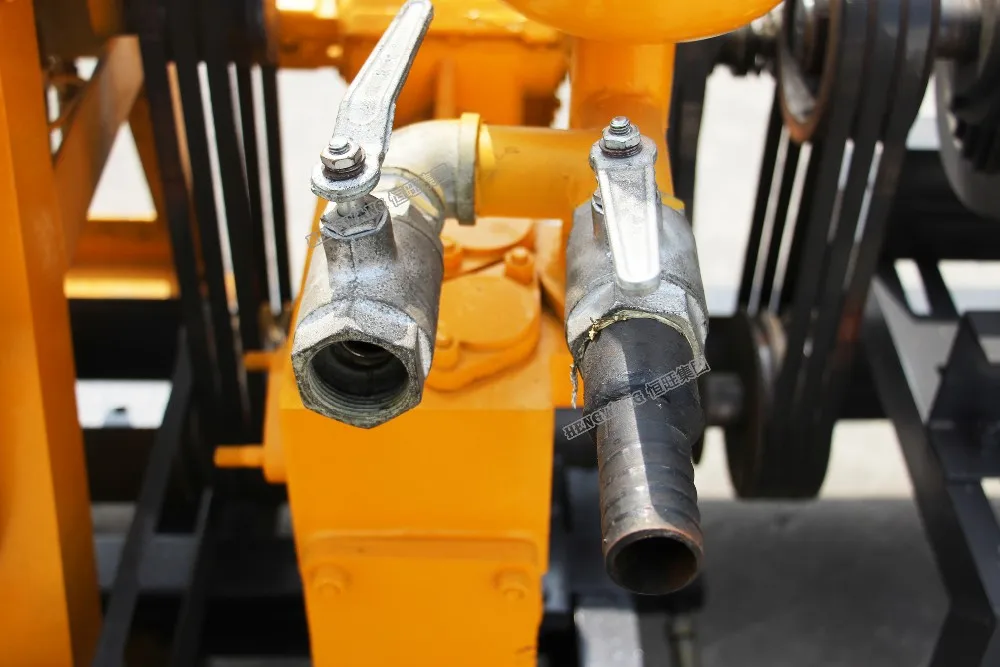

Mud pump of HW-160 model drilling rig
Displacement		95L/min

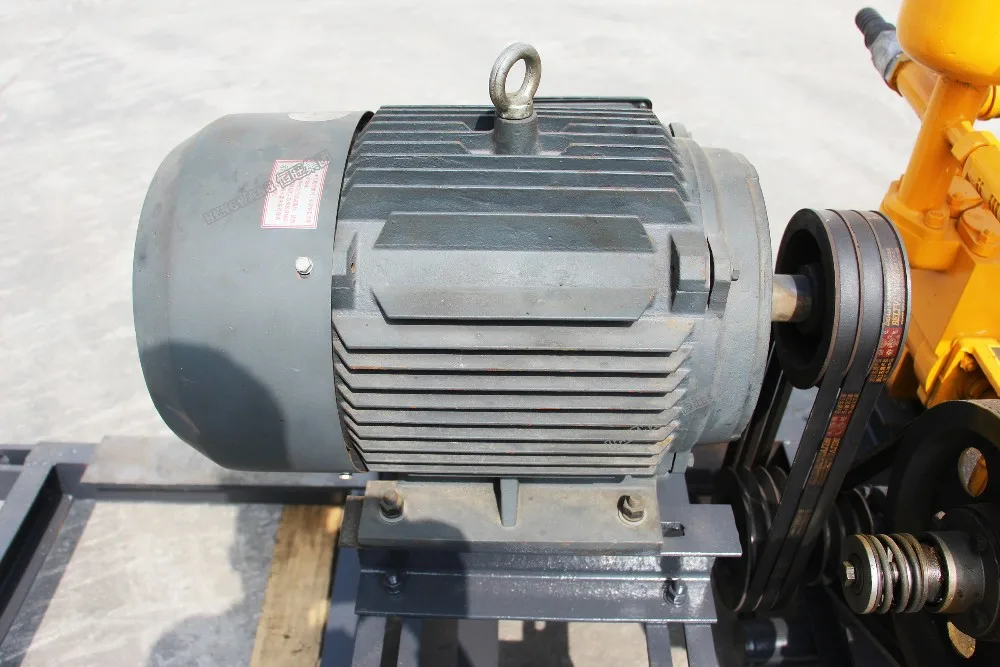

Electric motor		13.2kw 1440r/min
Maximum pressure		1.2Mpa
Water inlet diameter		51mm
Water outlet diameter		32mm
