Home > Products > New Condition and Water Well Usage Water well Drill Rig

New Condition and Water Well Usage Water well Drill Rig

Click on the image to view the original image

Product：	views：3New Condition and Water Well Usage Water well Drill Rig
Branch：	Hengwang
Type：	Rotary Drilling Rig
Size：	2500X900X1800 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:40

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: Hengwang

Usage:: Water Well

Voltage:: 380v

Dimension(L*W*H):: 2500 x 900 x 1800mm

Weight:: 1600KG

Certification:: iso

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service

Name:: Multifunction Hydraulic Drilling Rig

Drilling depth:: 600m

Drilling Hole Diameter:: Within 350mm

Engine:: Disel Engine

Drill rod length:: 3.0m

Mud pump:: BW-250

Function:: Borehole Machine

Drilling Rod diameter:: 60mm

Feature:: High Efficiency

Keyword:: Borehole Core Drilling Machines

Packaging & Delivery

Selling Units:: Single item

Single package size:: 2500X900X1800 cm

Single gross weight:: 6000.0 kg

Package Type:: Wooden case

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

New Condition and Water Well Usage Water well Drill Rig

Product instruction

XY-3 multifunctional hydraulic water well drilling rig for sale.

Features:New Condition and Water Well Usage Water well Drill Rig

1XY-3 well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency

2.Easy to transport and can learn how to handle the machine in short time.

3.It can drill 600m depth with low consumption and drilling rig all adopts full hydraulic control.New Condition and Water Well Usage Water well Drill Rig

4.Power head device, gearbox integrated casting, dual motor power, torque, durability, small maintenance costs. Borehole Drilling Machine /water well drilling rig price

5.Each drill hoist arm is installed limiter, protect the cylinder safety, ensure the safety

of work.New Condition and Water Well Usage Water well Drill Rig

Technology Parameter

Unity machine parameter
Core Drilling depth	600m
Max open hole caliber	300mm
End hole caliber	75mm
Drilling Rod diameter	60mm
Drilling angle	90°~65°
Dimension	2500 x 900 x 1800mm
Drill weight (without power)	1600kg
Spindle
Spindle speed	Forward 30-1050r/min
	Reverse 29 137r/min
Spindle stroke	600mm
Spindle inner diameter	96mm
Lifting capacity	6000kg
Hoist
Max.Single line lifting capacity	4000kg
Max.Single line lifting speed	0.5-1.9m/s
Wirerope caliber	12.5mm
Wirerope length	50m
Reel diameter	300mm
Hug folldgate belt width	90mm
Mud pump
Type	BW-250
Displacement	250 L/min
Work pressure	80kg/cm
Water inlet pipe diameter	75 mm
Water outlet pipe diameter	50 mm
Gear Oil pump
Duplex gear oil pump	CBF-F63/25
Front Displacement, pressure	63 L/min 20Mpa
Behind Displacement, pressure	25 L/min 20Mpa
Power
Duplex gear oil pump	CBF-F63/25
Front Displacement, pressure	63 L/min 20Mpa

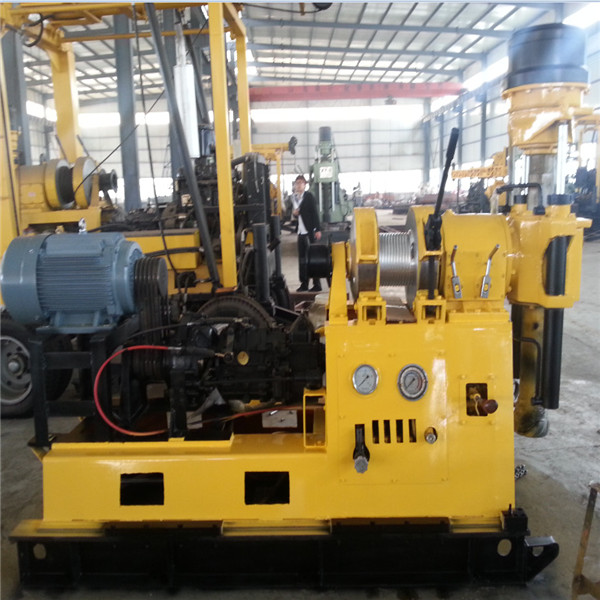

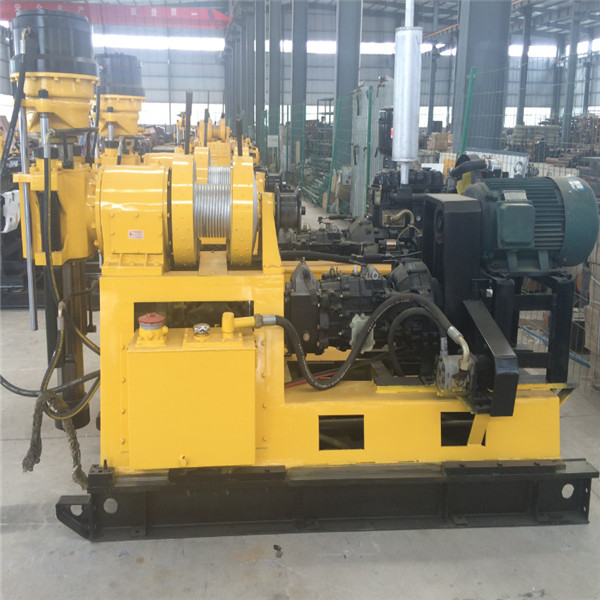

Product Real Photos
