Home > Products > pneumatic rock bolt drilling rig dth drill rig deep rock new m60 drill rig
pneumatic rock bolt drilling rig dth drill rig deep rock new m60 drill rig
Click on the image to view the original image
Product： views：3pneumatic rock bolt drilling rig dth drill rig deep rock new m60 drill rig
Branch： HW
Type： Core Drilling Rig
Size： 300X90X100 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:40
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Gasoline
Place of Origin:
Shandong, China
Brand Name:
HW
Usage:
Ore
Voltage:
gasline Engine Driven
Dimension(L*W*H):
1524*500x300mm
Weight:
280Kg
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
product Name:
30m ROCK PORTABLE pneumatic drilling rig (including air compressor)
Model No:
HW-S30
Application:
Multifunction
Drilling depth:
0-30m
Drilling diameter:
75-90 mm
Engine:
Gasoline Engine 26kw
Rotary speed:
3600r/min
Drill pipe:
60mm*1.5m
Cylinder diameter:
90mm
Air compressor power:
35 hp/8bar

Packaging & Delivery

Selling Units:
Single item
Single package size:
300X90X100 cm
Single gross weight:
400.0 kg
Package Type:
standard package in wooden case
Lead Time:
Quantity(Set)1 - 78 - 50>50
Est. Time(days)530To be negotiated
Video Description
Product Description

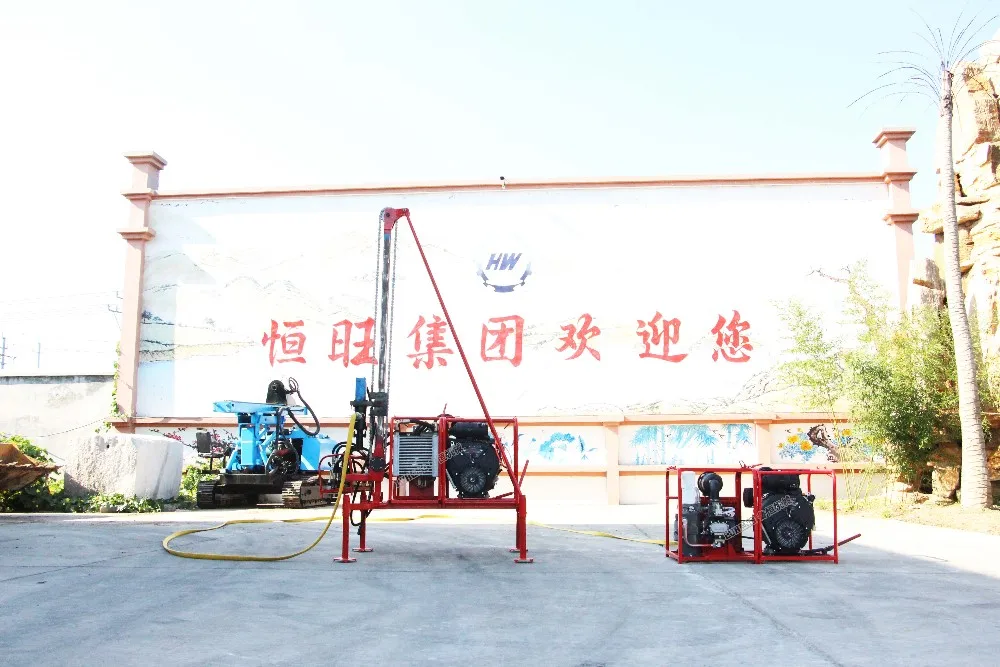

HW-S30 Drilling Rig

PORTABLE PNUEMATIC DRILLING RIG
INCLUDING AIR COMPRESSOR !
DRILL ROCK 30M DEEPTH!

HAVE CRAWLER TYPE WHICH CAN MOVING ON ALL TERRAIN!

Factory Outlet , Welcome to consult!!

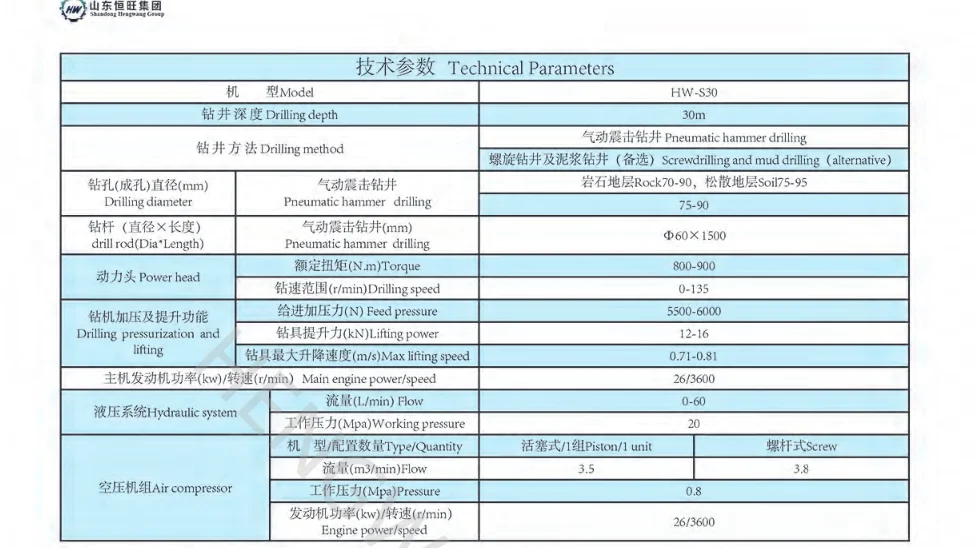

Technical parameters
Detailed Images

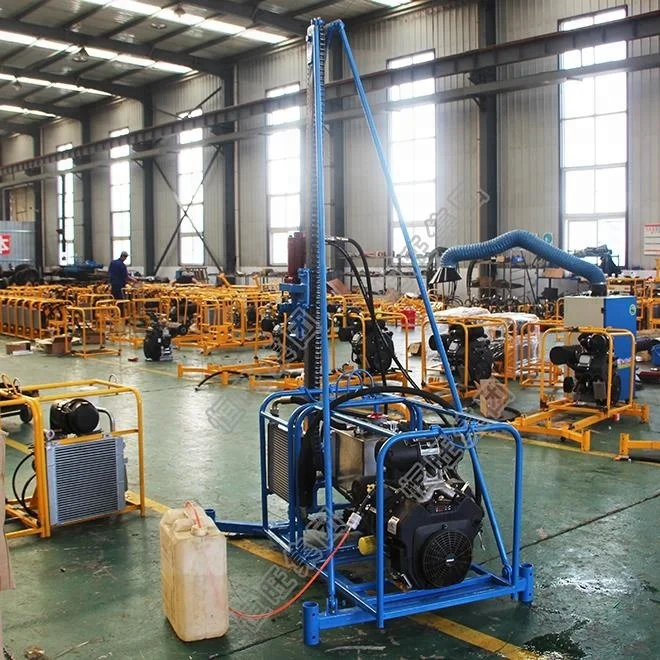

HW-S30 Pneumatic Drilling Rig, Designed for penetrating rocks !

- HW-S30 can easily drill in both rock and soil terrain.

- Demountable structure, the heaviest part is less than 180kg, Very portable!

- Its strong drilling capacity is well received by customers at home and abroad.

- We have prepared all possible accessories for you.

- Only one payment is required for 1 set powerful pneumatic drilling machine, no worry for too many kinds of unknow  accessories.

No.
HW-S30-1 part
Parameter
Quantity
Remark
1
Piston air compressor
3.5m³/0.5mpa
1
including 1 set frame
2

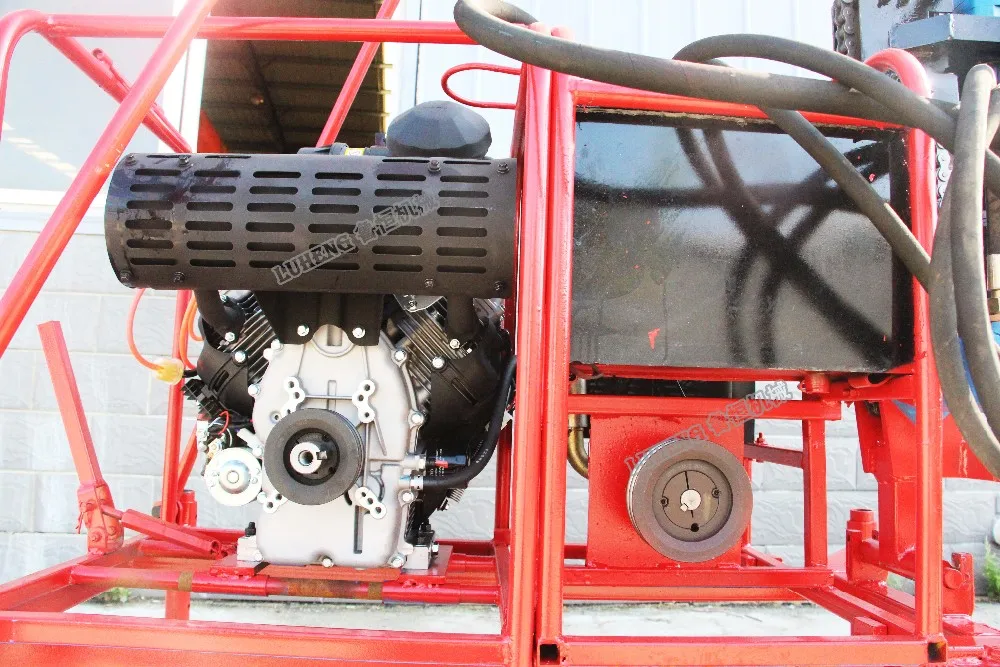

Air compressor engine
35HP
1
including 1 set frame and 1set accessories
3

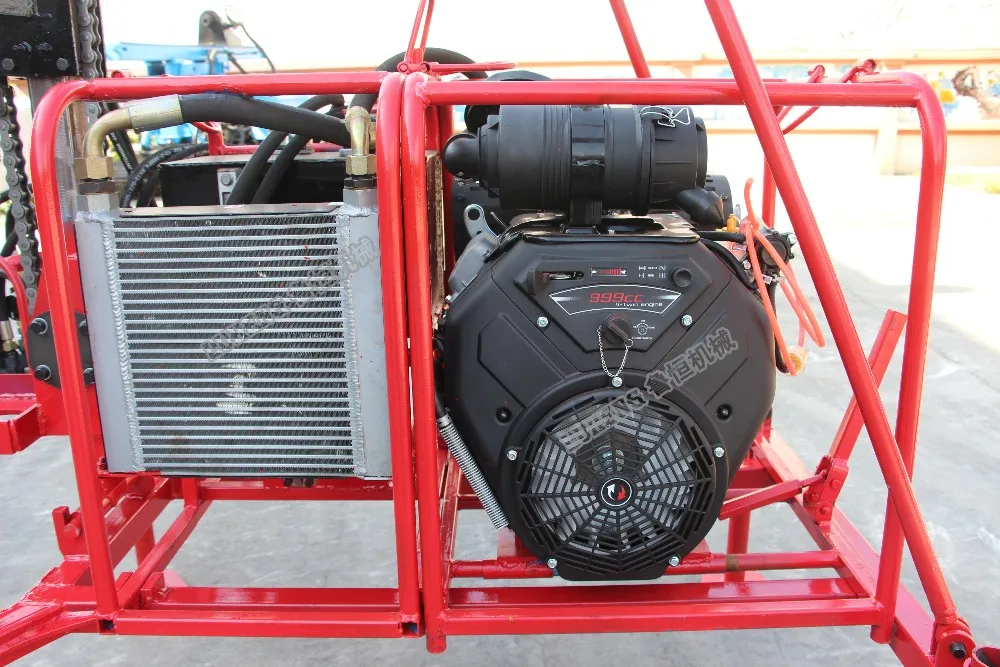

Main engine
35HP
1
including 1 set frame and 1set accessories
4
Oil pump
Double pump
1
belong to main tower
5

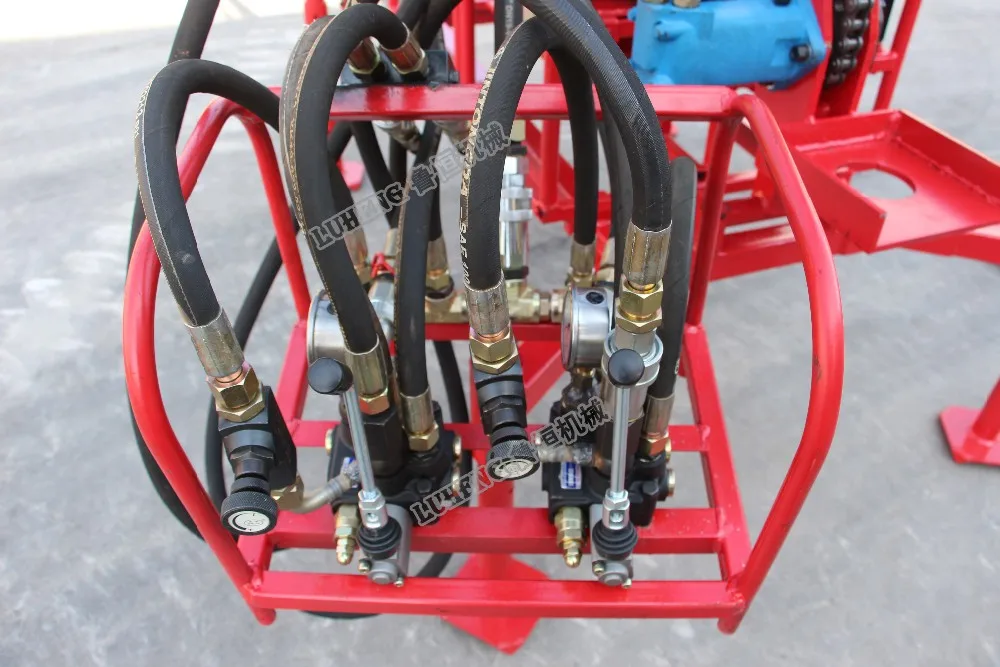

Operating valve
reversing valve
1
belong to main tower
6
pressure gage of Op.valve
for reversing vavle
2
7
drill tower
1
Hydraulic power, oil tank, oil pump, motor, rack, oil cooling radiator, base, derrick assembly, locating small parts
8
Air cooled radiator
1
9
Pneumatic tube
38mm
20
10

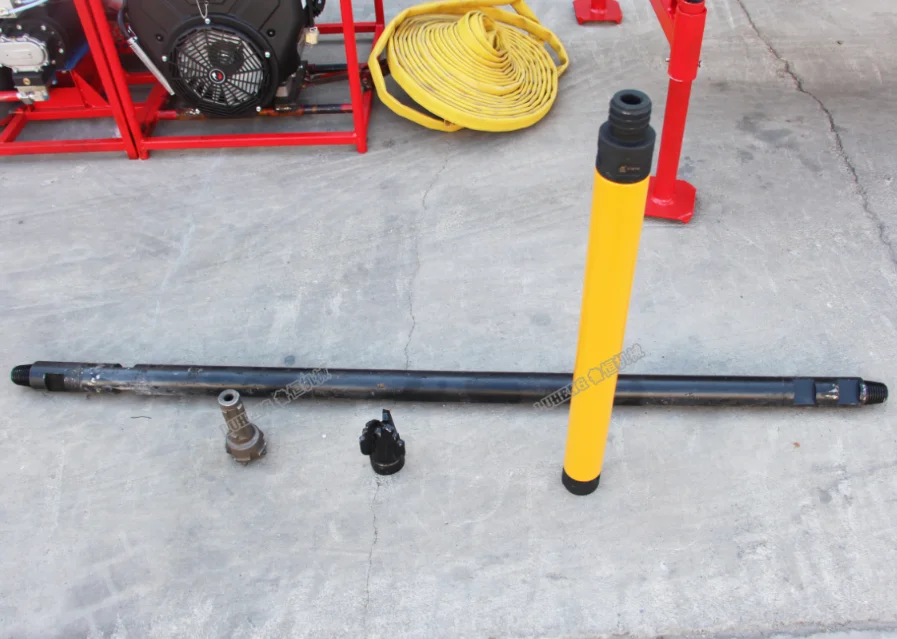

Impactor
70mm
1
11
DTH drill bit
75mm
1
12
Three wing bit
75mm
1
for drilling soil
13
storage battery
36A
1
14
Triangular belt
2540/1400
2/2
15
Accessories
1set
3 kinds of quick connections 2/each, 2 Threaded joint, 2 barbed joint,  10 dowels
16
wired hose
2M
1
17
Tools
1set
Fork wrench, pipe pliers, butter gun, pliers, screwdriver, 2 battery lines
18
Quick-wear-parts
1set
Oil seal, sealing ring, combination pad
1set HW-S30-1"s price is EXW USD 6499
19
60mm drill rod
USD13/1 Meter
Select according to demand (gift free linkers)
22
Max.drilling dia.
90mm
23
Max.drilling depth
30M
In the case of 75mm Diameter.
HW-S30-1"s total EXW price is USD 6499 + 13*(X meters)

For different customer"s needs, we have 6 different configurations.

- HW-S30-1 - (base model refer to the sheet )

EXW USD 6499
- HW-S30-2 - Aluminum alloy Piston air compressor(3.5m³/0.5mpa)

EXW USD 6994
- HW-S30-3 - Screw air compressor(3.8m³/0.8mpa)

EXW USD 8533

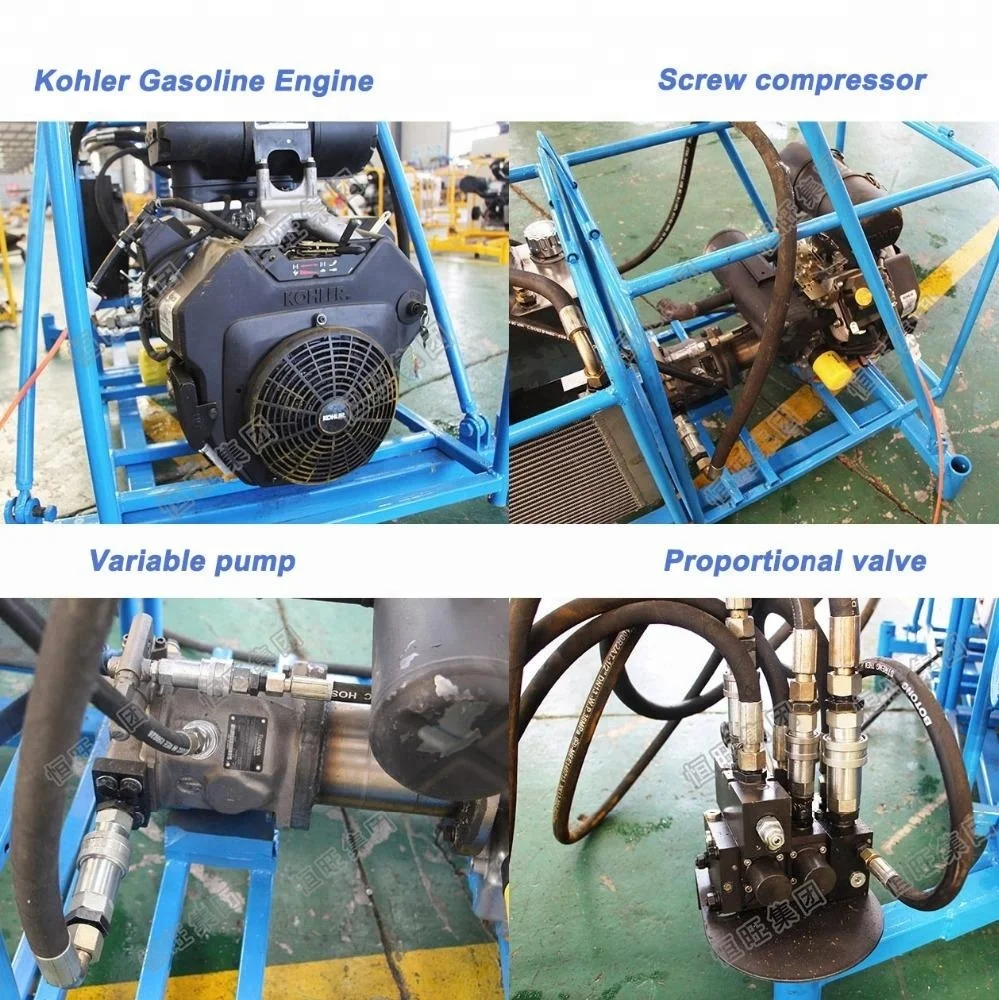

- HW-S30-4 - Screw air compressor(3.8m³/0.8mpa), Kohler main engine

EXW USD 8841
- HW-S30-5 - Screw air compressor(3.8m³/0.8mpa), Kohler main engine, variable pump, proportional valve

EXW USD 11538
- HW-S30-6 - Screw air compressor(3.8m³/0.8mpa), Kohler main engine, Kohler air compressor engine,variable pump, proportional valve

EXW USD 14615

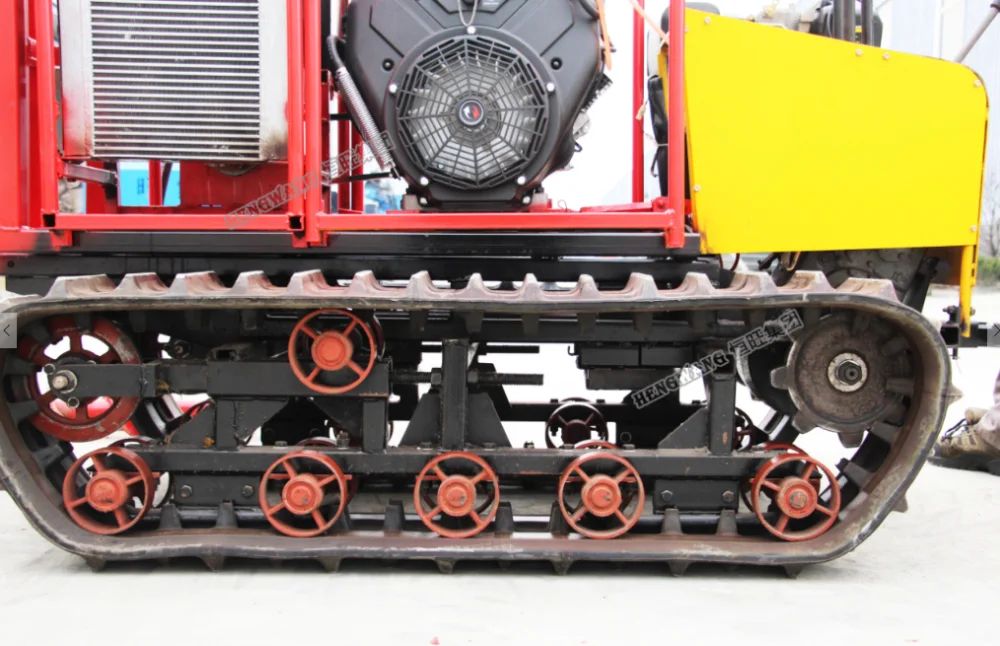

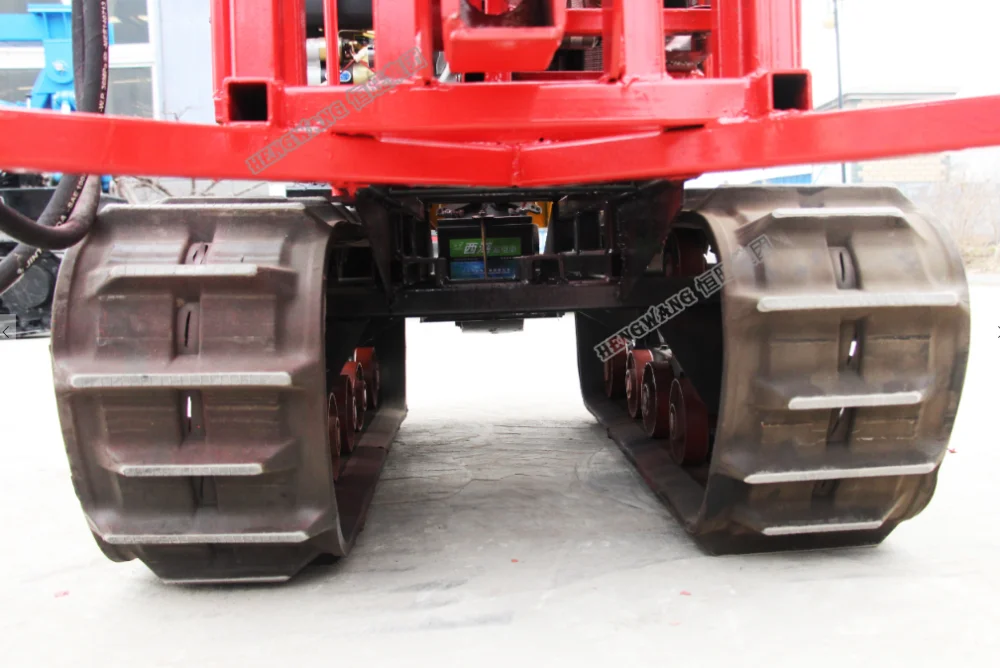

Crawler Type

- Although the HW-S30 pneumatic drilling machine is designed very portable. But for many customers who need to work in the mountains, we have crawler type for choicing.
- Only need to add USD 3200 ! You can get a All terrain self-moving powerful drilling rig.
Crawler Part Parameter
Max. Speed
8km/h
Power
8hp Diesel Engine
Max.Climbing Angle
33°
Total Size
1.7m*0.96m
Ground Clearance
250mm
Crawler
rubber high tooth crawler
Payment & Credit

To protect your benefit!

1. Unconditionally refunding your money, in 7 days after paying.
2. Unconditionally refunding your money, if you are not satisfied with quality after receiving goods.
3. Alibaba Trade Assurance Order online is supported and welcomed, your money will be in safety.

1 YEAR WARRANTY , If any parts break down within warranty  we will send you free part !!!

Although out of the WARRANTY, we can offer you the part in cost price !!!

We are a supplier with good credit on Alibaba :

- No COMPLAINT and VIOLATION.
- No CUMULATIVE PENALTY.
- No SERIOUS INFRINGEMENT.

Packing & Delivery

Please contact us for details of shipping!

We can send it to everywhere on the world.
Factory Outlet , Welcome to consult for more delivery details!!
Our Company

Welcome to visit our factory! For evey visitor we will offer :

- Airport pickup.

- Free hotel.
- Eating.
- Entertainment.
- Let your business trip like a comfortable sightseeing!


Action now - select 1 set HW-S30 drilling rig !
- To send an inquiry or message to us online.
- To get one set powerful drilling rig with all accessories.
- To get more details.
- To know our more warranty, guarantee and responsibility.
- To know every kinds of our drilling rig.
- Or contact us, Mob / WhatsApp / WeChat: +86-15998722880, Email : hw019 @hengwanggk.com
