Home > Products > Trailer mounted drilling rig for solving water problem

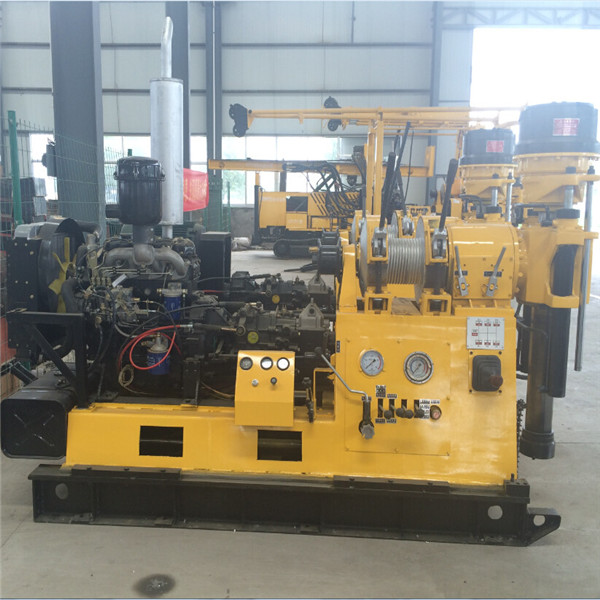

Trailer mounted drilling rig for solving water problem
Click on the image to view the original image
Product： views：3Trailer mounted drilling rig for solving water problem
Branch： Hengwang
Type： Rotary Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:40
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
Hengwang
Usage:
Water Well
Voltage:
380v
Dimension(L*W*H):
2500 x 900 x 1800mm
Weight:
1600KG
Certification:
iso
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
Name:
Multifunction Hydraulic Drilling Rig
Drilling depth:
600m
Drilling Hole Diameter:
Within 350mm
Engine:
Disel Engine
Drill rod length:
3.0m
Mud pump:
BW-250
Function:
Borehole Machine
Drilling Rod diameter:
60mm
Feature:
High Efficiency
Keyword:
Borehole Core Drilling Machines
Supply Ability
Supply Ability:
10000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden case
Port
Qingdao
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)7To be negotiated

Trailer mounted drilling rig for solving water problem

Product instruction

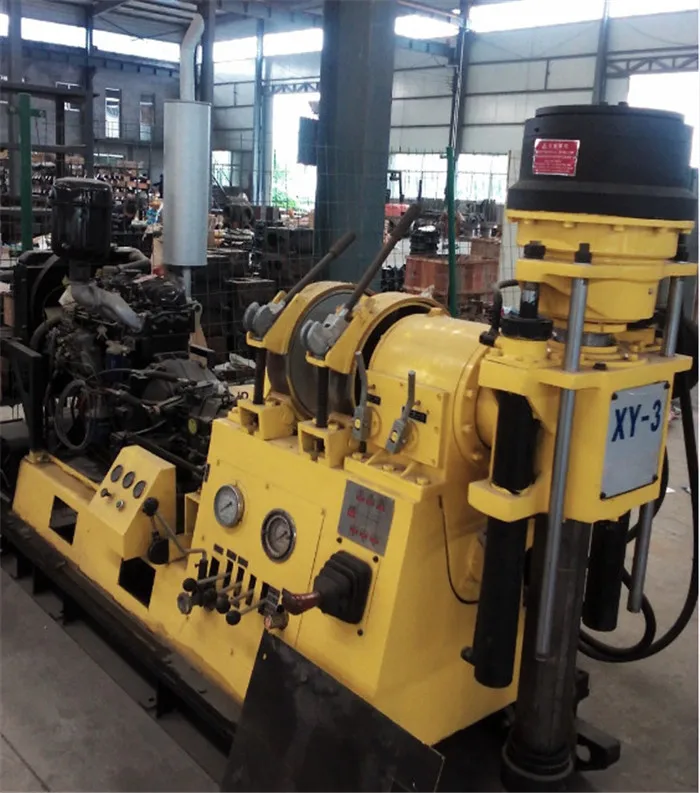

XY-3 multifunctional hydraulic water well drilling rig for sale.

Features: Trailer mounted drilling rig for solving water problem

1XY-3 well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency

2.Easy to transport and can learn how to handle the machine in short time.

3.It can drill 600m depth with low consumption and drilling rig all adopts full hydraulic control. Trailer mounted drilling rig for solving water problem

4.Power head device, gearbox integrated casting, dual motor power, torque, durability, small maintenance costs. Trailer mounted drilling rig for solving water problem

5.Each drill hoist arm is installed limiter, protect the cylinder safety, ensure the safety

of work. Trailer mounted drilling rig for solving water problem

Technology Parameter

Unity machine parameter

Core Drilling depth

600m

Max open hole caliber

300mm

End hole caliber

75mm

Drilling Rod diameter

60mm

Drilling angle

90°~65°

Dimension

2500 x 900 x 1800mm

Drill weight (without power)

1600kg

Spindle

Spindle speed

Forward 30-1050r/min



Reverse 29 137r/min

Spindle stroke

600mm

Spindle inner diameter

96mm

Lifting capacity

6000kg

Hoist

Max.Single line lifting capacity

4000kg

Max.Single line lifting speed

0.5-1.9m/s

Wirerope caliber

12.5mm

Wirerope length

50m

Reel diameter

300mm

Hug folldgate belt width

90mm

Mud pump

Type

BW-250

Displacement

250 L/min

Work pressure

80kg/cm

Water inlet pipe diameter

75 mm

Water outlet pipe diameter

50 mm

Gear Oil pump

Duplex gear oil pump

CBF-F63/25

Front Displacement, pressure

63 L/min 20Mpa

Behind Displacement, pressure

25 L/min 20Mpa

Power

Duplex gear oil pump

CBF-F63/25

Front Displacement, pressure

63 L/min 20Mpa

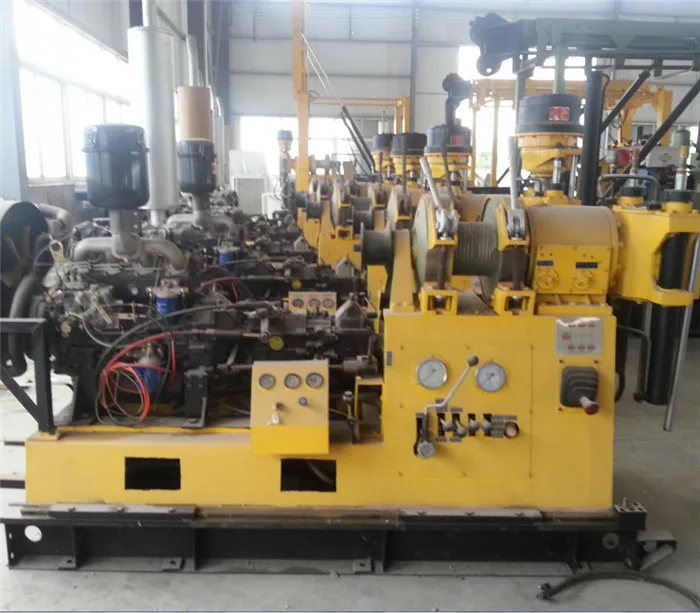

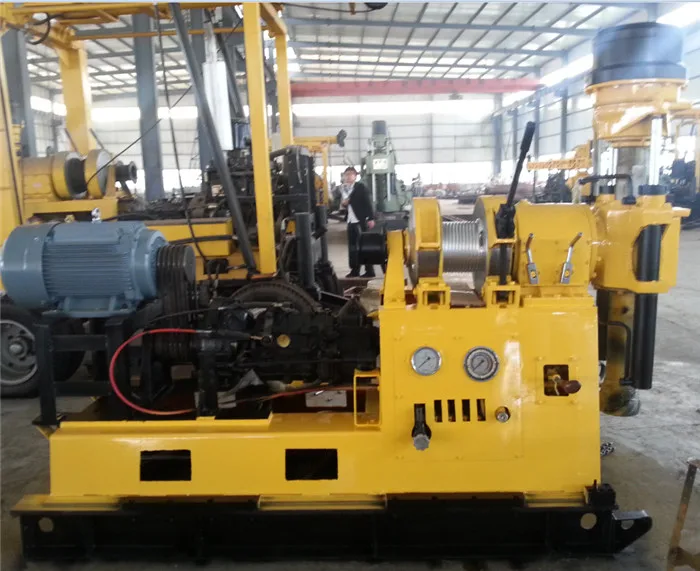

Product Real Photos
