- Bucket capacity:
- 0.028m3
- Operating Weight:
- 860kg
- Rated Speed:
- 2km/h
- Warranty:
- 1 Year
- After-sales Service Provided:
- Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
- Applicable Industries:
- Building Material Shops, Machinery Repair Shops, Farms, Retail, Construction works
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Condition:
- New
- Moving Type:
- Crawler Excavator
- Maximum Digging Height:
- 2650mm
- Maximum Digging Depth:
- 1650mm
- Max Digging Radius:
- 2900mm
- Certification:
- ISO
- Hydraulic Cylinder Brand:
- Bosch Rexroth
- Hydraulic Pump Brand:
- KYB
- Hydraulic Valve Brand:
- Huade
- Engine Brand:
- FPT
- UNIQUE SELLING POINT:
- High load Moment
- Power(W):
- 8.6
- Color:
- Yellow
- Working pressure:
- 16Mpa
- Digging up capacity:
- 25KN
- Power:
- Diesel engine
- Rated power:
- 8.6KW
- Displacement:
- 6.8ml/r
- Length of crawler:
- 180mm
- Brand name:
- hengwang
- Keywords:
- Mini Excavator Digger
- color:
- yellow
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 277X92.5X100 cm
- Single gross weight:
- 860.0 kg
- Package Type:
- standard packing

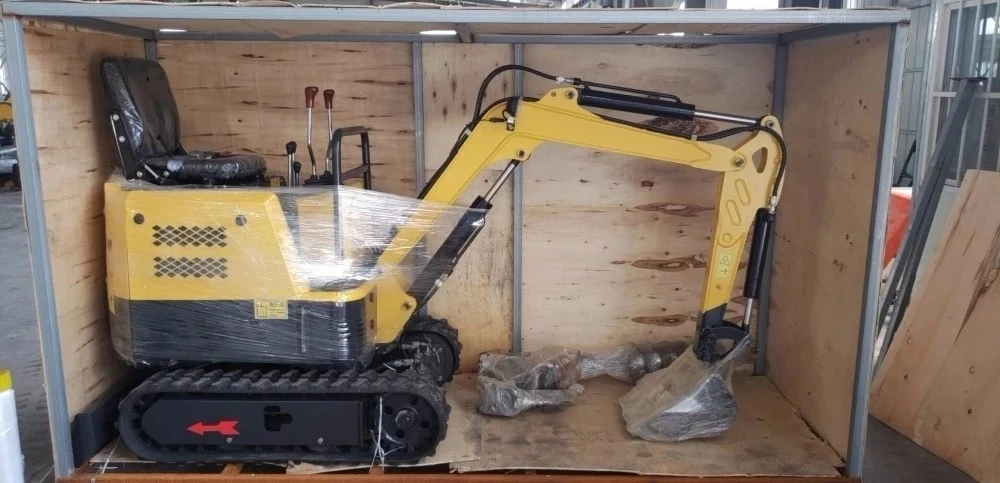

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 20 >20 Est. Time(days) 10 To be negotiated

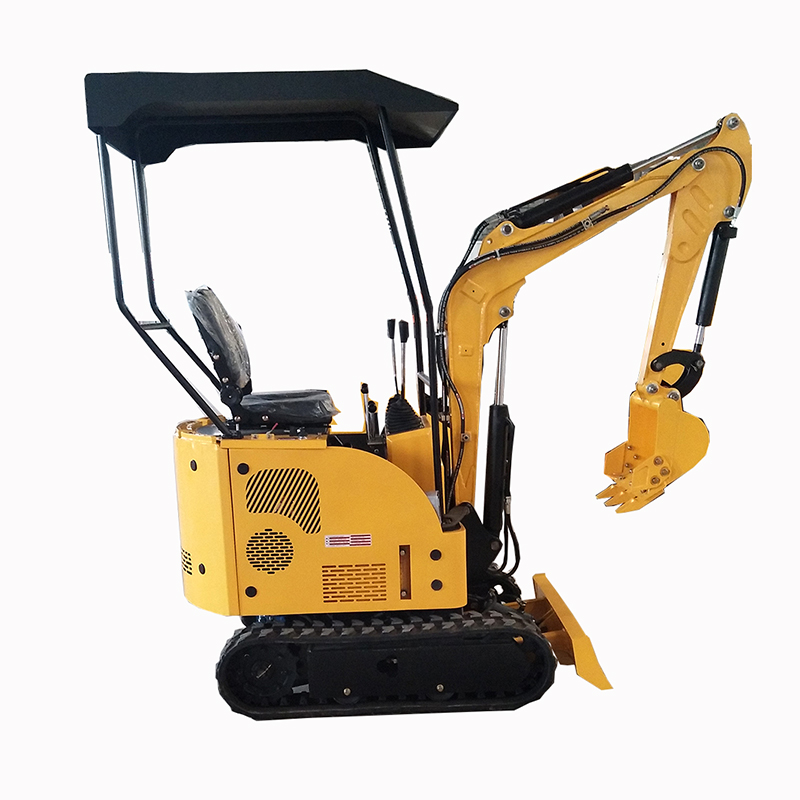

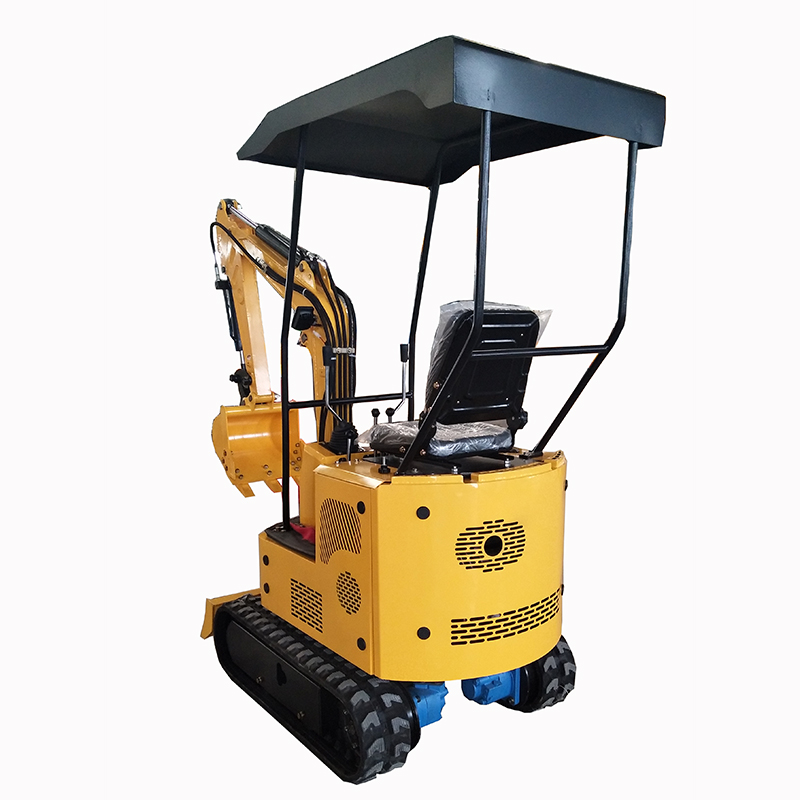

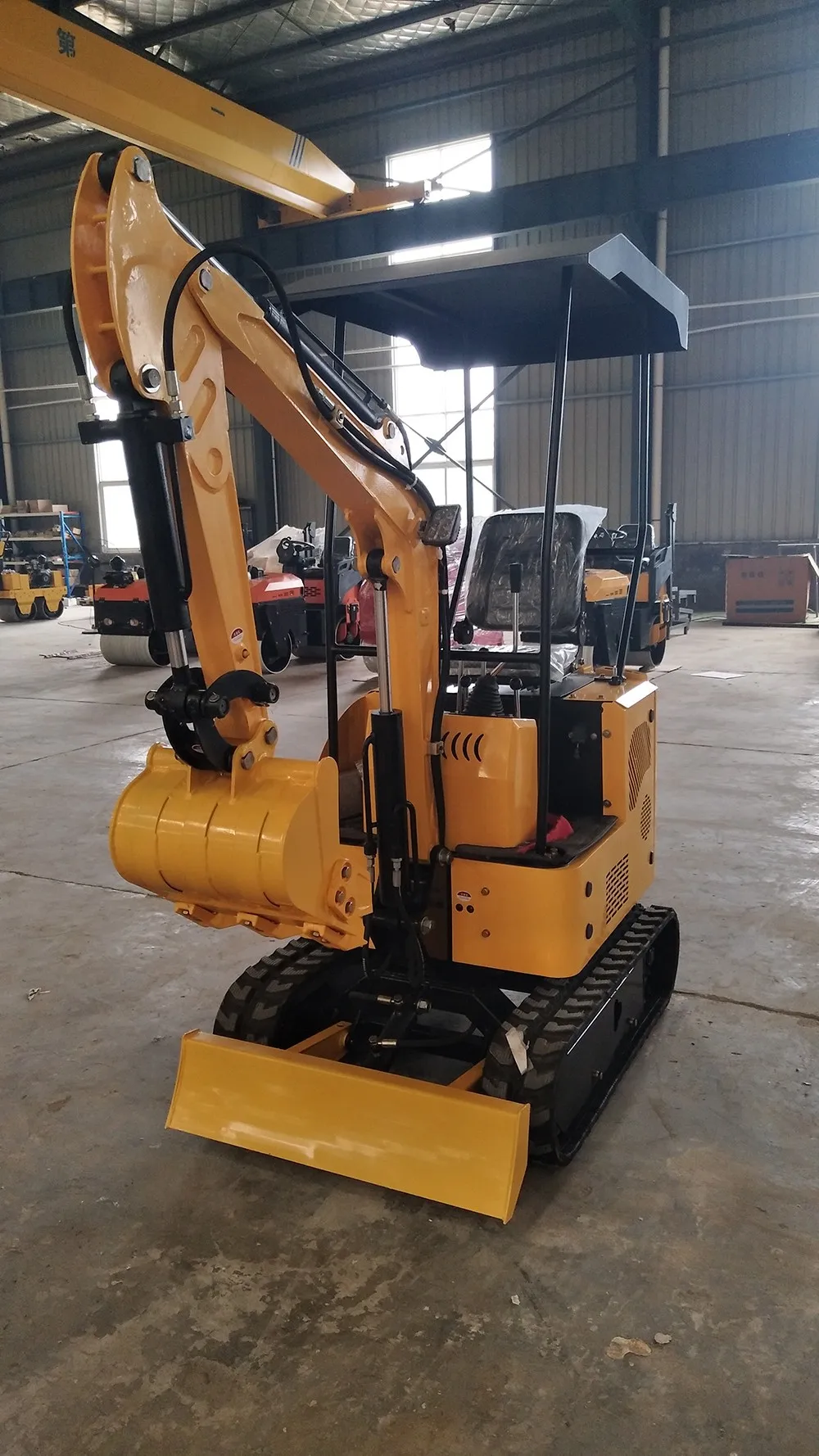

800kg Hydraulic Crawler Mini Excavator with lowest price
1.New style HW-12 is upgrades of HW-10. The following improvements have been made on the basis of HW-10:
(1)Strengthening of the main parts of the whole machine structure. The part of chassis lengthen by 15cm. When digging, no longer skip head.The stability improved more.

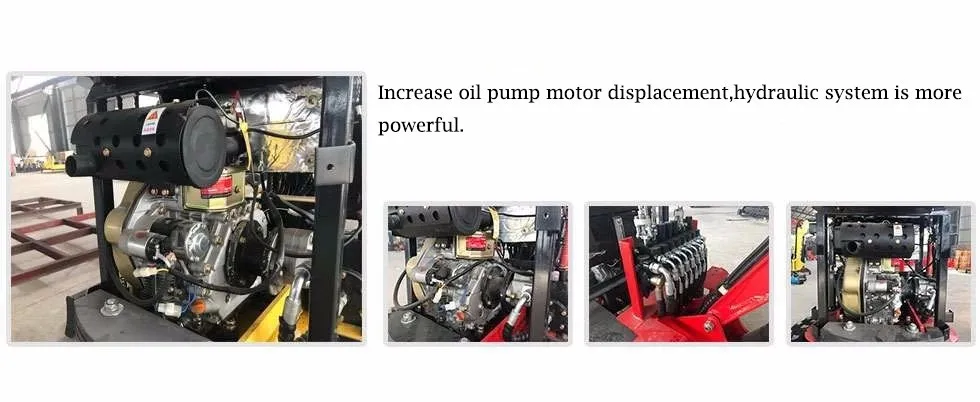

(2)Motor displacement is increased,reduction of internal discharge,increase torque.It completely solve the phenomenon of climbing and turning in situ.
(3)The engine reduce rotation rate(3300~3000 r/min). Alleviate the continuous rise of oil temperature,improved digging force.
(4)The width of caterpillar from 130mm widen to 180mm. Have more strong stability. Equipped with hydraulic oil radiator and respirator, strong fan, can be continuous work.HW-12 model is the most mature and perfect one in the current domestic system.
2.This product widely apply to vegetable greenhouse,fruitland nurseries,farmland leveling land, digging ditch,etc. Construction in narrow space. It's the preferred tool to replace the labor force.
SPECIFICATIONS FORMIMI EXCAVATOR | ||||||
MODELS | HW-10 | Backhoe bucket | 1850mm | |||
TOTAL OPERATING WEIGHT | 860kg | Length of crawler | 1210mm | |||
Transporation dimension(L*W*H) | 2770*925*1000mm | Width of crawler | 180mm | |||
Max. Digging force | 7.2KN | Rated powder | 8.6kw | |||
Backhoe bucket capacity | 0.028m3 | Max.travel speed | 2km/h | |||
Digging up capacity | 25KN | Max.digging radius | 2900mm | |||
Rotating speed | 12rpm | Max.clmib capability | 30° | |||
Max.Digging depth | 1650mm | Max. lift height of dozer blade | 345mm | |||
Max.Digging height | 2650mm | Max.digging depth of dozer blade | 255mm | |||
