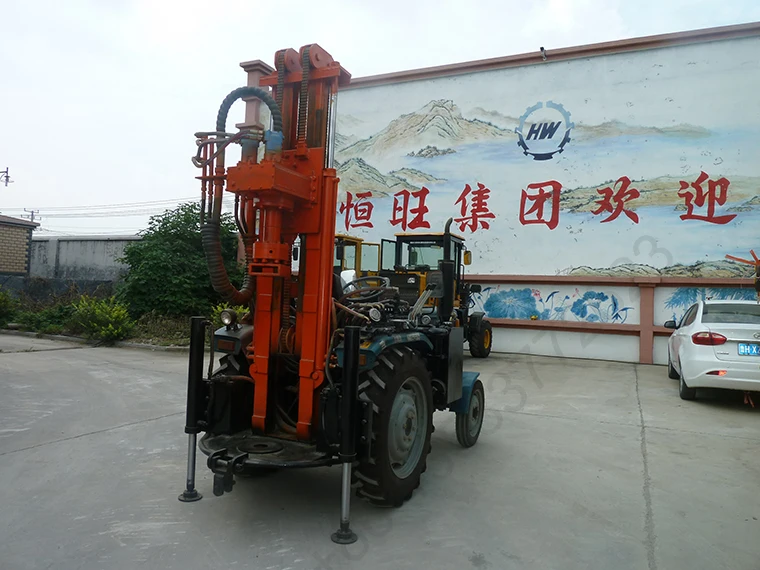

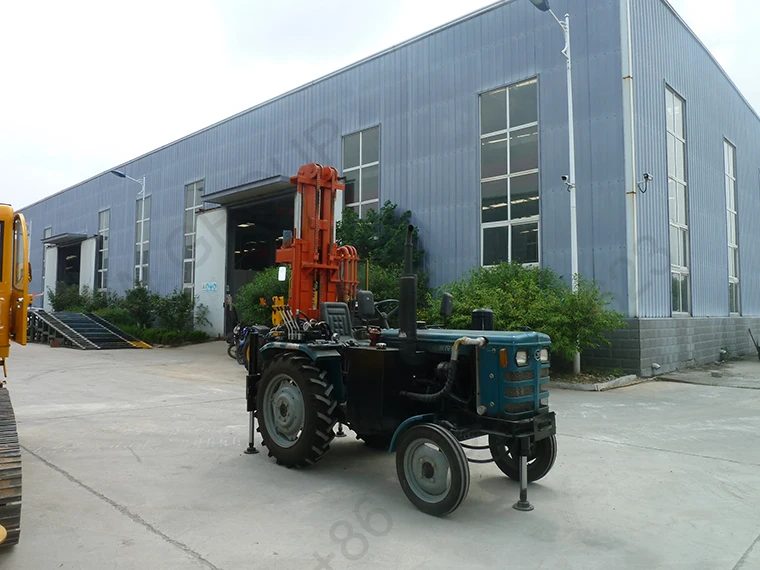

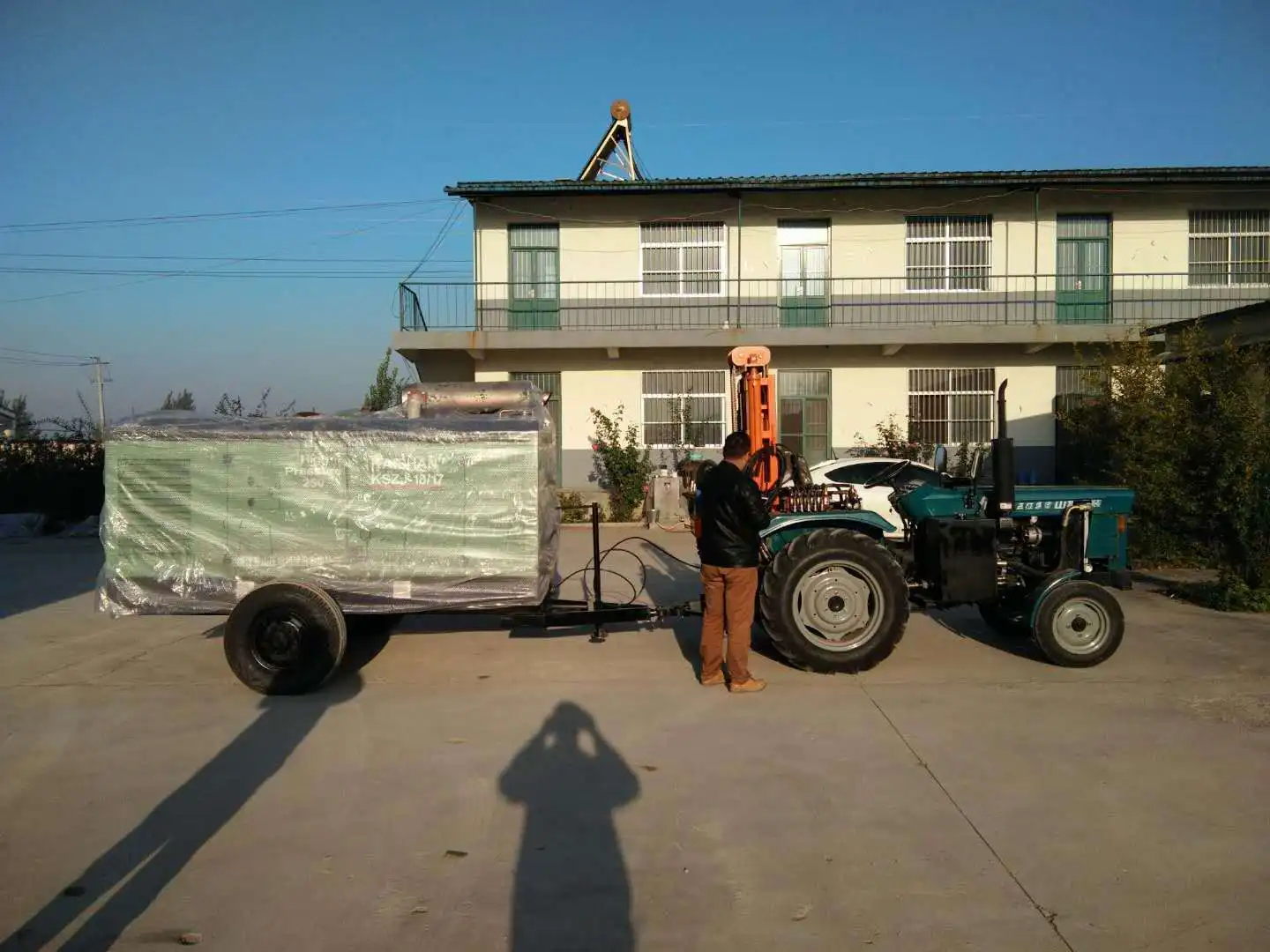

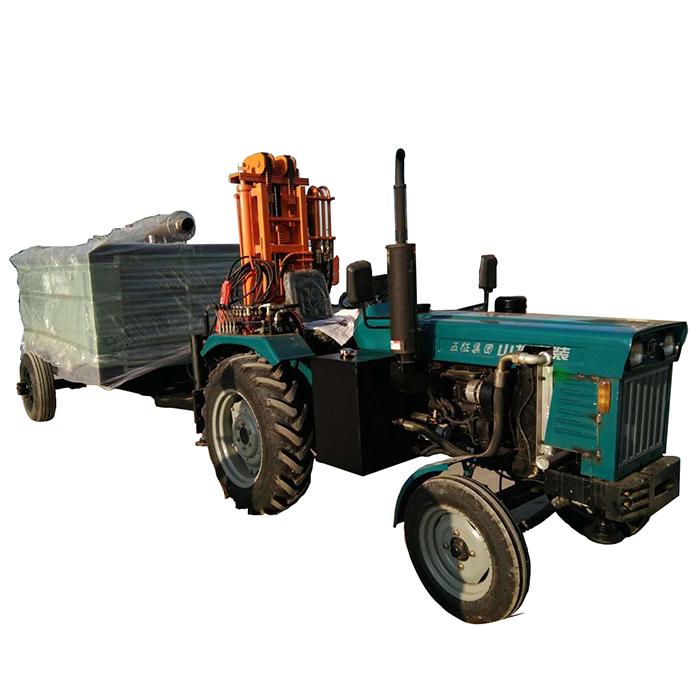

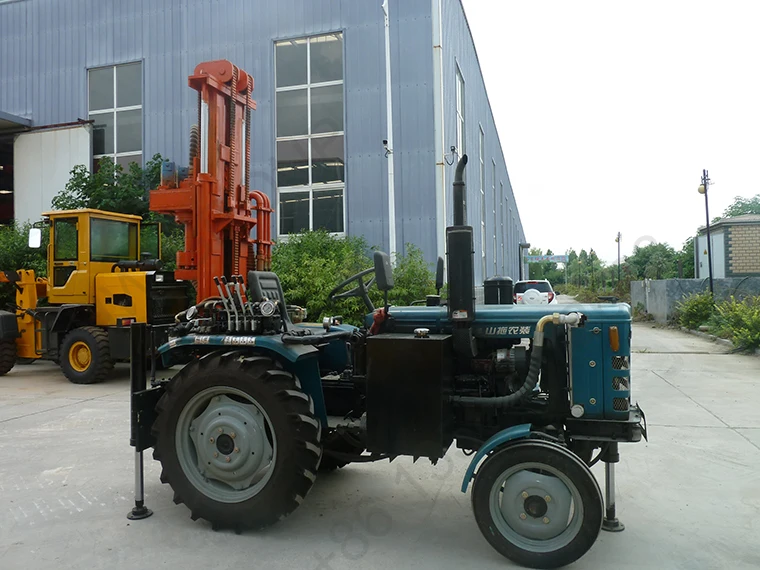

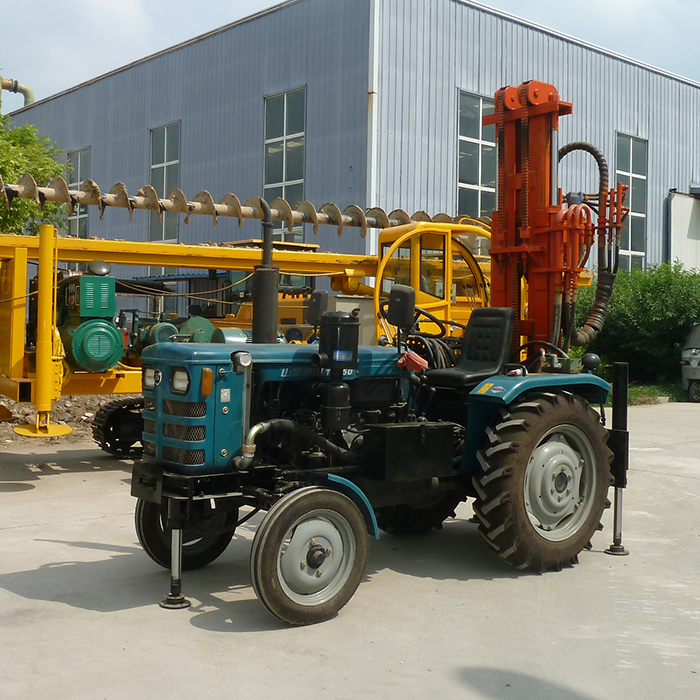

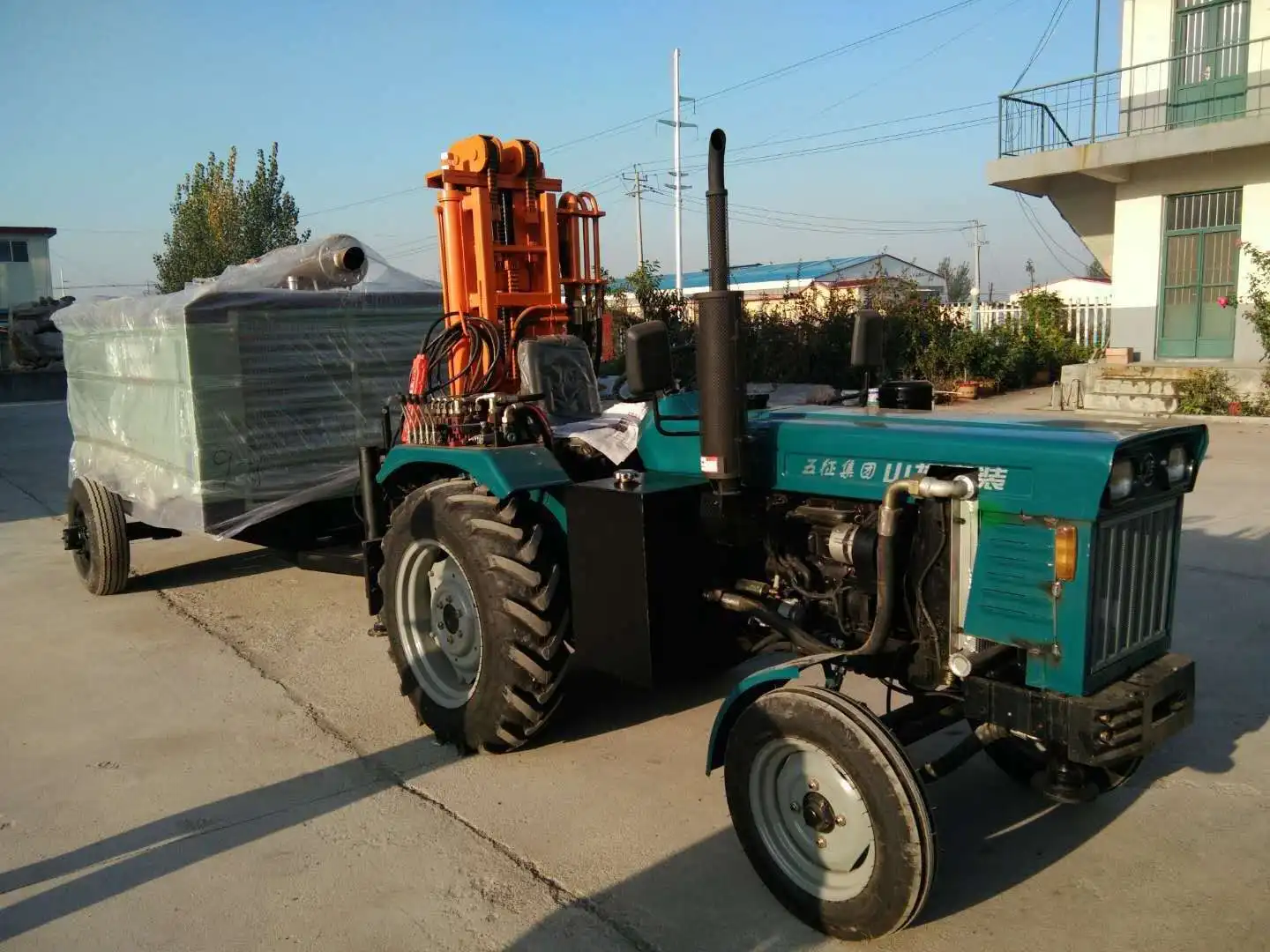

This product is the combination of tractor and pneumatic drilling rig, forming a rig tractor drilling equipment, conducive to walking and air compressor combination. So that the construction more convenient and efficient.
HQZ100 rock Well Drilling Machine adopts the new hydraulic technology, supporting large torque hydraulic motor rotation and large bore hydraulic cylinder propulsion, the factory multi-cylinder engine for the hydraulic system to provide power, two air filter and air compressor air intake design to extend the life of the diesel engine The
HQZ100 tractor-type drilling machine features:
HQZ100 vertical drilling machine for drilling workers, ground drilling, with a large diameter drilling, drilling depth, footage fast, flexible mobile, the use of geographical advantages.
Item | parameter |
Drilling diameter(mm) | Ø110-300 |
Drilling depth(m) | 30-150 |
Drilling angle(°) | 90 |
Advance length(mm) | 1500 |
Rotating speed | 0~78 |
Air pressure(Mpa) | 1.3-2.7 |
Air consumption(L/min) | 18 |
Weight(KG) | 2500kg |
Tactor power(HP) | 25-50 |

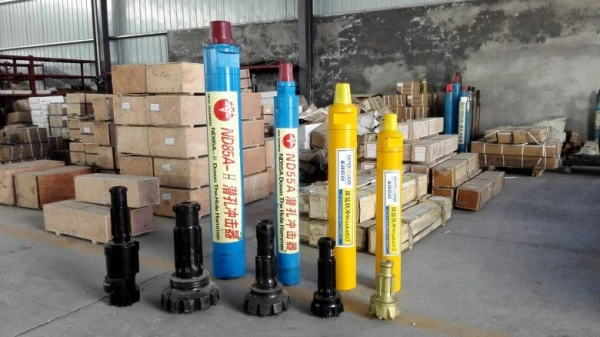

Impactor | 350/360/380 |

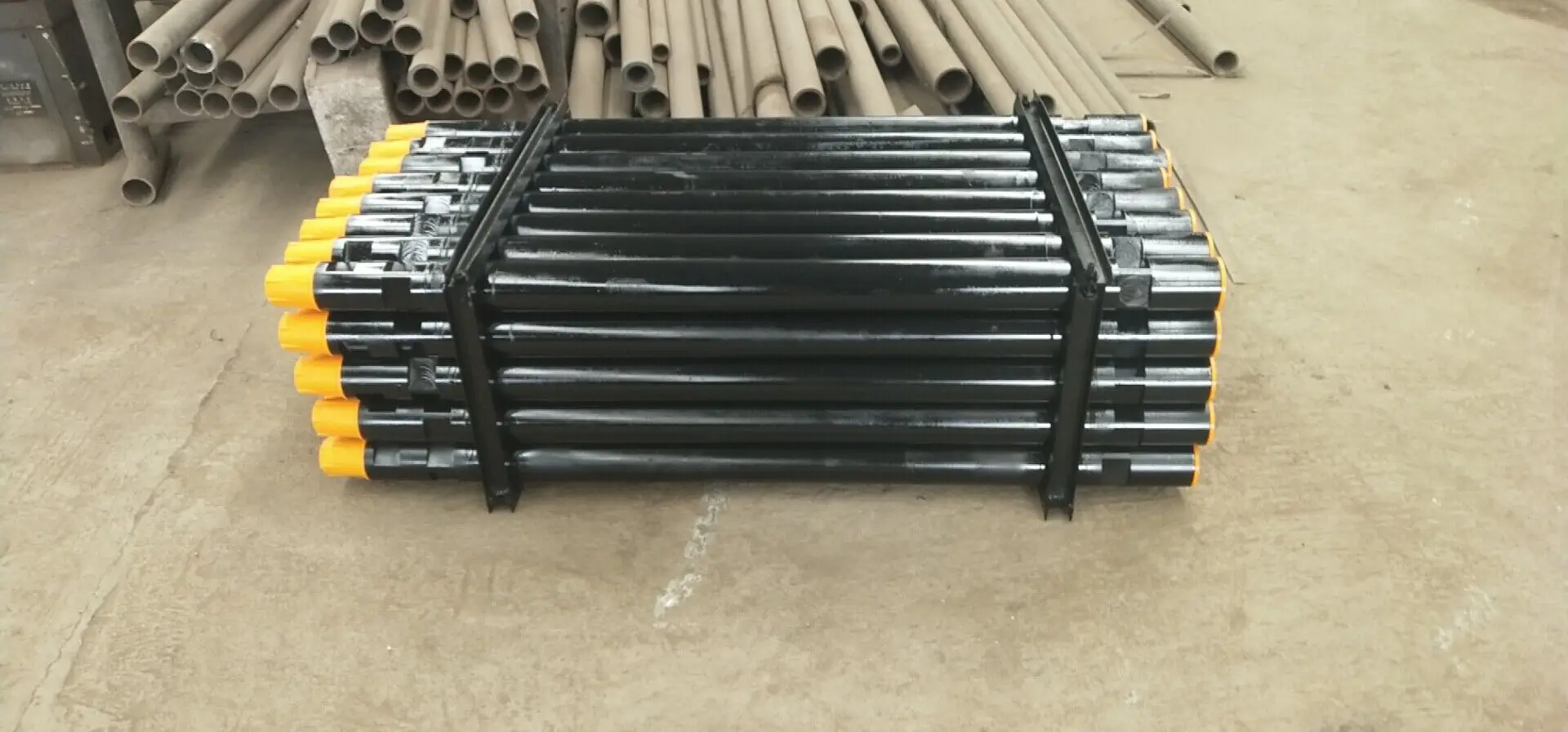

Drill rod(mm) | Ø73/76/89 |
Follow pipe | Ø138-219 |
Dimension(mm) | 3300*1400*2500 |
Advantages:
1. Very powerful at soil, sand, hard rock, etc. land condition.
2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available
for your choice, which can drill both soft and hard ground, especially diamond
drill bit effective in drilling hard rocks.
3. Hydraulic control system for greatly improving the working efficiency,
saving labor force.
4. Mounted wheel or trailer, can be hauled easily by car or tractor,
convenient to transport.
5. Power can be diesel engine or electric motor, as per your request.
