Product Description

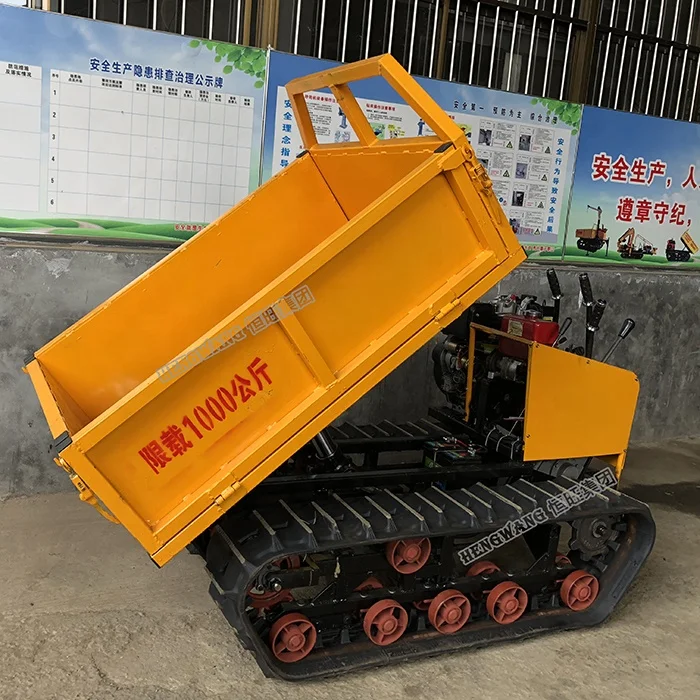

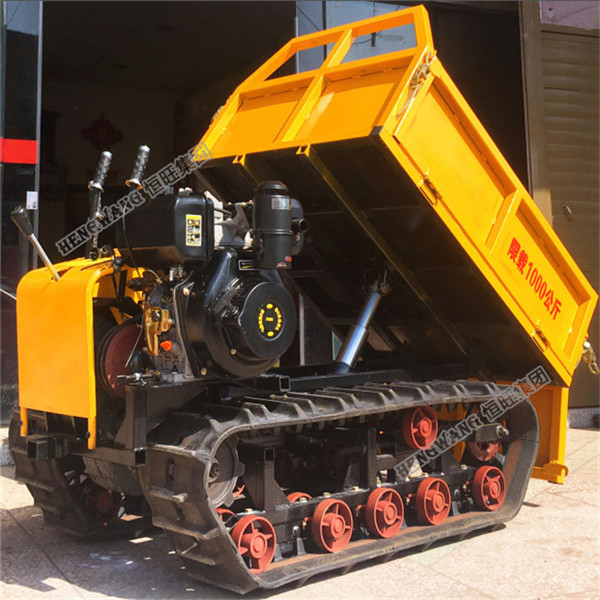

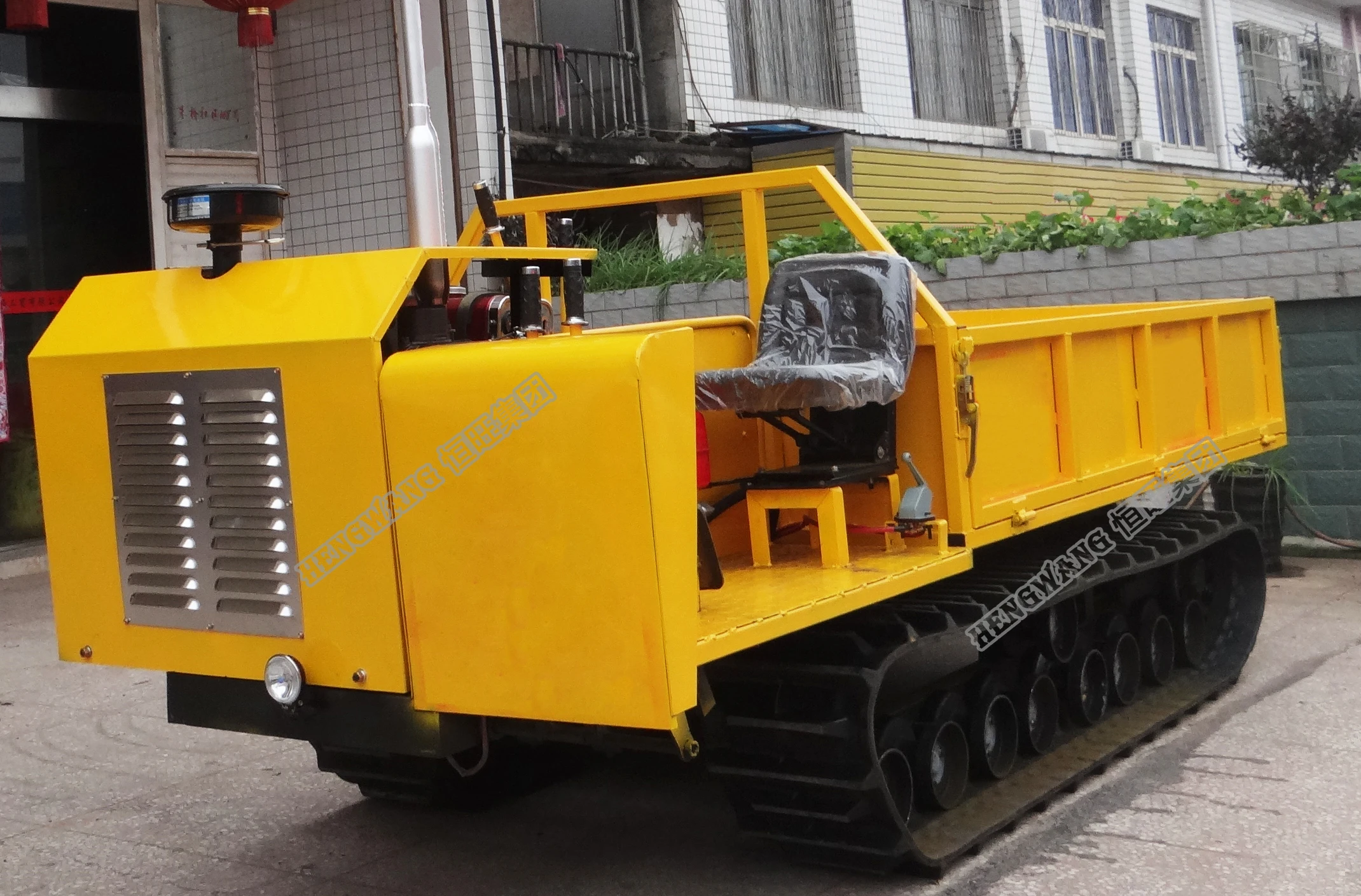

Mini dumper is mainly composed of hopper and walking chassis,Through material in gravity or hydraulic cylinder thrust tilting unloading.Discharge according to the different azimuth,Front to discharge,Rotary discharge,Rollover unloading,High fulcrum discharge,Lift tilting discharge and so on.
1 ton | 2ton | 3ton | 4ton | |
Total Machine Weight | 1600KG | 1900KG | 2500KG | 3000KG |
Engine power | 12HP Diesel engines | 32HP Diesel engines | 45HP Diesel engines | 82HP Diesel engines |
Power | 9KW | 23KW | 33KW | 60KW |
Pump model | 306 | 306 | 308 | 310 |
Diesel engine capacity | 15L | 20L | 25L | 30L |
Hydraulic volume | 3L | 5L | 5L | 7L |
Maximum deadweight | 1000KG | 2000KG | 3000KG | 4000KG |
Maximum grade | 30 | 30 | 30 | 30 |
Track length | 4100mm | 4500mm | 4900mm | 5000mm |
Track height | 550mm | 555mm | 565mm | 575mm |
Crawler width | 350mm | 350mm | 400mm | 320mm |
Size of the trunk | 1900*1600*1850mm | 2000*1600*1850mm | 2000*1650*1850mm | 2200*1750*1850mm |
Machine size | 3500*1600*1850mm | 3550*1600*1850mm | 3600*1650*1850mm | 3700*1750*1850mm |
Walking speed | 0-10km/h | 0-15km/h | 0-20km/h | 0-20km/h |
Detailed Images
Related Products
Packing&Shipping
After Sales Service
After Sales Service
1. we machine warranty is one year;
Company Introduction

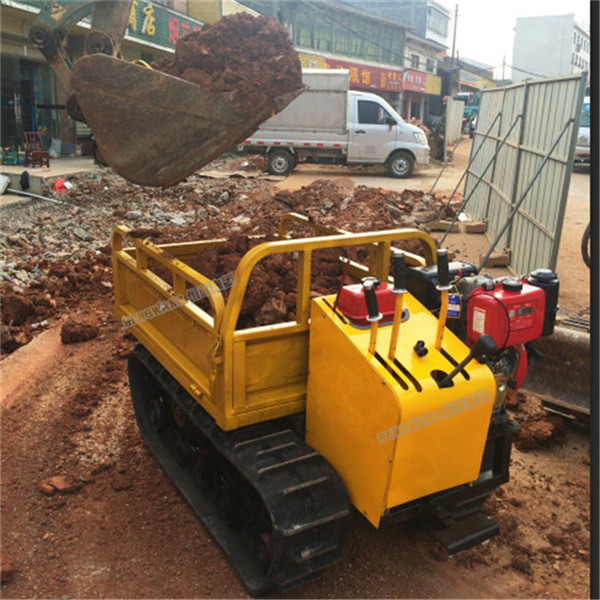

Working Case
FAQ
Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q8: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q9.Do you have any certificates for your machine?
Ans.: All of our products coming with the certificates of CE, ISO9001.
