Home > Products > Small Electric Crawler Mini Dumper Used In Narrow Place
Small Electric Crawler Mini Dumper Used In Narrow Place
Click on the image to view the original image
Product： views：3Small Electric Crawler Mini Dumper Used In Narrow Place
Branch： Hengwang
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:40
  Negotiated
Product Details
Overview
Quick Details
Drive Wheel:
4x2
Capacity (Load):
1 - 10t
Horsepower:
150 - 250hp
Condition:
New
Transmission Type:
Automatic
Emission Standard:
Euro 1
Fuel Type:
Petrol / Gasoline
Engine Capacity:
< 4L
Gross Vehicle Weight:
1900
Place of Origin:
China
Brand Name:
Hengwang
Dimensions (L x W x H) (mm):
3500*1600*1850mm
Product name:
Mini Dumper
Driving type:
Right Hand Driving
Name:
Construction Dumpers
Engine model:
12HP Diesel engine
Loading capacity:
1ton
Keywords:
Crawler Mini Dumper
Usage:
Farming Sand Transport Truck
Rated Power:
9KW
Max. speed (km/h):
0-10km/h
Package:
wooden case
Supply Ability
Supply Ability:
10000 Set/Sets per Year
Packaging & Delivery
Packaging Details
standard package
Port
Qingdao
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)7To be negotiated

Small Electric Crawler Mini Dumper Used In Narrow Place

Product instruction

Mini dumper is mainly composed of hopper and walking chassis,Through material in gravity or hydraulic cylinder thrust tilting unloading.Discharge according to the different azimuth,Front to discharge,Rotary discharge,Rollover unloading,High fulcrum discharge,Lift tilting discharge and so on.Small Electric Crawler Mini Dumper Used In Narrow Place

Technology Parameter

Mini rubber track transport dumper truck

 1 ton2ton3ton4ton
Total Machine Weigh1600KG1900KG2500KG3000KG
Engine power12HP Diesel engines32HP Diesel engines45HP Diesel engines82HP Diesel engines
 Power9KW23KW33KW60KW
Pump model306306308310
Diesel engine capacity15L20L25L30L
Hydraulic volume3L5L5L7L
Maximum deadweight1000KG2000KG3000KG4000KG
Maximum grade30303030
Track length4100mm4500mm4900mm5000mm
Track height550mm555mm565mm575mm
Crawler width350mm350mm400mm320mm
Size of the trunk1900*1600*1850mm2000*1600*1850mm2000*1650*1850mm2200*1750*1850mm
Machine size3500*1600*1850mm3550*1600*1850mm3600*1650*1850mm3700*1750*1850mm
Walking speed0-10km/h0-15km/h0-20km/h0-20km/h

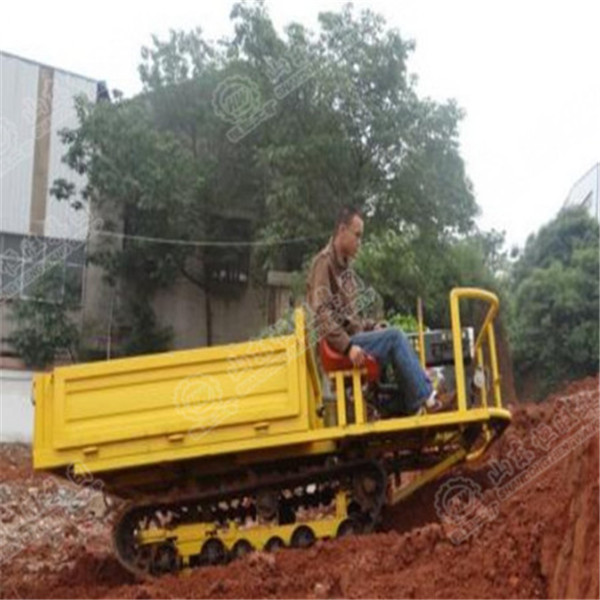

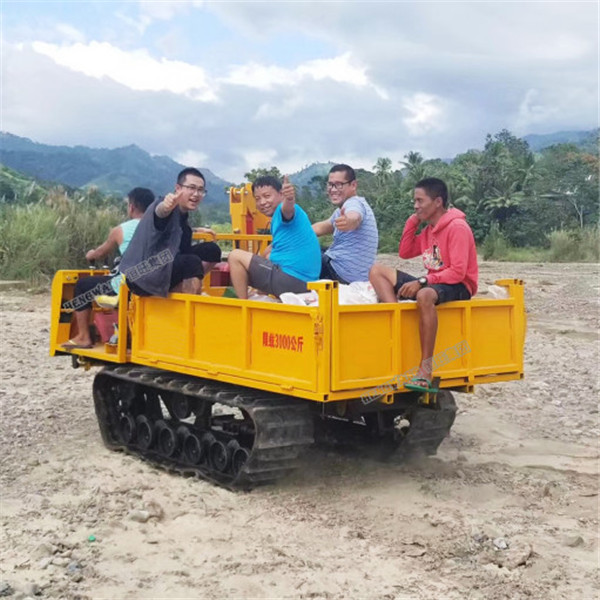

Product Real Photos
