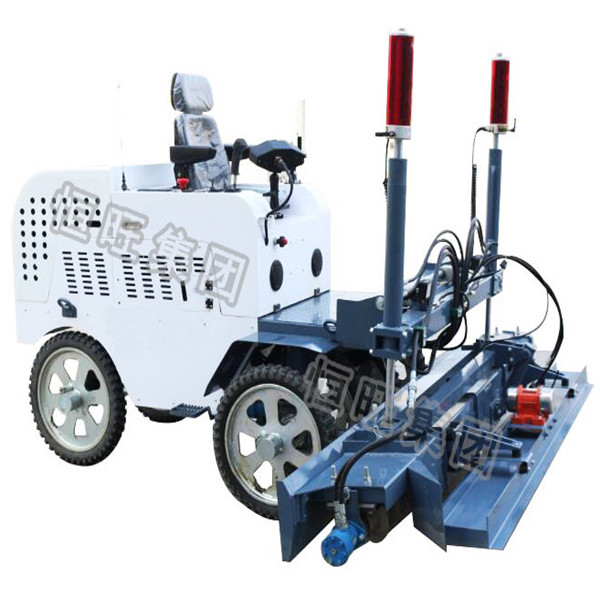

Vibratory Land Leveling Machine/ Concrete Laser Screeds
Product instruction
The laser leveling machine is a device that uses the laser emitted by the transmitter as a reference plane to control the leveling head in real time through the laser receiver on the laser leveling machine, thereby realizing high precision and rapid leveling of the concrete.Vibratory Land Leveling Machine/ Concrete Laser Screeds
The use of precision laser levelers to pave the flattened cement concrete floor is much better than the ground quality of the conventional method - the ground level and level are increased by more than 3 times, and the compactness and strength are increased by more than 20%. At the same time, it can improve work efficiency by more than 50% and save about 35% of labor. In addition, it can easily lay high-strength concrete, low-slump concrete and fiber-soil concrete.Cheap concrete laser leveling machine price
Technology Parameter
Product type | Name | Two wheel electric concrete laser leveling machine | Unit |
Type | HW25-2 | ||
Engine | Mode | SAWAFUJI Honda SH3900EX | |
Type | Electric 220V-50Hz | ||
Power | 3.3 | KW | |
Lubrication oil level | 0.6-0.8 | L | |
Fuel tank volume | 18 | L | |
Leveling system | Working mode of screed head | Rocking type | |
Screed width | 2500 | mm | |
Paving mode | Vibrating plate spreading | ||
Paving thickness | 50-200 | mm | |
Screw conveyor power |
| ||
Control mode of vibrating system | Vibration motor | ||
Excitation force | 2000 | N | |
Vibration frequency | 50 | Hz | |
Laser system | Control mode of laser system | Microcomputer laser scanning | |
Control effect of laser system | Flat surface,Slope,Double slope(three-dimensional) | ||
Driving system | Drive type | Reducer + Motor | |
Wheel | Solid puncture proof tyre/Special use wide tire | ||
Speed | 0-40 | m/min | |
Operation modes | Seat position | ||
Forward, back away | Manual control | ||
Turning | Manual control | ||
Cleaning system | Power | Alternator | |
Theoretical flow | 20 | L/min | |
Rated pressure | 7 | Mpa | |
Size and weight | Outline dimension | 3220*2780*1180 | mm |
Net weight | 430 | Kg |

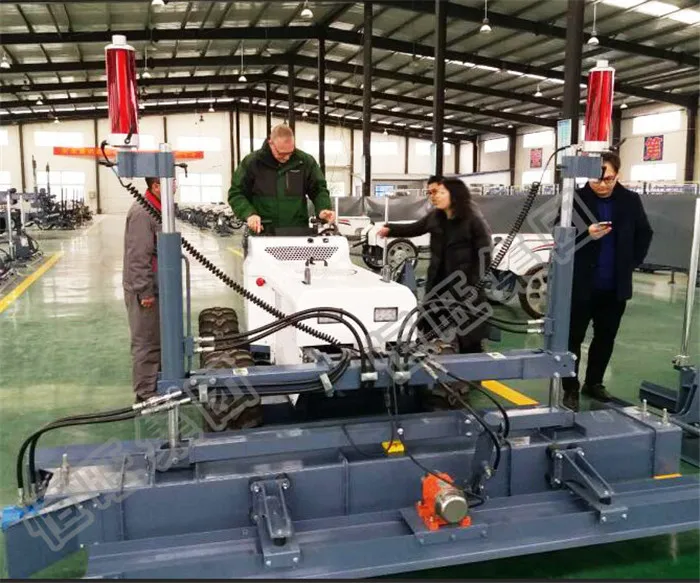

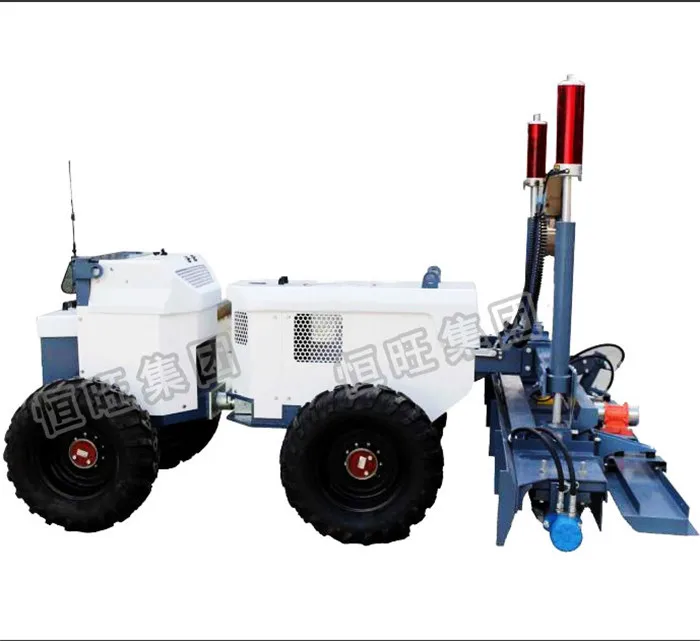

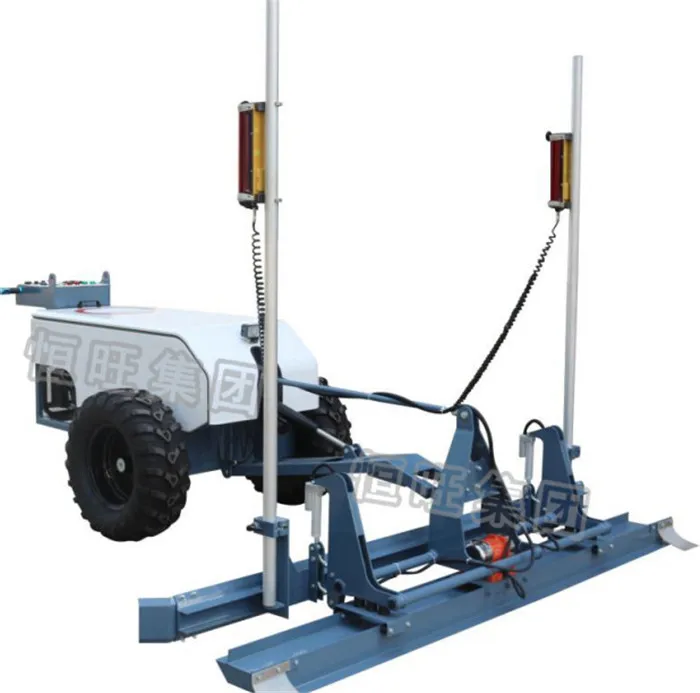

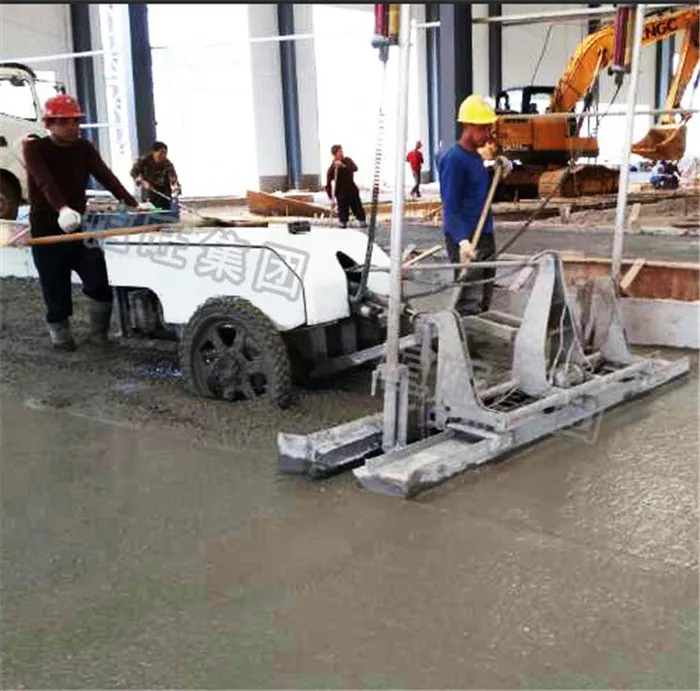

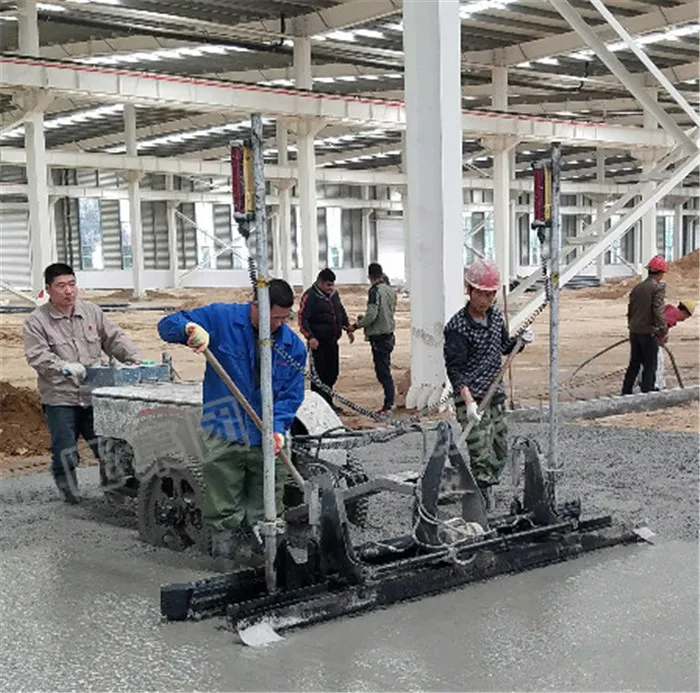

Product Real Photos
