- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Water Well
- Voltage:
- DIESEL
- Dimension(L*W*H):
- 2.7*0.9*1.5m
- Weight:
- 970kg
- Certification:
- ISO
- Warranty:
- One year
- After-sales Service Provided:
- Video technical support, Online support, Overseas service center available
- Drilling depth:
- 230m
- Drilling diameter:
- 75-300mm
- Drill rod diameter:
- 50mm,60mm
- Spindle speed:
- 64/128/287/557r/min
- Working Pressure:
- 2Mpa
- Inlet hose diameter:
- 51mm
- Outlet hose diameter:
- 32mm
- Drilling angle:
- 90-75
- Spindle stroke:
- 450mm
- Supply Ability:
- 500 Set/Sets per Month 200m water well drilling rig for sale
- Packaging Details
- woodden box or container suitable sea shipping of 200m water well drilling rig for sale
- Port
- Qingdao port or Shanghai port
- Lead Time:
Quantity(Sets) 1 - 5 6 - 20 >20 Est. Time(days) 15 30 To be negotiated
Hengwang Factory can offer you:
1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: QUICK SHIPPING WITHIN 7 DAYS.
4: NO MOQ , 1PC OK . SMALL ORDER WELCOME..
5: ONLINE PAYMENT.
6: SUPPORT 7 DAYS REFUND.
7: AFTER SALES SERVICES 24/7

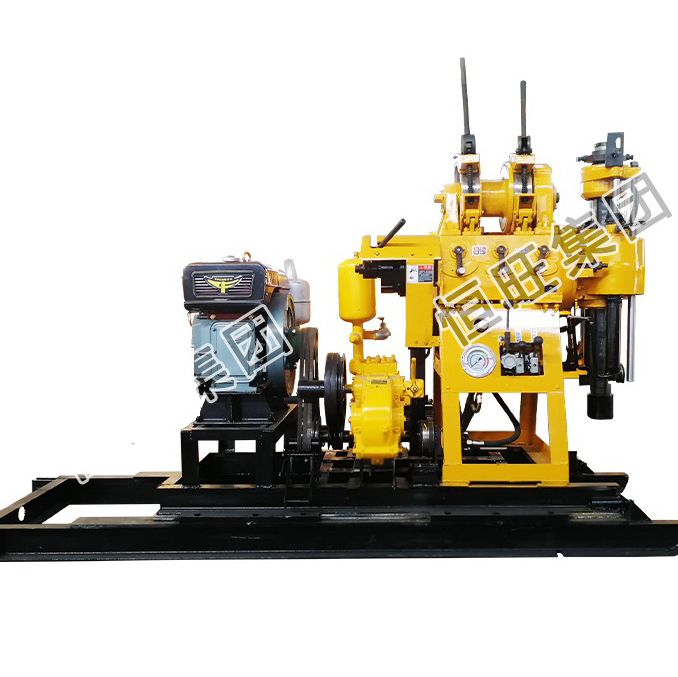

1.200m water well drilling rig for sale
HW series hydraulic drilling rig is a kind of widly used portable drill machine,It is suitable for drilling water well ,geological survey,geological core drilling,small grouting holes,blasting holes of railway,water conservancy,bridges,dam fundation and other buildings.According to different strata,it drills by choosing different bits,such as ,diamond composite films and alloy.
2. borehole water well drilling machine Appliance :
a. Keeping bracket is installed on the hoist to form a double wheel support structure, able to withstand strong blow .
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine hassufficient rig idity to overcome gravel layer and other complex geological conditions.
c.the machine is equipped with national patent technology--- taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance
d. drilling rod adopted, high rigidity and strong delivery torque.
3.borehole water well drilling machine Feature:
1.drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration.
2. kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and direct grouting, civil wells andearth temperature central air-conditioner,etc
Model | HWXY-160 | HWXY-230 | HWXY-3 |
Drilling depth | 160m | 230m | 600m |
Drillingdiameter | 75mm-160mm | 75-273mm | 75mm-325mm |
Drill rod diameter | 42mm,50mm | 42mm,50mm,60mm | 50mm,60mm |
Drill angle | 90-75° | 90-75° | 90-75° |
Engine power | 15kw | 18KW | 39kw |
Machine Dimension | 2.4*0.8*1.3m | 2.7*0.9*1.5m | 2.6*0.9*1.75m |
Drill mast height | 6.5m | 6.5m | 6.5m |
mud pump flow | 95l/min | 145l/min | 250l/min |
Mud pump max. pressure | 1.2Mpa | 2 mpa | 3mpa |

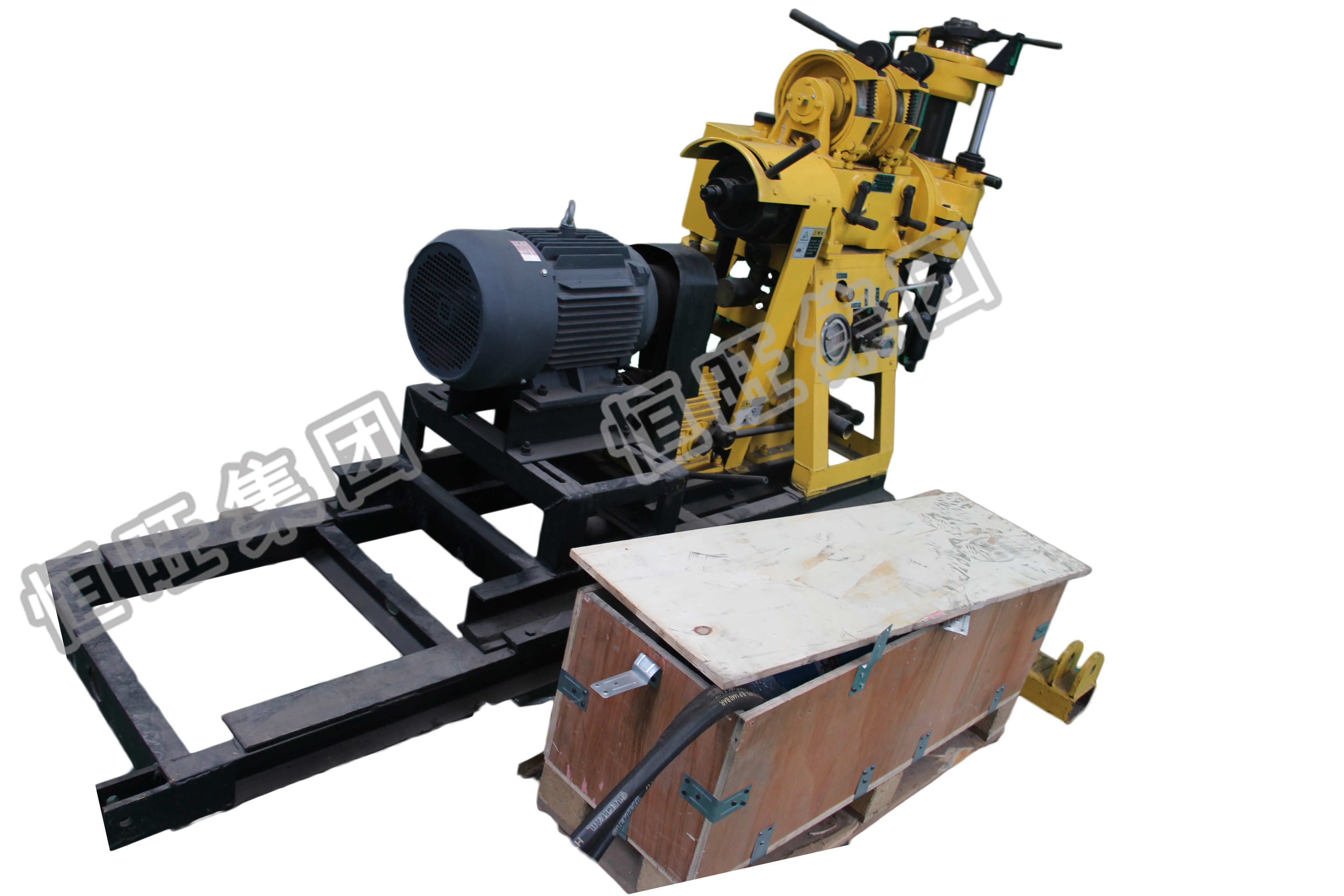

The customer comes to inspect the goods and supervise the loading the water well drilling rig:

Shandong Hengwang Group Co.,Ltd
Shandong Hengwang Heavy Industry co.,ltd is the professional manufacturer of Pile driver,Drilling rig,Road construction machine . With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.





Q1. Are you manufacturer or trader?
A: We are manufacturer of drilling rig. Actually, we produce most of the drilling rig in our own factory for better cost and quality control.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% against copy of B/L.
Q3. How about your delivery time?
A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.
Q4. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We"d like to cooperate with some local partner to sell more World machines in local market and supply better service.
Q5. What is your warranty policy?
A: We can supply one year warranty or 2000h for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We trust "win-win situation",we never said our product is best,and maybe our price is not cheapest,but we trust we are your right choice.Because we pay attention to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
