Home > Products > Cheap Price Hengwang Machine Small Hydraulic Crawler Bulldozer hw16

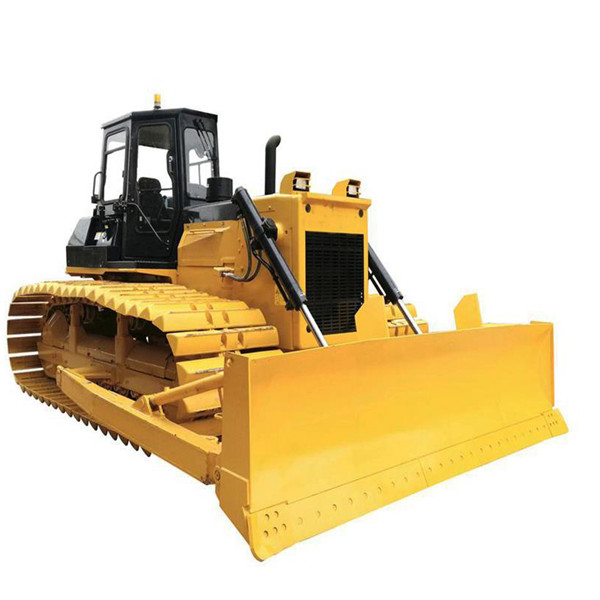

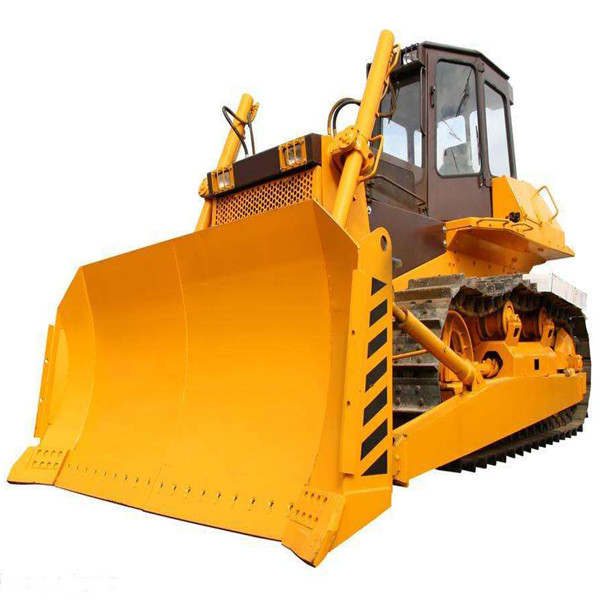

Cheap Price Hengwang Machine Small Hydraulic Crawler Bulldozer hw16
Click on the image to view the original image
Product： views：3Cheap Price Hengwang Machine Small Hydraulic Crawler Bulldozer hw16
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:41
  Negotiated
Product Details
Overview
Quick Details
Machine Weight:
17000kg
Dimension(Long * Breadth * High):
5140*3388*3032mm
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW16
Condition:
New
Moving Type:
Crawler Bulldozer
Name:
CrawlerBulldozer
Color:
Yellow
Rated power:
131/1850 kw/rpm
Original:
Shandong China
Engine Model:
Weichai WP10G178E355
Min ground clearance:
405mm
Dozing capacity:
4.55m3
Blade width:
3390mm
Discharge:
213 L/min
Max speed:
9.63 km/h
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
RORO
Port
Qingdao or Shanghai Port
Product Description



                 New design energy saving 160HP crawler bulldozer

HW16 hydraulic series bulldozer, with high technology content, strong power, high efficiency, easy maintenance and other characteristic, can adapt for severe working conditions,such ashighway, railway, mining, airport construction.

Items
HW16
Main Specifications
Model
HW16
Type
160HP Hydraulic standard
Engine model
Weichai WP10G178E355
Displacement
9.726 L
Rated power
131/1850 kw/rpm
Max.torque
830/1000-1200 N.m/rpm
Operating weight
17000 Kg
Dimension(no ripper)
5140×3388×3032 mm
Min ground clearance
405 mm
Ground pressure
0.067 MPa
Track gauge
1880 mm
Dozing capacity
4.55 m³
Blade width
3390 mm
Blade height
1150 mm
Max drop below ground
540 mm
Track shoe width
510 mm
Pitch
203.2 mm
Quantity of track link
37
Quantity of Carrier rollers
4
Quantity of Track rollers
12
Max pressure
14 MPa
Discharge
213 L/min
Max tractor force
146 KN
Grade ability
30°
Gear 1st speed
3.29 km/h
Max speed
9.63 km/h
Main clutch force
145 N
Steering clutch force
80 N
Mechnical transmission force
112 N
Hydraulic transmission force
46 N

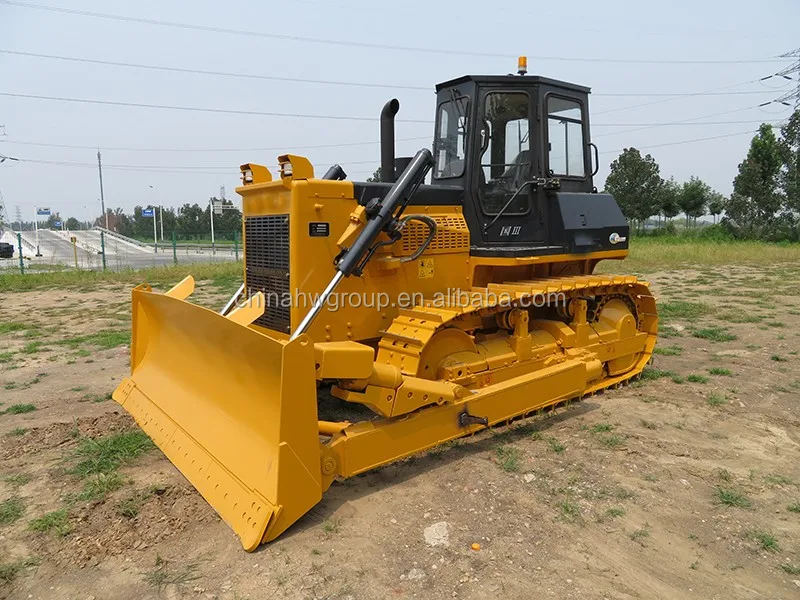

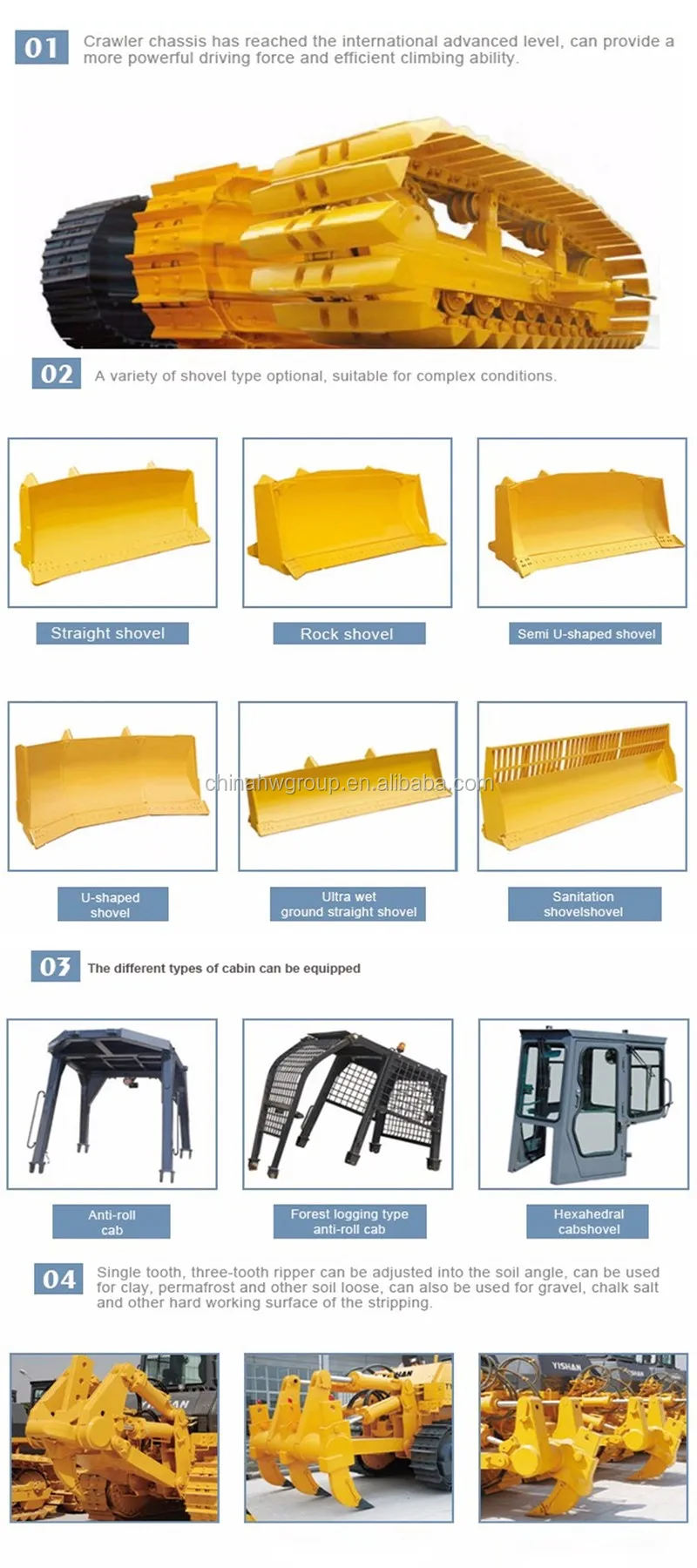

Detailed Images

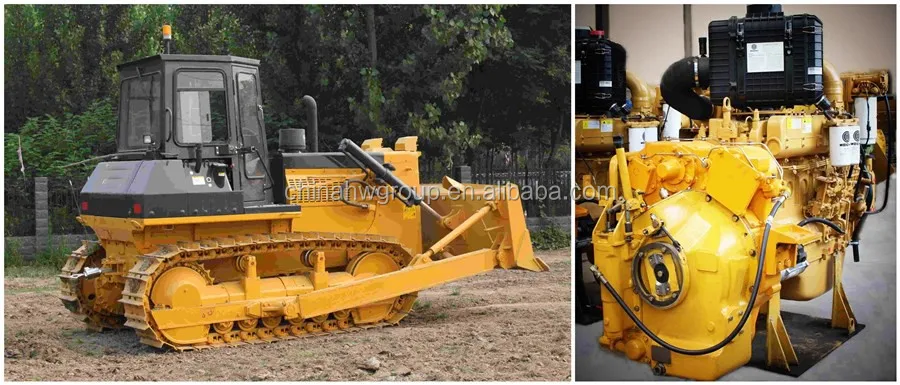

Weichai WP10G178E355 engine,features the advantages of robust power, easy maintenance, and high combustion efficiency.closed cooling system, forced air supply to enhance the cooling effect.

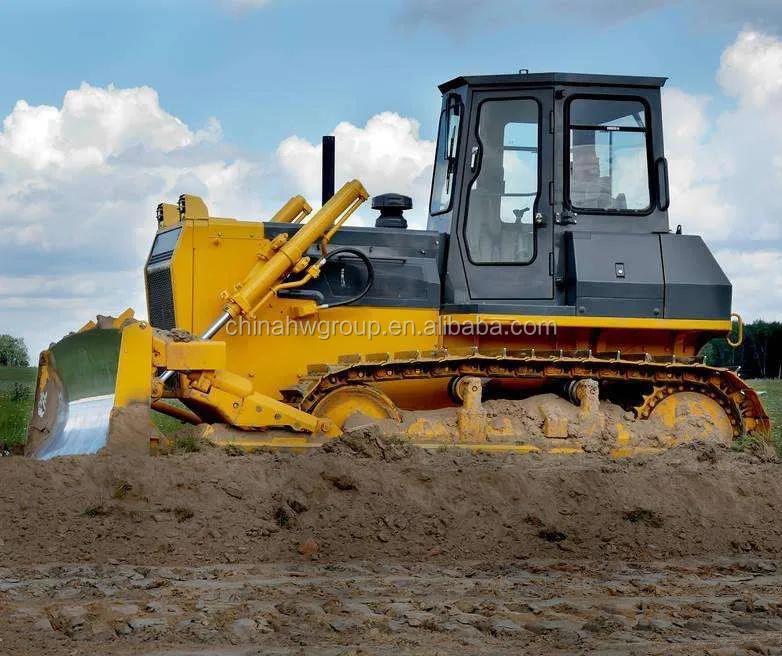

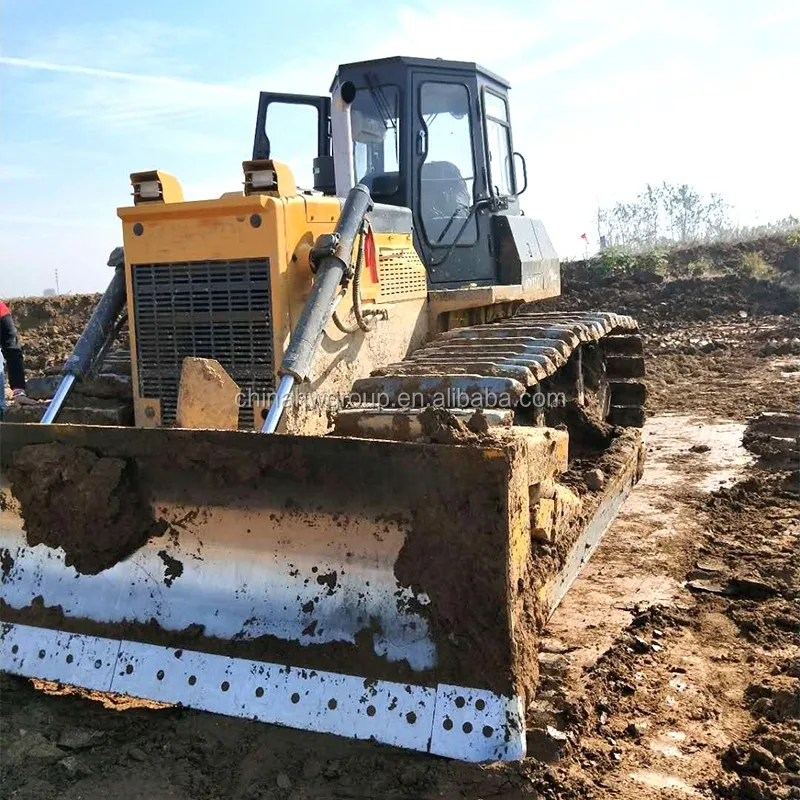

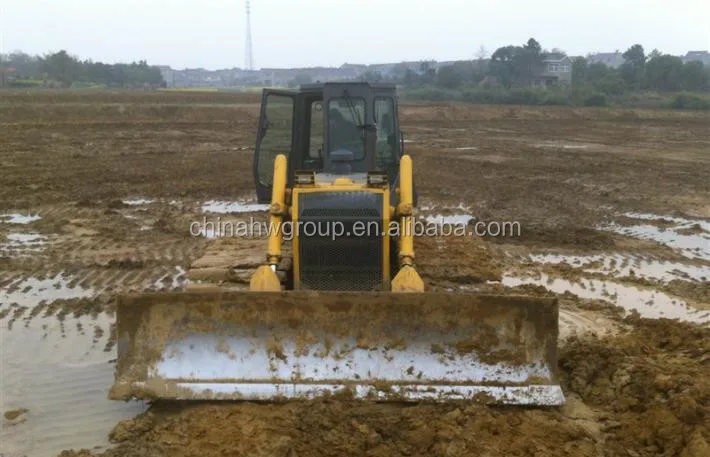

Products Application

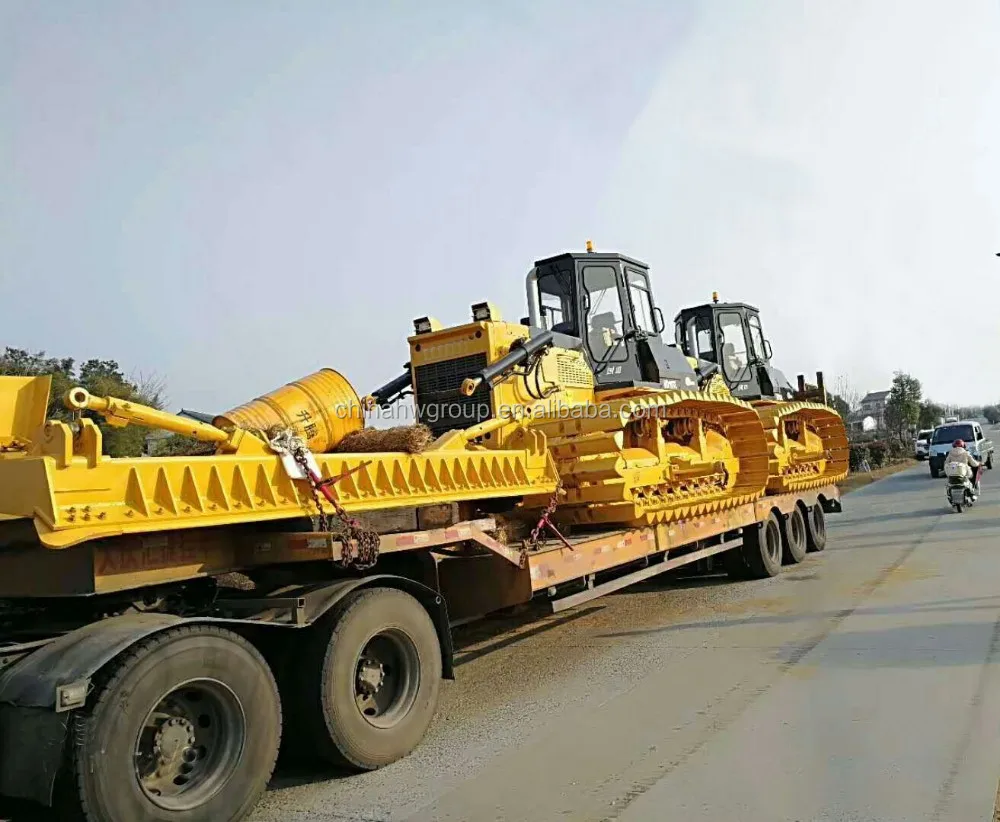

Packing & Delivery
Our Company
Certifications
Our team
