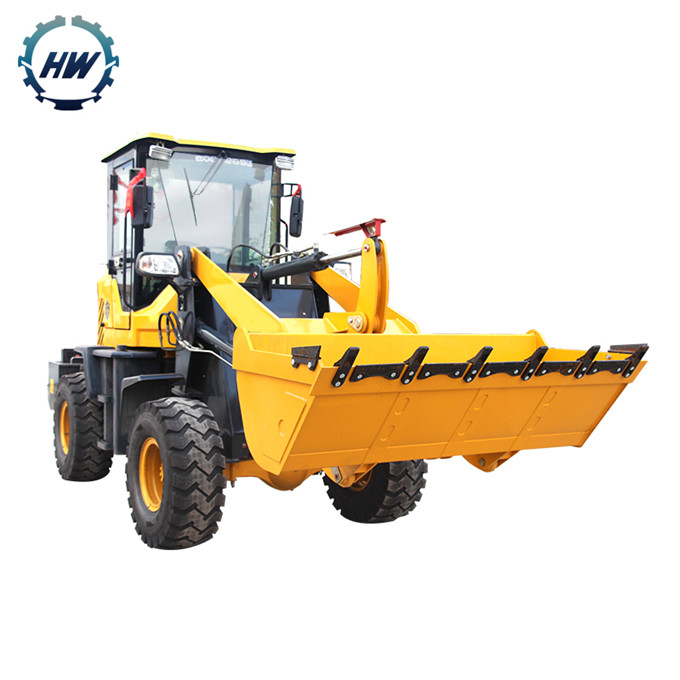

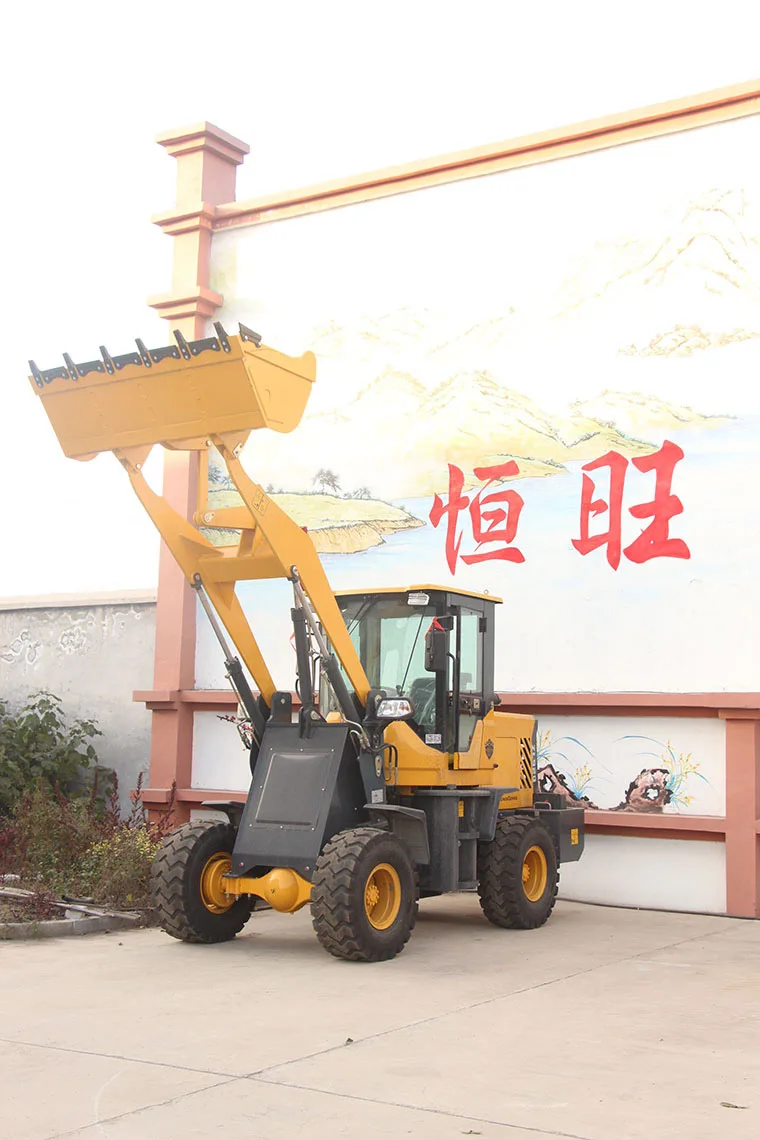

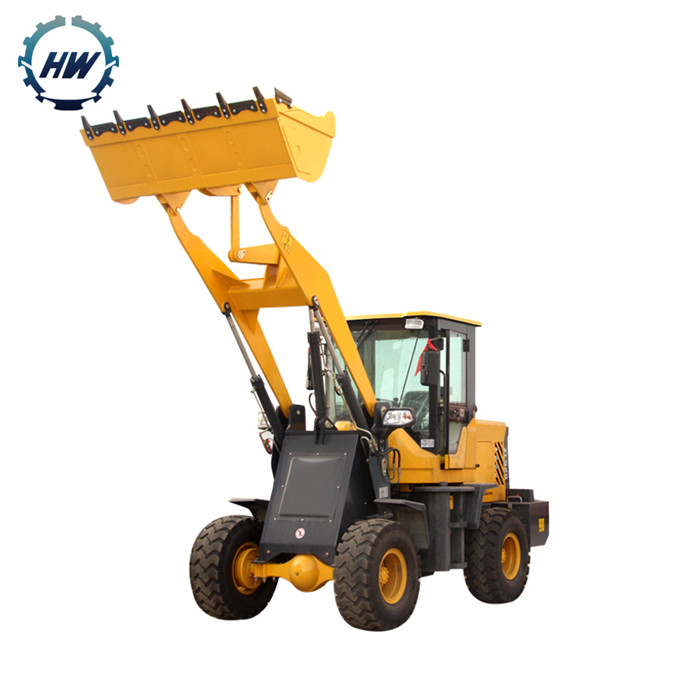

Made in China HW wheel loader for sale
The loader machine adopts the complete machine is rationally distributed and compact; it is comfortable and convenient to handle,the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy,the forest farm, the military project, and so on.
It also can be used in carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise.
Match with high quality engine, low, low blow off of noise, driving force forceful, twist from when reserve is big. The driving force loader special use fixing an axis changes the gear speed change box, structure is compact, drive is efficient, structure stiffness is big, life-span is long.
The dyadic center equidistance hinge joint fleet of carriage, makes turn the radius is small, the expedient function is good.The drive’s cab, wide vision, air-conditioning, operation environment sealing off subtraction vibrating, allocating are comfortable, safe. Various machines and tools such as may select and use for –in-one bucket, breaking a hammer to pieces, the function are especially all in readiness.
| SPECIFICATIONS FOR DIGGER LOADER | |
Model | HWL-26 |
Rated capacity | 1.3 m³ |
Rated load | 2500kg |
Transportation | 6000mm*2000mm*2900mm |
Dump height | 3500mm |
Dump distance | 1000mm |
Wheel base | 2400mm |
Tread | 1440mm |
Max. breakout force | 48.87 KN |
Total time | 12s |
Operating weight | 6000kg |
|
|
Engine |
|
Model | WC38 |
Pattern | Inline, water-cooled, 4-stroke, direct injection |
Rated power/Speed | 38KW/2400 rpm |
|
|
Torque converter and transmission system |
|
Pattern | 3-element single stage |
Transmission type | Full-power shift, countershaft type |
Number of gear | 2 forward, 2 reverse 2 |
Max. travel speed | 24km/h |
Axle | Hualu |
Main reducer pattern | Arc taper gear, model ration of first grade |
Pattern of wheelside moderation | Planet gear moderation of single |
|
|
Tire |
|
Tire size | 16/70-24 |
|
|
Steering system |
|
Pattern | Articulated and hydraulic steering |
Min. turning radius(outside of bucket) | 6000mm |
Max. turning angle | 35°±1 |
|
|
Implement hydraulic system |
|
Implement pump | CB2063 |
System working pressure | 20MPa |
|
|
Brake system |
|
Brake type | Air assisted oil disc on four wheel |
Parking brake type | Soft axle control, outside bunch drum type |
Made in China HW wheel loader for sale
