Full Hydraulic Small Bulldozer price
Click on the image to view the original image
Product： views：3Full Hydraulic Small Bulldozer price
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:41
  Negotiated
Product Details
Overview
Quick Details
Machine Weight:
17000kg
Dimension(Long * Breadth * High):
5140*3388*3032mm
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
Applicable Industries:
Construction works
Place of Origin:
Shandong, China
Brand Name:
HW
Condition:
New
Moving Type:
Crawler Bulldozer
Hydraulic Cylinder Brand:
Eaton
Hydraulic Pump Brand:
Parker
Hydraulic Valve Brand:
Eaton
Engine Brand:
WEICHAI
UNIQUE SELLING POINT:
Energy saving
Power(W):
131kw
Name:
CrawlerBulldozer
Color:
Yellow
Rated power:
131/1850 kw/rpm
Original:
Shandong China
Engine Model:
WP10G178E355
Min ground clearance:
405mm
Dozing capacity:
4.55m3
Blade width:
3390mm
Discharge:
213 L/min
Max speed:
9.63 km/h
Supply Ability
Supply Ability:
15 Set/Sets per Month CrawlerBulldozer
Packaging & Delivery
Packaging Details
CrawlerBulldozer
Port
Qingdao or Shanghai Port
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)7To be negotiated
Product Description

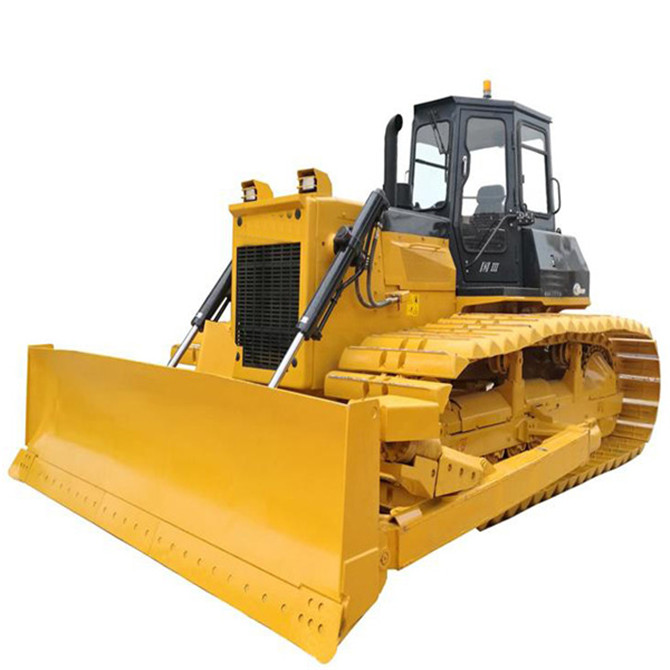

Crawler bulldozer

HW-HD16 super-wetland bulldozer is configured with Weichai engine,it is developed in response to the operation demands of swamp and wetland conditions, and the special design ensures higher operating efficiency.

super-wetland bulldozer is configured with Weichai engine,it is developed in response to the operation demands of swamp and wetland conditions, and the special design ensures higher operating efficiency.

Bulldozer model
Model
HW-HD16
HW-HD22
HW-HD32
Rated power
131kw/1850rpm
175kw/1800rpm
235kw/2000rpm
Displacement
9.726L
14.01L
14.01L
Max.torque
830N.m/rpm /1000-1200rpm
1030N.m/1250rpm
1440N.m/1400rpm
Operating weight
17000kgs
23500kgs
37200kgs
Dimension
5140*3388*3032mm
5492*3726*3742mm
6885*4128*3645mm
Min ground clearance
405mm
405mm
500mm
Ground pressure
0.067mpa
0.072-0.077mpa
0.105/0.09/0.078mpa
Track shoe width
510mm
560/610/660mm
560/660/760mm
Track gauge
1880mm
2000mm
2140mm
Dozing capacity
4.55M3
6.4M3
10M3
Blade width
3390mm
3725mm
4130mm
Blade height
1150mm
1315mm
1590mm
Max.drop below ground
540mm
540mm
560mm
Pitch
203.2mm
216mm
228mm
Quantity of track link
37
38
41
Quantity of carrier rollers
4
4
4
Quantity of track rollers
12
12
14
Max. pressure
14mpa
14mpa
14mpa
Discharge
213L/min
262Lmin
355L/min
Max tractor force
146KN
202KN
280KN
Grade ability
30°
30°
30°
Detailed Images

Advantage

1.The appearance of the vehicle is based on optimization design.
2.The super-wide triangular tracks take advantage of lower ground pressure and can prevent the entrapment of machine during operations in soft material sites,such as soft soil, wetland, and swamp.
3.High engine power reserve with strong torque output and low fuel consumption, reliable controls
4.The standard straight tilting blade features powerful cutting force ,high working efficiency and super-strong penetrating force.
5.The updated hexahedral cab features outstanding visibility and good tightness.
