Home > Products > Wheel grass clamp loader fork loader with pellet fork

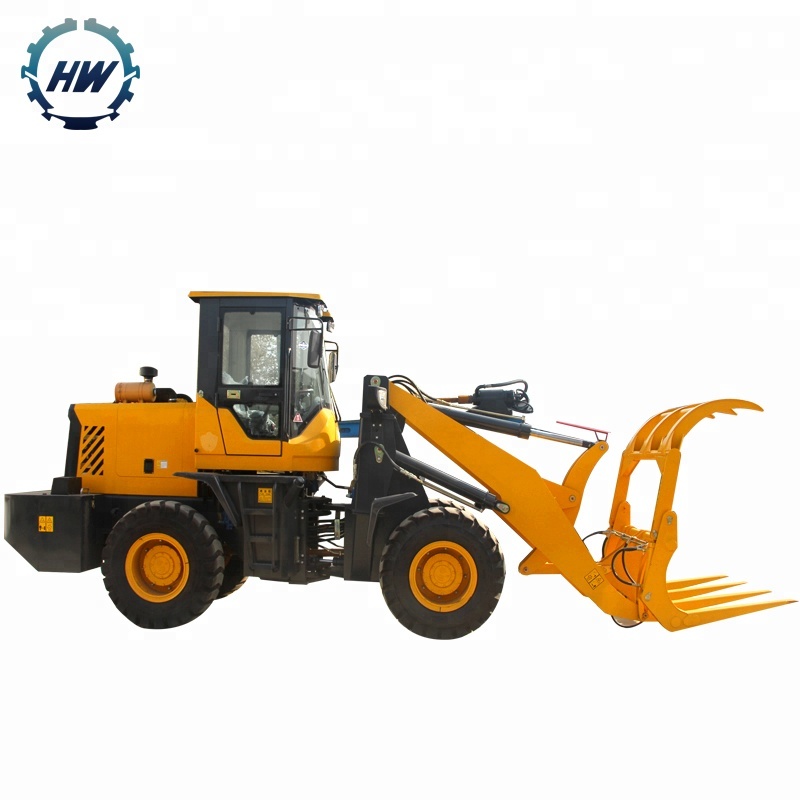

Wheel grass clamp loader fork loader with pellet fork
Click on the image to view the original image
Product： views：4Wheel grass clamp loader fork loader with pellet fork
Branch： HW
Type： Mini Loader
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:41
  Negotiated
Product Details
Overview
Quick Details
Dimension(Long * Breadth * High):
6150*1970*3000m
Warranty:
1 Year
Condition:
New
Brand Name:
HW
Place of Origin:
Shandong, China
Type:
Mini Loader
Moving Type:
Wheel Loader
Rated Load:
2400kg
Certification:
ISO9001
Product name::
Wood clamp loader
Engine power::
36KW
Operating weight::
6000kg
Capacity of loader ::
2000kg
Dump height::
4000mm
Dump distance::
2000mm
Wheel base::
2800mm
Transmission type::
Full-power shift, countershaft type
Max. turning angle::
35°±1
Parking brake type::
Soft axle control, outside bunch drum type
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month Wheel grass clamp loader fork loader with pellet fork
Packaging & Delivery
Packaging Details
Standard export package or as your requirement
Wheel grass clamp loader fork loader with pellet fork
Port
Qingdao Tianjin or Shanghai Port
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)5To be negotiated

Product Description



1.Bolt -on edge savers and segments protect the cutting edge from unnecessary wear.

2.Articulated type, Mechnical steering, powerful shift transmission, easier operation.

3.Z-bar loader linkage is designed for maximun rigidity and offers powerful breakout

4.Bucket can be leveled automatically, optimaized working device, higher productivity.

5.Comfortable operation environment, new design cabin, Grammer seat, air-conditioner at option.

6.Gearbox and torque device has separable structure, reliable performance, convenient maintenance.



Product Parameter



SPECIFICATIONS FOR CLAMP LOADER
Rated load: 2000kg
Bucket capacity 4.5 m3
Max log length 4200mm
Max log diameter 1500mm
Clamp front/rear inclination 55°/40°
Travel speed25Km/h
Reach at full lift discharge 1240mm
Overall length :8980mm
Overall height 3870mm
Overall width 3120mm
Tread width:2390mm
Minimum ground clearance 450mm
Turning angle 35°
Grade ability≥24°
Max. traction force 230KN
Hydraulic cycle time 12sec
Machine weight 5500kg

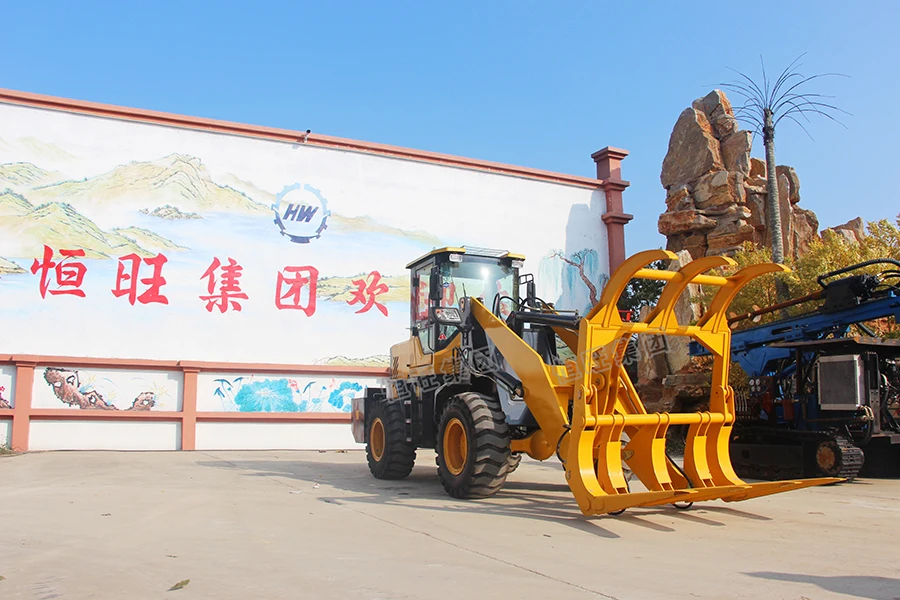

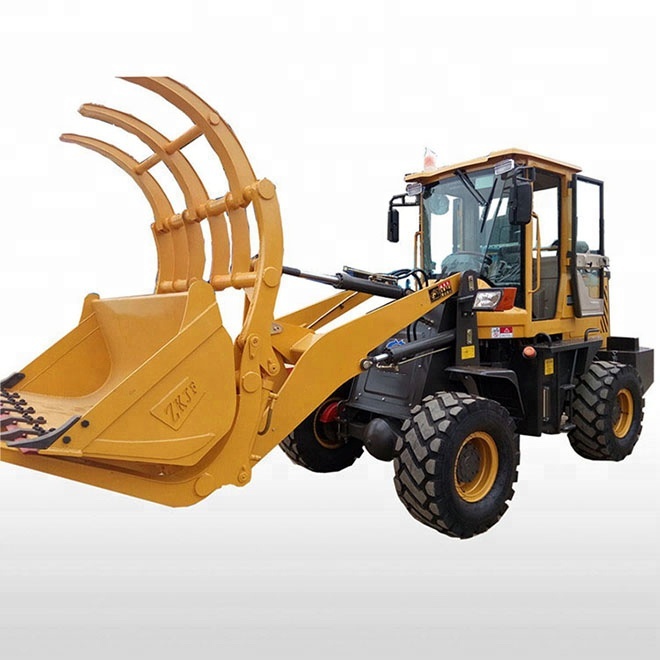

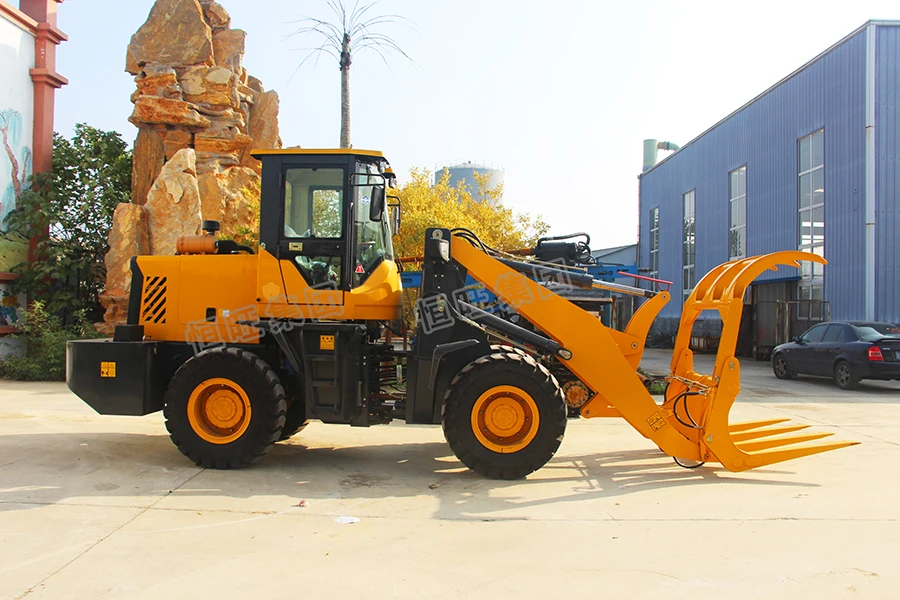

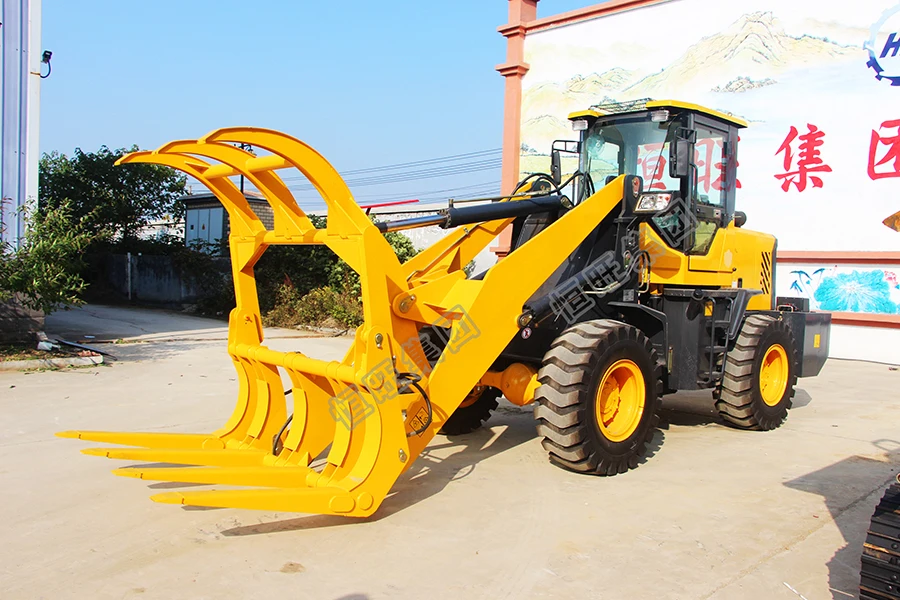

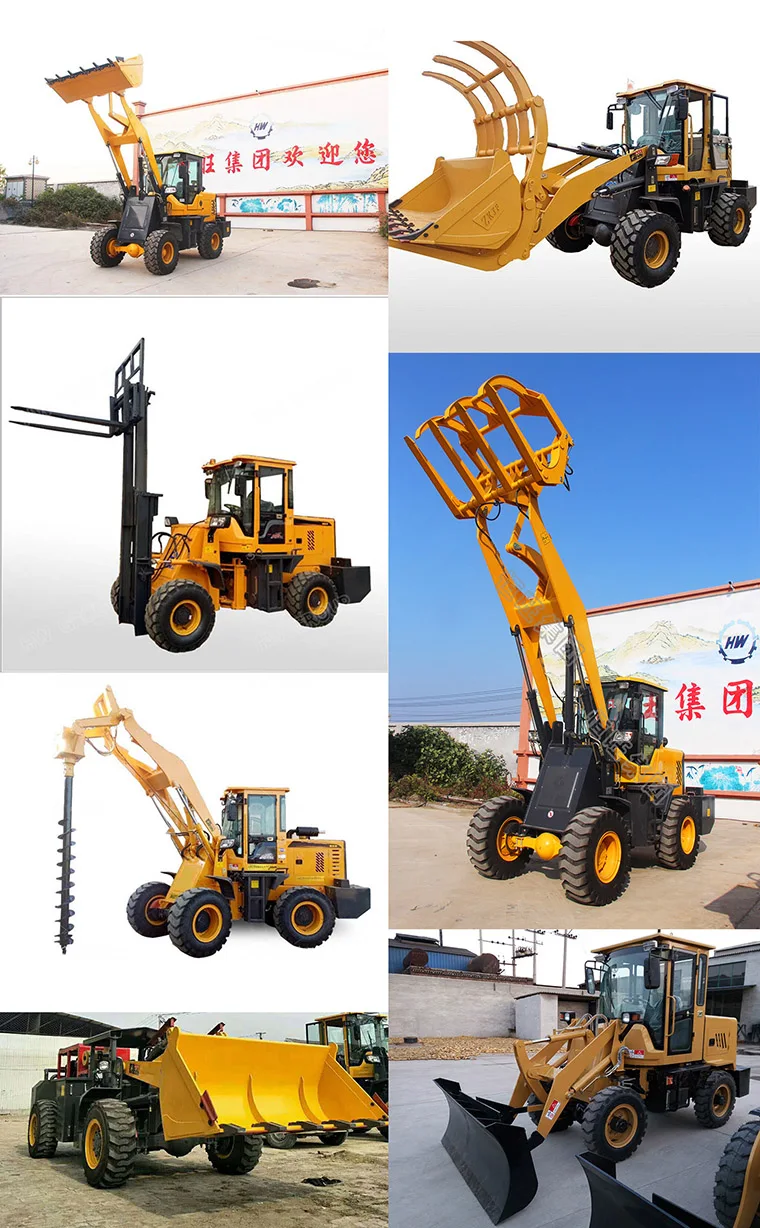

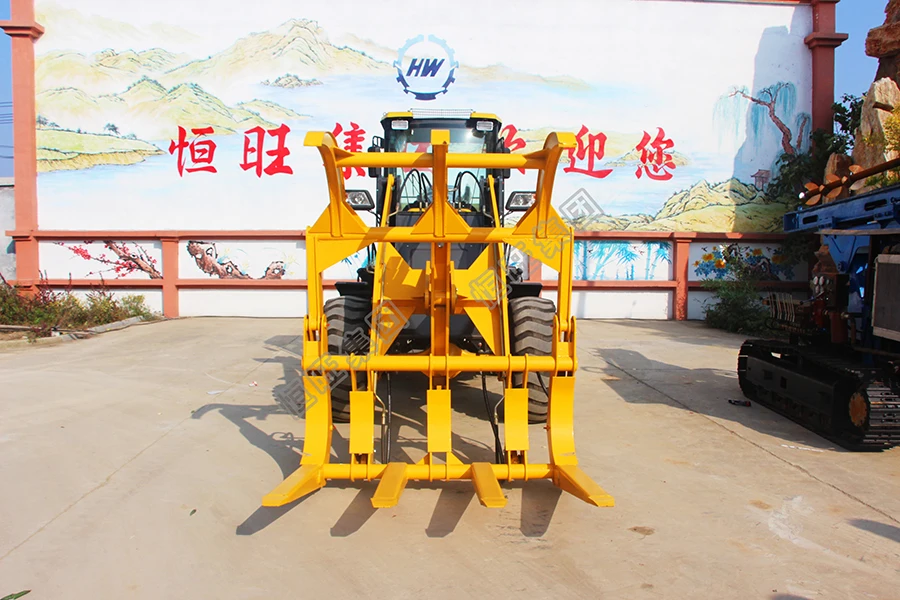

Product Images





Our Factory

Certificate

Payment

Packing
