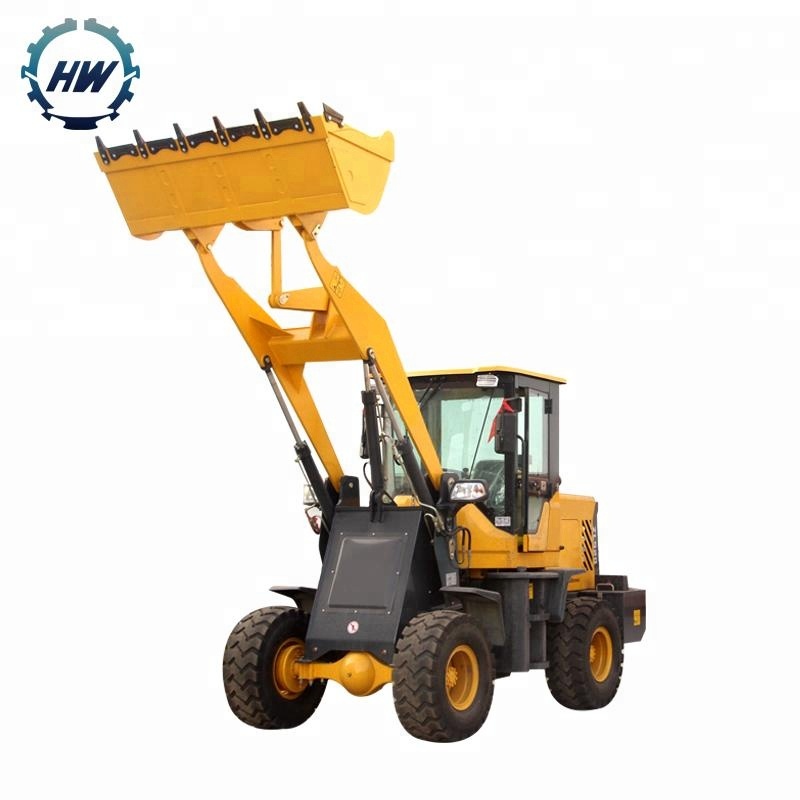

Mini construction wheel loader loading machine

Click on the image to view the original image

Product：	views：3Mini construction wheel loader loading machine
Branch：	HW
Type：	Mini Loader
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:41

Product Details

Overview

Quick Details

Dimension(Long * Breadth * High):: 6200*1950*2860mm

Warranty:: 1 Year

After-sales Service Provided:: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts

Applicable Industries:: Construction works

Condition:: New

Brand Name:: HW

Place of Origin:: Shandong, China

Type:: Mini Loader

Moving Type:: Wheel Loader

Certification:: ISO9001

Hydraulic Cylinder Brand:: Eaton

Hydraulic Pump Brand:: Parker

Engine Brand:: YUCHAI

UNIQUE SELLING POINT:: Long lifetime

Power(W):: 38KW

Bucket capacity:: 0.8 m3

Operating weight::: 1400kg

Dump height::: 3600mm

Dump distance::: 1200mm

Wheel base::: 2600mm

Transmission type::: Full-power shift, countershaft type

Max. turning angle::: 35°±1

Parking brake type::: Soft axle control, outside bunch drum type

Supply Ability

Supply Ability:: 100 Set/Sets per Month Mini construction wheel loader loading machine

Packaging & Delivery

Packaging Details: FCL FOR Mini construction wheel loader loading machine

Port: Qingdao Tianjin or Shanghai Port

Lead Time:

Quantity(Sets)	1 - 1	2 - 10	11 - 50	>50
Est. Time(days)	6	9	30	To be negotiated

Product Description

* Computer-optimized design features high-level auto-leveling, significantly improving operating efficiency.

* The gearbox is designed and manufactured by our company. It is sturdy and durable, and the speed ratio of each gear is matched to a reasonable level, reducing power consumption.

* Load-sensing full-hydraulic priority steering, smooth, reliable and energy-saving.

* Bucket pins have dust-proof aprons to extend the life of the pins and bushings.

Product Parameter

SPECIFICATIONS FOR Wheel loader machine

Model	HW-L38
Rated capacity	0.8 m³
Rated load	1400kg
Transportation	520019002860mm
Dump height	3300mm
Dump distance	1400mm
Wheel base	2000mm
Tread	1440mm
Max. breakout force	38 KN
Total time	12s
Operating weight	3200kg

Engine
Model	YuChai Y38 diesel engine
Pattern	Inline, water-cooled, 4-stroke, direct injection
Rated power/Speed	44KW/2400 rpm

Torque converter and transmission system
Pattern	3-element single stage
Transmission type	Full-power shift, countershaft type
Number of gear	2 forward, 2 reverse 2
Max. travel speed	24km/h
Axle	Hualu
Main reducer pattern	Arc taper gear, model ration of first grade
Pattern of wheelside moderation	Planet gear moderation of single

Tire
Tire size	16/70-24

Steering system
Pattern	Articulated and hydraulic steering
Min. turning radius(outside of bucket)	5600mm
Max. turning angle	35°±1

Implement hydraulic system
Implement pump	CBG2063
System working pressure	16MPa

Brake system
Brake type	Air assisted oil disc on four wheel
Parking brake type	Soft axle control, outside bunch drum type

Image Details

Certifications

Packaging & Shipping

payment way

FAQ

1:What’s the MOQ?
----1Set.
2.Is it difficult to operate?
----Hydraulic electric concrete stone pump is easy to operate, we can share how-to-use video with you and we will send you the detailed operation manual via email.
3.What’s the usually delivery terms?
----FOB, CNF, CIF, EXW will be OK.
4.What’s the payment terms?
----We accept Western Union, T/T, L/C,Paypal,Trade Assurance.
5.Does machines have warranty period?
-----Yes, our machine with one year warranty period for main parts, quick parts are excluded.
