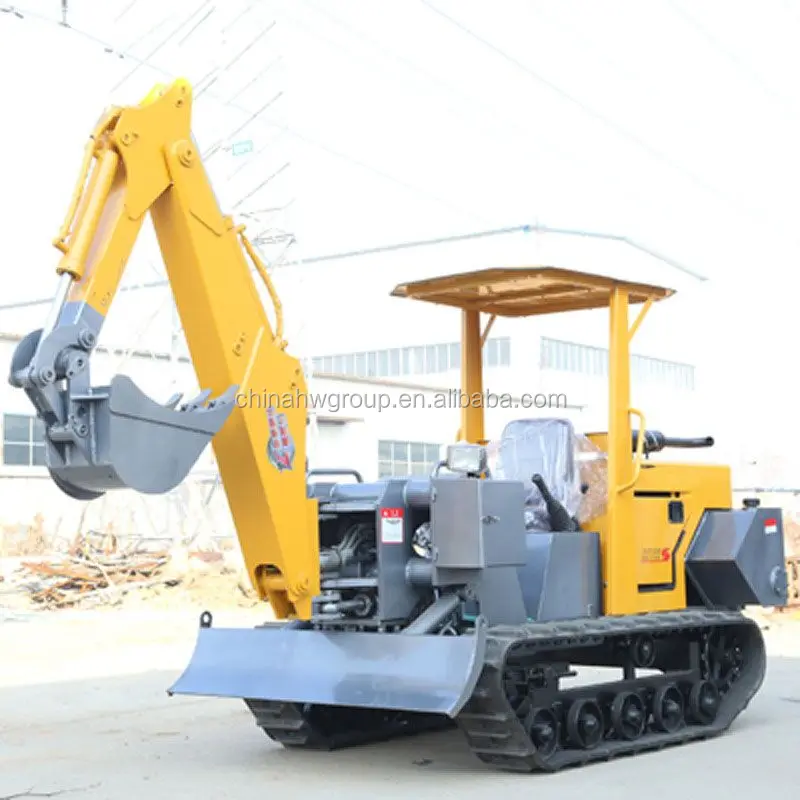

* This mini excavator has the advantages of flexible and practical, high configuration, high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose, landscaping of municipal departments, orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.
Product Parameter
Specification | |
Model | HW -E1 |
Total weight | 800kg |
Bucket capacity | 0.025m³ |
Working device type | backhoe |
Minimum radius of gyration | 1190mm |
Maximum excavation height | 2490mm |
Maximum excavation depth | 1400mm |
Maximum discharge height | 3300mm |
Engine Rated output power | 8.6 kw |
Maximum torque | 2880 r/min |
Maximum travel speed | 2 km/h |
Max. travel speed | 25km /h |
Maximum gradeability | 25° |
Maximum Digging Force | 6.5 kn |
Maximum depth cleaning | 345mm |
The maximum height of land clearing | 255mm |
Pump type | Gear pump |
Working pressure | 16Mpa |
Flow | 17.4 L |
Engine oil capacity | 1.65L |
Fuel tank capacity | 7.35 L |
1:What’s the MOQ?
----1Set.
2.Is it difficult to operate?
----Hydraulic electric concrete stone pump is easy to operate, we can share how-to-use video with you and we will send you the detailed operation manual via email.
3.What’s the usually delivery terms?
----FOB, CNF, CIF, EXW will be OK.
4.What’s the payment terms?
----We accept Western Union, T/T, L/C,Paypal,Trade Assurance.
5.Does machines have warranty period?
-----Yes, our machine with one year warranty period for main parts, quick parts are excluded.
