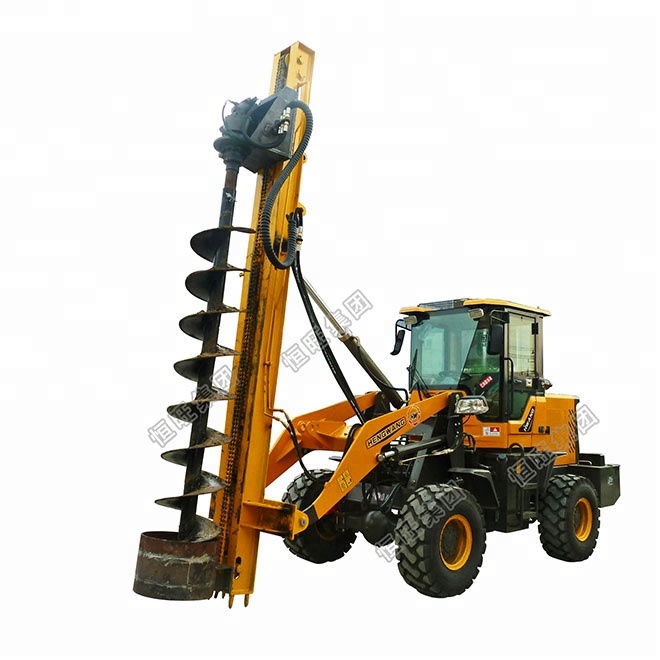

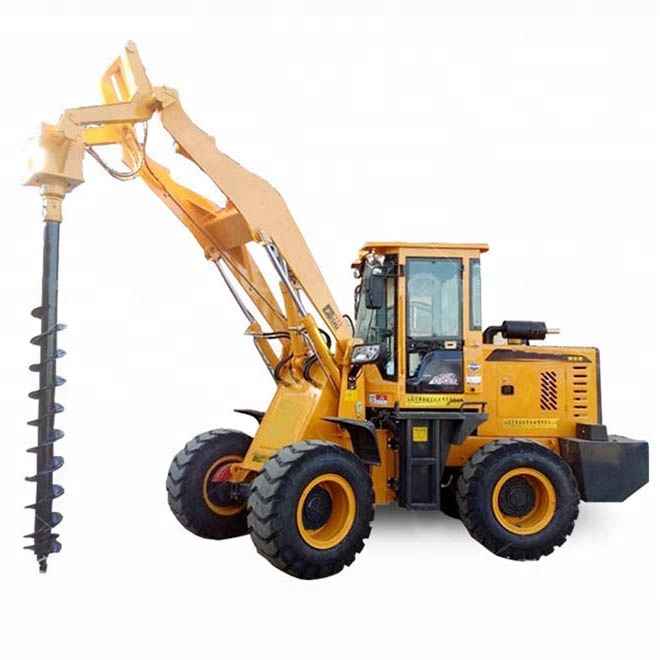

* For the construction of pile driving, real estate foundation pile.
* Solar photovoltaic pile, pile driving.
* Highway guardrail installation, pile driving, drilling.
* The fruit trees of agriculture are planted and dig holes.
Product Parameter
| Specification For Hydraulic mini solar drop hammer screw pile driver | |
Model | HD200 |
Borehole depth | 460cm |
The Max borehole diameter | 40mm |
| Dimension | 6000*2000*2900mm |
Wheel base | 2400mm |
Tread | 1440mm |
Max. breakout force | 48.87 KN |
Operating weight | 6000kg |
|
|
Engine |
|
Model | WC38 |
Pattern | Inline, water-cooled, 4-stroke, direct injection |
Rated power/Speed | 38KW/2400 rpm |
|
|
Torque converter and transmission system |
|
Pattern | 3-element single stage |
Transmission type | Full-power shift, countershaft type |
Number of gear | 2 forward, 2 reverse 2 |
Max. travel speed | 24km/h |
Axle | Hualu |
Main reducer pattern | Arc taper gear, model ration of first grade |
Pattern of wheelside moderation | Planet gear moderation of single |
|
|
Tire |
|
Tire size | 16/70-24 |
|
|
Steering system |
|
Pattern | Articulated and hydraulic steering |
Min. turning radius(outside of bucket) | 6000mm |
Max. turning angle | 35°±1 |
|
|
Implement hydraulic system |
|
Implement pump | CB2063 |
System working pressure | 20MPa |
|
|
Brake system |
|
Brake type | Air assisted oil disc on four wheel |
Parking brake type | Soft axle control, outside bunch drum type |
1:What’s the MOQ?
----1Set.
2.Is it difficult to operate?
----Hydraulic electric concrete stone pump is easy to operate, we can share how-to-use video with you and we will send you the detailed operation manual via email.
3.What’s the usually delivery terms?
----FOB, CNF, CIF, EXW will be OK.
4.What’s the payment terms?
----We accept Western Union, T/T, L/C,Paypal,Trade Assurance.
5.Does machines have warranty period?
-----Yes, our machine with one year warranty period for main parts, quick parts are excluded.
