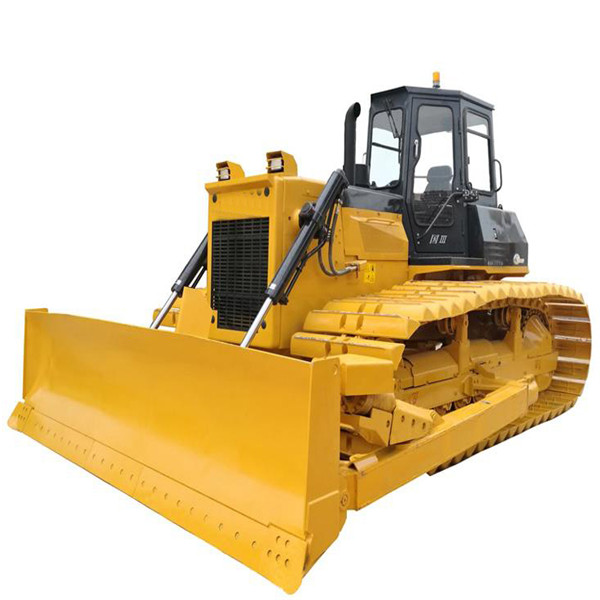

Cheap construction machinery Crawler bulldozer for sale
Click on the image to view the original image
Product： views：3Cheap construction machinery Crawler bulldozer for sale
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:41
  Negotiated
Product Details
Overview
Quick Details
Machine Weight:
17000kg
Dimension(Long * Breadth * High):
5256*4153*3072 mm
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW16L
Condition:
New
Moving Type:
Crawler Bulldozer
Name:
CrawlerBulldozer
Color:
Yellow
Rated power:
131/1850 kw/rpm
Original:
Shandong China
Engine Model:
Weichai WP10G178E355
Blade max.drop below ground:
488mm
Mini fule consumption:
214g/kw.h
Blade width:
4145mm
Forward(km/h):
2.67/3.76/5.41/7.62/11.13 km/h
Piston displacement:
90726L
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
RORO
Port
Qingdao or Shanghai Port
Product Description



                     Cheap construction machinery Crawler bulldozer for sale

HW16L super-wetland bulldozer is configured with Weichai engine,it is developed in response to the operation demands of swamp and wetland conditions, and the special design ensures higher operating efficiency.

Items
HW16L
Main Specifications
Operating Weight
18300 kg
Overall Dimenssions
5256×4153×3072 mm
Blade type
Straight-tilt
Dozing capacity
3.85 m³
Blade width
4145 mm
Blade height
962 mm
Blade max.drop below ground
488 mm
Blade max.tilt adjustment
730mm
Grade ability
30°
Engine
Model
Weichai WP10G178E355
Rated Power
131/1850 Kw/rpm
Cylinder number-bore×stroke
6-126×130mm
Piston displacement
9.726L
Mini fule consumption
214g/kw.h
Max torque
830/1000-1200 N.m/rpm
Cooling Type
Water
Power transmitting system
Main clutch type
wet,multi-disc,inertia,brake,hand operate,hydraulic booster
Transmission
Forced lubrication, hand operate
Main drive
Spiral bevel gear, single stage speed reduction,splash lubrication
Steering clutch
Wet multi-disc,spring loaded, hand hydraulically seperated, inter-linking with steering brake
Steering brake
Wet banding structure, footbrake, hydraulic booster
Final drive
Two-stage reduction of spur gear,splash lubrication
Travel speed
Forward(km/h)
2.67/3.76/5.41/7.62/11.13 km/h
Reverse(km/h)
3.48/4.9/7.05/9.92 km/h
Undercarriage system
Number of carrier rollers
2each side
Number of track rollers
7each side
Width of track shoes
1100mm
Min.ground clearance
492 mm
Ground pressure
0.026 Mpa
Track gauge
2300 mm
Number of track shoes
44
Pitch
203.2mm
Hydraulic system
Max.pressure
14MPa
Pump type
gear pump
Discharge
227L/min
Working cylinder×number
110mm×2

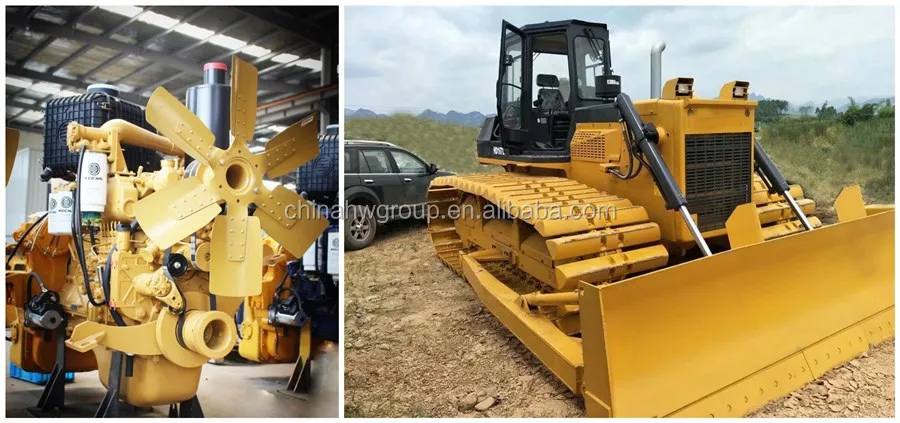

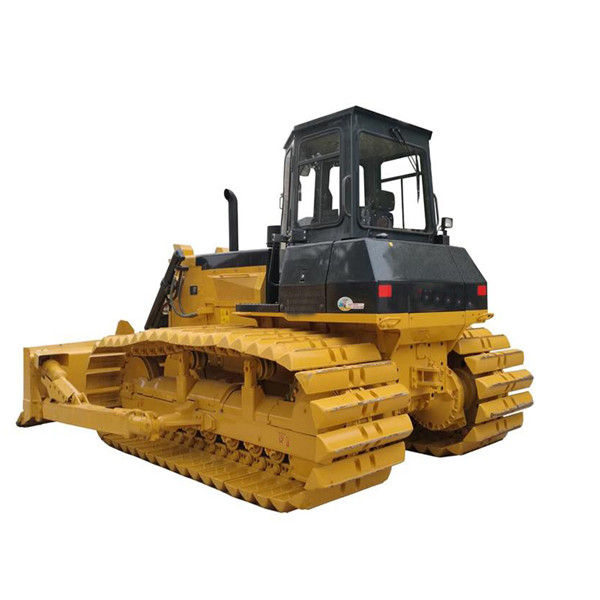

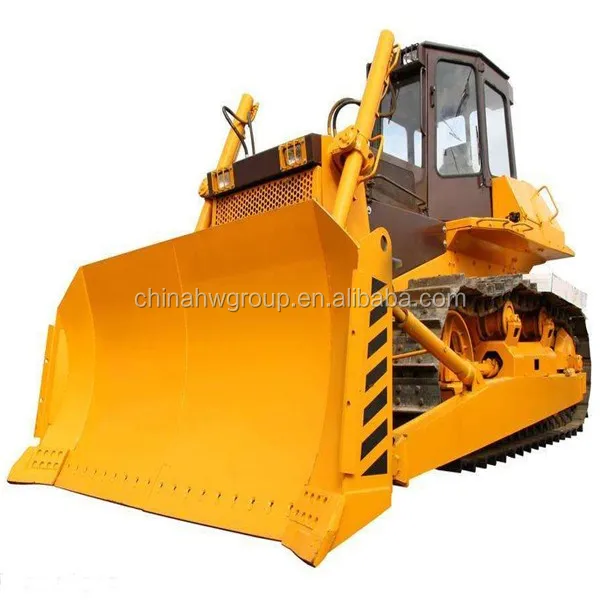

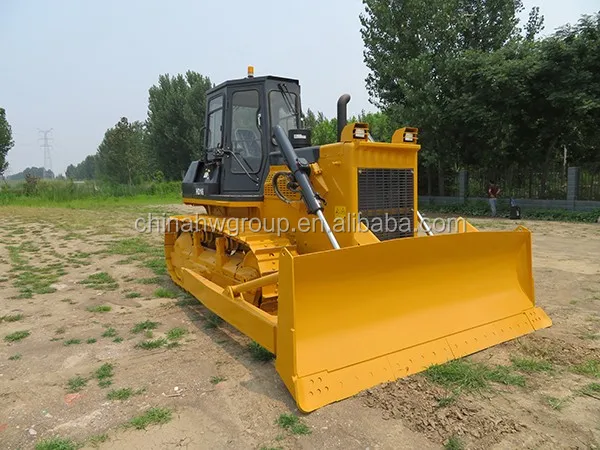

Detailed Images

1.The appearance of the vehicle is based on optimization design.

2.The super-wide triangular tracks take advantage of lower ground pressure and can prevent the entrapment of machine during operations in soft material sites,such as soft soil, wetland, and swamp.

3.High engine power reserve with strong torque output and low fuel consumption, reliable controls

4.The standard straight tilting blade features powerful cutting force ,high working efficiency and super-strong penetrating force.

5.The updated hexahedral cab features outstanding visibility and good tightness.
