Overview
Quick Details
- Dimension(Long * Breadth * High):
- 6150*1970*3000mm
- Condition:
- New
- Brand Name:
- HW
- Place of Origin:
- Shandong, China
- Type:
- Backhoe Loader
- Moving Type:
- Wheel Loader
- Rated Load:
- 5000kg
- Certification:
- ISO
- Model Number:
- HW30-25
- Product name:
- Digger Loader
- Color:
- Customer's Requiement
- Rated load::
- 2000kg(4.5 m3)
- Rated power:
- 38KW
- Minimum turning radius:
- 4500mm
- Maximum opening diameter:
- 1900mm
- Minimum ground clearance:
- 320mm
- Travel speed:
- 25km/h
- Grade ability:
- ≥24°
- Wheelbase:
- 2470mm
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Warranty:
- 1 Year
Supply Ability
- Supply Ability:
- 1000 Set/Sets per Year
Packaging & Delivery
- Packaging Details
- 1 units in 1' 20GP; 2 units in 1' 40HC, naked machine,
- Port
- QINGDAO,SHANGHAI
Product Description

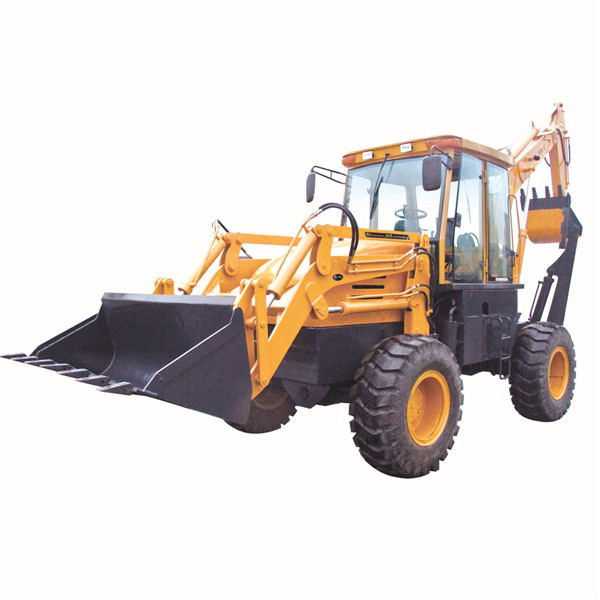

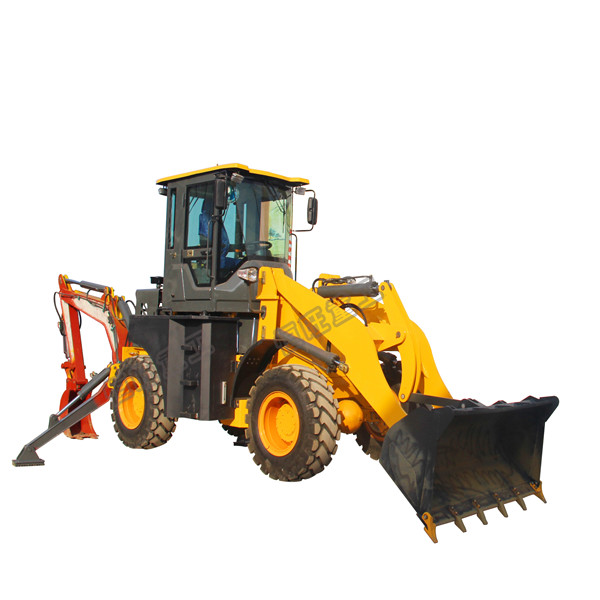

Good quality wheel backhoe loaders with competitive price in China
Multi-functional engineering machinery incorporating and loading into an organic whole. It adopts the complete machine is rationally distributed and compact; it is comfortable and convenient to handle, the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy, the forest farm, the military project, and so on.It also can be used in excavating, carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise. It is the ideal model of realizing machine with multi-functions. the wheel type excavators a loader is to fight pair, unhitch in the front, articulate, type style excavators a loader.
Match with high quality engine, low, low blow off of noise, driving force forceful, twist from when reserve is big. ·The driving force excavating loader special use fixing an axis changes the gear speed change box, structure is compact, drive is efficient, structure stiffness is big, life-span is long. ·The dyadic center equidistance hinge joint fleet of carriage, makes turn the radius is small, the expedient function is good. ·Excavating a part is that dyadic structure of box, load support capability are strong, the intensity is tall, the stability is good. ·The drive’s cab, wide vision, air-conditioning, operation environment sealing off subtraction vibrating, allocating are comfortable, safe.
Various machines and tools such as may select and use for –in-one bucket, breaking a hammer to pieces, the function are especially all in readiness.
SPECIFICATIONS FOR DIGGER LOADER | |
Model: | HW30-25 |
Engine power: | 38 kw |
Rated load: | 2000kg(4.5 m3) |
Loading and unloading mode: | Front unload |
Unloading height : | 4200mm |
Minimum turning radius: | 4500mm |
Maximum opening diameter: | 1900mm |
Minimum ground clearance: | 320mm |
Clamp front/rear inclination: | 55°/40° |
Travel speed: | 25km/h |
Minimum ground clearance: | 450mm |
Turning angle: | 35° |
Grade ability: | ≥24° |
Max. traction force: | 230KN |
Hydraulic cycle time: | 12sec |
Machine weight: | 5000kg |
Overall dimensions: | 6150*1970*3000m |
Tyre: | 16/70-20.5 |
Tread: | 1880mm |
Wheelbase: | 2470mm |
Maximum rise: | 77Kn |
Lifting time: | 4s |
Descending time: | 3.5s |
Unloading time: | 2s |
Certifications

Detailed Images




Suitable occasion

The loader and exvator is mainly used for afforesttion agriculture and animal husbandry construction,channel construction,sewer clean-up,mine cleaning and other capital construction operatimg environment.
