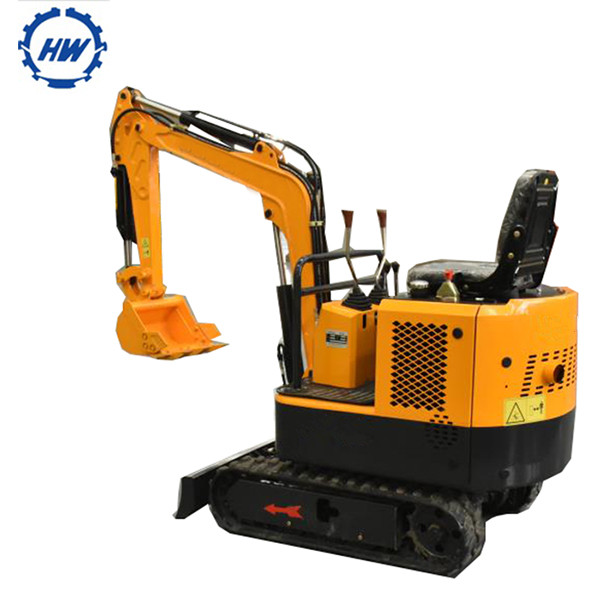

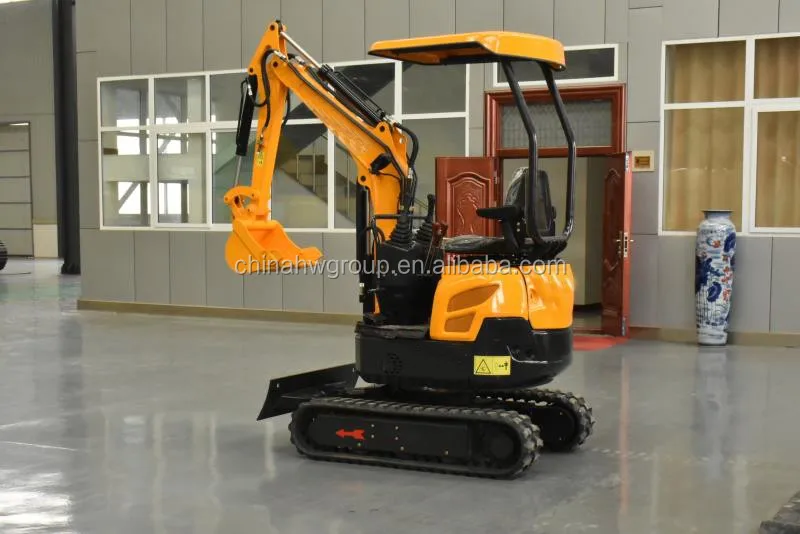

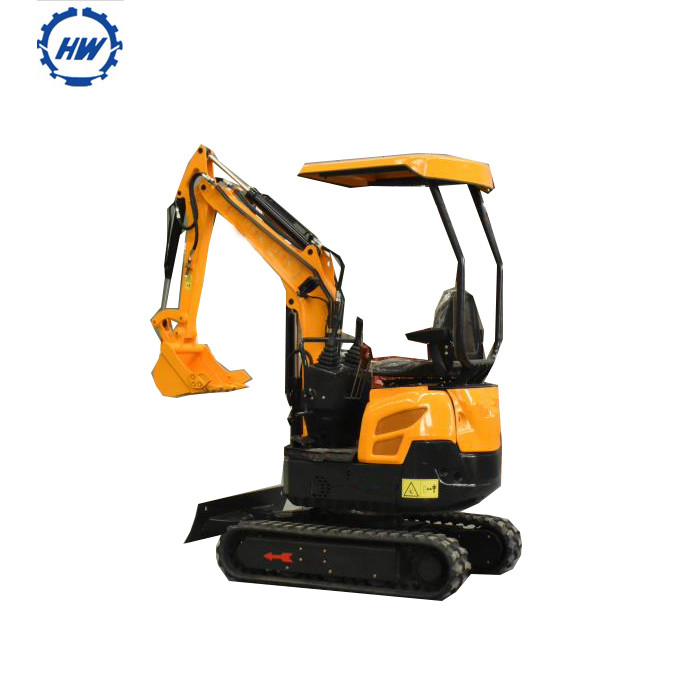

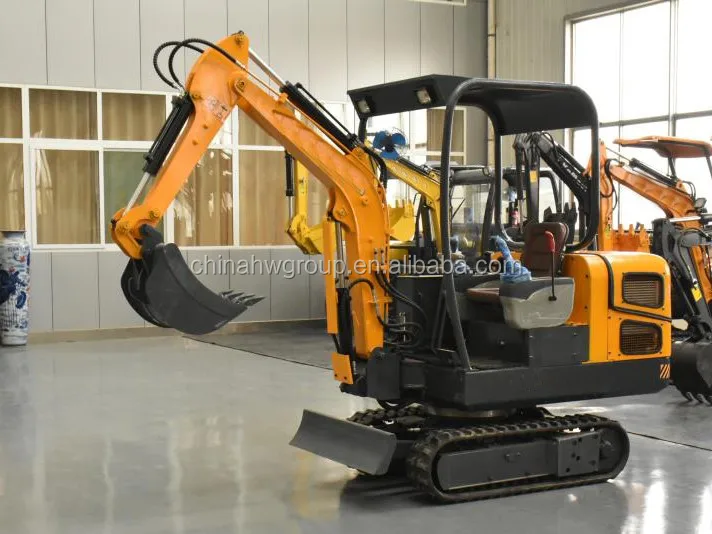

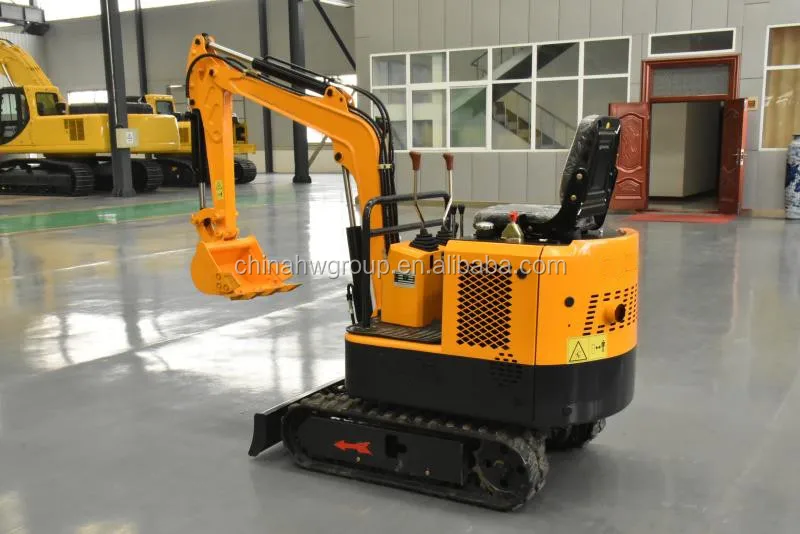

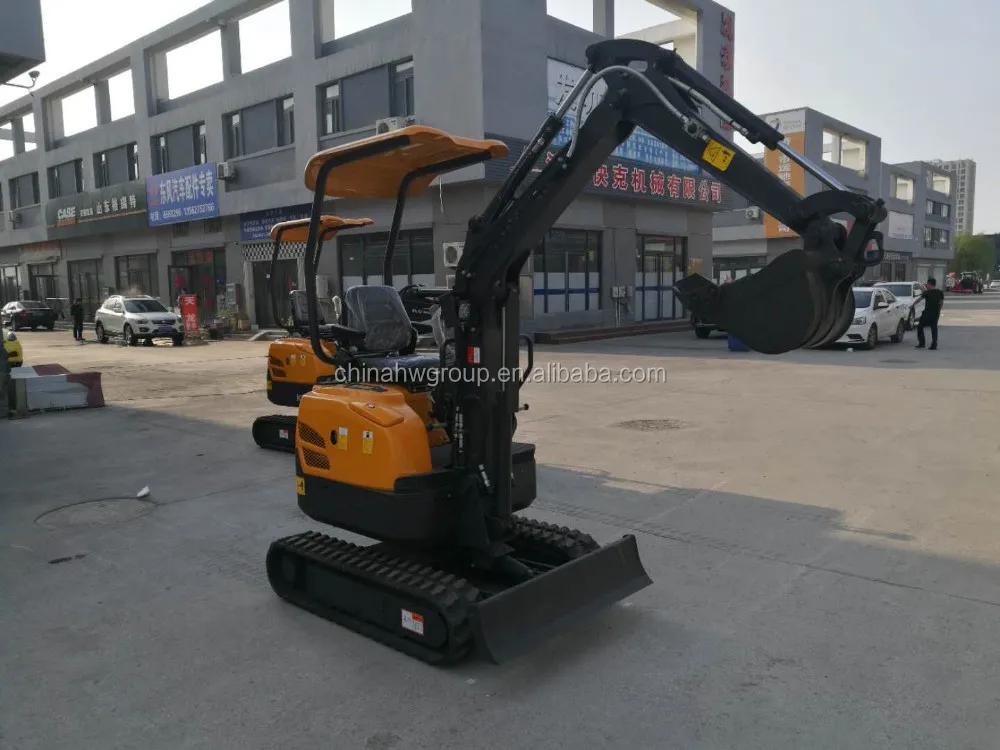

Factory price small farm use 1 ton 1.5 ton 2 ton mini crawler excavator for sale

Click on the image to view the original image

Product：	views：3Factory price small farm use 1 ton 1.5 ton 2 ton mini crawler excavator for sale
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:41

Product Details

Overview

Quick Details

Bucket capacity:: 0.025cbm/100kg

Operating Weight:: 910kg

Rated Speed:: 1.5km/h

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HW11

Condition:: New

Moving Type:: Crawler Excavator

Maximum Digging Height:: 2610mm

Maximum Digging Depth:: 1650mm

Machine Weight:: 800kg

Max Digging Radius:: 1330 mm

Certification:: ISO

Product name:: small digger

Bucket width:: 340mm

Rated power:: 8.6 kw/3600r/min

displacement:: 0.211 L

Overall dimension( LxWxH):: 2770x896x1490 mm

Total length of track on land:: 1230mm

Wheelbase:: 910mm

Total length of track:: 1230mm

Platform back turning radius:: 784mm

Max. Vertical digging depth:: 1375mm

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 600 Set/Sets per Month

Packaging & Delivery

Packaging Details: Wooden packing

Port: Shanghai or qingdao port

Product Description

1, with excellent work efficiency and excellent cost-effective;

2, the standard configuration bulldozer can be flat site, earth backfill, increase machine stability;

3, simple, small and flexible, easy to transport, can work in small venues, especially for orchards such as kiwifruit, vineyards, oranges, navel orange value, trenching, fertilization, weeding;

4, with mining, broken, clear hooks, drilling, earth multi-function, can quickly replace the accessories, machine utilization greatly improved;
SPECIFICATION:

Mini crawler excavator small digger
Model	HW11
Operating Weight	800kg
Digging bucket capacity	0.025cbm/100kg
Bucket width	340mm
Engine	KOOP
Rated power	8.6 kw/3600r/min
Displacement	0.211 L
Bore stroke	70x55
Main pump	CBK-F6.8
Displacement	6.8ml/r
Swing motor	SJ-TECH (MP-1-160)
Traveling motor	KERSEN (OMS-2450)
Travel speed	1.5km/h
Overall dimension( LxWxH)	2770x896x1490 mm
Wheelbase	910 mm
Total length of track	1230mm
Platform ground clearance	380 mm
Platform back turning radius	784 mm
Chassis width	896 mm
Track width	130 mm
Chassis ground clearance	132 mm
Track height	320 mm
Max. Digging depth	1650 mm
Max. Vertical digging depth	1375 mm
Max. Digging height	2610 mm
Max. Dumping height	1850 mm
Max. Digging radius on ground	2850 mm
Min. Rotation radius	1330 mm
