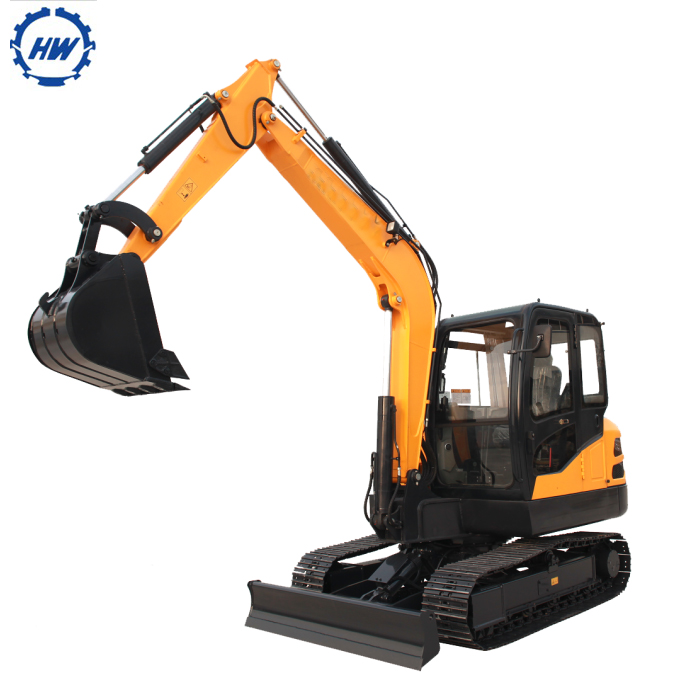

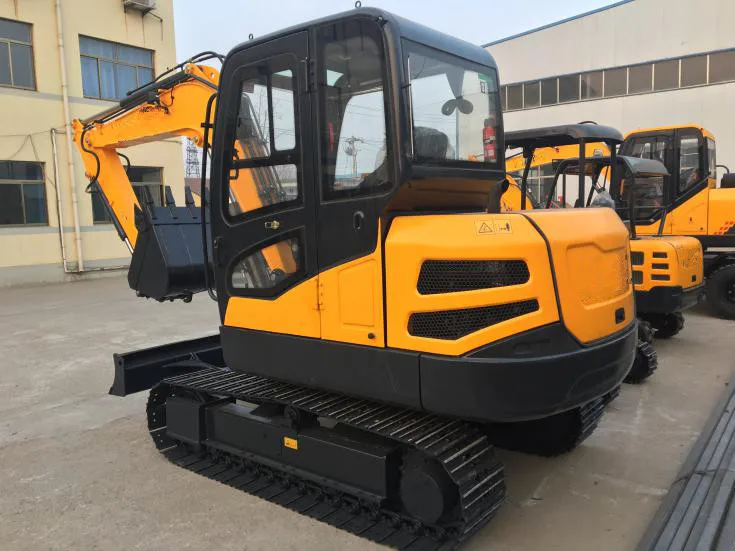

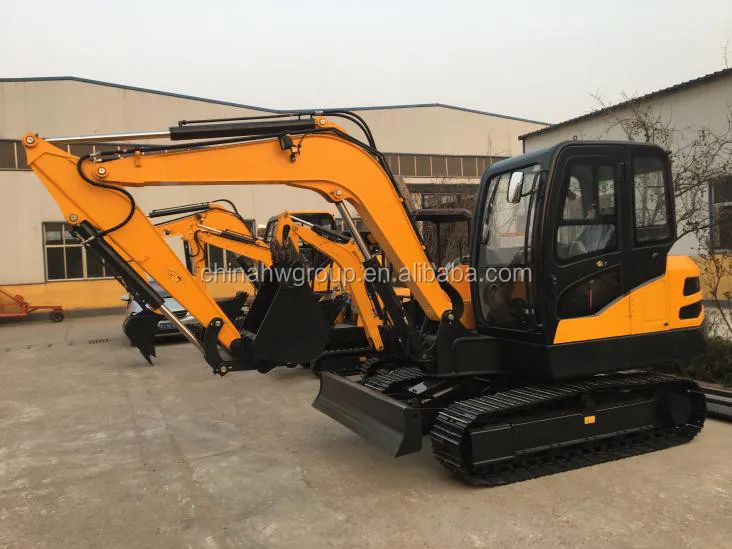

hot sale China 60hp crawler excavator 6.5 ton with hydraulic hammer for sale
1. Full imported hydraulic system ensure the stable quality.
2. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
3. Original Kubota engine,high efficiency low noise.
4. equipped with double fuel filter to guarantee fuel purity to protect engine
5. extend hydraulic line for various attachments.
6. Full sealed cabin with A/C and comfort seat make operator easy to work.
7. Intelligent control electric system.
8. Open covering parts makes the maintenance easy to proceed.
Engine
| Model | Kubota V2607 42.4KW/2000rpm |
| Type | Direct injection, water cooled, supercharge |
| No. of cylinder | 4 |
Main Performance
Swing Speed | r/min | 0-11 |
| Traveling Speed | km/H | 2.5~4.2 |
| Grade ability | % | 70(35°) |
| Traveling Tracking Force | kn | 30.8 |
| Bucket digging force | KN | 48 |
Arm Digging Force | KN | 35 |
Hydraulic System
Hydraulic system working pressure | Mpa | 28 |
Hydraulic Pump | Rexroth | |
Swing Motor | Sunjin | |
Main Valve | Sunjin | |
Fuel Tank Capacity | L | 105 |
Hydraulic Tank Capacity | L | 90 |

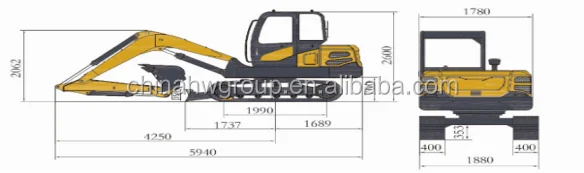

Overall Dimensions
Overall Length | mm | 5940 |
Overall Width | mm | 1880 |
Overall Height | mm | 2570 |
Ground clearance | mm | 700 |
Track length | mm | 2580 |
Track width | mm | 400 |
Undercarriage width | mm | 1880 |
Undercarriage ground clearance | mm | 353 |
Dozer Blade | mm | 1880*350 |

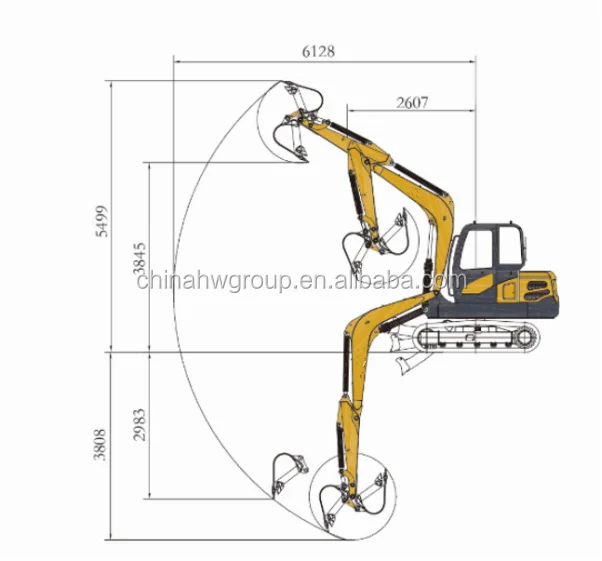

Operation parameters
Operation Weight | kg | 6500 |
Bucket Capacity | m3 | 0.21 |
Max. Digging Radius | mm | 6128 |
Max. Digging Depth | mm | 3808 |
Max. Digging Height | mm | 5499 |
Max. Dumping Height | mm | 3854 |
Max. Dozer Cutting | mm | 474 |
Max. Dozer Lifting | mm | 376 |
Tail Swing Radius | mm | 1689 |
Sprocket to Idler | mm | 1990 |
Shandong Hengwang Group Co., Ltd. is located at the Jining city,Shandong province with conveniently transportation and situation. As a specialized manufacturer and exporter for excavators in China, we sincerely hope to establish business relationship with your esteemed corporation. Our excavators have been exported to many countries, such as India, Iran, Indonesia, Africa etc.
Our main products are including HW18,HW22,HW65,HW75,HW90,HW135,HW180 series crawler excavator and HW70,HW85,HW135 wheeled excavators. We have built good reputation with superior excavator of perfect quality and most reasonable price.
We choose most durable engine made in China and import main parts such as pumps, crawler shoes, oil pipes from Korea and Japan. With Japan and Korea hydraulic technology, we will provide more cost-effective products as well as more perfect and faster service. In addition, we have got Supplier Assessment Certificate, granted by Alibaba(Certificate No. 16755502 P+T). Machines used for excavating earth and rocks and loading them on a dump truck. The size ranges from small ones used in civil engineering to super large ones used in mines. Our pursuit is "Quality First, Reputation First". We always believe that results in excellence, entrust roots in quality. We have excellent after-sales service. So please give us a chance and look at what can we do for you in future.
