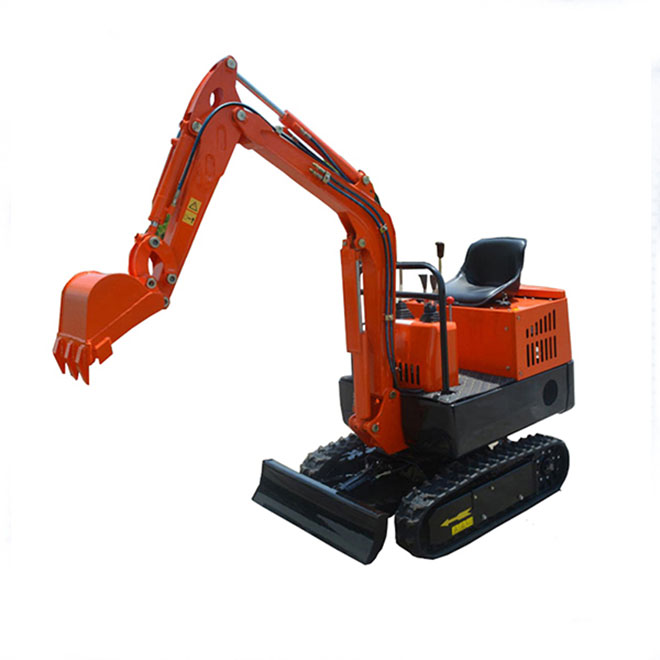

mini digger machine wheel excavator made in china
Click on the image to view the original image
Product： views：5mini digger machine wheel excavator made in china
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:41
  Negotiated
Product Details
Overview
Quick Details
Bucket capacity:
0.025cbm/100kg
Operating Weight:
910kg
Rated Speed:
1.5km/h
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW08
Condition:
New
Moving Type:
Crawler Excavator
Maximum Digging Height:
2610mm
Maximum Digging Depth:
1650mm
Machine Weight:
800kg
Max Digging Radius:
1330 mm
Certification:
ISO
Product name:
mini digger machine wheel excavator made in china
Bucket width:
340mm
Rated power:
8.6 kw/3600r/min
displacement:
0.211 L
Overall dimension( LxWxH):
2770x896x1490 mm
Total length of track on land:
1230mm
Wheelbase:
910mm
Total length of track:
1230mm
Platform back turning radius:
784mm
Max. Vertical digging depth:
1375mm
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
600 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden packing
Port
Shanghai or qingdao port
Product Description

mini digger machine wheel excavator made in china

1, with excellent work efficiency and excellent cost-effective;

2, the standard configuration bulldozer can be flat site, earth backfill, increase machine stability;

3, simple, small and flexible, easy to transport, can work in small venues, especially for orchards such as kiwifruit, vineyards, oranges, navel orange value, trenching, fertilization, weeding;

4, with mining, broken, clear hooks, drilling, earth multi-function, can quickly replace the accessories, machine utilization greatly improved;
SPECIFICATION:

mini digger machine wheel excavator made in china
Model
HW08
Operating Weight
800kg
Digging bucket capacity
0.025cbm/100kg
Bucket width
340mm
Engine
KOOP
Rated power
8.6 kw/3600r/min
Displacement
0.211 L
Bore stroke
70x55
Main pump
CBK-F6.8
Displacement
6.8ml/r
Swing motor
SJ-TECH (MP-1-160)
Traveling motor
KERSEN (OMS-2450)
Travel speed
1.5km/h
Overall dimension( LxWxH)
2770x896x1490 mm
Wheelbase
910 mm
Total length of track
1230mm
Platform ground clearance
380 mm
Platform back turning radius
784 mm
Chassis width
896 mm
Track width
130 mm
Chassis ground clearance
132 mm
Track height
320 mm
Max. Digging depth
1650 mm
Max. Vertical digging depth
1375 mm
Max. Digging height
2610 mm
Max. Dumping height
1850 mm
Max. Digging radius on ground
2850 mm
Min. Rotation radius
1330 mm

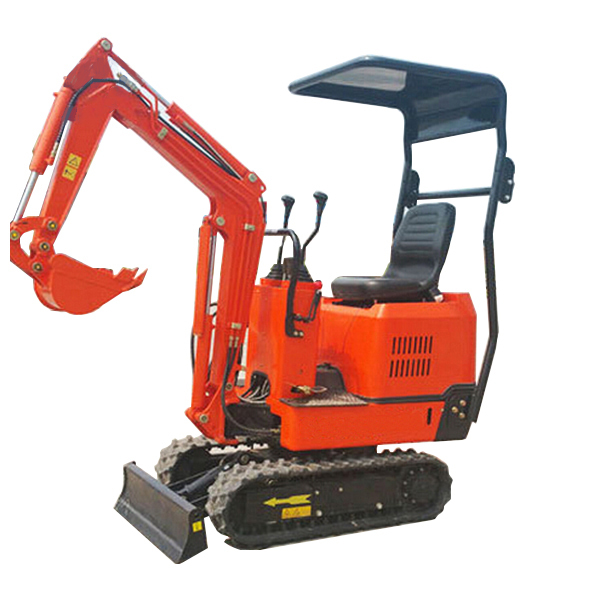

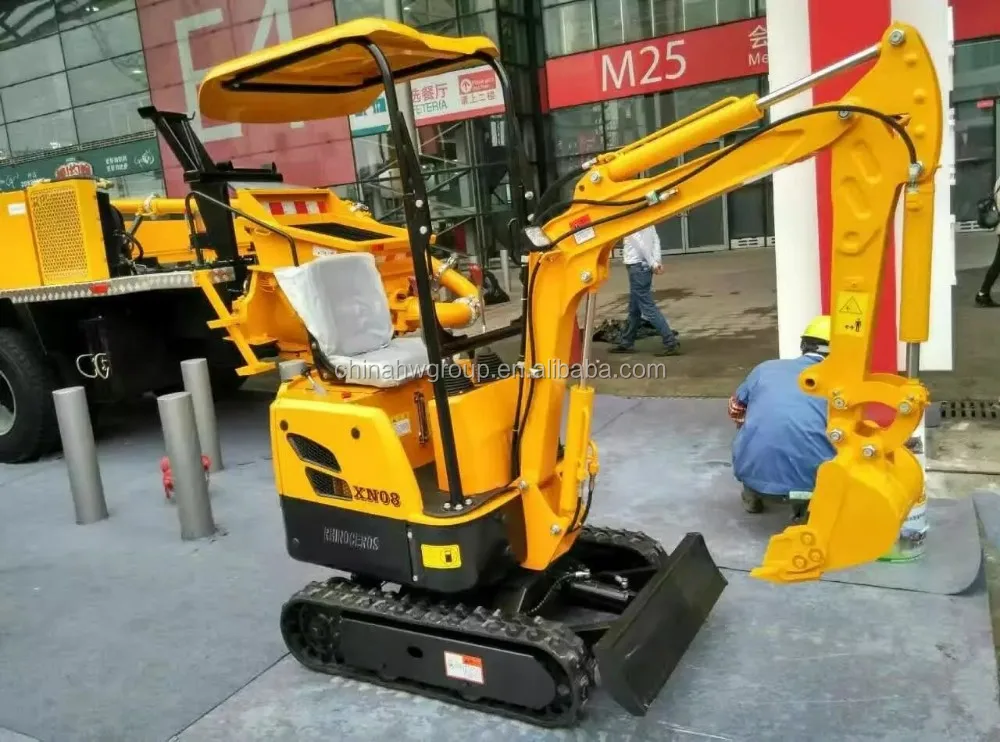

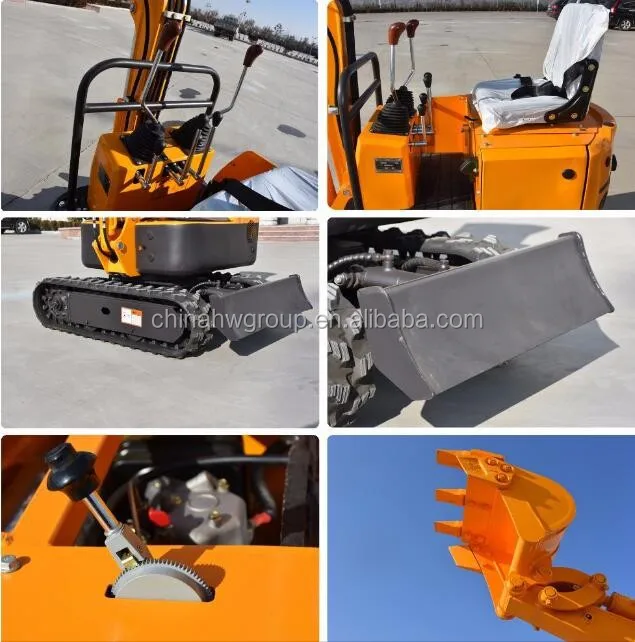

Detailed Image

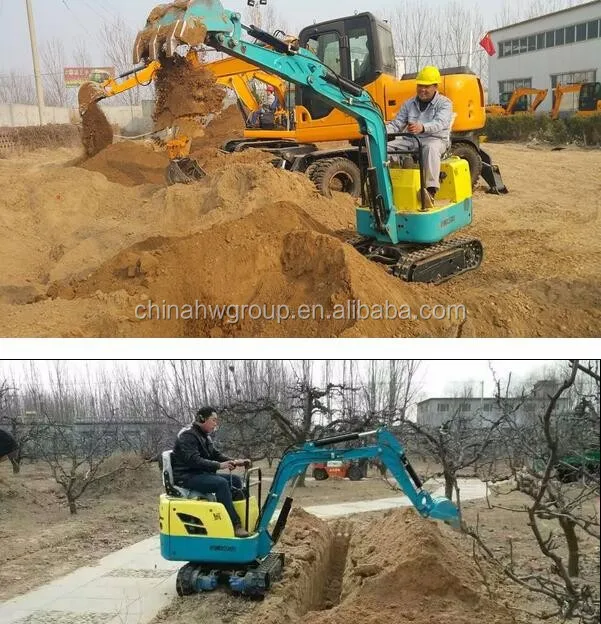

Applications

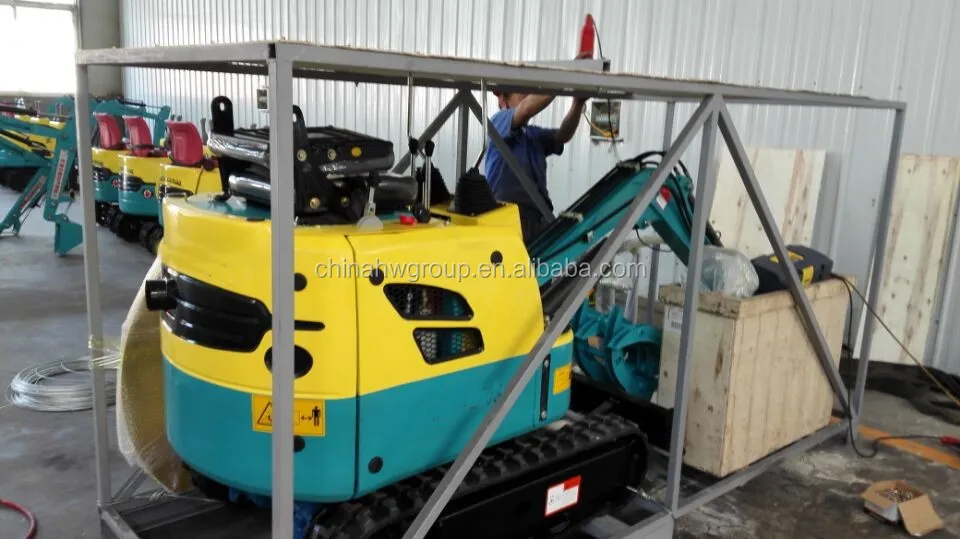

Packing & Delivery
Our Company

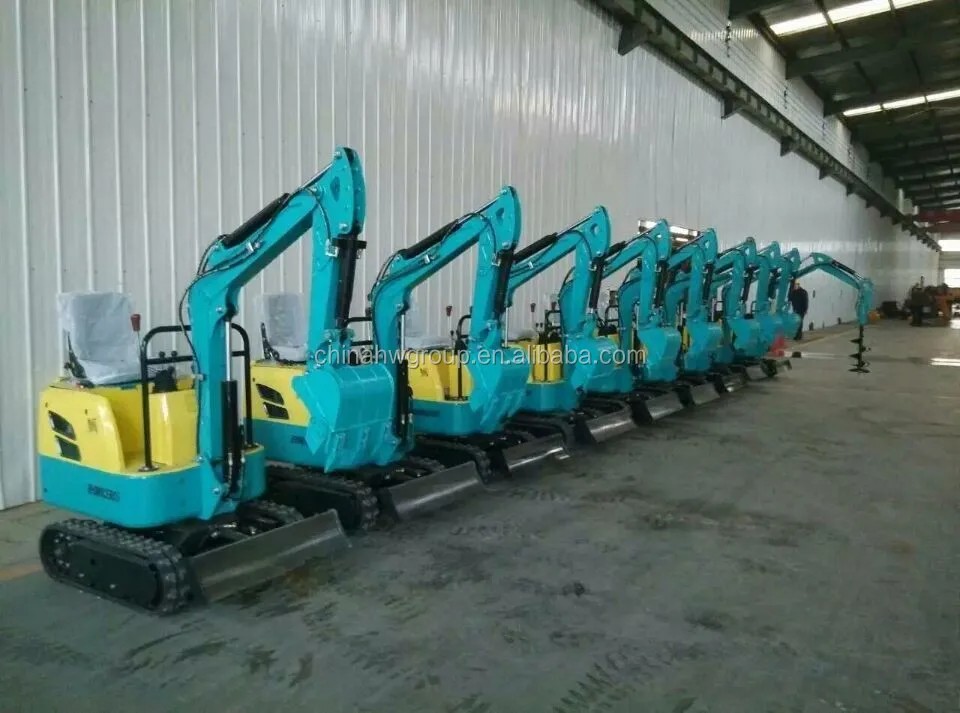

Work shop
