Click on the image to view the original image

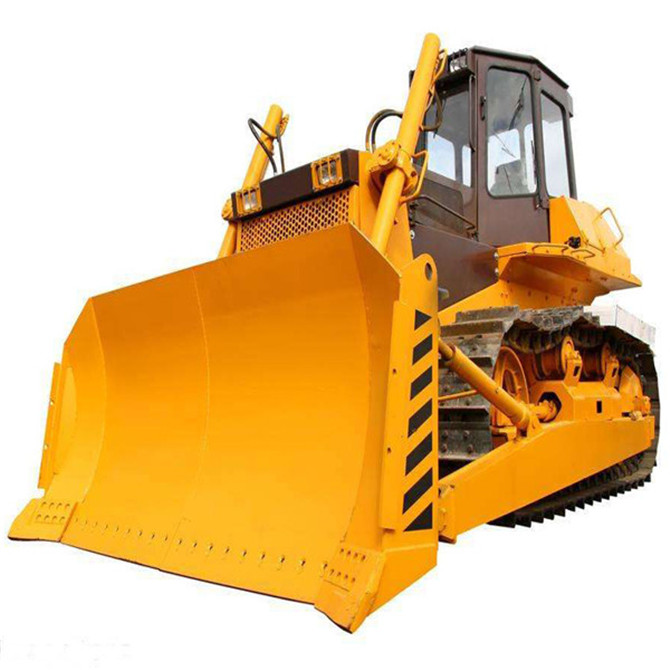

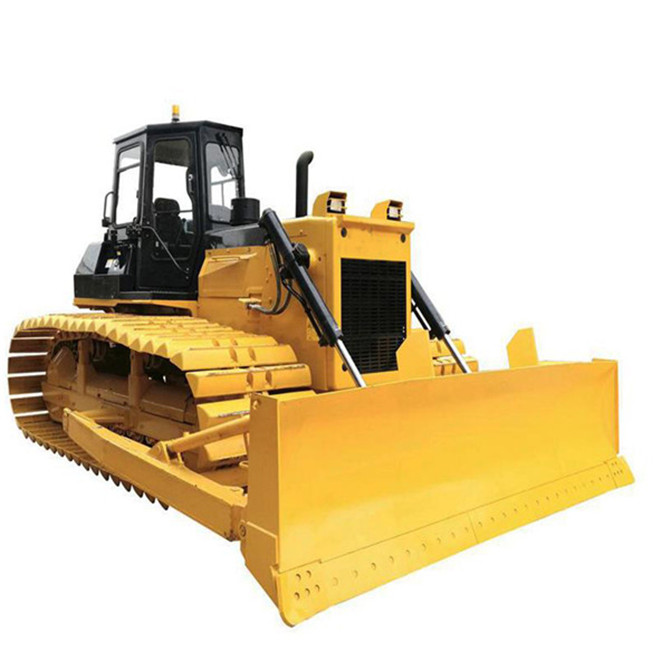

HW-16 super-wetland bulldozer is configured with Weichai engine,it is developed in response to the operation demands of swamp and wetland conditions, and the special design ensures higher operating efficiency.
Full Hydraulic Small Bulldozer price
Items | HD16 |
Main Specifications | |
Model | HD16 |
Type | 160HP Hydraulic standard |
Engine model | Weichai WP10G178E355 |
Displacement | 9.726 L |
Rated power | 131/1850 kw/rpm |
Max.torque | 830/1000-1200 N.m/rpm |
Operating weight | 17000 Kg |
Dimension(no ripper) | |
Min ground clearance | 405 mm |
Ground pressure | 0.067 MPa |
Track gauge | 1880 mm |
Dozing capacity | 4.55 m³ |
Blade width | 3390 mm |
Blade height | 1150 mm |
Max drop below ground | 540 mm |
Track shoe width | 510 mm |
Pitch | 203.2 mm |
Quantity of track link | 37 |
Quantity of Carrier rollers | 4 |
Quantity of Track rollers | 12 |
Max pressure | 14 MPa |
Discharge | 213 L/min |
Max tractor force | 146 KN |
Grade ability | 30° |
Gear 1st speed | 3.29 km/h |
Max speed | |
Main clutch force | 145 N |
Steering clutch force | 80 N |
Mechnical transmission force | 112 N |
Hydraulic transmission force | 46 N |
