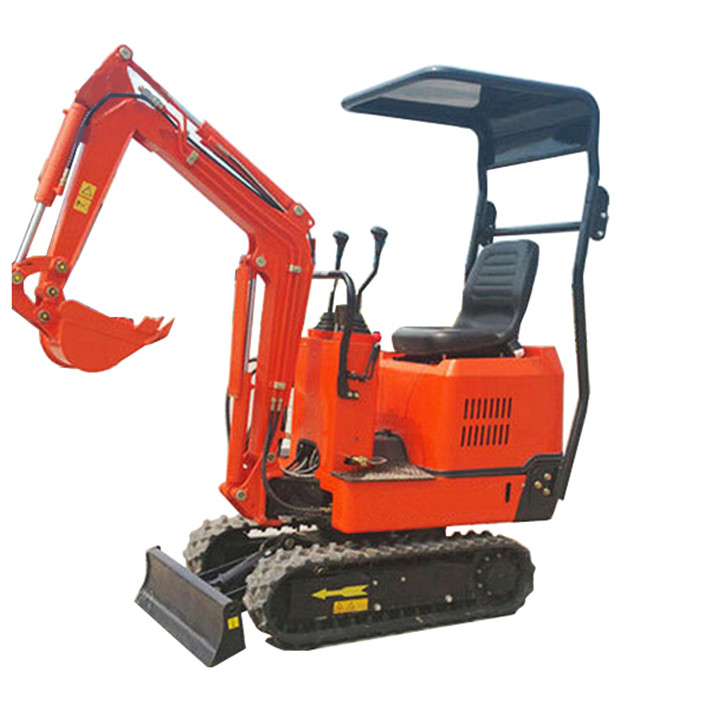

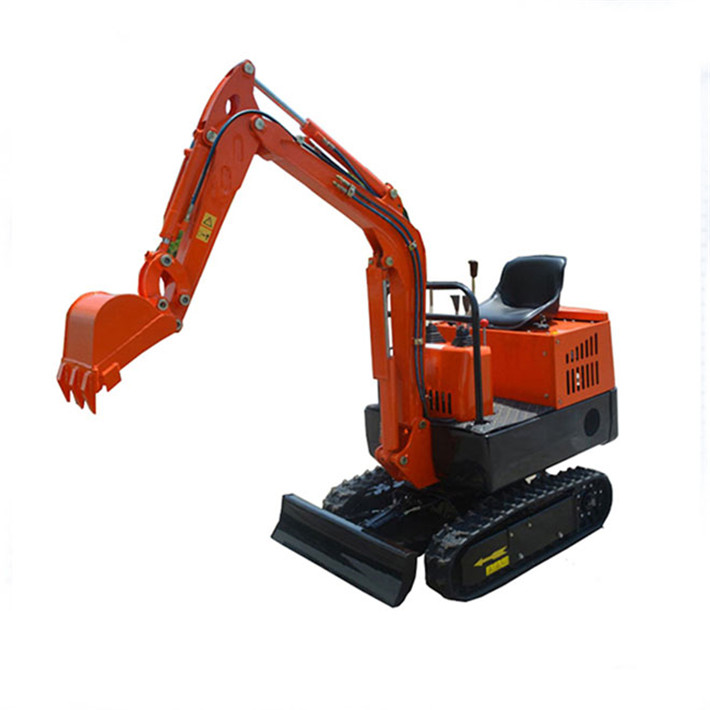

New cheap small excavator 0.8 ton Chinese mini crawler excavator for farming

Click on the image to view the original image

Product：	views：3New cheap small excavator 0.8 ton Chinese mini crawler excavator for farming
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:42

Product Details

Overview

Quick Details

Bucket capacity:: 0.025CBM

Operating Weight:: 910kg

Rated Speed:: 1.5km/h

Warranty:: 1 Year

After-sales Service Provided:: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts

Place of Origin:: Shandong, China

Brand Name:: HW

Condition:: New

Moving Type:: Crawler Excavator

Maximum Digging Height:: 2610mm

Maximum Digging Depth:: 1650mm

Max Digging Radius:: 2850mm

Certification:: ISO

Product name:: Mini Excavator

Track width:: 130mm

Rated power:: 8.6kw/2200rpm

displacement:: 6.8ML/R

Dimensions:: 2770*896*1490mm

Total length of track on land:: 1230mm

Chassis ground clearance:: 132mm

dumping height:: 1850mm

Min.rotation radius:: 1330mm

.digging depth of bulldozer blade:: 255mm

Supply Ability

Supply Ability:: 550 Set/Sets per Month small excavator

Packaging & Delivery

Packaging Details: 1 unit ship in LCL
4-6 units load in 1x20GP container
7-12 units load in 1x40HQ container

Port: Shanghai or qingdao port

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

Thisexcavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse.
Itcan be add much accessoies like Auger,Wood Grab, Rake, Ripper etc.. And we have exported a lot of countries like Australia, France, Italy, Germany, Holland, US, Canada etc. Good quality with best factoryprice!

item	specification	specification	item
Model	HW08	Platform back turning radious	784mm
Operating weight	910kg	Chassis width	896mm
Digging bucket capacity	0.025m3	Track width	130mm
Digging bucket width	350mm	Chassis ground clearance	132mm
engine	koop	Track height	320mm
Rated power	8.6kw/2200rpm	Overall range
displacement	6.8ML/R	Max.digging depth	1650mm
Swing motor	SJ-TECH(MP-1-160)	Max.vertical digging depth	1375mm
Traveling motor	KERSEN(OMS-2450)	Max.digging height	2610mm
parameters		Max.dumping height	1850mm
Dimensions(LWH)	27708961490mm	Max.digging radius on ground	2850mm
Wheel base	910mm	Min.rotation radius	1330mm
Total length of track on land	1230mm	Max.uograde height of bulldozer blade	345mm
Platform ground clearance	380mm	Max.digging depth of bulldozer blade	255mm
