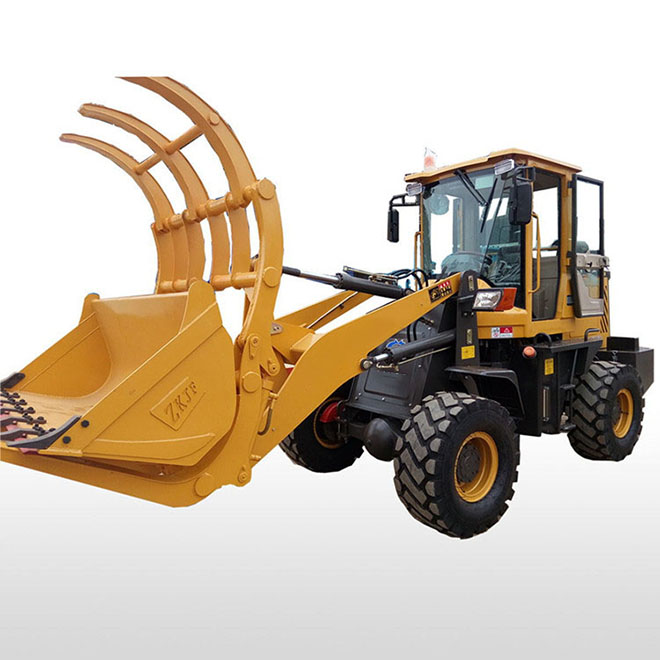

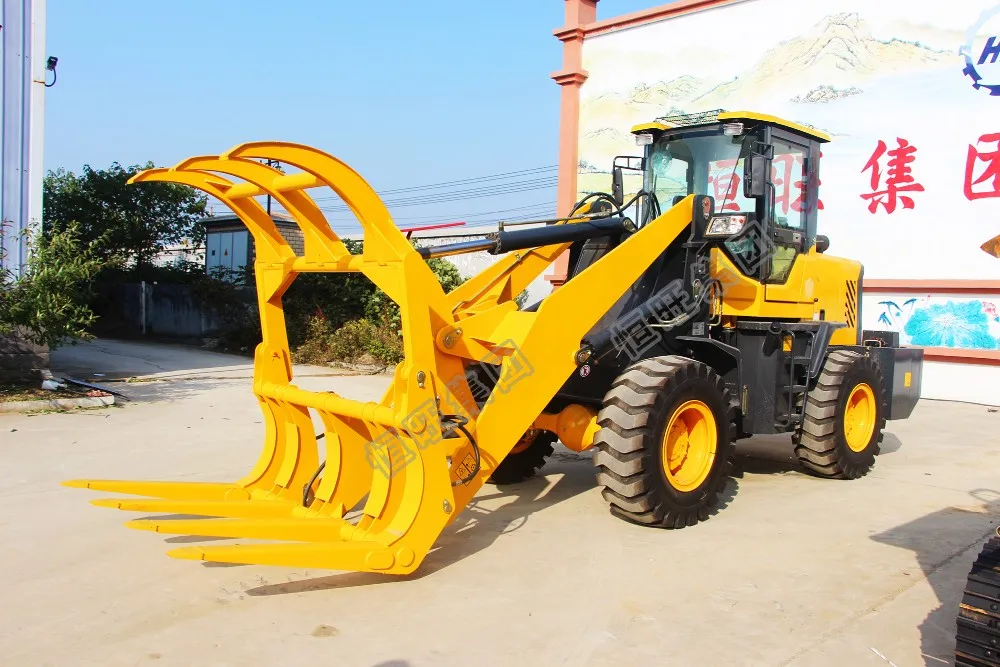

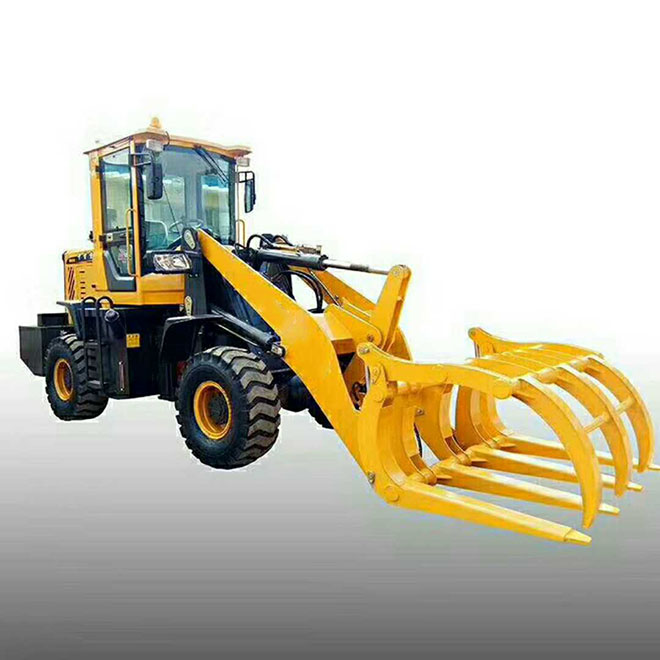

Chinese wheel loader compact hydrostatic wheel loader farm tractor sugarcane grabber loader
Click on the image to view the original image
Product： views：4Chinese wheel loader compact hydrostatic wheel loader farm tractor sugarcane grabber loader
Branch： HW
Type： Backhoe Loader
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:42
  Negotiated
Product Details
Overview
Quick Details
Dimension(Long * Breadth * High):
6150*1970*3000m
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Applicable Industries:
Construction works
Condition:
New
Brand Name:
HW
Place of Origin:
Shandong, China
Type:
Backhoe Loader
Moving Type:
Wheel Loader
Certification:
ISO
Hydraulic Pump Brand:
Parker
Engine Brand:
CHANGCHAI
UNIQUE SELLING POINT:
High operating efficiency
Product name:
wheel loader
Engine power:
38kw
Rated load:
2000kg(4.5 m3)
Loading and unloading mode:
Front unload
Minimum turning radius:
4500mm
Maximum opening diameter:
1900mm
Minimum ground clearance:
320mm
Travel speed:
25km/h
Turning angle:
35°
Grade ability:
≥24°
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
clamp bucket wheel loader nude packing in container
Port
QINGDAO,SHANGHAI
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)5To be negotiated
Product Description

1.Bolt -on edge savers and segments protect the cutting edge from unnecessary wear.
2.Articulated type, Mechnical steering, powerful shift transmission, easier operation.
3.Z-bar loader linkage is designed for maximun rigidity and offers powerful breakout
4.Bucket can be leveled automatically, optimaized working device, higher productivity.
5.Comfortable operation environment, new design cabin, Grammer seat, air-conditioner at option.
6.Gearbox and torque device has separable structure, reliable performance, convenient maintenance.

SPECIFICATIONS FOR CLAMP LOADER
Model:
HW-C26
Engine power:
38 kw
Rated load:
2000kg(4.5 m3)
Loading and unloading mode:
Front unload
Unloading height :
4200mm
Minimum turning radius:
4500mm
Maximum opening diameter:
1900mm
Minimum ground clearance:
320mm
Clamp front/rear inclination:
55°/40°
Travel speed:
25km/h
Minimum ground clearance:
450mm
Turning angle:
35°
Grade ability:
≥24°
Max. traction force:
230KN
Hydraulic cycle time:
12sec
Machine weight:
5000kg
Overall dimensions:
6150*1970*3000m
Tyre:
16/70-20.5
Tread:
1880mm
Wheelbase:
2470mm
Maximum rise:
77Kn
Lifting time:
4s
Descending time:
3.5s
Unloading time:
2s
Accessory
Certifications
Suitable occasion

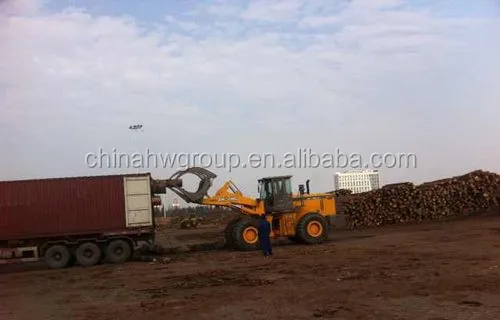

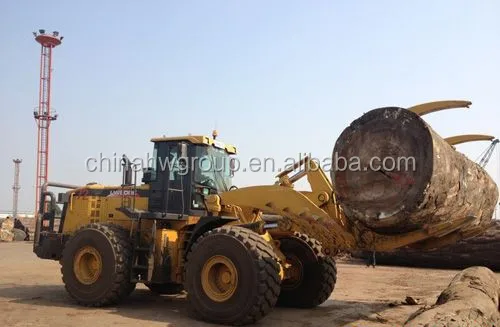

Forestry clamp loders a new design of forestry clamp loder is equipped with wood clamp specially designed for log handling.
