Home > Products > HW-l26 3ton HW widely used mini backhoe loader dubai

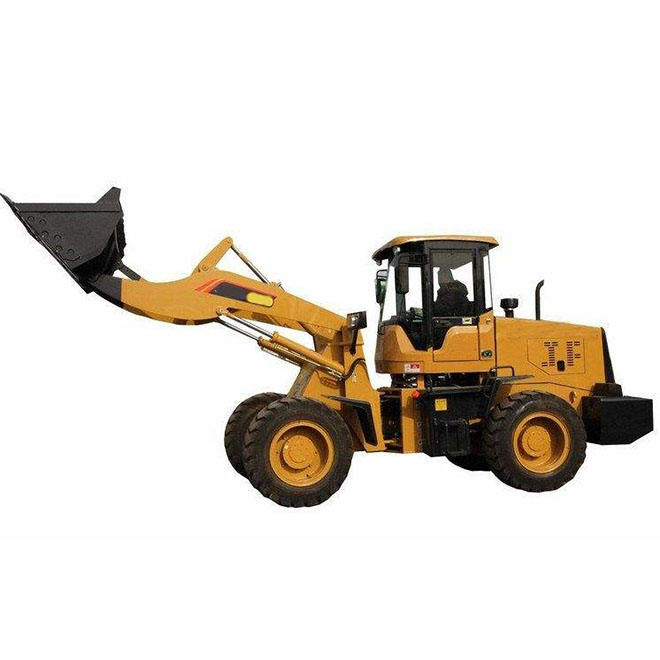

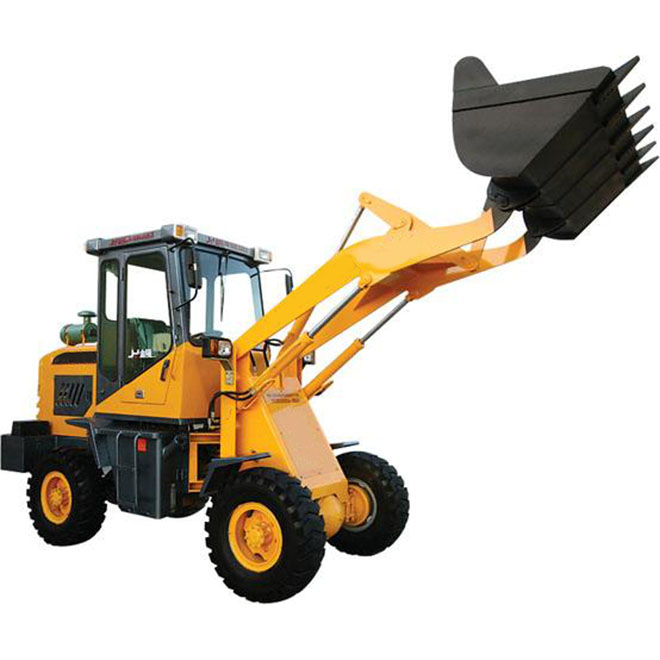

HW-l26 3ton HW widely used mini backhoe loader dubai
Click on the image to view the original image
Product： views：3HW-l26 3ton HW widely used mini backhoe loader dubai
Branch： HW
Type： Front Loader
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:42
  Negotiated
Product Details
Overview
Quick Details
Dimension(Long * Breadth * High):
5000mm*2000mm*3000mm
Condition:
New
Brand Name:
HW
Type:
Front Loader
Moving Type:
Wheel Loader
Rated Load:
1200kg
Certification:
CE ISO
Model Number:
HW-L26
Product name:
HW-l26 3ton HW widely used mini backhoe loader dubai
Dump height:
3200mm
Dump distance:
1000mm
Min. turning radius(outside of bucket):
5600mm
Operating weight:
3000kg
Rated power/Speed:
30KW/2400 rpm
Max. breakout force:
36 KN
Transmission type:
Full-power shift, countershaft type
Max. travel speed:
24km/h
Max. turning angle:
35°±1
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
7200 Set/Sets per Year
Packaging & Delivery
Packaging Details
Nude in container with triangle wood & 10mm wire
one set loading in 40HC container
Port
Qingdao or Shanghai
Product Description
HW-l26 3ton HW widely used mini backhoe loader dubai
Model
HW-L26
Rated capacity
0.6 m³
Rated load
1200kg
Transportation
5000mm*2000mm*3000mm
Dump height
3200mm
Dump distance
1000mm
Wheel base
2000mm
Tread
1440mm
Max. breakout force
36 KN
Total time
12s
Operating weight
3000kg
Engine
Model
YuChai Y28 diesel engine
Pattern
Inline, water-cooled, 4-stroke, direct injection
Rated power/Speed
30KW/2400 rpm
Torque converter and transmission system
Pattern
3-element single stage
Transmission type
Full-power shift, countershaft type
Number of gear
2 forward, 2 reverse 2
Max. travel speed
24km/h
Axle
Hualu
Main reducer pattern
Arc taper gear, model ration of first grade
Pattern of wheelside moderation
Planet gear moderation of single
Tire
Tire size
16/70-24
Steering system
Pattern
Articulated and hydraulic steering
Min. turning radius(outside of bucket)
5600mm
Max. turning angle
35°±1
Implement hydraulic system
Implement pump
CBG2063
System working pressure
16MPa
Brake system
Brake type
Air assisted oil disc on four wheel
Parking brake type
Soft axle control, outside bunch drum type

1. Executive standard: customer"s requirements. Above information serves as a reference only, we can change the parameters reasonably according to your request.
2. Optional parts: snow plow, pallet fork, gripper, rock/coal bucket, portal frame, side dump bucket, clamp bucket, light material bucket, joystick, air condition, back up camera etc.
3. Warranty: 12 months after delivery, necessary spare parts presented free. After warranty, we can always provide spare parts according to customer"s wishes.
