4x4 mini wheel loader new backhoe prices
 Click on the image to view the original image |
|
| Product： |
views：34x4 mini wheel loader new backhoe prices |
| Branch： |
HW |
| Type： |
Front Loader |
| Unit Price： |
Negotiated |
| Min.Order： |
|
| Supply： |
|
| Delivery： |
Shipment within days since the date of payment |
| Valid until： |
Long Term |
| Updated on： |
2019-10-17 05:42 |
| |
 |
|

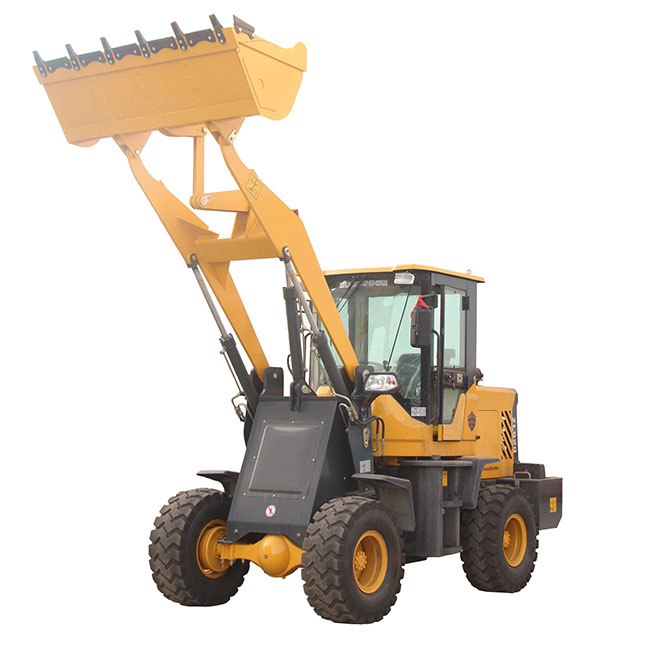

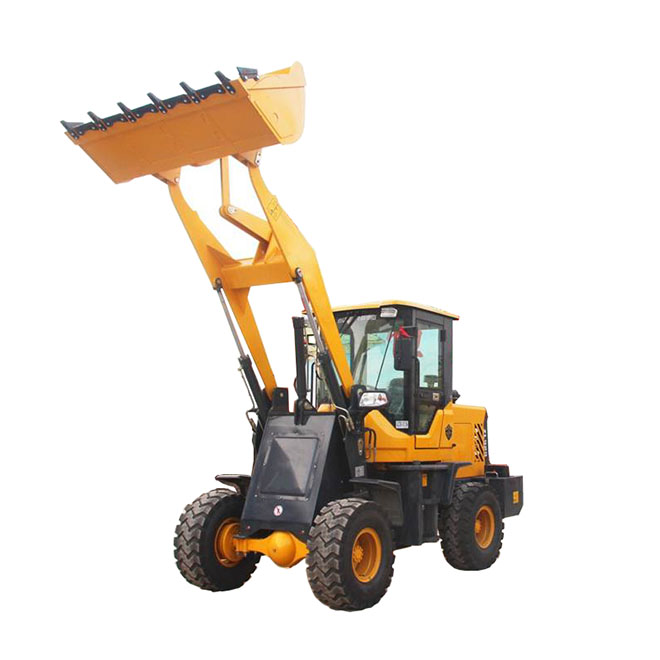

4x4 mini loader 2018 new backhoe prices
| Model | HW-L26 | Rated capacity | 0.6 m³ | Rated load | 1200kg | Transportation | 5000mm*2000mm*3000mm | Dump height | 3200mm | Dump distance | 1000mm | Wheel base | 2000mm | Tread | 1440mm | Max. breakout force | 36 KN | Total time | 12s | Operating weight | 3000kg | Engine | | Model | YuChai Y28 diesel engine | Pattern | Inline, water-cooled, 4-stroke, direct injection | Rated power/Speed | 30KW/2400 rpm | Torque converter and transmission system | | Pattern | 3-element single stage | Transmission type | Full-power shift, countershaft type | Number of gear | 2 forward, 2 reverse 2 | Max. travel speed | 24km/h | Axle | Hualu | Main reducer pattern | Arc taper gear, model ration of first grade | Pattern of wheelside moderation | Planet gear moderation of single | Tire | | Tire size | 16/70-24 | Steering system | | Pattern | Articulated and hydraulic steering | Min. turning radius(outside of bucket) | 5600mm | Max. turning angle | 35°±1 | Implement hydraulic system | | Implement pump | CBG2063 | System working pressure | 16MPa | Brake system | | Brake type | Air assisted oil disc on four wheel | Parking brake type | Soft axle control, outside bunch drum type |
1. Executive standard: customer"s requirements. Above information serves as a reference only, we can change the parameters reasonably according to your request.
2. Optional parts: snow plow, pallet fork, gripper, rock/coal bucket, portal frame, side dump bucket, clamp bucket, light material bucket, joystick, air condition, back up camera etc.
3. Warranty: 12 months after delivery, necessary spare parts presented free. After warranty, we can always provide spare parts according to customer"s wishes.
