Home > Products > Digging and loading machinery with various attachments mini tractor backhoe loader

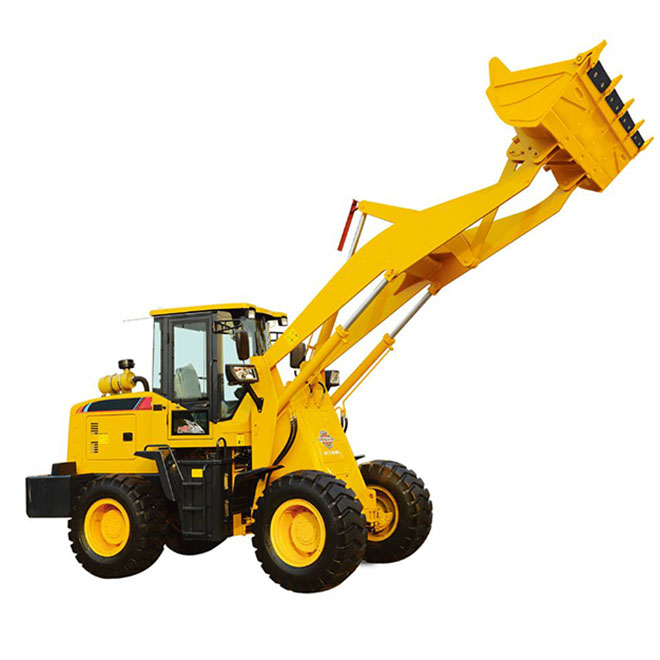

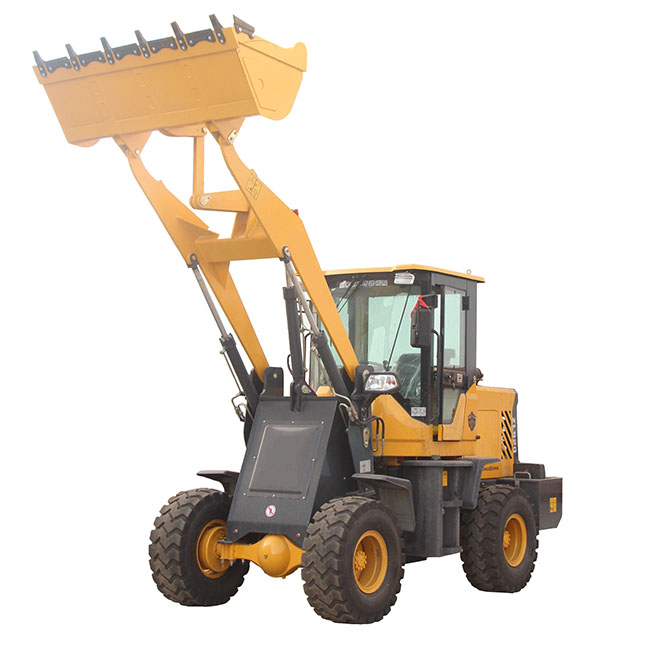

Digging and loading machinery with various attachments mini tractor backhoe loader
Click on the image to view the original image
Product： views：3Digging and loading machinery with various attachments mini tractor backhoe loader
Branch： HW
Type： Front Loader
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:42
  Negotiated
Product Details
Overview
Quick Details
Dimension(Long * Breadth * High):
6000*2000*2900mm
Condition:
New
Brand Name:
HW
Place of Origin:
Shandong, China
Type:
Front Loader
Moving Type:
Wheel Loader
Rated Load:
2200kg
Certification:
CE ISO
Model Number:
HW-L38
Product name:
various attachments mini tractor backhoe loader
Dump height:
3400mm
Dump distance:
1600mm
Min. turning radius(outside of bucket):
5600mm
Operating weight:
5600kg
Rated power/Speed:
66KW/2400 rpm
Max. breakout force:
42 KN
Transmission type:
Full-power shift, countershaft type
Max. travel speed:
24km/h
Max. turning angle:
35°±1
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
7200 Set/Sets per Year
Packaging & Delivery
Packaging Details
Nude in container with triangle wood & 10mm wire
one set loading in 40HC container
Port
Qingdao or Shanghai
Product Description
Digging and loading machinery with various attachments mini tractor backhoe loader
Model
HW-L38
Rated capacity
1 m³
Rated load
2200kg
Transportation
6000*2000*2900mm
Dump height
3400mm
Dump distance
1600mm
Wheel base
2000mm
Tread
1440mm
Max. breakout force
42 KN
Total time
12s
Operating weight
5600kg
Engine
Model
YuChai Y68 diesel engine
Pattern
Inline, water-cooled, 4-stroke, direct injection
Rated power/Speed
66KW/2400 rpm
Engine
Model
YuChai Y68 diesel engine
Pattern
Inline, water-cooled, 4-stroke, direct injection
Rated power/Speed
66KW/2400 rpm
Max. travel speed
24km/h
Axle
Hualu
Main reducer pattern
Arc taper gear, model ration of first grade
Pattern of wheelside moderation
Planet gear moderation of single
Tire
Tire size
16/70-24
Steering system
Pattern
Articulated and hydraulic steering
Min. turning radius(outside of bucket)
5600mm
Max. turning angle
35°±1
Implement hydraulic system
Implement pump
CBG2063
System working pressure
16MPa
Brake system
Brake type
Air assisted oil disc on four wheel
Parking brake type
Soft axle control, outside bunch drum type

1. Executive standard: customer"s requirements. Above information serves as a reference only, we can change the parameters reasonably according to your request.
2. Optional parts: snow plow, pallet fork, gripper, rock/coal bucket, portal frame, side dump bucket, clamp bucket, light material bucket, joystick, air condition, back up camera etc.
3. Warranty: 12 months after delivery, necessary spare parts presented free. After warranty, we can always provide spare parts according to customer"s wishes.
