Product Description

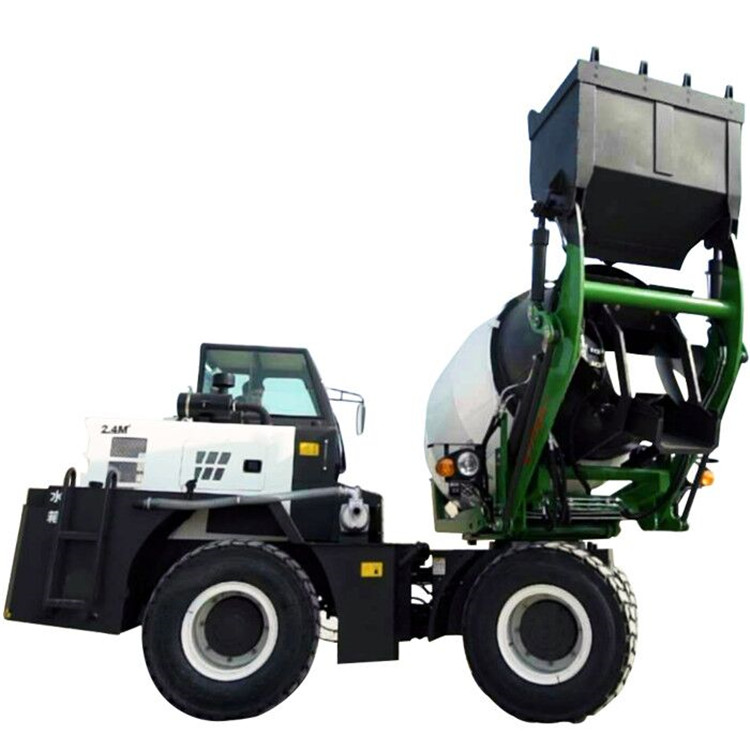

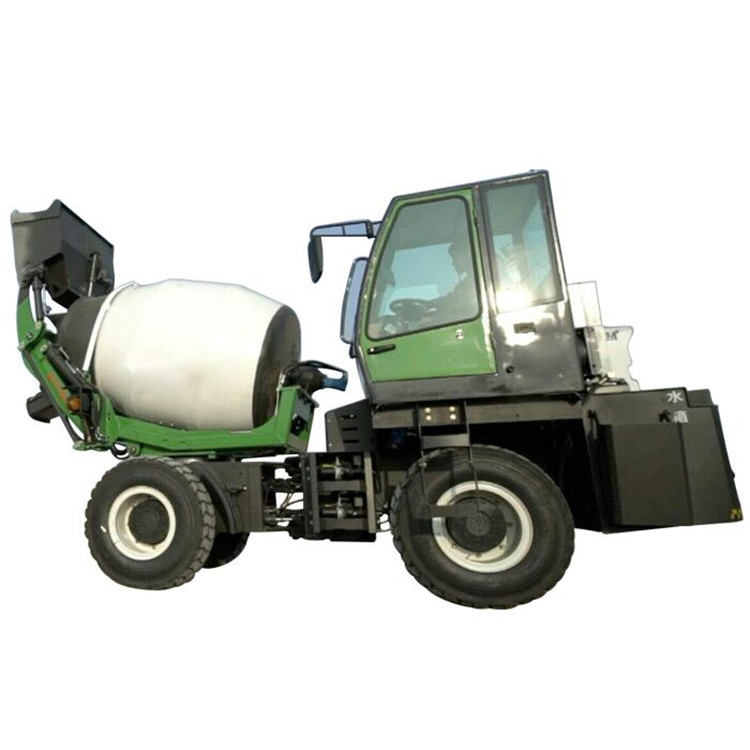

Automatic feeding mixers truck 2.4m3 capacity concrete mixer china
* Italy leading design,automatic feeding mixing system
* Simple and convenient operation
* High efficiency output, save time and labor, save cost
* The perfect combination of mixing truck and loading car
* 180 degrees with a rotary stirring tank,two-way unloading
Specifications | ||||||||
Actual stirring capacity | 2.4m³ | |||||||
Rotary drum capacity | 2.3m³ | |||||||
Degree of bias | 16° | |||||||
Rotational speed | 10-20r/min | |||||||
Direction of rotation | Feed:clockwise output:counter clockwise | |||||||
Mixing drum blade | Two sets of spiral and four sets of auxiliary blades | |||||||
Slump of concrete | 70-260mm | |||||||
Hydraulic Power Transmission System | ||||||||
Pump model | CBGV-4025 | |||||||
Hydraulic motor model | BMSS-250 | |||||||
Reducer ratio | 01:24 | |||||||
Water Supply | ||||||||
Tank capacity/water supply form | 540/automatic timing water supply mechanism with automatic timing | |||||||
The main performance parameters of the chassis and the engine | ||||||||
Engine type/displacement | CF4B68G-Z-13B2/CF4C100T-Z-13B2 | |||||||
Model | Straight injection type four stroke water cooled supercharged diesel engine | |||||||
Rated power | 78kw/2400 kw/r/min | |||||||
Max torque | 380/1500-1800 N.m/r/min | |||||||
Max running speed | 24km/h | |||||||
Min steering radius | 4500mm | |||||||
Climbing capacity | 26° | |||||||
Tire | 16/70-20 | |||||||
Driving way | 4*4 | |||||||
Weight | 5550kg | |||||||
Maximum load capacity | 5600kg | |||||||
Whole machinery weight | 11150kg | |||||||
Overall size | 6350*2510*2850mm(L*W*H) | |||||||
The wheelbase | 2300mm | |||||||

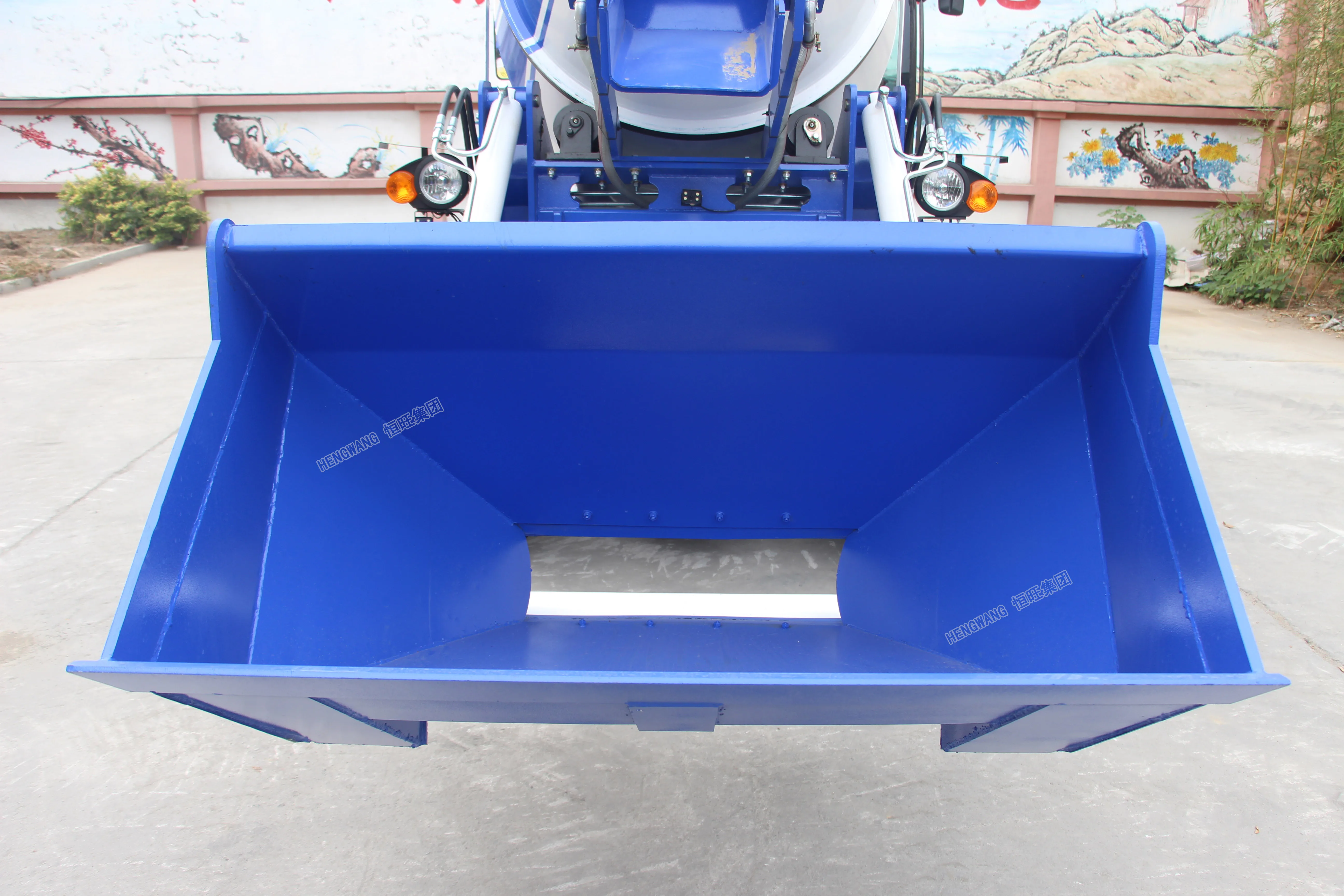

Bucket capacity | 0.5m³ | |||||||

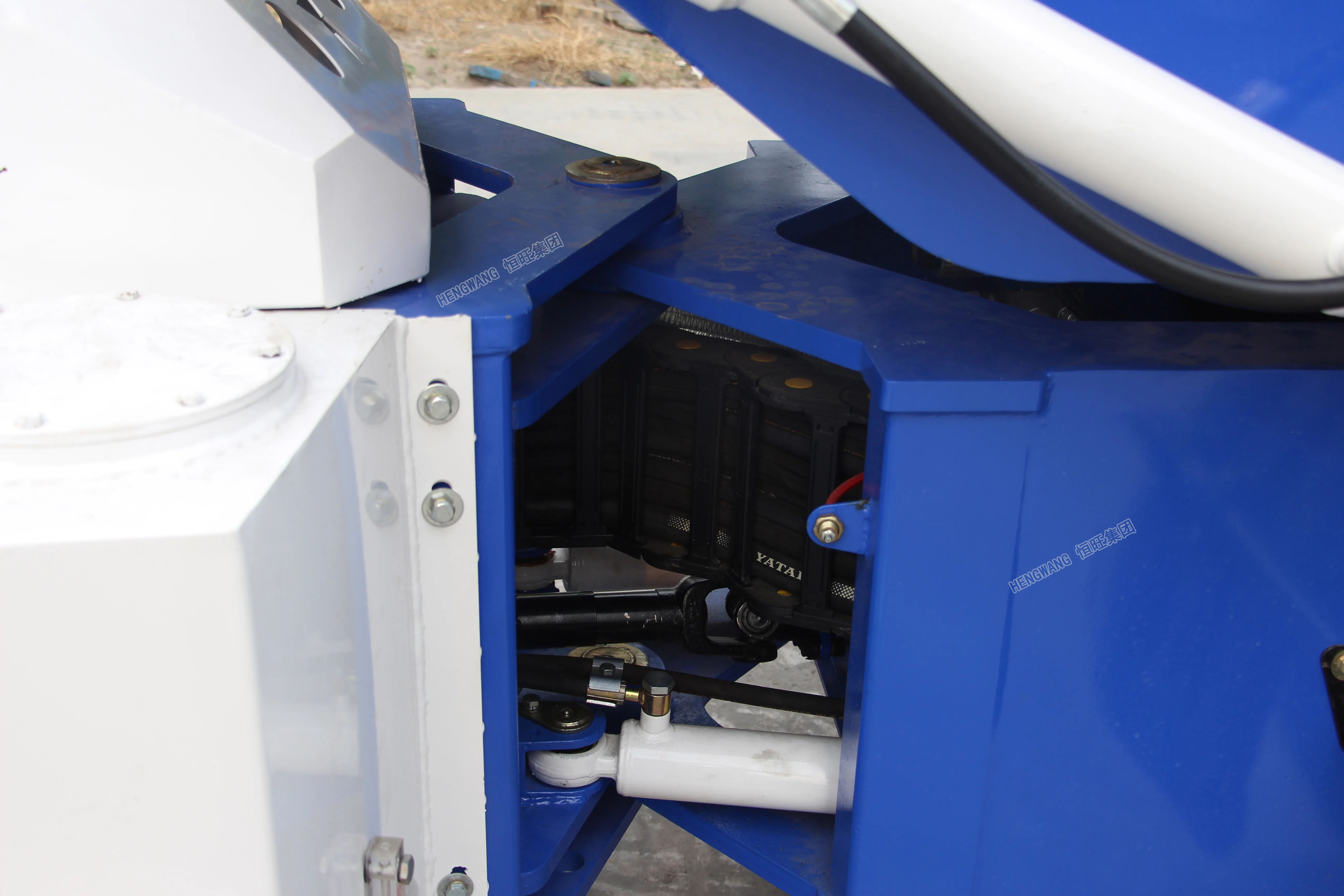

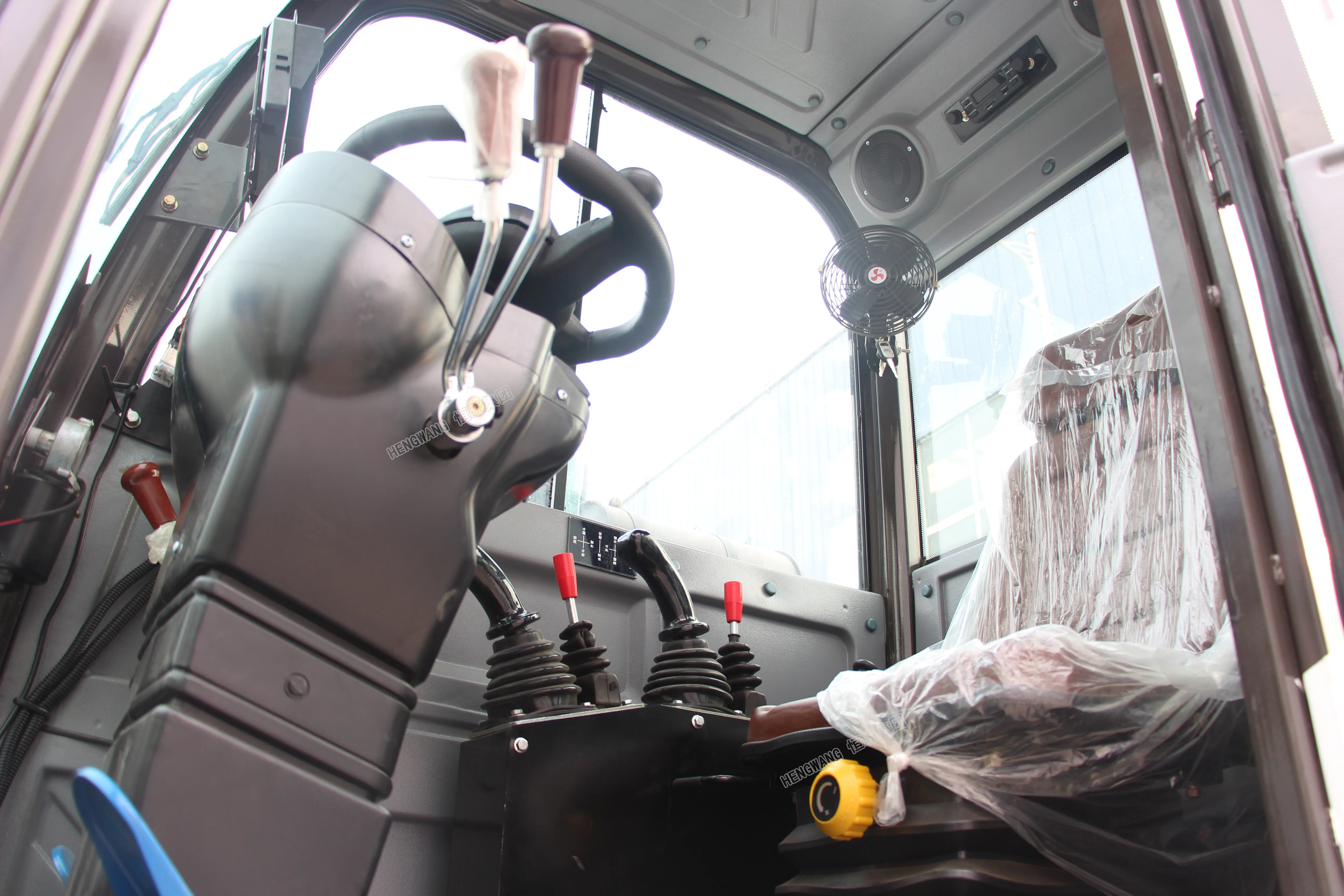

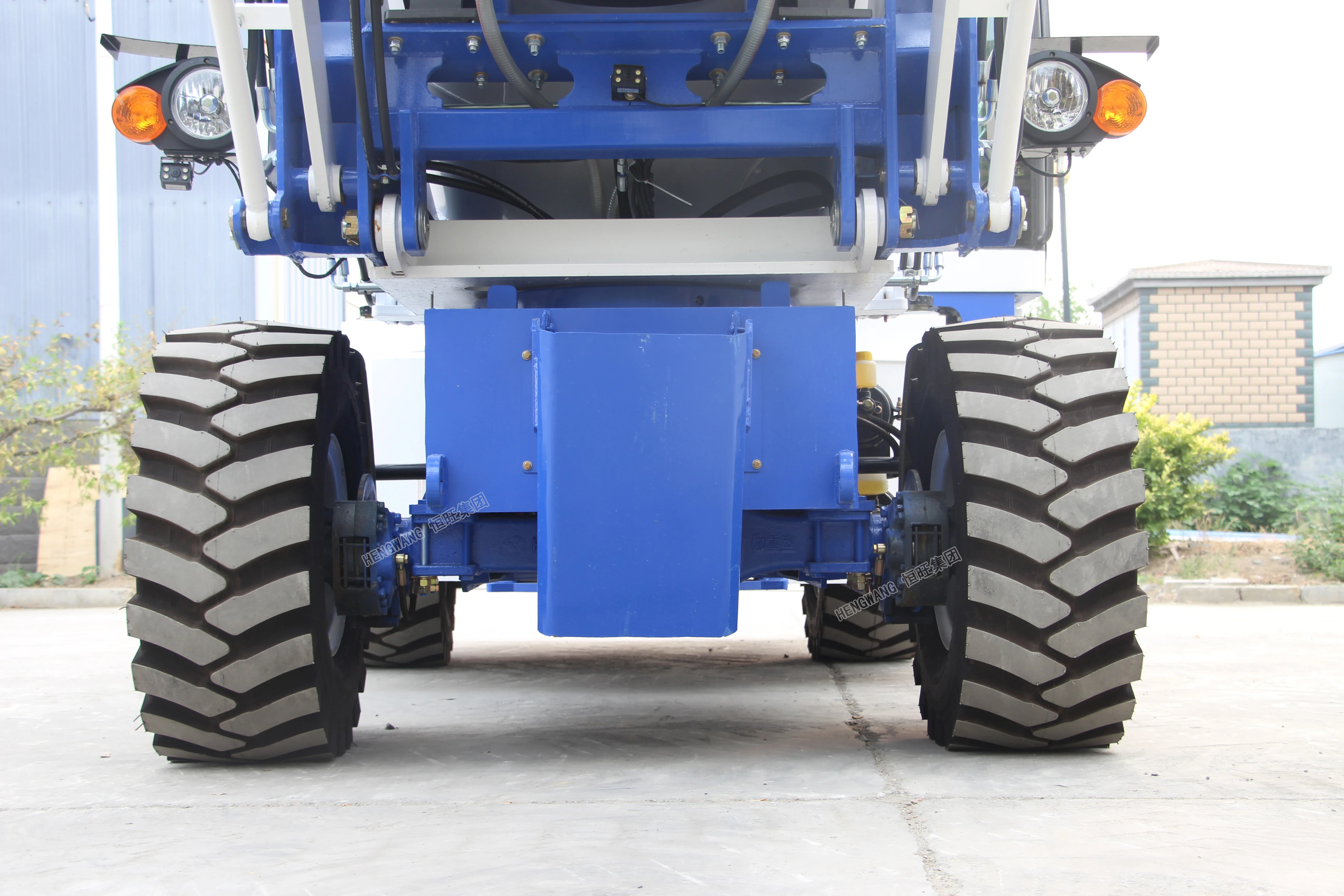

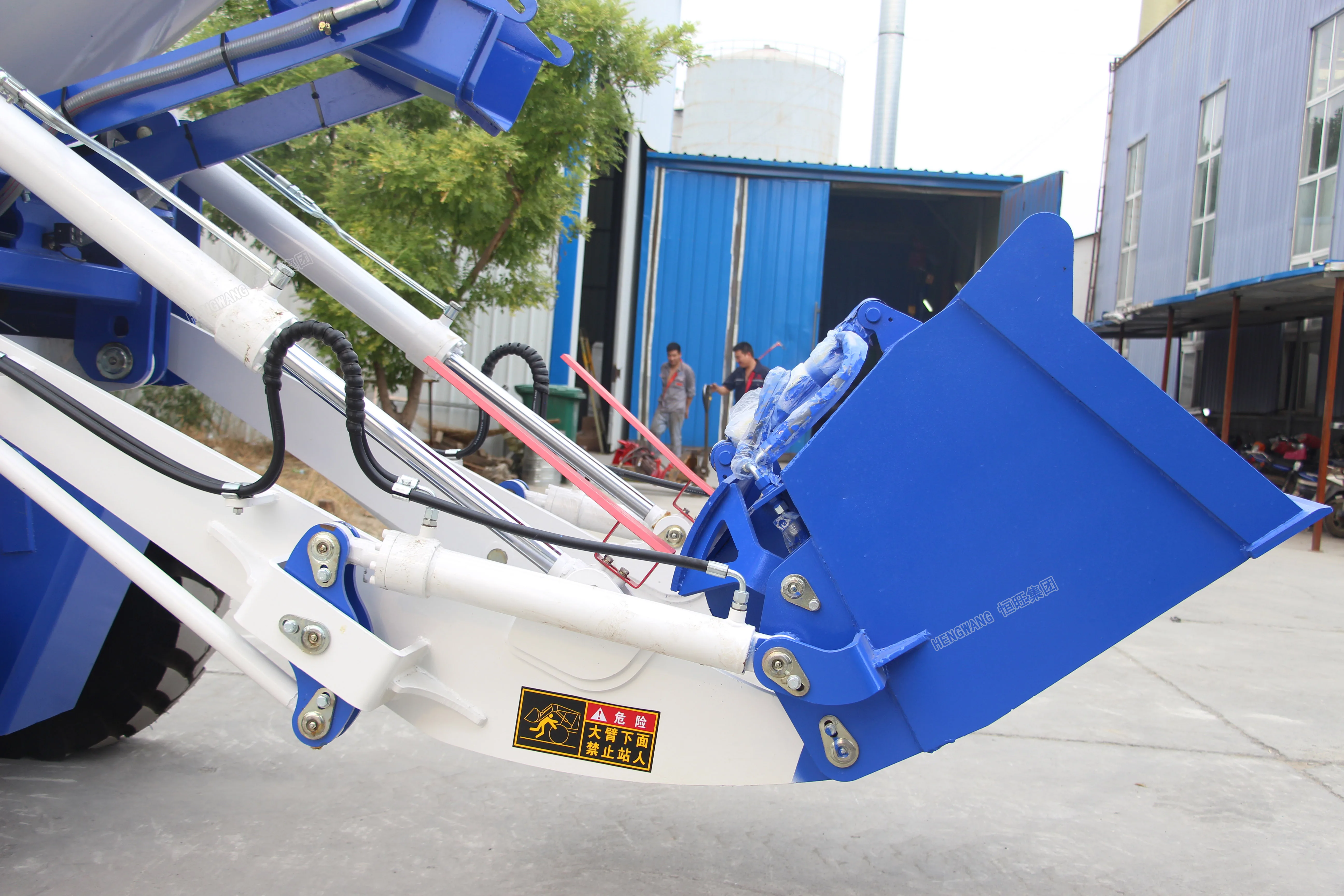

Detailed Images
Related Products
Packing&Shipping
After Sales Service
Technical Support
1. we machine warranty is ONE YEAR;
Company Introduction
FAQ
Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q8: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q9.Do you have any certificates for your machine?
Ans.: All of our products coming with the certificates of CE, ISO9001.
