Overview
Quick Details
- Charging Capacity:
- 2.4m3
- Reclaiming capacity:
- 2.3m3
- Mixing Power:
- 78KW/2400r/min
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Model Number:
- HW24
- Motor Power:
- 2.2kw
- Speed of Mixing Drum:
- 10-20r/min
- Water Supply Mode:
- Automatic automatic booking ofautomatic water supply mechanism.
- Working Cycle Period:
- 30-40s
- Discharge Way:
- anticlockwise
- Outline Dimension:
- 6350*2510*2850mm
- Product name:

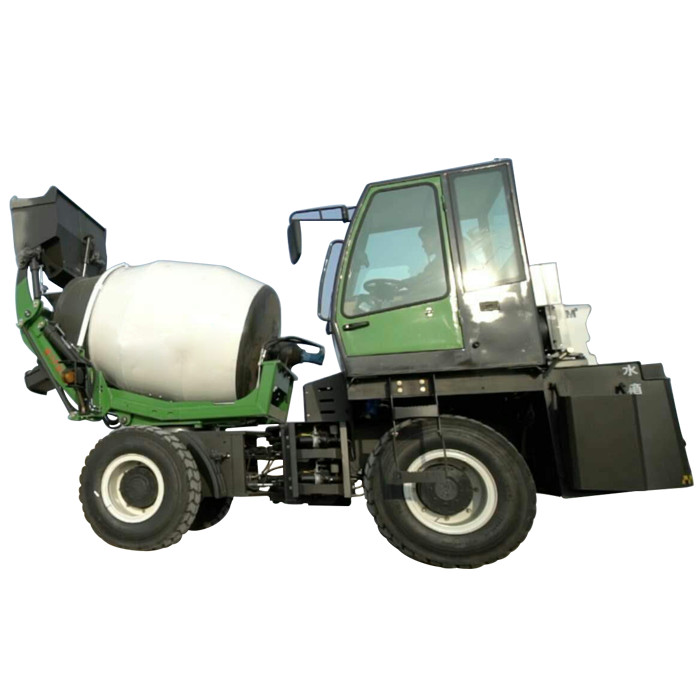

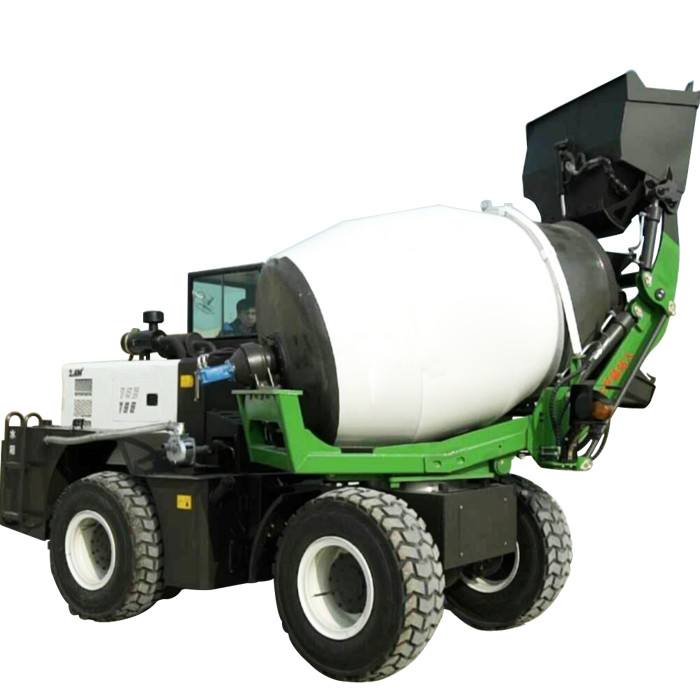

- Mini 2.4m3 concrete mixer truck for transfering mixed concrete
- Mixing drum blade:
- Two sets of spiral blades.andfour sets auxiliary blade
- Slump of concrete:
- 70-260mm
- Pump Model:
- CBGV-4025
- Motor Model:
- BM5-400
- water tank capacity:
- 540L
- engine model:
- CF4C100T-Z-13B2
- max.torque:
- 380/1500-1800N.m/r/min
- max.travelling speed:
- 24km/h
- minimum turning radius:
- 4500mm
- After-sales Service Provided:
- Engineers available to service machinery overseas
Supply Ability
- Supply Ability:
- 300 Set/Sets per Year
Packaging & Delivery
- Packaging Details
- 2units self loading concrete mixer/40HQ
- Port
- Qingdao or Shanghai port
