Four wheels small hydraulic excavator for sale
Mini hydraulic excavator is with compact design, and with low oil consumption, it is suitable to be used for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
Models
| Basic Parameter | ||
| Model | HW-75J | |
| Total operating weight | 6700kg | |
| Volum of bucket | 0.28M3 | |
| Overall length | 6000mm | |
| Overall width | 2150mm | |
| Upper structure width | 2000mm | |
| Overall height | 2729mm | |
| Boom length | 3450mm | |
| Arm length | 1850mm | |
| Ground clear ance | 929mm | |
| Rear-end swing radius | 1904mm | |
| Min.ground clearance | 220mm | |
| Type gauge | 1670mm | |
| Power and speed | 55KW , 2400R/M | |
| Operating scope | ||
| Max.digging reach | 6404mm | |
| Max.digging depth | 3760mm | |
| Max.digging height | 7033mm | |
| Min swing radius | 2138mm | |
| Power system | ||
| Engine | diesel engine , 55KW ,2400RPM | |
| Max.torque | 287N.M | |
| Hydraulic system | ||
| Hydraulic pump | gear pump | |
| Hydraulic oil tank | 110L | |
| Fuel tank | 130L | |
| Operating system | ||
| Swing speed | 12rpm | |
| Travel speed | 35KM/H | |
| Bucket digging force | 44KN | |
| Arm digging force | 35KN | |
| Gradeability | 35° | |
Features:
1. Adopt double pump double valve configuration, performance improvement, compound coherent action
2.360-degree rotation, cushioning device more gentle
3.Striped rubber track climbing ability
4.Easy to use

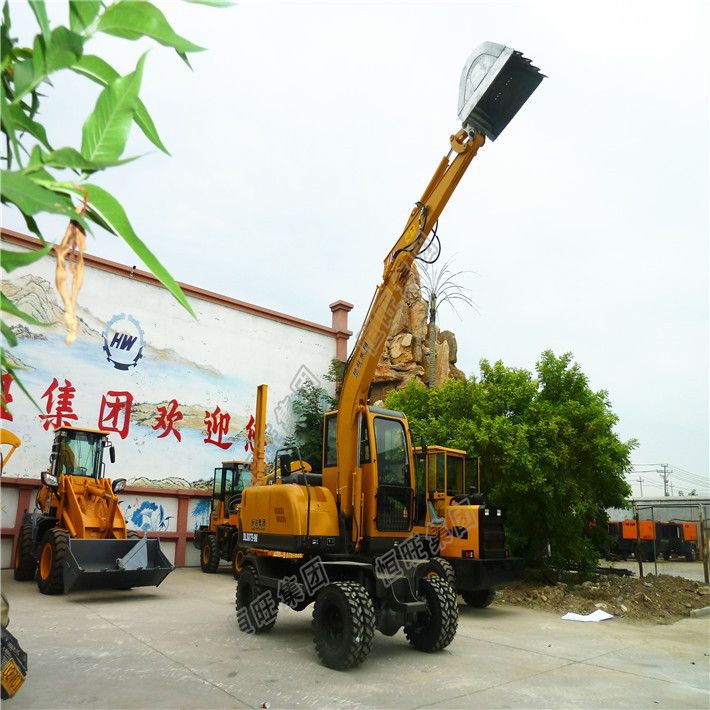

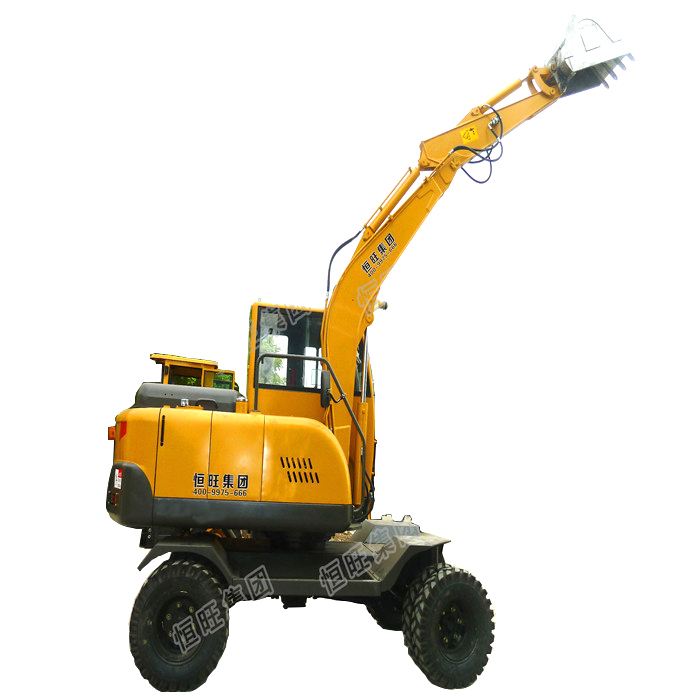

Photos :
