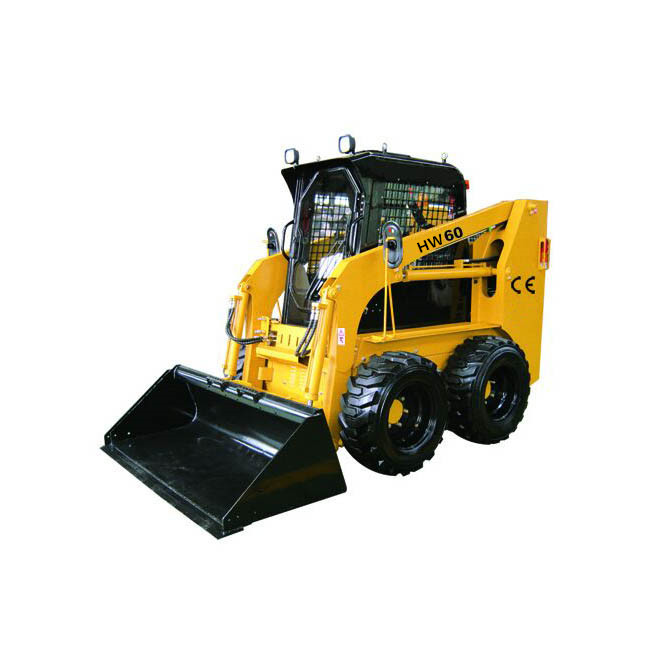

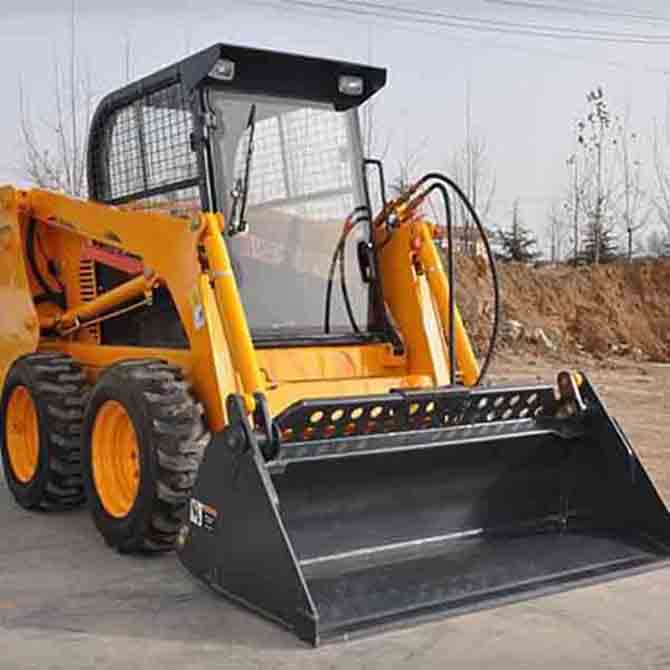

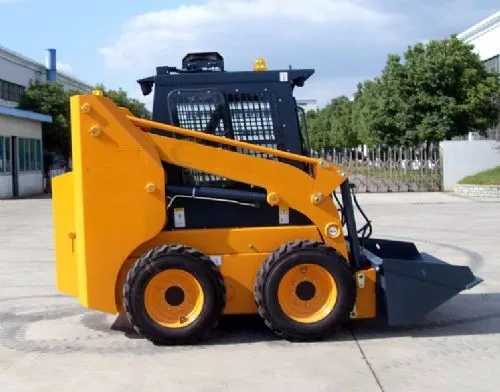

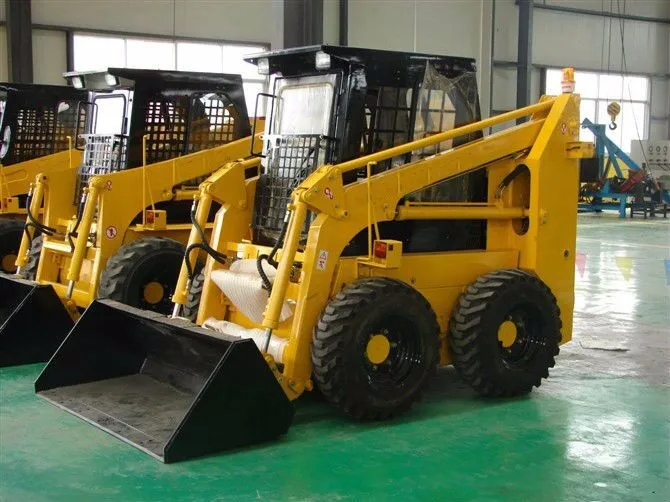

High capacity Mini skid steer loader with China factory
Click on the image to view the original image
Product: views:2High capacity Mini skid steer loader with China factory
Branch: HW
Type: Skid Steer Loader
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 05:43
  Negotiated
Product Details
Overview
Quick Details
Dimension(Long * Breadth * High):
3490*1820*2150mm
Condition:
New
Brand Name:
HW
Place of Origin:
Shandong, China
Type:
Skid Steer Loader
Moving Type:
Wheel Loader
Rated Load:
850kg
Certification:
CE ISO
Model Number:
HW-60
Moving type:
wheel loader
Tipping load:
1700kg
Bucket capacity:
0.45-0.5m3
Operating weight:
3300kg
Max.travel speed:
12km/h
Fuel tank capacity:
90L
Tires:
12/16.5NHS
Dumping height:
2400mm
Ground clearance:
200mm
Wheelbase:
1085mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export package or as your requirement ,for New Mini loader machine
Port
Qingdao Dalian Shanghai Tianjin
Video Description
Product Description

The loader machine adopts the complete machine is rationally distributed and compact; it is comfortable and convenient to handle,the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy,the forest farm, the military project, and so on.

It also can be used in carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise.

Match with high quality engine, low, low blow off of noise, driving force forceful, twist from when reserve is big. The driving force loader special use fixing an axis changes the gear speed change box, structure is compact, drive is efficient, structure stiffness is big, life-span is long.

The dyadic center equidistance hinge joint fleet of carriage, makes turn the radius is small, the expedient function is good.The drive’s cab, wide vision, air-conditioning, operation environment sealing off subtraction vibrating, allocating are comfortable, safe. Various machines and tools such as may select and use for –in-one bucket, breaking a hammer to pieces, the function are especially all in readiness.

SPECIFICATIONS FOR  SKID STEER LOADER
Model
HW-60
Overall dimensions(mm)
3350×1720×2050
Rated operating capacity
700kg
Height at maximumextension(mm)
3980
Tipping  load
1400kg
Height to bucket hinge pin(mm)
3080
Bucket capacity
0.4-0.5m3
Width with bucket(mm)
1730
Operating weight
3000kg
Track width(mm)
1450
Max.travel speed
12km/h
Wheelbase(mm)
991
Hydraulic pump flow
75L/min
Ground clearance(mm)
180
Fuel tank capacity
70L
Dump angle
30°
Tires
10/16.5NHS
Dumping height(mm)
2380
Rollback at ground
26°
Angle of departure
20°
Maker/Model
xinchai490
Net power
51hp/2500rpm
Type
4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement(L)
2.7
