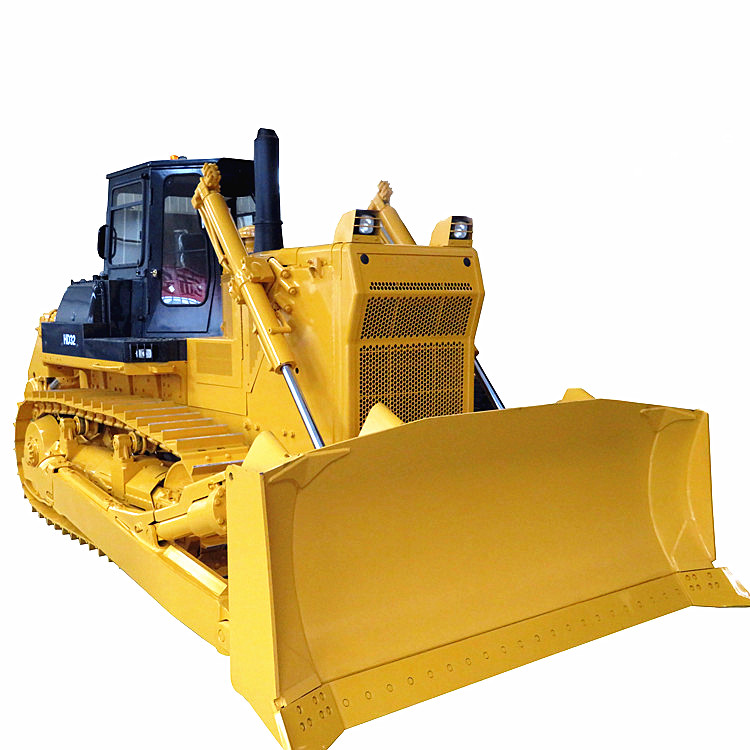

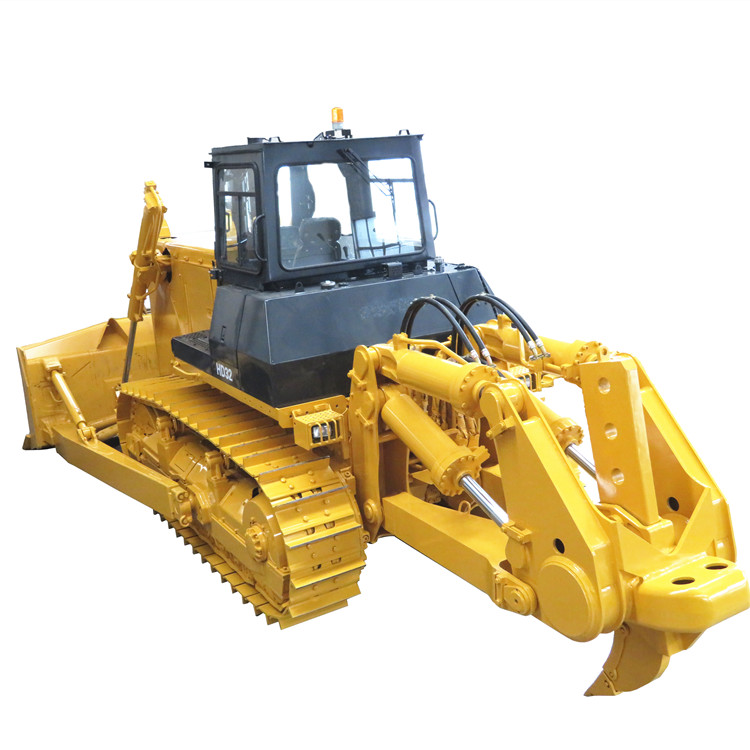

HD32 Heavy machinery 37ton crawler bulldozer for sale,
PRODUCT DESCRIPTION
HD32 hydraulic series bulldozer, with high technology content, strong power, high efficiency, easy maintenance and
other characteristic, can adapt for severe working conditions,such as highway, railway, mining, airport construction.
1.Cummins engine,features the advantages of robust power, easy maintenance, and high combustion
efficiency.closed cooling system, forced air supply to enhance the cooling effect.
2.The gear box is of the planetary gears type, by operating hydraulic control valve for traveling forward and backward.
It features planetary gears, multi-disc clutch, hydraulically applied forced lubrication, 3 speeds forward and backwards.
transmission power and high productivity. 3 elements, single stage and single phase torque convertor features high
efficiency and capacity.
3.The rear axle adopts robot welding and numerical control machining technology to ensure the welding strength and sealing
4.The swing type balance beam suspension structure with splayed beam is connected with the frame and traveling
system to transmit the working load and impact load to the main frame during working, which effectively improves the
stability of bulldozers.
5.Hydraulic power steering, which adopts wet, multi-leaf spring compression, hydraulic separation structure, steering
brake adopts hydraulic power, for wet, floating belt type.
6.The electrical system adopts the water-proof type connector and the new type relay injection molding instrument to
guarantee the reliability of the electrical system.
TECHNOLOGY PARAMETER
| Items | HD32 |
| Type | 160HP Hydraulic standard |
| Engine model | Cummins |
| Displacement | 14.01 L |
| Rated power | 235/2000 kw/rpm |
| Max.torque | 1440/1400N.m/rpm |
| Operating weight | 37200 Kg |
| Dimension(no ripper) | 6885×4128×3645mm |
| Min ground clearance | 500 mm |
| Ground pressure | 0.105/0.09/0.078MPa |
| Track gauge | 2140 mm |
| Dozing capacity | 10m³ |
| Blade width | 4130 mm |
| Blade height | 1590 mm |
| Max drop below ground | 560 mm |
| Track shoe width | 560/660/760mm |
| Pitch | 228mm |
| Quantity of track link | 41 |
| Quantity of Carrier rollers | 4 |
| Quantity of Track rollers | 14 |
| Max pressure | 14 MPa |
| Discharge | 355 L/min |
| Max tractor force | 280KN |
| Grade ability | 30° |
| Forward | 3.6/6.6/11.5km/h |
| Reverse | 4.4/7.8/13.5km/h |

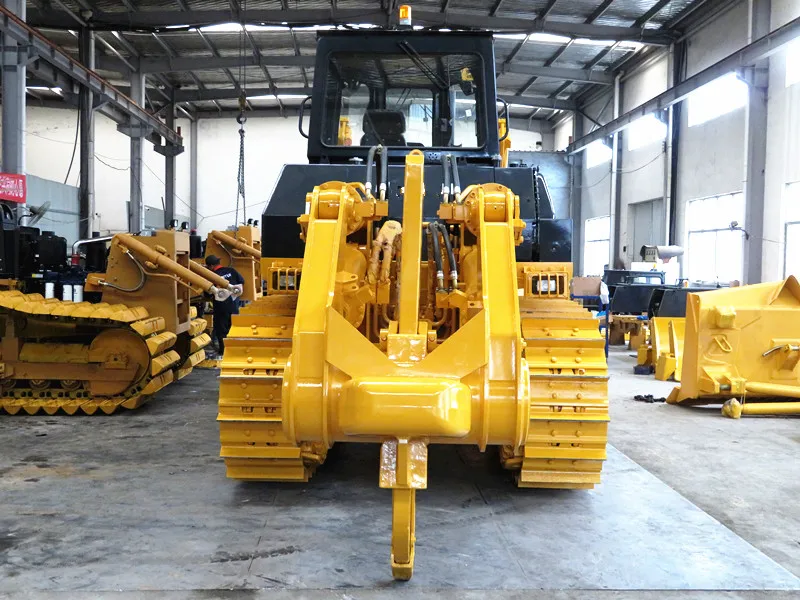

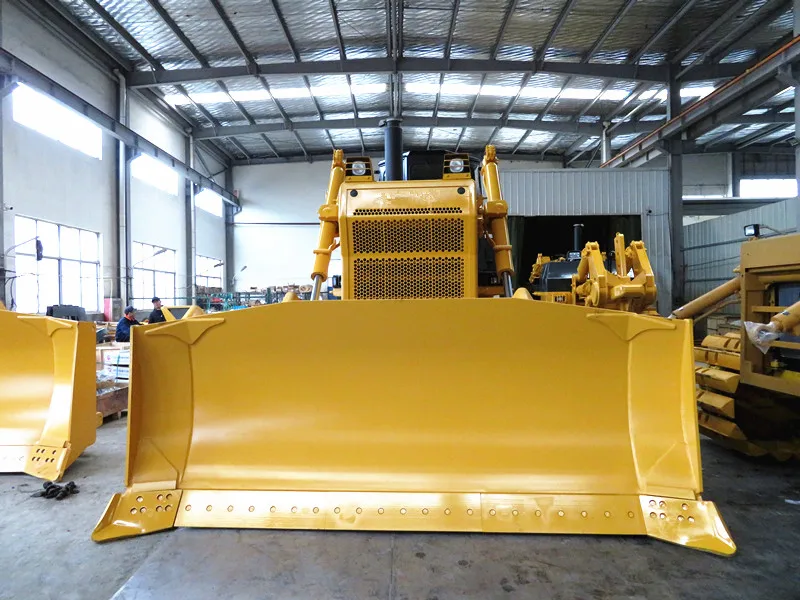

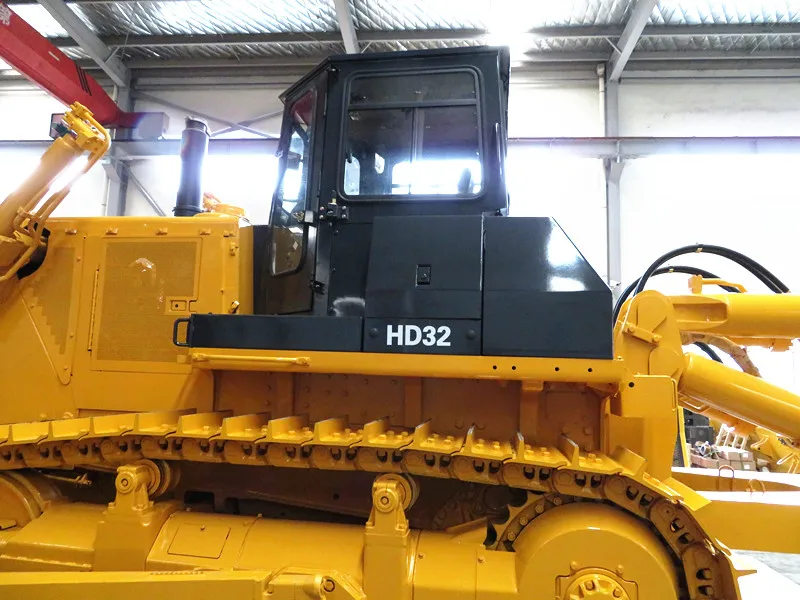

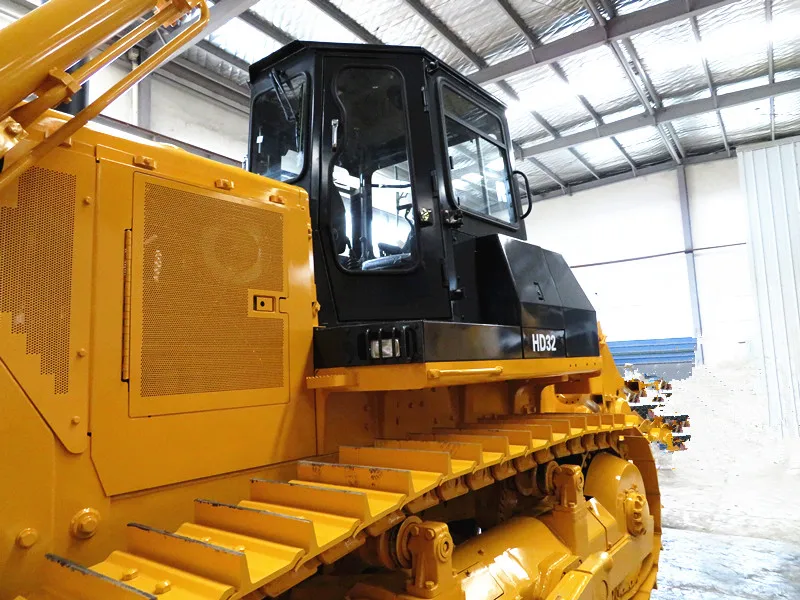

PRODUCT REAL PHOTOS
CONTACT US
OUR COMPANY
CERTIFICATE
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
