China supply 1.2M3 Diesel Self loading Concrete Mixer Small Concrete Mobile Truck for Sale

Click on the image to view the original image

Product：	views：3China supply 1.2M3 Diesel Self loading Concrete Mixer Small Concrete Mobile Truck for Sale
Branch：	HENGWANG
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:43

Product Details

Overview

Quick Details

Power(W):: 55KW

Weight:: 7380kg

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HENGWANG

Dimension(L*W*H):: 6100*1850*3000

Certification:: ISO

Product name:: self-unloading concrete mixer

Actual stirring capacity:: 1.8M3

Rotary drum capacity:: 1.6M3

degreeof bias:: 16°

Maximum load capacity:: 2800kg

Whole machinery weight:: 7380kg

Rated power:: 55KW/2400 78KW/2400

Maxrunning speed:: 24km/h

Keywords:: Concrete Mxier Truck

Supply Ability

Supply Ability:: 200 Set/Sets per Month self-unloading concrete mixer

Packaging & Delivery

Packaging Details: self-unloading concrete mixerpacking within container

Port: qingdao ,tianjin ,ningbo

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	7	To be negotiated

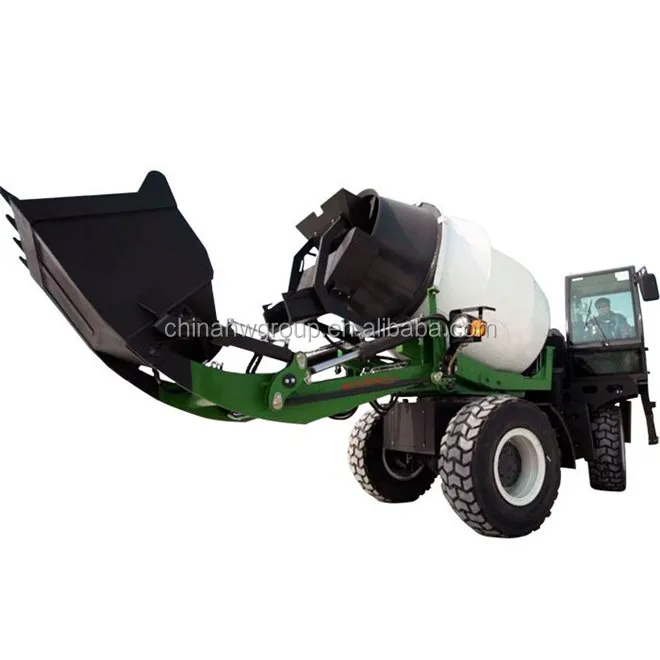

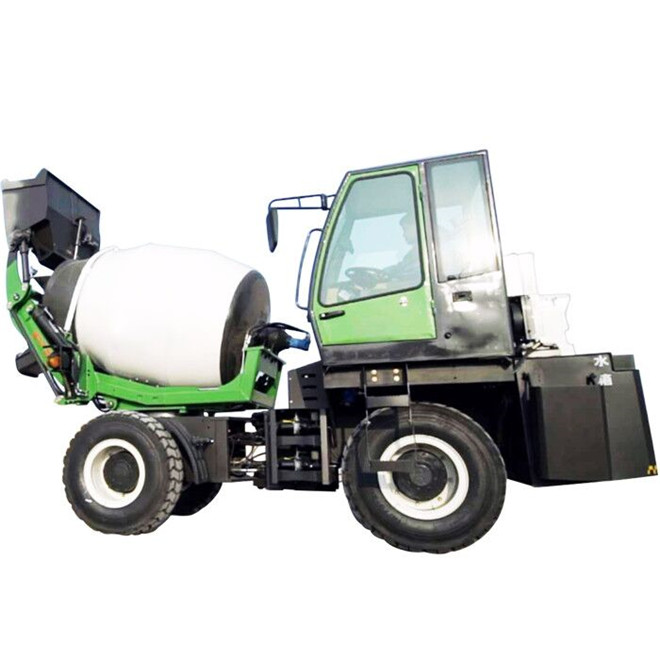

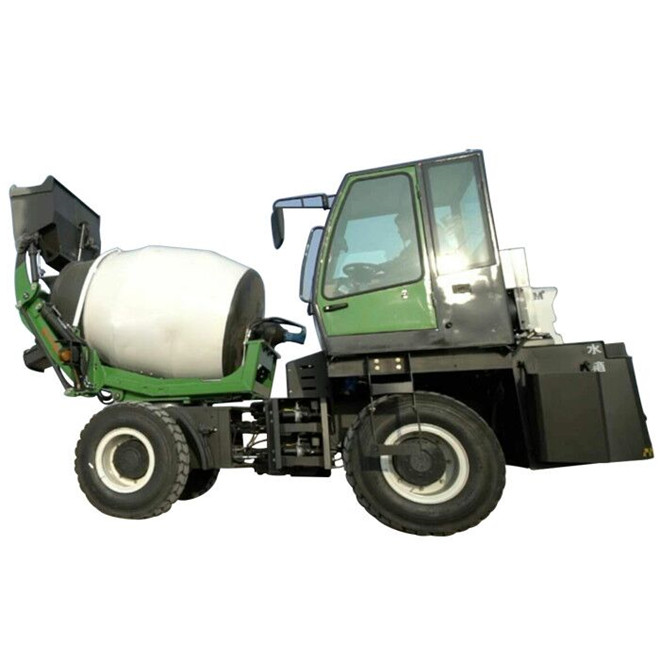

Self-unloading concrete mixer truck for sale

1). Using hydraulic transmission device, do not rely on external force, easy to use, continuous rotation of the tank during transport, commercial concrete does not precipitate, not segregation.
2). Easy to operate, a handle to achieve centralized control of mixing tank, the configuration mature and reliable, easy maintenance.
3). Low noise, no smoke, safe and reliable.
4). The use of high-intensity wear-resistant steel plate mixing tank, durable.

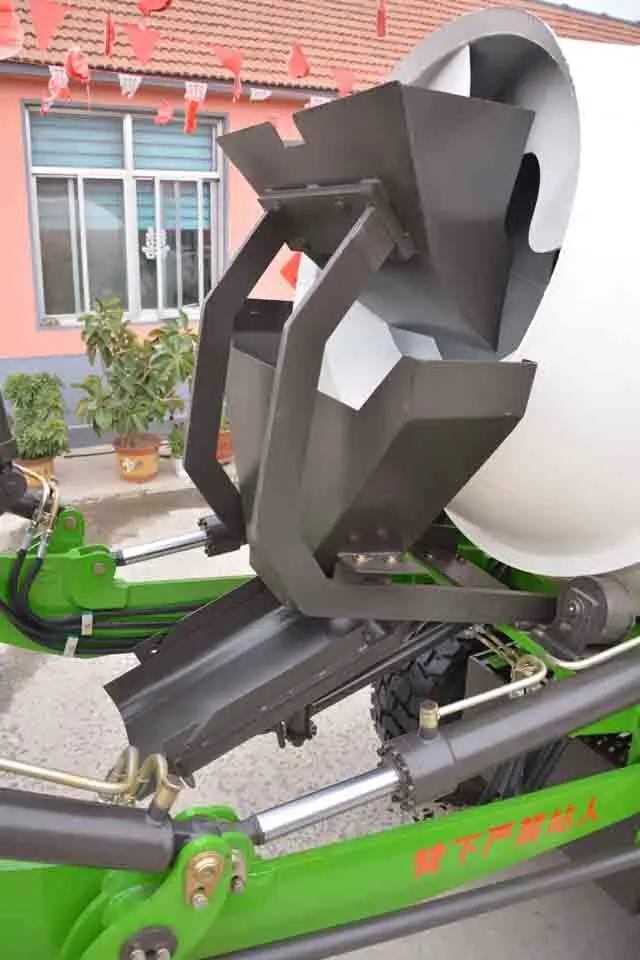

5). Unique inlet setting, easy to spread material.
6). Small size, transport flexibility, easy operation and maintenance, power consumption, energy-saving effect is remarkable.
7). Blade design is reasonable, the discharge residue rate is low

PHOTOS

Parameter :

Actual stirring capacity	m3	1.2
Rotary drum capacity	m3	1.4
degreeof bias	°	16
Rotation speed	r/min	0-14
Direction of rotation		Feed: Clockwise Outfeed: Counterclockwise
Mixer blade		Two spiral blades and four auxiliary blades
Concrete slump	mm	70-260
		hydraulic systerm
Oil pump model		CBGV-4025
Motor model		BMSS-250
Reducer speed ratio		1:10
		water supply system
Water tank capacity/water	L	540/Self-contained automatic water supply system
Chassis main performance parameters Engine main performance parameters
Engine model/displacement	L	CF4B68G-Z-13B2/CF4C100T-Z-13B2
form		Direct injection four-stroke water-cooled supercharged diesel engine
rated power	kw/r/min	55KW/2400 78KW/2400
Maximum torque	N.m/r/min	255/1500-1800 380/1500-1800
Maximum travel speed	km/h	24
Minimum turning radius	mm	5000
Gradeability	%	26
Tires		23.5/70-16
Drive form		4×4
Vehicle equipment quality	kg	4580
Maximum loading quality	kg	2800
The maximum total vehicle mass	kg	7380
Overall vehicle dimensions (length * width * height)	mm	610018503000
