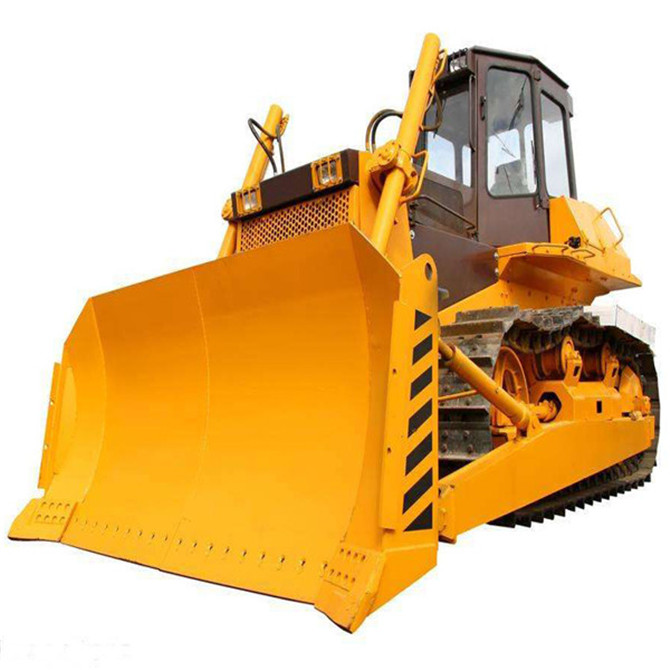

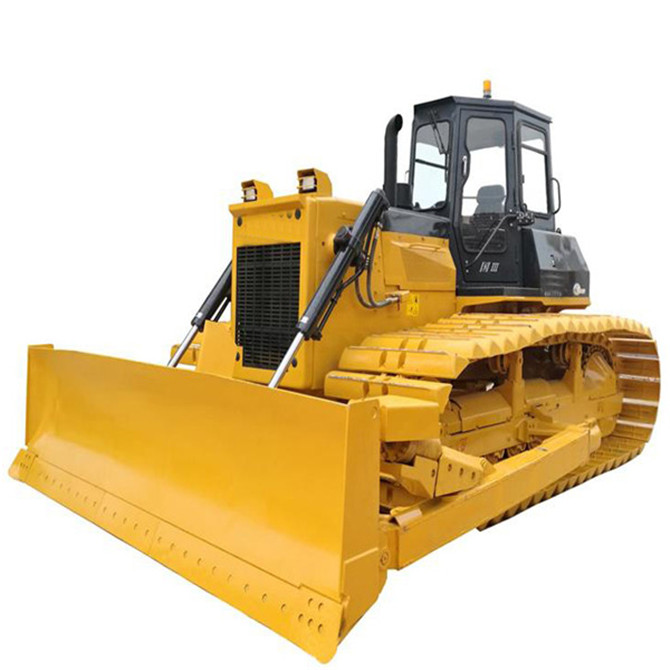

Cheap small crawler hydraulic bulldozer for sale
HW-16 super-wetland bulldozer is configured with Weichai engine,it is developed in response to the operation demands of swamp and wetland conditions, and the special design ensures higher operating efficiency.
Items | HD16 |
Main Specifications | |
Model | HD16 |
Type | 160HP Hydraulic standard |

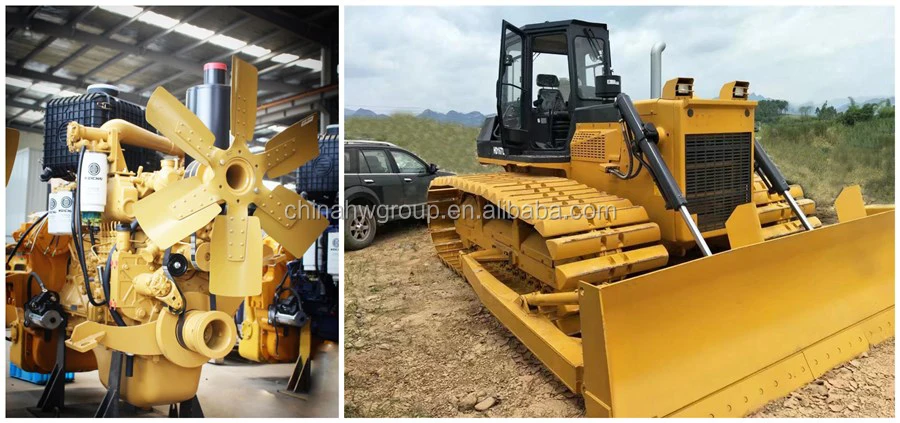

Engine model | Weichai WP10G178E355 |
Displacement | 9.726 L |
Rated power | 131/1850 kw/rpm |
Max.torque | 830/1000-1200 N.m/rpm |
Operating weight | 17000 Kg |
Dimension(no ripper) | |
Min ground clearance | 405 mm |
Ground pressure | 0.067 MPa |
Track gauge | 1880 mm |
Dozing capacity | 4.55 m³ |
Blade width | 3390 mm |
Blade height | 1150 mm |
Max drop below ground | 540 mm |
Track shoe width | 510 mm |
Pitch | 203.2 mm |
Quantity of track link | 37 |
Quantity of Carrier rollers | 4 |
Quantity of Track rollers | 12 |
Max pressure | 14 MPa |
Discharge | 213 L/min |
Max tractor force | 146 KN |
Grade ability | 30° |
Gear 1st speed | 3.29 km/h |
Max speed | |
Main clutch force | 145 N |
Steering clutch force | 80 N |
Mechnical transmission force | 112 N |
Hydraulic transmission force | 46 N |
