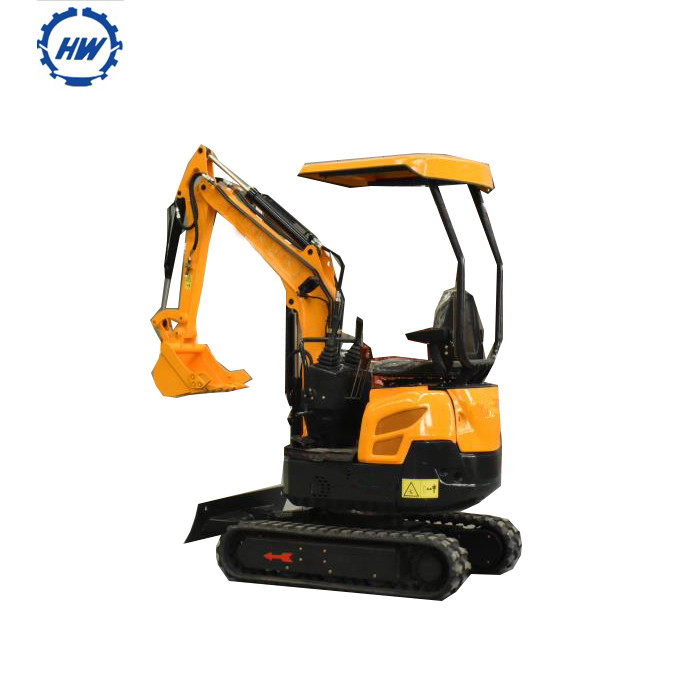

China 0.8 ton 1.5 ton 2 ton korean bucket mini excavator with cheap prices for sale
This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with brand engine and imported pump and valve,easy to maintain.
Mini crawler excavator 1.5t excavator | |
Model | HW16 |
Operating Weight | 1480kg |
Digging bucket capacity | 0.045cbm |
Bucket width | 400mm |
Engine | Yanmar 3TNV70 |
Rated power | 10kw/2200r/min |
Displacement | 0.854 L |
Max.torque | N.M/r/min |
Main pump | Gear pump |
rate of flow | 23.3L/Min |
Bucket digging force | 10.5kn |
working pressure | 16MPA |
Travel speed | 1.5km/h |
Overall dimension( LxWxH) | 3160x1040x2377 mm |
Wheelbase | 1130 mm |
Total length of track | 1450mm |
Platform ground clearance | 437 mm |
Platform back turning radius | 740 mm |
Chassis width | 1040 mm |
Track width | 230 mm |
fuel tank capacity | 16.4L |
Track height | 320 mm |
Max. Digging depth | 2150 mm |
Max. Vertical digging depth | 1740 mm |
Shandong Hengwang Group Co., Ltd. is specialized in excavator production for more than 6 years, the scale of nearly one million square meters, There are seven subsidiaries under the group company,more than 500 employees,and more than 80 engineering and technical personnels.
It is a collection of scientific research, manufacturing, sales and service in one of the professional excavator manufacturers.The scale is nearly 1000000 square meters.The organization are the seven departments and one center.we have got TUV granted by Alibaba (Certificate No. 16755502 P+T).
5.Upmarket configuration: the main pump, main valve, rotary motor, walking motor, cylinder, pilot control valve and other components are all internationally renowned brands, to ensure the quality of the product.
6.Adopt the latest research to reduce energy consumption.Improve design to respond faster.By improving the torque reserve, the machine provides more powerful slewing ability.
7.Cylinder with buffer function: boom cylinder and bucket cylinder, bucket cylinder designed buffer, can reduce the vibration and impact of the machine, reduce noise and extend the life of the cylinder.
8.Double pump confluence technology: increase the main valve to provide the boom, bucket, bucket flow of each cylinder, improve the operation speed.
9.The improved design of the cross section shape of the crawler frame reduces the soil accumulation, makes the carrier sprocket more difficult to wear, and improves the durability of the machine.
10.The important hinge part of the bucket is made of forging structure, which can reduce the stress and improve the durability by changing the shape and the thickness of the plate.
11.The boom is welded integrally, and finally, the boring of the boring machine is processed, and the firmness of the arm is greatly strengthened, and the service life of the pin and the sleeve is prolonged, so as to avoid the welding break at the welding place and to be durable.
12.Bucket cutting plate adopts special wear-resistant steel plate, suitable for heavy duty operation requirements, with wear-resistant bucket teeth, side teeth, improve the performance of the machine.
13.Use thicker steel plate and increase side strengthening plate to improve wear resistance
14.The trimming surface is neat and flat when the flat bucket is used for leveling operation.
Our products are exported to Southeast Asia, North America, Arabia, the Middle East and so on. The company often organizes to participate in the domestic and foreign exhibitions.We also welcome domestic and foreign customers to visit Our factory.
FAQ
Q: How can I trust you, and what can you offer me?
A: In this case, we would like to invite you over to visit our factory.If neceassary we can go to your country for a face to face negotiation. Our ultimate goal is to establish a long term cooperations in the trade of machinery products, but if you like a quick deal is also acceptable. We will do our best to reach your target price.
Q: How about your product quality?
A: All our products are from the original manufacturers and the quality is 100% guaranteed.
Q: Can you supply the spare parts or the loader attachment?
A: Yes, we can. Any of the machine part and attachment can be provided, and all of them are directly from factory.
Q: How about your warranty item?
A: We can support email or telephone assistance in the following days. If necessary, our experienced engineer can go abroad to your place for technical support.
Q:Can I be your agent in my country ?
A: It"s OK if the order quantity is appropriate. We supply excavators to many domestic and foreign trade company. We looks forward to long-term cooperation.
