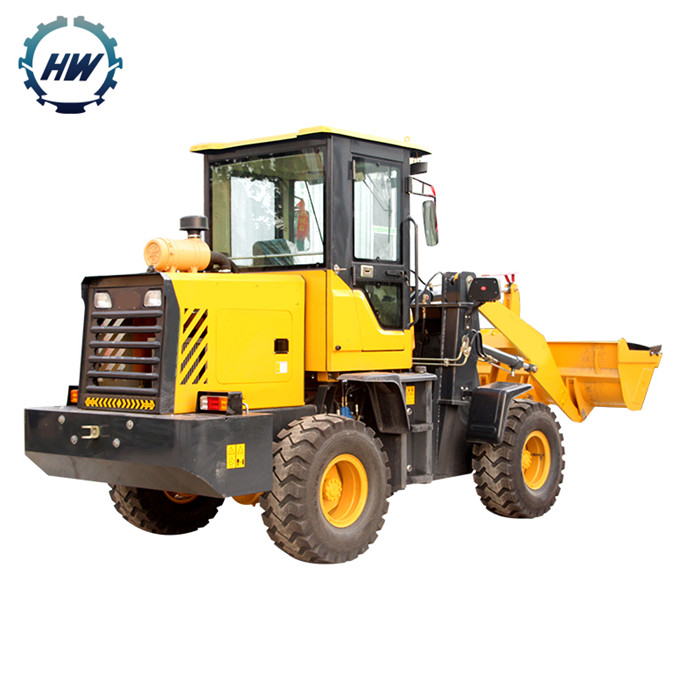

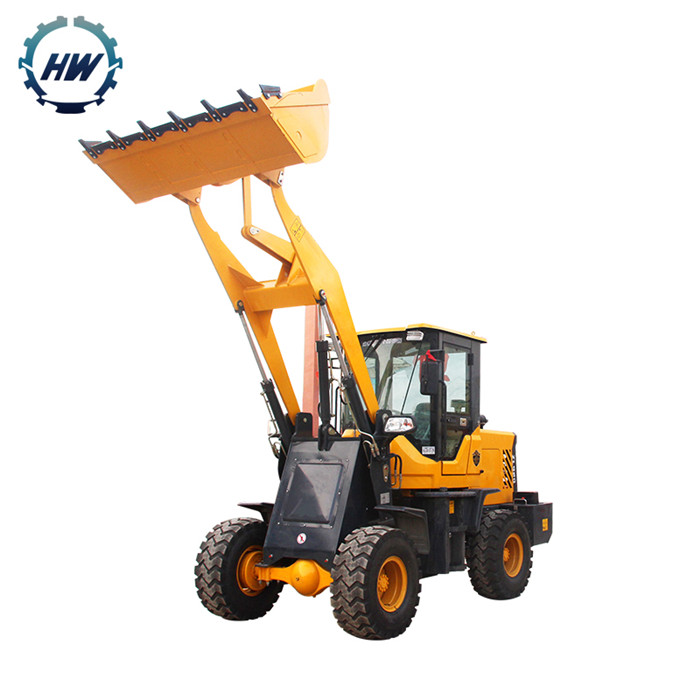

Low price electric mini wheel loader 912 with 800kg with CE
1.Excavation power is great ,auto lay down to save the time for working device action and improve the whole machine operation efficiency.
2.the head be designed as tiger.
wheel loader | |
Model | HW912 |
Rated capacity | 0.55 m³ |
Rated load | 800kg |
Transportation | 4540*1650*2580mm |
Dump height | 2900MM |
Dump distance | 750mm |
Wheel base | 2000mm |
Tread | 1440mm |
Max. breakout force | 36 KN |
Total time | 12s |
Operating weight | 2600kg |
Engine | |
Model | L28M |
Pattern | Inline, water-cooled, 4-stroke, direct injection |
Rated power/Speed | 20KW/2300 rpm |
Torque converter and transmission system | |
Pattern | 3-element single stage |
Transmission type | Full-power shift, countershaft type |
Number of gear | 2 forward, 2 reverse 2 |
Max. travel speed | 24km/h |
Axle | Hualu |
Main reducer pattern | Arc taper gear, model ration of first grade |
Pattern of wheelside moderation | Planet gear moderation of single |
Tire | |
Tire size | 16/70-24 |
Steering system | |
Pattern | Articulated and hydraulic steering |
Min. turning radius(outside of bucket) | 4400mm |
Max. turning angle | 35°±1 |
Implement hydraulic system | |
Implement pump | CBG2063 |
System working pressure | 16MPa |
Brake system | |
Brake type | Air assisted oil disc on four wheel |
Parking brake type | Soft axle control, outside bunch drum type |
1. Executive standard: customer"s requirements. Above information serves as a reference only, we can change the parameters reasonably according to your request.
2. Optional parts: snow plow, pallet fork, gripper, rock/coal bucket, portal frame, side dump bucket, clamp bucket, light material bucket, joystick, air condition, back up camera etc.
3. Warranty: 12 months after delivery, necessary spare parts presented free. After warranty, we can always provide spare parts according to customer"s wishes.
Shandong Hengwang Group Co., Ltd. is located at the Jining city,Shandong province with conveniently transportation and situation. As a specialized manufacturer and exporter for loaders in China, we sincerely hope to establish business relationship with your esteemed corporation. Our loaders have been exported to many countries, such as India, Iran, Indonesia, Africa etc.
We choose most durable engine made in China and import main parts such as pumps, oil pipes from Korea and Japan. With Japan and Korea hydraulic technology, we will provide more cost-effective products as well as more perfect and faster service. In addition, we have got TUV granted by Alibaba (Certificate No. 16755502 P+T). Our pursuit is "Quality First, Reputation First". We always believe that results in excellence, entrust roots in quality. We have excellent after-sales service. So please give us a chance and look at what can we do for you in future.
