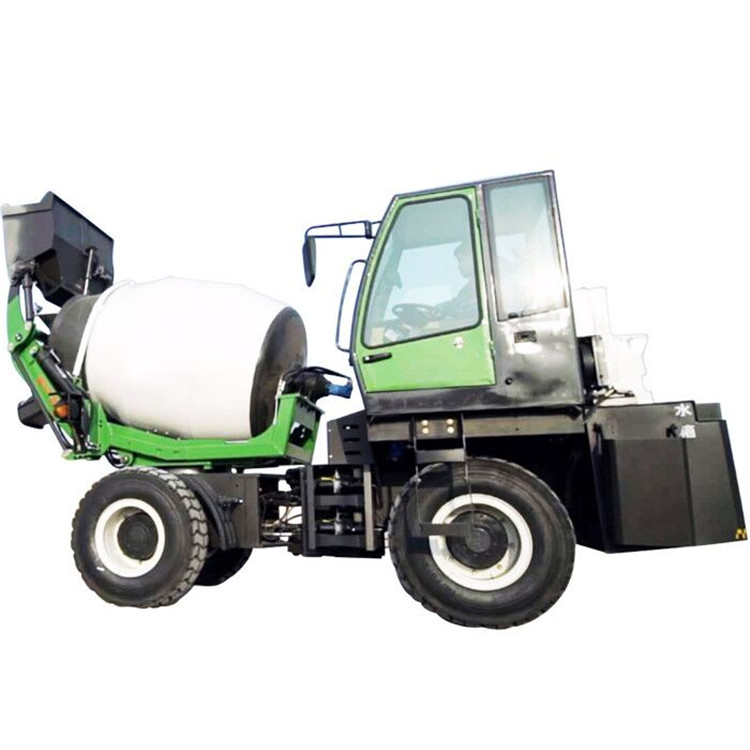

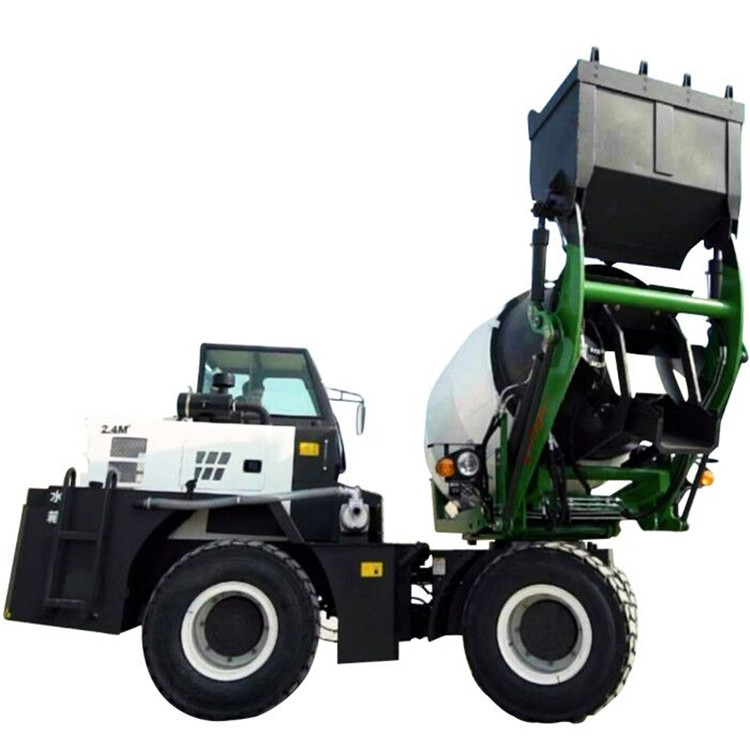

Concrete mixer truck 1.2 cub automatic mixers truck

Click on the image to view the original image

Product：	views：3Concrete mixer truck 1.2 cub automatic mixers truck
Branch：	HW
Size：	610X185X300 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:43

Product Details

Overview

Quick Details

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

Italy leading design,automatic feeding mixing system

Simple and convenient operation

High efficiency output, save time and labor, save cost
The perfect combination of mixing truck and loading car

Specifications
Actual stirring capacity	1.2m³
Rotary drum capacity	1.4m³
Degree of bias	16°
Rotational speed	0-14r/min
Direction of rotation	Feed:clockwise output:counter clockwise
Mixing drum blade	Two sets of spiral and four sets of auxiliary blades
Slump of concrete	70-260mm
Hydraulic Power Transmission System
Pump model	CBGV-4025
Hydraulic motor model	BMSS-250
Reducer ratio	01:10
Water Supply
Tank capacity/water supply form	540/automatic timing water supply mechanism with automatic timing
The main performance parameters of the chassis and the main performance parameters of the engine
Engine type/displacement	CF4B68G-Z-13B2/CF4C100T-Z-13B2
Model	Straight injection type four stroke water cooled supercharged diesel engine
Max torque	255/1500-1800 380/1500-1800 N.m/r/min
Rated power	55kw/2400 78kw/2400 kw/r/min
Max running speed	24kw/h
Min steering radius	5000mm
Climbing capacity	26
Tire	23.5/70-16
Driving way	4*4
Weight	4580kg
Maximum load capacity	2800kg
Whole machinery weight	7380kg
Overall size	610018503000mm(LWH)
