Home > Products > Concrete mixer price 1.2m3 automatic mixers truck

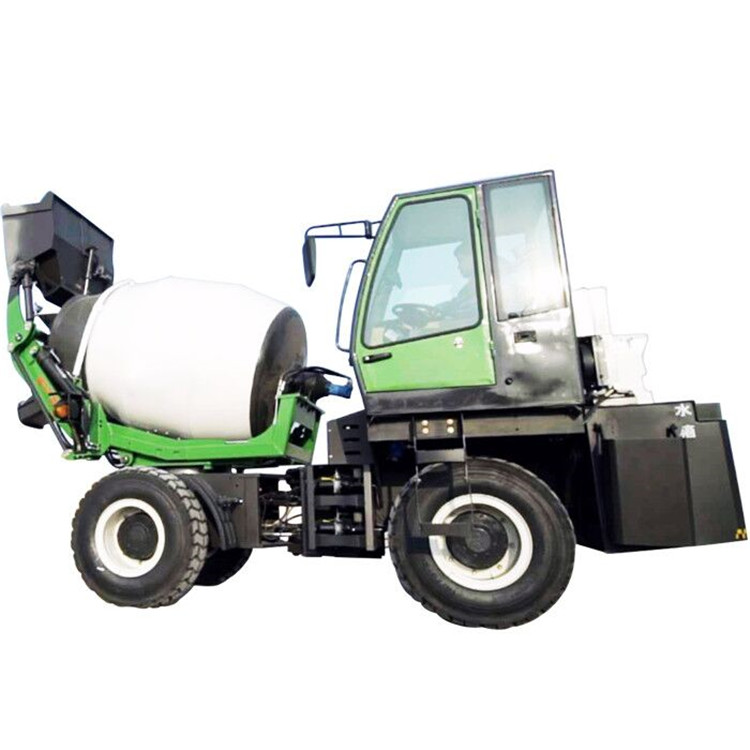

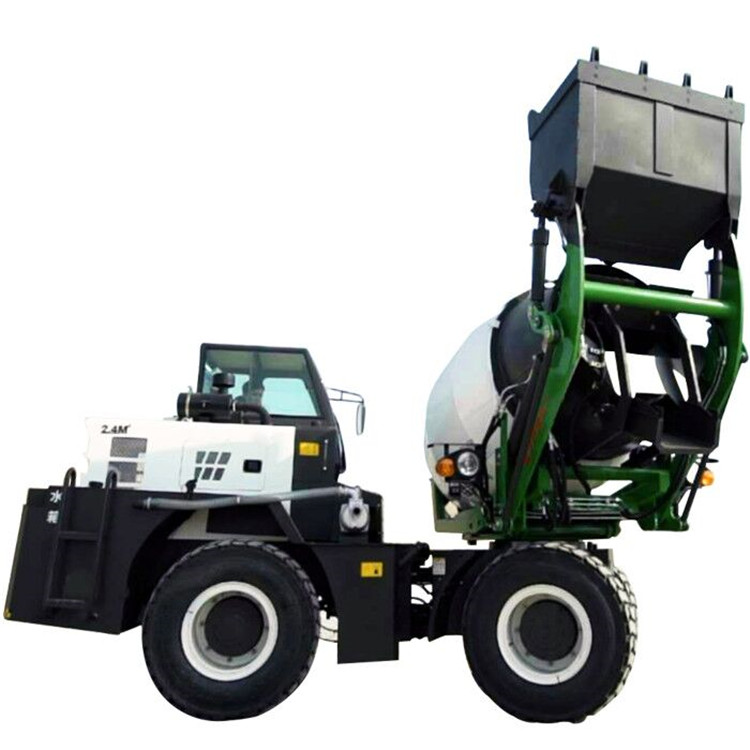

Concrete mixer price 1.2m3 automatic mixers truck
Click on the image to view the original image
Product： views：3Concrete mixer price 1.2m3 automatic mixers truck
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:43
  Negotiated
Product Details
Overview
Quick Details
Power(W):
78kw
Weight:
4580kg
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Free spare parts
Applicable Industries:
Construction works
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Dimension(L*W*H):
6100*1850*3000mm
Certification:
ISO
UNIQUE SELLING POINT:
Fully hydraulic system
Product name:
automatic feeding mixers truck, Super quality mixers,
Engine:
CF4B68G-Z-13B2
Pump model:
CBGV-4025
Actul stirring capacity:
1.2m3
Max torque:
380/1500-1800N.m/r/min
Max running speed:
24km/h
Max load capacity:
2800kg
Whole machinery weight:
7380kg
Rotational speed:
0-14r/min
Slump of concrete:
70-260mm
Supply Ability
Supply Ability:
500 Set/Sets per Month Concrete mixer price 1.2m3 automatic mixers truck
Packaging & Delivery
Packaging Details
FCL for Concrete mixer price 1.2m3 automatic mixers truck
Port
Qindao
Product Description
Concrete mixer price 1.2m3 automatic mixers truck adopts Italy leading design,automatic feeding mixing system

Simple and convenient operation

High efficiency output, save time and labor, save cost
The perfect combination of mixing truck and loading car

Specifications
Actual stirring capacity
1.2m³
Rotary drum capacity
1.4m³
Degree of bias
16°
Rotational speed
0-14r/min
Direction of rotation
Feed:clockwise output:counter clockwise
Mixing drum blade
Two sets of spiral and four sets of auxiliary blades
Slump of concrete
70-260mm
Hydraulic Power Transmission System
Pump model
CBGV-4025
Hydraulic motor model
BMSS-250
Reducer ratio
01:10
Water Supply
Tank capacity/water supply form
540/automatic timing water supply mechanism with automatic timing
The main performance parameters of the chassis and the main performance parameters of the engine
Engine type/displacement
CF4B68G-Z-13B2/CF4C100T-Z-13B2
Model
Straight injection type four stroke water cooled supercharged diesel engine
Max torque
255/1500-1800 380/1500-1800 N.m/r/min
Rated power
55kw/2400 78kw/2400 kw/r/min
Max running speed
24kw/h
Min steering radius
5000mm
Climbing capacity
26
Tire
23.5/70-16
Driving way
4*4
Weight
4580kg
Maximum load capacity
2800kg
Whole machinery weight
7380kg
Overall size
6100*1850*3000mm(L*W*H)
Detailed Images
Certifications
Our Company
Packing & Delivery

Packing in fumigation-free wooden case or as your request
